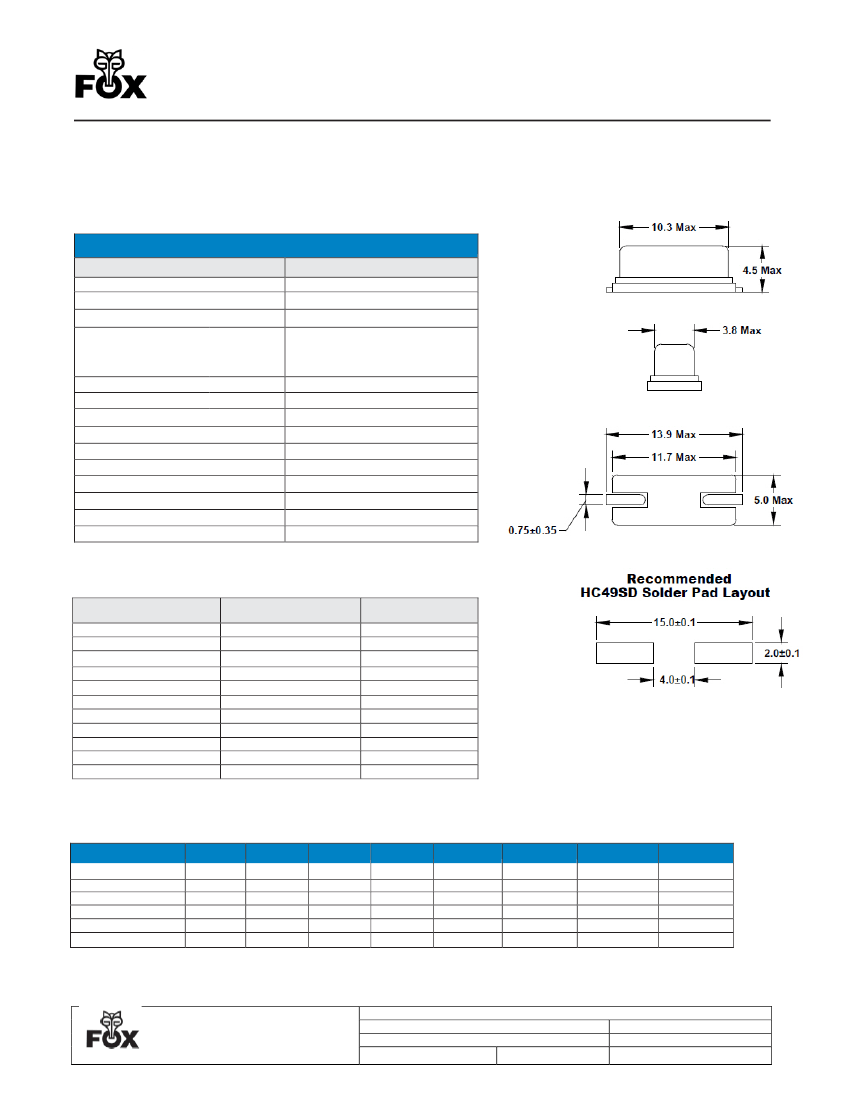

13.9x5mm SMD Crystal
•
•
•
(former HC49SDLF)
C4SD
DATASHEET
Tolerances down to 10ppm
Stabilities down to 5ppm
Temperature Ranges as wide as -55ºC
to +125ºC
• SPECIFICATIONS
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish:
Seal Method
Lead (Pb) Free
RoHS Compliant
MAX
(unless otherwise noted)
3.200 ~ 80.000 MHz
(see options on page 2)
(see options below)
(see options below)
-55ºC ~ +125ºC
7pF
(see options on page 2)
0.5 mW (0.1 mW Typical)
±3 PPM
260ºC / 10 Seconds
1
Sn/3.0Ag/0.5Cu
Resistance Weld
Yes
No Exemptions
Crystal has a ±30ppm tolerance specification for all standard part numbers.
Frequency Range (MHz)
3.200 ~ 3.500
>3.500 ~ 4.000
>4.000 ~ 5.000
>5.000 ~ 6.000
>6.000 ~ 7.000
>7.000 ~ 9.000
>9.000 ~ 13.000
>13.000 ~ 20.000
>20.000 ~ 40.000
24.000 ~ 70.000
>70.000 ~ 80.000
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd OT
3rd OT
Max ESR
Ω
300
200
150
120
100
80
60
40
30
100
70
Dimensions are in millimeters.
Note: Dimensional drawing is for reference to critical specifications
defined by size measurements. Certain non-critical visual
attributes, such as side castellations, etc. may vary.
•Available
Operating Temperatures and Stabilities*
Stability Temperature
-10 to +60ºC
-20 to +70ºC
-40 to +85ºC
-40 to +105ºC
-40 to +125ºC
-55 to +125ºC
±5 PPM
O
∆
X
X
X
X
±10 PPM
O
O
X
X
X
X
±15 PPM
O
O
O
X
X
X
±20 PPM
O
O
O
X
X
X
±25 PPM
O
O
O
X
X
X
±30 PPM
O
O
O
∆
X
X
±50 PPM
O
O
O
O
∆
∆
±100 PPM
O
O
O
O
O
O
Key: O=Available, X=Not Available, ∆=Consult Fox Technical Support
* Does Not imply a stocked part
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
C4SD SERIES STANDARD SPECIFICATIONS
Drawing Number:
100954
Size: A
Part Number:
Cage:
61429
Draftsperson:
CMR
Approved:
RB
Revision Date:
08/23/2017
Page
1
of
4
13.9x5mm SMD Crystal
(former HC49SDLF)
C4SD
DATASHEET

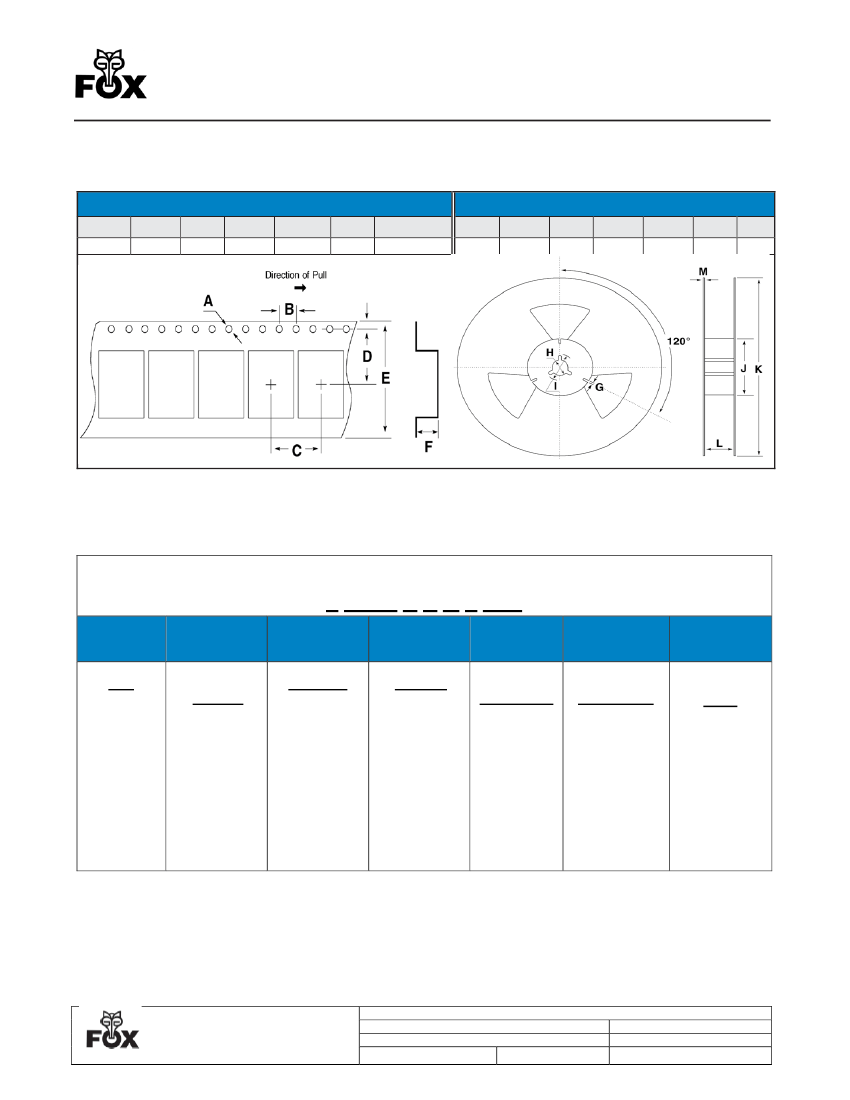

• TAPE SPECIFICATIONS
(millimeters)
A
∅1.5
B
4.0
C
12.0
D
11.5
E
24.0
F
4.8
STD Reel
• REEL SPECIFICATIONS
(millimeters)
1,000
G
2.0
H
∅13
I
∅21
J
∅80
K
∅330
L
25.5
M
2.0
Available Options & Part Identification for Crystal Model C4SD*
F C4SD C B M F 25.0
F
FOX
C4SD
Model
Number
C
Tolerance
B=50ppm
C=30ppm
D=25ppm
E=20ppm
F=15ppm
H=10ppm
B
Stability
A=100ppm
B=50ppm
C=30ppm
D=25ppm
E=20ppm
F=15ppm
H=10ppm
L=5ppm
Sales
M
F
Operating
Temperature
D=-10 to +60C
F=-20 to +70C
M=-40 to +85C
P=-40 to +105C
I=-40 to +125C
T=-55 to +125C
Tech Support
25.0
Frequency
(MHz)
Corporate Headquarters
*Not
all frequency, tolerance, stability, load, and operating temperature combinations may be available.
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
Load
Capacitance
A=Series
E=10pF
G=12pF
J=15pF
K=16pF
L=18pF
M=20pF
N=22pF
1-888-GET-2-FOX (1-888-438-2369) or
Q=30pF
1-239-693-0099
R=32pF
http://www.FOXONLINE.com/repdisty
http://www.FOXONLINE.com/email
PRODUCT USE:
Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox Electronics' sole
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
C4SD SERIES STANDARD SPECIFICATIONS
Drawing Number:
100954
Size: A
Part Number:
Cage:
61429
Draftsperson:
CMR
Approved:
RB
Revision Date:
08/23/2017
Page
2
of
4
13.9x5mm SMD Crystal
• HC49SDLF Standard Crystals
Part Number
FOXSDLF/036S
FOXSDLF/0368-20
FOXSDLF/040
FOXSDLF/041
FOXSDLF/049-20
FOXSDLF/060-20
FOXSDLF/073-20
FOXSDLF/080-20
FOXSDLF/081-20
FOXSDLF/100-20
FOXSDLF/115-20
FOXSDLF/120-20
FOXSDLF/128-20
FOXSDLF/143-20
FOXSDLF/147-20
FOXSDLF/160-20
FOXSDLF/200-20
FOXSDLF/221-20
FOXSDLF/240F-20
FOXSDLF/245F-20
FOXSDLF/250F-20
FOXSDLF/0368R-20
FOXSDLF/040R
FOXSDLF/060R-20
FOXSDLF/073R-20
FOXSDLF/080R-20
FOXSDLF/100R-20
FOXSDLF/115R-20
FOXSDLF/120R-20
FOXSDLF/143R-20
FOXSDLF/160R-20
FOXSDLF/200R-20
FOXSDLF/240FR-20
FOXSDLF/245FR-20
FOXSDLF/250FR-20
Frequency
3.579545
3.686400
4.000000
4.194304
4.915200
6.000000
7.372800
8.000000
8.192000
10.000000
11.059200
12.000000
12.288000
14.318180
14.745600
16.000000
20.000000
22.118400
24.000000
24.576000
25.000000
3.686400
4.000000
6.000000
7.372800
8.000000
10.000000
11.059200
12.000000
14.318180
16.000000
20.000000
24.000000
24.576000
25.000000
Tolerance
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
+/- 30 ppm
Stability
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
+/- 50 ppm
Temp Range
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-20 to +70 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
-40 to +85 C
(former HC49SDLF)
C4SD
DATASHEET
CL
18pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
20pF
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
C4SD SERIES STANDARD SPECIFICATIONS
Drawing Number:
100954
Size: A
Part Number:
Cage:
61429
Draftsperson:
CMR
Approved:
RB
Revision Date:
08/23/2017
Page
3
of
4
13.9x5mm SMD Crystal
(former HC49SDLF)
C4SD
DATASHEET
Corporate
Headquarters
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
1-888-GET-2-FOX (1-888-438-2369) or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
Sales
Tech Support
http://www.FOXONLINE.com/email
PRODUCT USE: Fox Electronics reserves the right to modify the products and/or specifications described herein at any time
and at Fox Electronics' sole discretion. All information in this document, including descriptions of product features and
performance, is subject to change without notice. Performance specifications and the operating parameters of the described
products are determined in the independent state and are not guaranteed to perform the same way when installed in customer
products. The information contained herein is provided without representation or warranty of any kind, whether express or
implied, including, but not limited to, the suitability of Fox Electronics' products for any particular purpose, an implied warranty
of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide
and does not convey any license under intellectual property rights of Fox Electronics or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life support
systems or similar devices where the failure or malfunction of a Fox Electronics product can be
reasonably expected to
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
C4SD SERIES STANDARD SPECIFICATIONS
Drawing Number:
100954
Size: A
Part Number:
Cage:
61429
Draftsperson:
CMR
Approved:
RB
Revision Date:
08/23/2017
Page
4
of
4
