CFP2414-0102 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CFP2414-0102

Preview

CFP2414-0102: DescriptionCard Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Latch, Natural Insulator,; CategoryThe connector The connector; File Size42KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

CFP2414-0102 Overview

Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Latch, Natural Insulator,

CFP2414-0102 Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ZIF
body width	0.094 inch
subject depth	0.205 inch
body length	0.776 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

Preview

Download Datasheet

View All

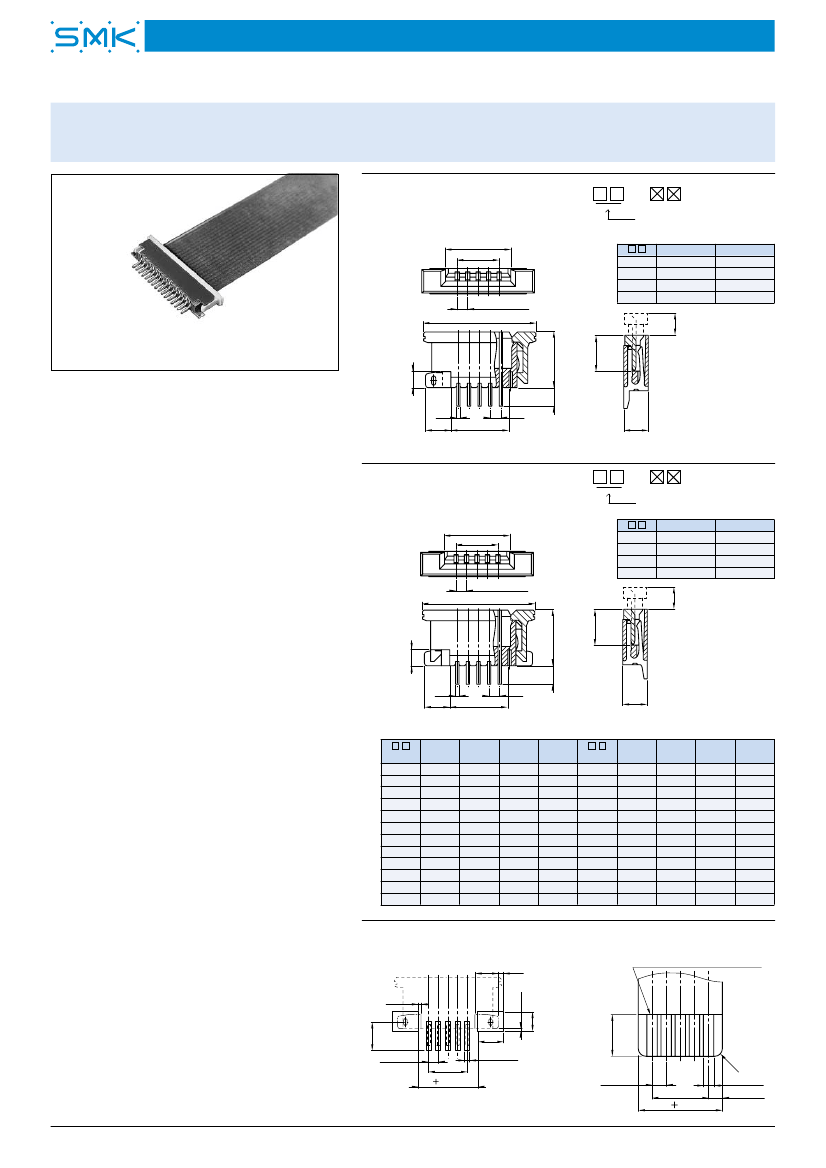

FPC Connector

CIC

Type (H=2.4mm)

1.0mm Spacing (SMT)

CFP24

-01

No. of Pins 極数

B

A

q

Upper Contact Type

上接点タイプ

××

01

02

11

12

Hold Down Packing Style

With

Without

With

Without

(2.0)

Embossed Taping

Vinyl Bag

1.0(Spacing)

C

3.4

1. 1.0mm-pitch SMT-ready FPC connector usable

with CIC printing.

2. Either upper or lower contact location available.

3. Of the ZIF structure.

4. Supplied in emboss-tape packaging for

automatic mounting.

0.3

2.4

1.0

D

2.4

q

Lower Contact Type

下接点タイプ

B

A

CFP25

1.7

s

Features

1.5

5.2

-01

No. of Pins 極数

s

Specifications

1. Rating : 0.5A 100V AC/DC

2. Contact Resistance : 30mΩ max.

3. Insulation Resistance : 500MΩ min. at 500V DC

4. Withstanding Voltage : 500V AC for one minute

5. Operating Temperature Range : –25˚C to +70˚C

××

01

02

11

12

Hold Down Packing Style

With

Without

With

Without

(2.0)

Embossed Taping

Vinyl Bag

1.0(Spacing)

C

3.4

Housing : Polyphenylene Sulfide

(Natural Color) 94V-0

q

Cover : Polyphenylene Sulfide

(Natural Color) 94V-0

q

Contact : Phosphor Bronze Tin-lead Plating

q

Frame : Phosphor Bronze Tin-lead Plating

q

1.5

0.3

2.4

1.0

D

1.7

5.2

s

Material and Plating

2.4

No. of Pins

A

03.0

04.0

05.0

06.0

07.0

08.0

09.0

10.0

11.0

12.0

13.0

14.0

B

05.1

06.1

07.1

08.1

09.1

10.1

11.1

12.1

13.1

14.1

15.1

16.1

C

09.7

10.7

11.7

12.7

13.7

14.7

15.7

16.7

17.7

18.7

19.7

20.7

D

04.5

05.5

06.5

07.5

08.5

09.5

10.5

11.5

12.5

13.5

14.5

15.5

No. of Pins

16

17

18

19

20

21

22

24

26

28

29

30

A

15.0

16.0

17.0

18.0

19.0

20.0

21.0

23.0

25.0

27.0

28.0

29.0

B

17.1

18.1

19.1

20.1

21.1

22.1

23.1

25.1

27.1

29.1

30.1

31.1

C

21.7

22.7

23.7

24.7

25.7

26.7

27.7

29.7

31.7

33.7

34.7

35.7

D

16.5

17.5

18.5

19.5

20.5

21.5

22.5

24.5

26.5

28.5

29.5

30.5

■ 特長

1. SMT対応、1.0mmピッチのCIC対応FPCコネクタ

です。

2. 接続部の½½が上側、下側タイプの2種類あります。

3. ZIF構造を採用しています。

4. 自動マウンタ対応でエンボステーピング方式に

よる供給です。

■ 仕様

1. 定格電圧電流

2. 接触抵抗

3. 絶縁抵抗

4. 耐電圧

5. ½用温度範囲

AC／DC 100V 0.5A

30mΩ以下

DC500V 500MΩ以上

AC500V 1分間

−25℃∼＋70℃

4

5

6

7

8

9

10

11

12

13

14

15

■ PC Board Dimension

取付基板参考図

2.4

0.2

3.0

0.5

0.25

■ Applicable FPC Dimension

適合FPC参考寸法 (t : 0.3)

Silver ink/carbon paste : 10µmin.

2.0

■ 材質・表面処理

q

ハウジング

カバー

q

コンタクト

q

フレーム

q

ポリフェニレンサルファイド

原色 94V-0

ポリフェニレンサルファイド

原色 94V-0

リン青銅半田めっき

2.6

1.0

±

0.05

A

±

0.05

+ 0.1

(D 0.6)

0

0.5

+ 0.1

0

4.0min.

R

0.

4

1.0

±

0.05

A

±

0.05

(A 2)

±

0.1

0.7

±

0.08

1.0

±

0.15
