2502-169-17-02: DescriptionIC Socket, PGA169, 169 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder; CategoryThe connector socket; File Size125KB，2 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

2502-169-17-02 Overview

IC Socket, PGA169, 169 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder

2502-169-17-02 Parametric

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
subject depth	0.165 inch
Contact structure	17X17
Contact to complete cooperation	AU ON SN
Contact completed and terminated	GOLD
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PGA169
Shell material	GLASS FILLED POLYPHENYLENE SULPHIDE
Insulation resistance	5000000000 Ω
Manufacturer's serial number	2502
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	169
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

2502-169-17-02 Related Products

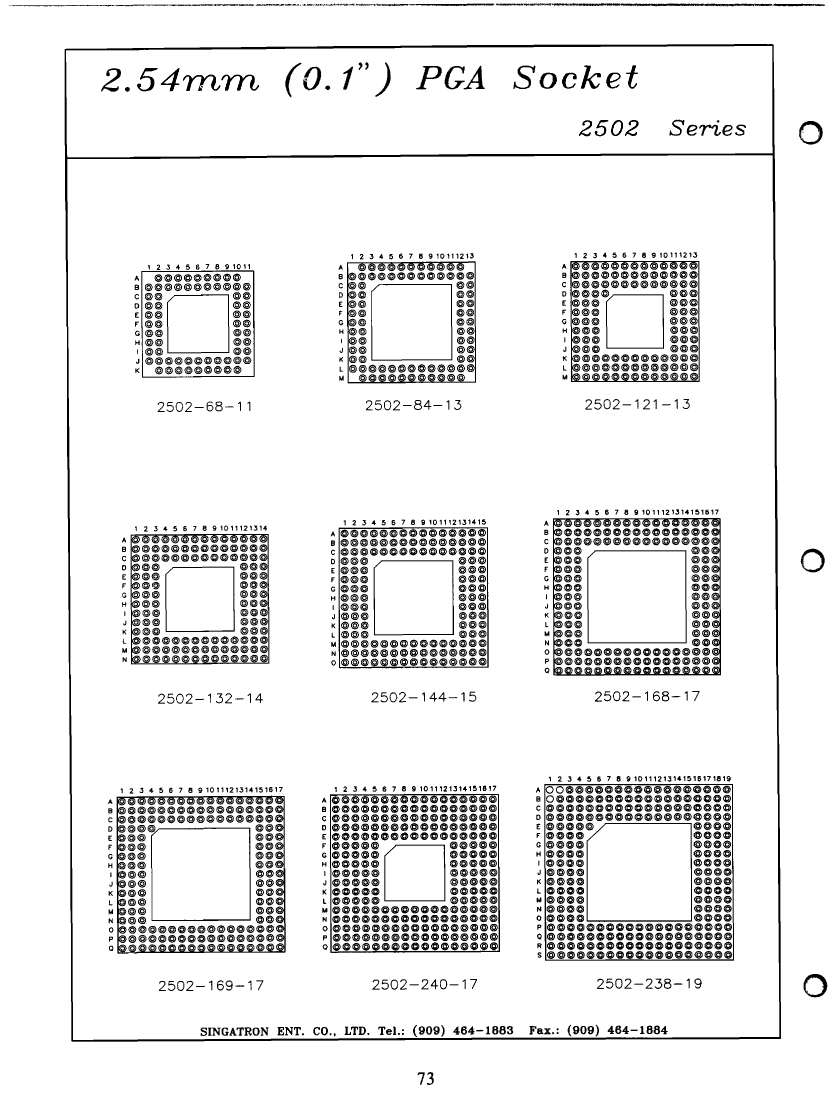

	2502-169-17-02	2502-144-15-02	2502-168-17-02	2502-121-13-02	2502-84-13-02	2502-240-17-02	2502-132-14-02	2502-238-19-02	2502-68-11-02
Description	IC Socket, PGA169, 169 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA144, 144 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA168, 168 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA121, 121 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA84, 84 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA240, 240 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA132, 132 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA238, 238 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA68, 68 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder
Reach Compliance Code	compliant	compli	compli	compli	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
subject depth	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Contact structure	17X17	15X15	17X17	13X13	13X13	17X17	14X14	19X19	11X11
Contact to complete cooperation	AU ON SN	AU ON SN	AU ON SN	AU ON SN	AU ON SN	AU ON SN	AU ON SN	AU ON SN	AU ON SN
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact material	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PGA169	PGA144	PGA168	PGA121	PGA84	PGA240	PGA132	PGA238	PGA68
Shell material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	2502	2502	2502	2502	2502	2502	2502	2502	2502
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	169	144	168	121	84	240	132	238	68
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	1	1	1
