20847715002026: DescriptionBoard Euro Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

20847715002026 Overview

Board Euro Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle,

20847715002026 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	STANDARDS: MIL-C-55302; DIN 41612; IEC 603-2
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	YES
Manufacturer's serial number	8477
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	100
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

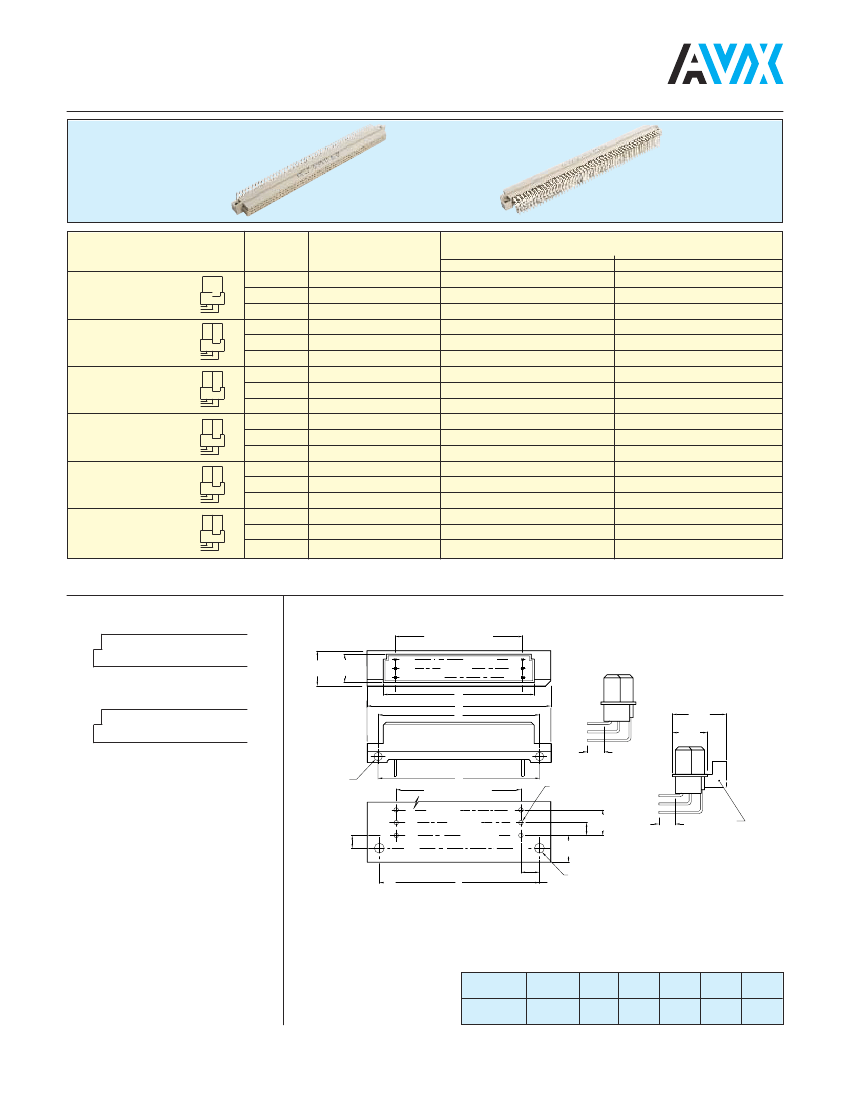

Female Style R Expanded

Series 8477 – 3 rows (3 x 50)

Contact Design

and

Termination Length

0.6 x 0.6 mm Post Profile

11.43 mm (Y) Right Angled

0.6 x 0.6 mm Post Profile

2.8 mm (Y) Right Angled

0.6 x 0.6 mm Post Profile

3.0 mm (Y) Right Angled

0.3 x 0.79 mm Post Profile

3.0 mm (Y) Right Angled

0.6 x 0.6 mm Post Profile

11.43 mm (Y) Right Angled

0.6 x 0.6 mm Post Profile

4.5 mm (Y) Right Angled

Number of

Contacts

100

150

100

150

100

150

100

150

100

150

100

Loading Description

a + c even loading

a + b + c fully loaded

a + c even loading

a + b + c fully loaded

a + c even loading

a + b + c fully loaded

a + c even loading

a + b + c fully loaded

a + c even loading

a + b + c fully loaded

a + c even loading

Part Number

Performance classes according to DIN 41612

II

I

20 8477 150 008 025

20 8477 150 008 026

20 8477 150 01 025

20 8477 150 01 026

20 8477 150 02 025

20 8477 150 02 026

20 8477 150 006 025

20 8477 150 006 026

20 8477 150 008 025

20 8477 150 008 026

20 8477 150 012 025

20 8477 150 012 026

20 8477 150 008 050

20 8477 150 008 049

20 8477 150 01 049

20 8477 150 01 050

20 8477 150 02 049

20 8477 150 02 050

20 8477 150 006 049

20 8477 150 006 050

20 8477 150 008 049

20 8477 150 008 050

20 8477 150 012 049

20 8477 150 012 050

NB: Alternative Prefix Variations Available: 22, 26 & 27, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

✕

●

✕

●

✕

●

✕

●

✕

●

DIMENSIONS

A EQ SP @ 2.54 [0.100] = B

ROW C

10.5

[0.413]

8.46

[0.333]

ROW A

E

C

ROW B

c

b

a

100 contacts, rows a + c fully loaded

●

c

b

a

D

13.4

[0.528]

10.5

[0.413]

Y

150 contacts, rows a + b + c fully loaded

2.54

DIA.

[0.100]

D

A EQ SP @ 2.54 [0.100] = B

1.02 DIA.

[0.040]

ROW C

2.54

[0.100]

ROW B

ROW A

5.08

[0.200]

2.54

5.31 [0.100]

[0.209]

Y

For Y dimension see

contact design

KEYING

5.08 [0.200]

D

HOLE PATTERN

2.84 DIA.

[0.112]

Unit: millimeters (inches)

No. Contact

Positions

150

Contact

Rows

3 (3 x 50)

A

49

B

125.50

(4.940)

C

139.60

(5.496)

D

134.62

(5.300)

E

130.61

(5.142)

64

ELCO
