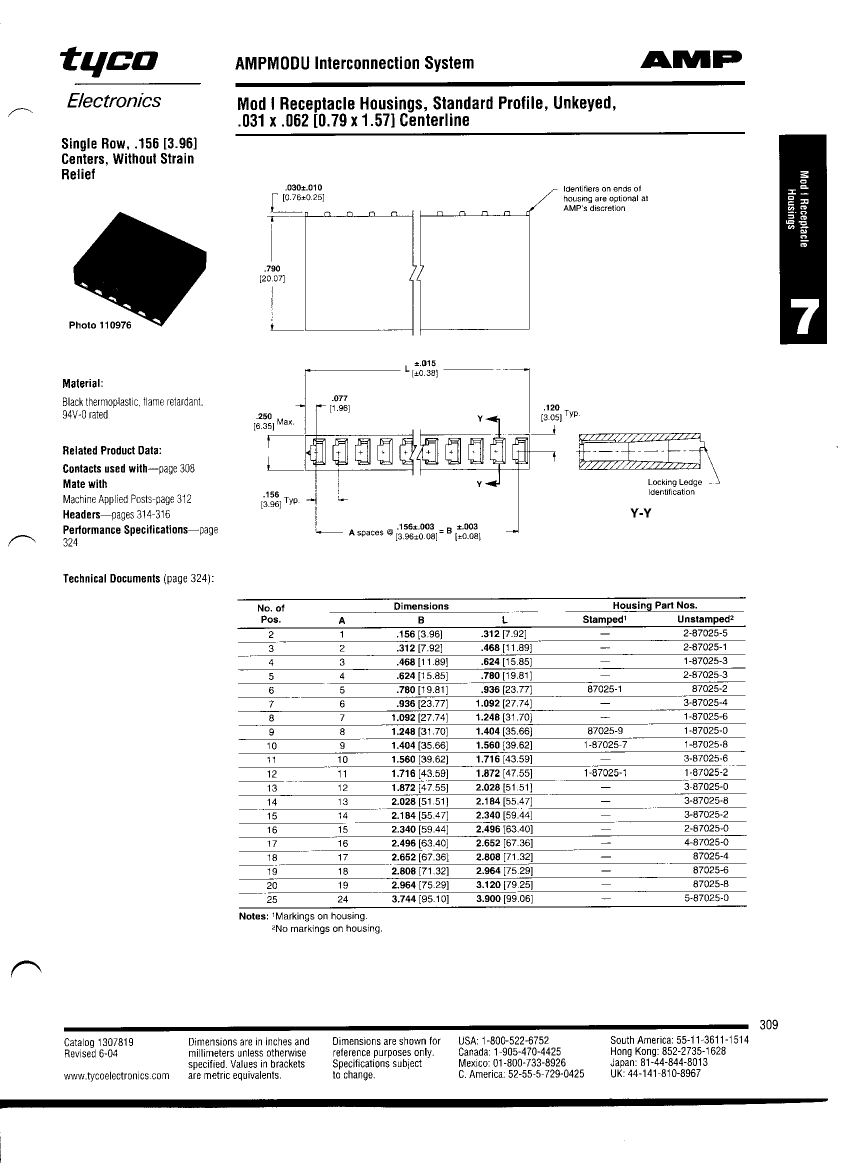

Preview

3-87025-4: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,7 CONTACTS,0.156 PITCH,BLACK; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-87025-4 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,7 CONTACTS,0.156 PITCH,BLACK

3-87025-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	NONE
body width	0.25 inch
subject depth	0.79 inch
body length	1.092 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	STRIP OR LOOSE
contact mode	RECTANGULAR
Dielectric withstand voltage	1000VAC V
Insulation resistance	50000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Plug contact pitch	0.156 inch
Number of rows loaded	1
Minimum operating temperature	-65 °C
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	7
Base Number Matches	1

Preview

Download Datasheet

View All

3-87025-4 Related Products

	3-87025-4	3-87025-2	2-87025-0	87025-1	87025-4	87025-6	87025-9
Description	HEADER CONNECTOR,CABLE MNT,PLUG,7 CONTACTS,0.156 PITCH,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,15 CONTACTS,0.156 PITCH,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,16 CONTACTS,0.156 PITCH,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,6 CONTACTS,0.156 PITCH,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,18 CONTACTS,0.156 PITCH,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,19 CONTACTS,0.156 PITCH,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,9 CONTACTS,0.156 PITCH,BLACK
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	not_compliant	compliant	compliant	compliant	compliant	compliant
Other features	NONE	NONE	NONE	ID STAMPED ON PART	NONE	NONE	ID STAMPED ON PART
body width	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch
subject depth	0.79 inch	0.79 inch	0.79 inch	0.79 inch	0.79 inch	0.79 inch	0.79 inch
body length	1.092 inch	2.34 inch	2.496 inch	0.936 inch	2.808 inch	2.964 inch	1.404 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	STRIP OR LOOSE	STRIP OR LOOSE	STRIP OR LOOSE	STRIP OR LOOSE	STRIP OR LOOSE	STRIP OR LOOSE	STRIP OR LOOSE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Number of rows loaded	1	1	1	1	1	1	1
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	7	15	16	6	18	19	9
Objectid	-	300394923	-	-	300394926	300394927	300394897
ECCN code	-	EAR99	-	-	EAR99	EAR99	EAR99
