GRM319R71H183KD01J datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GRM319R71H183KD01J

GRM319R71H183KD01J: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.018uF, Surface Mount, 1206, CHIP; CategoryPassive components capacitor; File Size40KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM319R71H183KD01J Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.018uF, Surface Mount, 1206, CHIP

GRM319R71H183KD01J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.018 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.85 mm
JESD-609 code	e3
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 13 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
size code	1206
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

GRM319R71H183KD01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM319R71H183KD01D , GRM319R71H183KD01J

Shape

References

Packaging

Specifications

φ180mm Paper taping

φ330mm Paper taping

Minimum quantity

4000

10000

L size

W size

T size

External terminal width e

Distance between external terminals g (Min.)

Size code in mm(inch)

3.2 ±0.15mm

1.6 ±0.15mm

0.85 ±0.1mm

0.3 to 0.8mm

1.5mm

3216 (1206)

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Capacitance change rate

Temperature range of temperature characteristics

Operating temperature range

18000pF ±10%

50Vdc

X7R(EIA)

±15.0%

-55 to 125℃

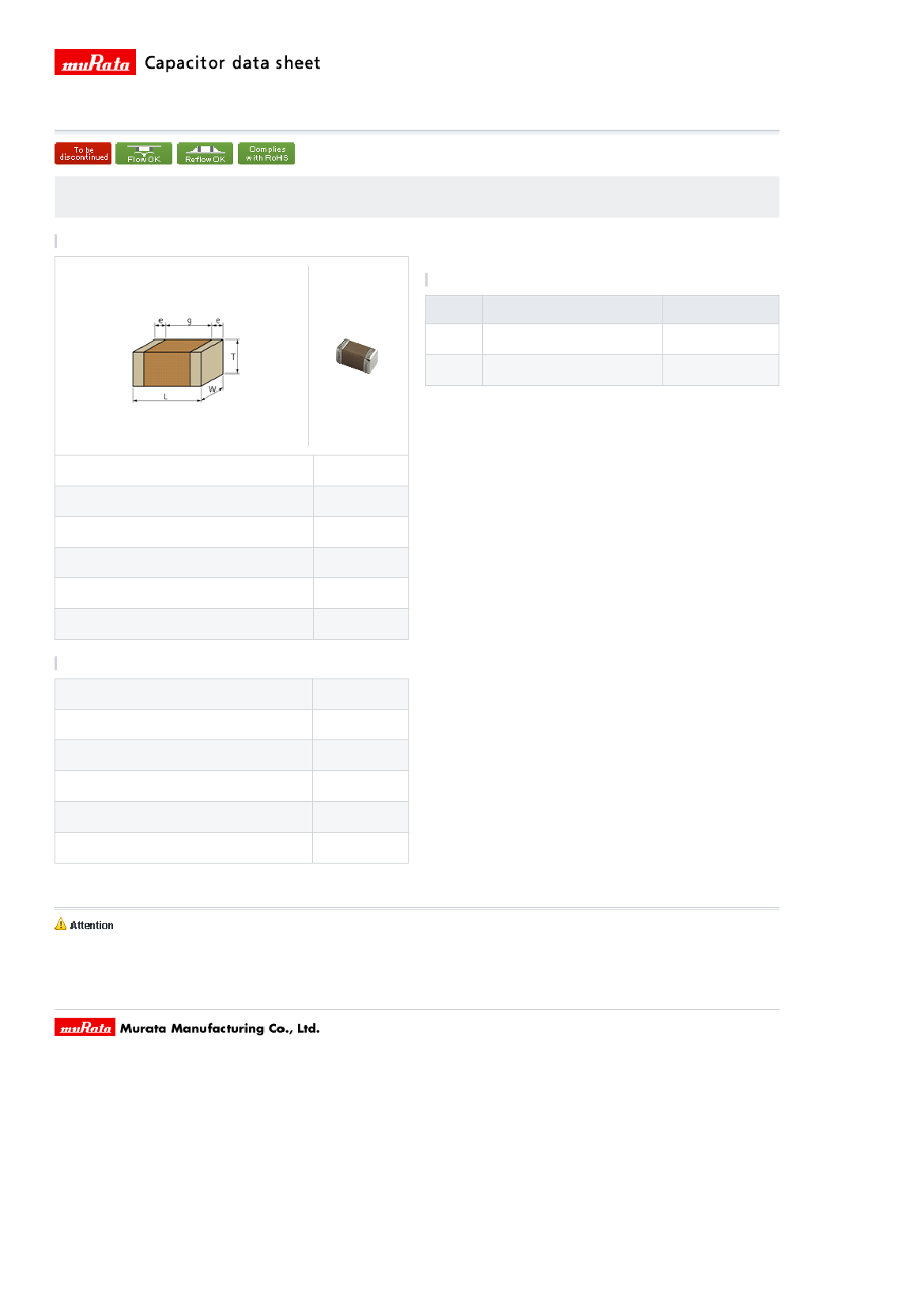

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/04/30
