FQ3225BR-12.000 datasheet, PDF

Datasheet> All Categories > Passive components> FQ3225BR-12.000

FQ3225BR-12.000: Descriptioncrystals 12mhz 20pf -40c +85c 50ppm; CategoryPassive components; File Size371KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

FQ3225BR-12.000 Overview

crystals 12mhz 20pf -40c +85c 50ppm

FQ3225BR-12.000 Parametric

Parameter Name	Attribute value
Manufacture	Fox
Product Category	Crystals
RoHS	Yes
Frequency	12 MHz
Tolerance	50 PPM
Frequency Stability	50 PPM
Load Capacitance	7 pF
Termination Style	SMD/SMT
Package / Case	3.2 mm x 2.5 mm
Operating Temperature Range	- 10 C to + 70 C
Packaging	Reel
Mounting Style	SMD/SMT
Factory Pack Quantity	1000
Type	SMD Crystal

Preview

Download Datasheet

View All

Resin Sealed SMD Crystal

Page 1 of 2

Model: FQ3225B Series

RoHS Compliant / Pb Free

http://www.foxonline.com/need_a_sample.htm

Rev. 5/5/2014

FEATURES

• Surface Mount Resin Sealed

• Low Cost

• Ultra Low Profile

• Fundamental

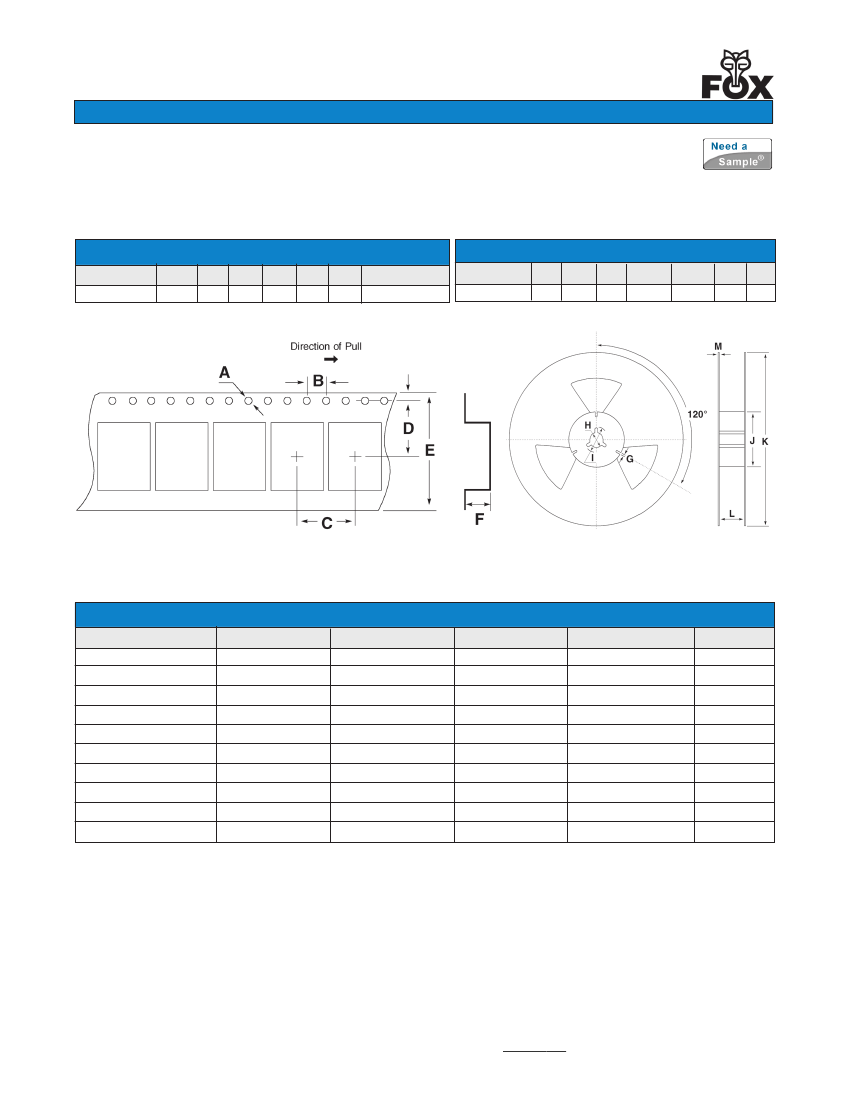

• Tape and Reel (3,000 pcs STD)

PART NUMBER

•• PART NUMBER SELECTION

Part Number

820-Frequency-xxxxx

Model Number

FQ3225B

Frequency Range (MHz)

12.000 ~ 50.000

3.2 ±0.2

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

(Fo)

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging per year

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

2.5 ±0.2

Top

V iew

MAX

(unless otherwise noted)

12.000 ~ 50.000 MHz

±50 PPM

-10ºC ~ +70ºC

-55ºC ~ +125ºC

7 pF

7 pF ~ Series

(Customer Specified)

0.1 mW

±5 PPM

260ºC / 10 Seconds

1.1 M ax

1.0

0 .9

B o tto m V iew

R ecom m e nd ed

S o ld e r p a d layout

1.3

1.2

0.5

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer

Service for specific requirements.

NOTE: The above specifications, having been carefully prepared and checked, is believed to be

accurate at the time of publication; however , no responsibility is assumed by Fox Electronics

for inaccuracies.

If you have any questions, please call Customer Support at 1-888-GET-2-FOX.

All specifications subject to change without notice.

Frequency Range

(MHz)

12.000 ~ 15.999999

16.000 ~ 20.000

20.000+ ~ 25.000

25.000+ ~ 30.000

30.000+ ~ 50.000

Operating Mode

Fundamental

Max ESR

Ω

120

100

0.9

All dimensions are in millimeters

Fox Electronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

USA +1.239.693.0099

FOXonline.com

FAX +1.239.693.1554

An Integrated Device Technology, Inc. company
