I324-2J3-40.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> I324-2J3-40.000MHZ

I324-2J3-40.000MHZ: DescriptionHCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size38KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

I324-2J3-40.000MHZ Overview

HCMOS Output Clock Oscillator,

I324-2J3-40.000MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ILSI
Reach Compliance Code	compliant
Oscillator type	HCMOS
Terminal surface	Tin/Silver/Copper - with Nickel barrier
Base Number Matches	1

Preview

Download Datasheet

View All

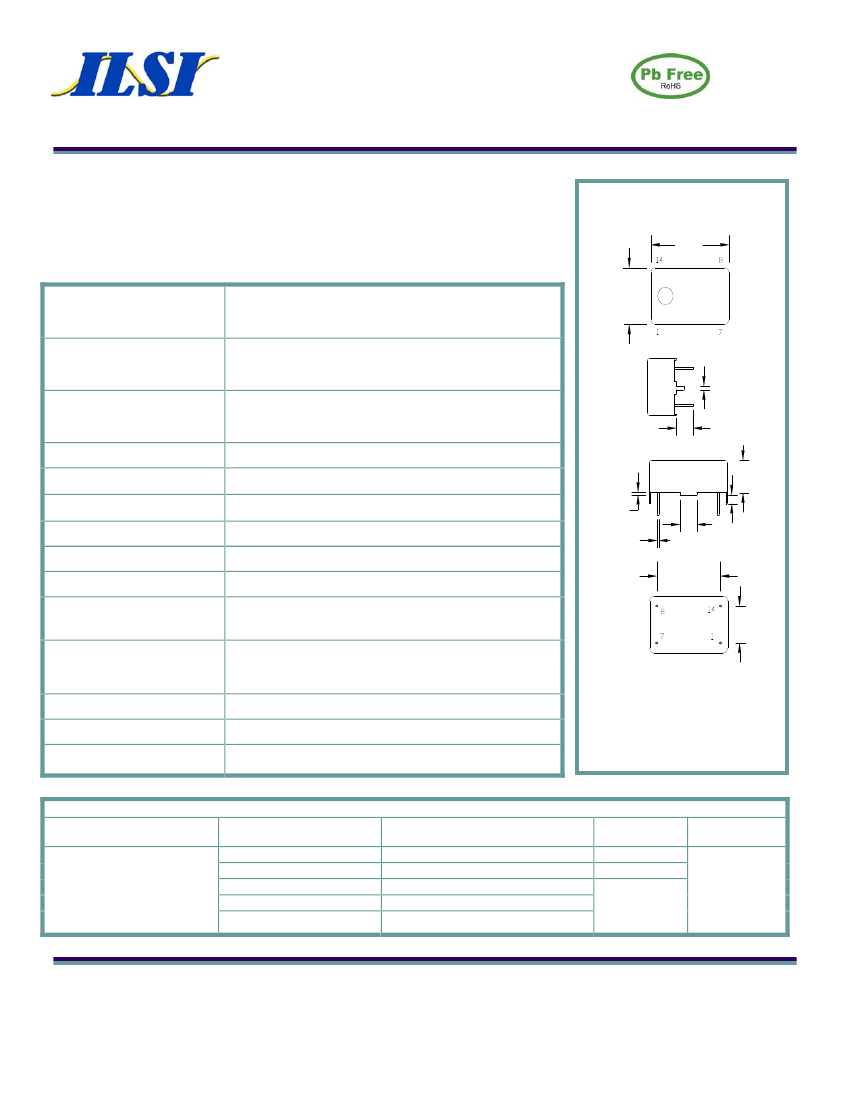

Leaded Oscillator,

TCXO, TCVCXO

Metal Package, Full Size DIP

I123/I124/I323/I324 Series

Product Features:

Available in Both Clipped Sinewave and

HCMOS Output Levels

Compatible with Leadfree Processing

Applications:

Base Station

WiMax/Wlan

General Purpose

18.3

Frequency

I123/I323

I124/I324

Output Level

Clipped Sinewave

HCMOS

Output Load

Clipped Sinewave

HCMOS

Duty Cycle (HCMOS)

Rise / Fall Time

(HCMOS)

Frequency Stability

Frequency Tolerance @ 25



Aging

Supply Voltage

Current

11.7

9.600 Mhz to 40 Mhz

1.000 Mhz to 40 Mhz

1.0 V p-p Min.

‘0’=0.1 VCC Max., ‘1’=0.9Vcc Min.

1.0

20K Ohms / 10 pF

15pF

50% ±10%

10 nS Max.

See Frequency Stability Table

Included in Stability Tolerance

0.45

0.50

4.0

4.0 Min.

9.0 Max.

2.5



1 ppm / Year Max.

See Supply Voltage Table , tolerance



3.0 mA Max. (Clipped Sinewave)

20.0 mA Max. (HCMOS)

7.60

15.00

Voltage Control

( I321/ I322)

1.65 VDC



1.5 VDC,



5.0 ppm Min. for Vcc = 3.3 VDC

2.5 VDC



2.0 VDC,



5.0 ppm Min. for Vcc = 5.0 VDC

Positive

See Operating Temperature Table

-40



C to +85



Slope

Operating

Storage

Connection

Vcontrol / N.C.

GND

Output

Vcc

Dimension Units: mm

Package

I123 (Clipped Sinewave TCXO)

I124 (HCMOS TCXO)

I323 (Clipped Sinewave TCVCXO)

I324 (HCMOS TCVCXO)

Part Number Guide

Operating Temperature

7 = 0 C to +50 C

1 = 0 C to +70 C

3 = -20 C to +70 C

2 = -40 C to +85 C

Sample Part Number: I123-1Q3-20.000 Mhz

FrequencyStability vs Temperature

**O =

1.5

ppm

**P =

2.0

ppm

Q =

2.5

ppm

R =

3.0

ppm

J =

5.0

ppm

Supply

Voltage

3 = 3.3 V

5 = 5.0 V

Frequency

- 20.000 MHz

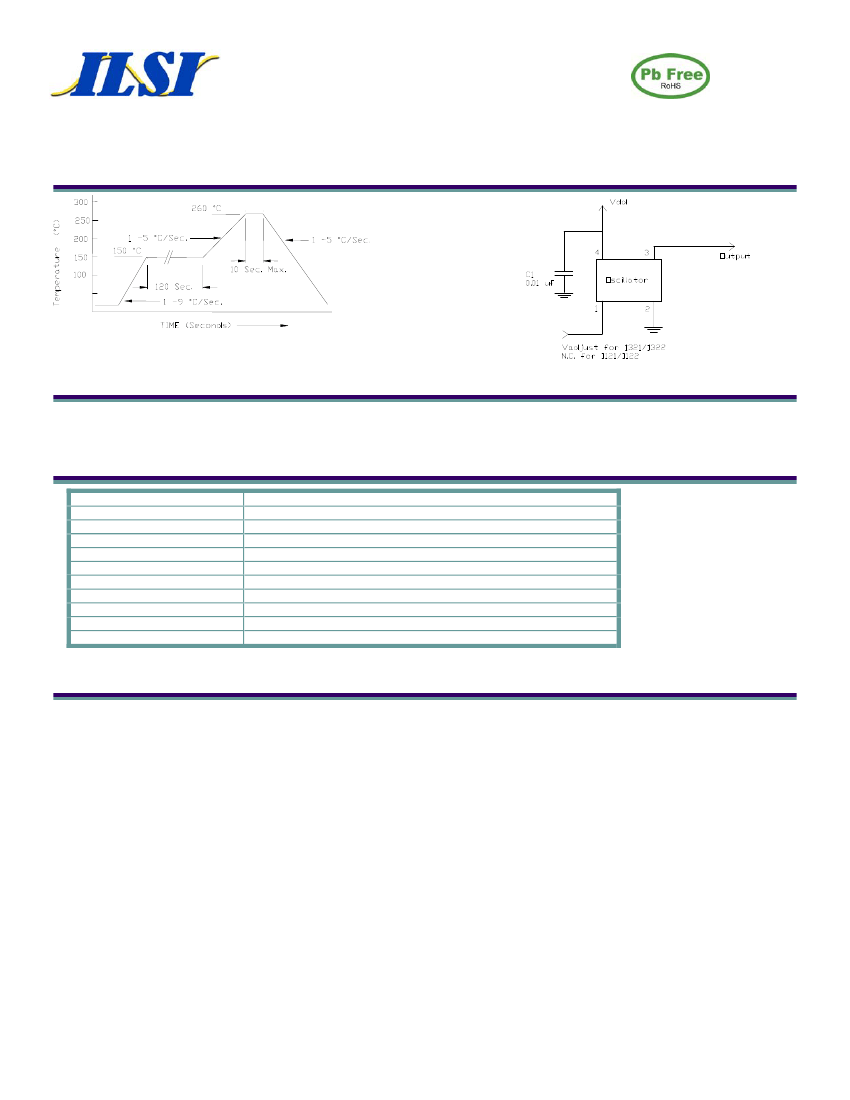

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and GND (pin 2) to minimize power supply noise.

** Not available for all temperature ranges.

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

12/10_B

Specifications subject to change without notice

Page 1
