3.7 x 3.1 mm INDUSTRIAL GRADE CERAMIC RESONATOR
AWSZT-CV
FEATURES:
• Low resonant impedance
• IR reflow capable
• Low cost
AWSZT-CV
RoHS/RoHS II Compliant
Pb in ceramic, exemption (7c-I)
| | | | | | | | | | | | | | |
3.7 x 3.1
mm
APPLICATIONS:
• Remote controls, Microprocessor clocks, Mobile
phones, DVD & CD-Roms, Electric appliances
• Consumer electronics
ELECTRICAL CHARACTERISTICS:
Parameters
Frequency Range
Minimum
8.00
16.00
Typical
Maximum
13.00
60.00
30
40
40
40
30 + 20%
30 + 20%
15 + 20%
5 + 20%
0.5
0.4
0.3
6
15
100
-25
-55
-0.3
85
85
0.3
Units
MHz
8.00 MHz
– 13.00
MHz
16.00 MHz
– 20.00
MHz
20.01
MHz
– 25.99
MHz
26.00 MHz
– 60.00
MHz
8.00 MHz
– 13.00
MHz
16.00 MHz
– 20.00
MHz
20.01
MHz
– 25.99
MHz
26.00 MHz
– 60.00
MHz
8.00 MHz
– 13.00
MHz
16.00
MHz
– 60.00
MHz
DC , 1 min
Notes
Resonant Impedance
(Ro)
30 – 20%
30 – 20%
15 – 20%
5 – 20%
-0.5
-0.4
-0.3
30
30
15
5
Ω
Load
Capacitance
for
Test Circuit
(C1=C2)
Frequency
Tolerance @25 ºC
Frequency Stability
@ -25ºC
to +85ºC
Withstanding Voltage
(1)
D.C.Voltage
Rating
Voltage
(2) A.C. Voltage
Insulation Resistance
Operation
Temperature
Storage
Temperature
Aging
Rate
(Fosc) (10 years)
pF
%
%
V
V
Vp-p.
MΩ
ºC
ºC
%
50
10V,
1min
TEST CONDITION AND TEST CIRCUIT:
Parts
shall be measured under
a
condition
(Temp.: 20±15°C,
Humidity:
65±20%
R.H.) unless the standard condition
(Temp: 25±3°C,
Humidity:
65±10%
R.H.) is regulated to measure
X:
Ceramic Resonator
C1=C2: 30pF ±20% (8.00MHz~13.00MHz)
30pF ±20% (16.00MHz~20.00MHz)
15pF ±20% (20.01MHz~25.99MHz)
5pF ±20% (26.00MHz~60 .00MHz)
OPTIONS & PART IDENTIFICATION:
AWSZT – XX.XXCV -
Frequency
Frequency in MHz
ABRACON IS
ISO9001:2008
CERTIFIED
T: 1000pcs/Reel
Blank:
Bulk
Packaging
Revised: 05.07.13
30332
Esperanza, Rancho
Santa
Margarita,
California 92688
tel
949-546-8000
|
fax
949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
3.7 x 3.1 mm INDUSTRIAL GRADE CERAMIC RESONATOR
AWSZT-CV

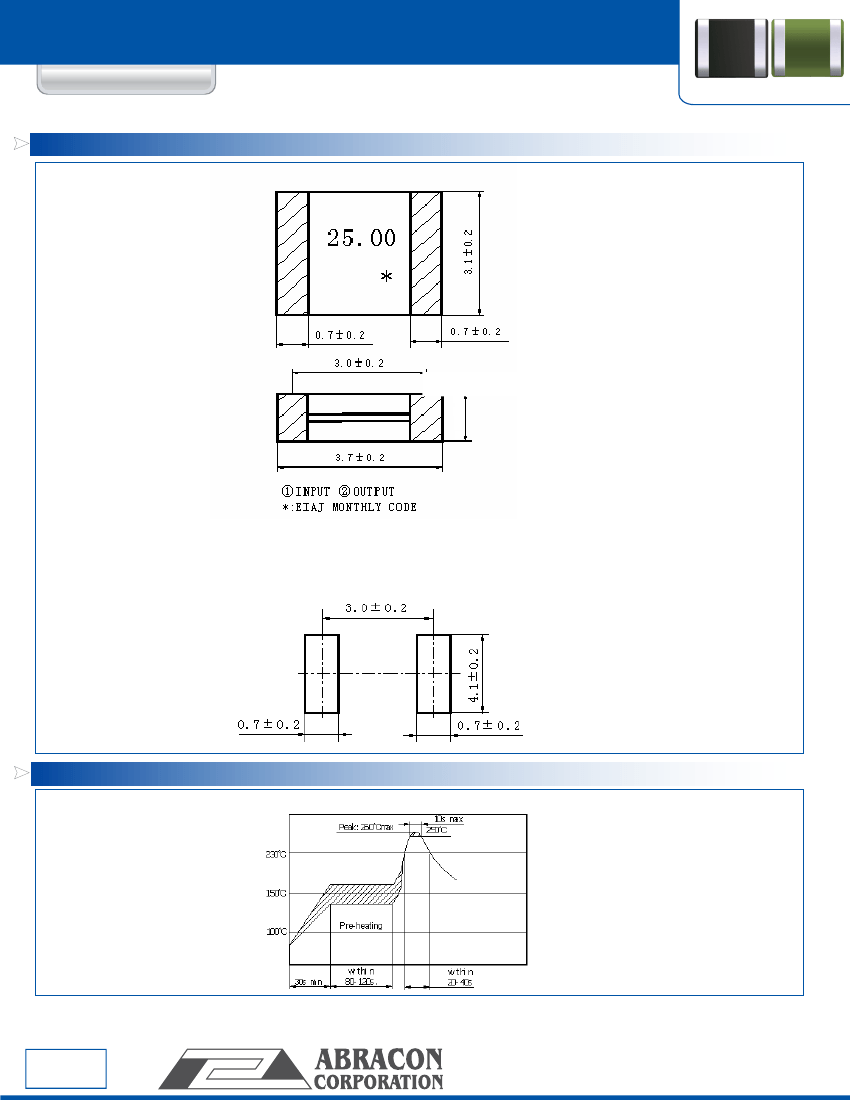

OUTLINE DRAWING:
RoHS/RoHS II Compliant
Pb in ceramic, exemption (7c-I)
AWSZT-CV
| | | | | | | | | | | | | | |
3.7 x 3.1
mm
** A
stands for the thickness of the
ceramic element, which
varies
with the
frequency
(1.0+A) ± 0.2**
Recommended Land Pattern
Dimension: mm
REFLOW PROFILE:
OPTIONS & PART IDENTIFICATION:
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 05.07.13
30332
Esperanza, Rancho
Santa
Margarita,
California 92688
tel
949-546-8000
|
fax
949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
3.7 x 3.1 mm INDUSTRIAL GRADE CERAMIC RESONATOR
AWSZT-CV
TAPE & REEL:
T: 1000pcs/Reel
RoHS/RoHS II Compliant
Pb in ceramic, exemption (7c-I)
AWSZT-CV
| | | | | | | | | | | | | | |
3.7 x 3.1
mm
Reel
Quantity
1000 (T)
ФA
180±3
ФB
60
min.
W
12.4
min
T
19.4
max
Pieces
per
reel
1000
typ.
Carrier
tape size
12
Dimension: mm
Note:
upon opening the original packaging, it is recommended that the product be used within 1 year. If the prod-
uct will not be used within 1 year, it is recommended that the product be re-sealed in airtight packaging according
to MSL 1 requirements to maintain solderability.
CAUTION
(1) Do not apply excess mechanical stress to the component body or terminations. Do not attempt to re-form or bend the components as
this will cause damage to the component.
(2)
This component is not hermetically sealed. Do not clean or wash the component.
(3) Reflow Soldering: Do not use strong acidity flux, such as flux with chlorine content of greater than 0.2wt% during Reflow Soldering.
(4) Do not expose the component to open flame.
(5)
This specification applies to the functionality of the component as a single unit.
(6) Storage Conditions: If the product is to be stored for a period greater than 1 year after the Delivery Date, it is recommended that
customers confirm the solderability and characteristics for the product prior to use.
(7)
This product is not recommended for use in the following applications: Automotive, Medical, Military, Safety, or any other high-
OPTIONS & PART IDENTIFICATION:
ATTENTION:
Abracon Corporation’s
products
are COTS –
Commercial-Off-The-Shelf products; suitable for Commercial, Industrial
and,
where designated, Automotive Applica-
tions. Abracon’s products
are
not specifically designed for Military,
Aviation, Aerospace,
Life-dependant Medical
applications
or
any application
requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting
an
extreme operating environment, written consent and
authorization from
Abracon
Corporation is required. Please contact Abracon
Corporation
for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 05.07.13
30332
Esperanza, Rancho
Santa
Margarita,
California 92688
tel
949-546-8000
|
fax
949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
