MDL-10: DescriptionElectric Fuse, Time Delay Blow, 10A, 32VAC, 250VDC, 1000A (IR), Inline/holder, 3AG,; CategoryCircuit protection Circuit protection; File Size124KB，2 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

MDL-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MDL-10	-	-	View	Buy Now

MDL-10 Overview

Electric Fuse, Time Delay Blow, 10A, 32VAC, 250VDC, 1000A (IR), Inline/holder, 3AG,

MDL-10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cooper Industries
Reach Compliance Code	compliant
Fusing characteristics	TIME DELAY
body height	31.75 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	3AG
Joule integral nominal	64 J
Installation features	INLINE/HOLDER
physical size	6.35mm x 31.75mm
Pre-discharge rating	671 A2/s
Rated breaking capacity	1000 A
Rated current	10 A
Rated voltage	32 V
Rated voltage (AC)	32 V
Rated voltage (DC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

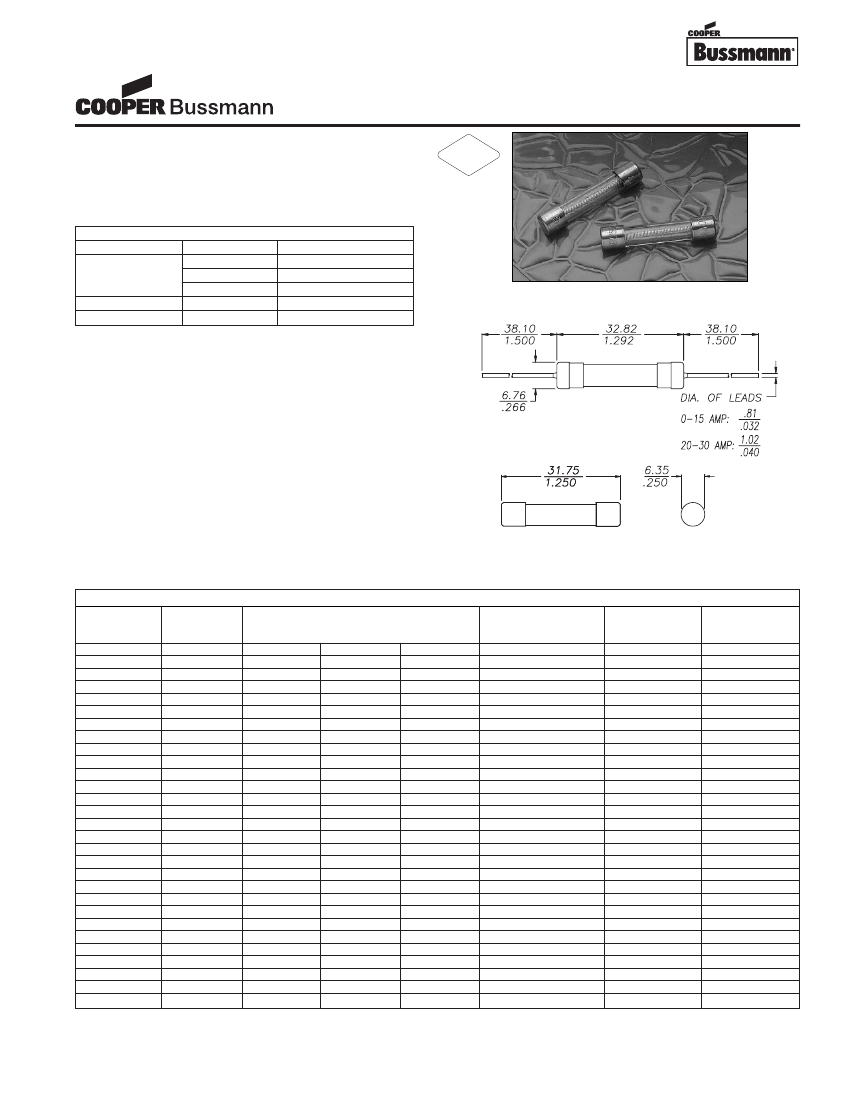

1/4" x 1-1/4" Fuses

MDL Series, Time Delay, Glass Tube

Description

• Time delay, glass tube

• Optional axial leads available

• 1/4 x 1-1/4 (6.3mm x 32mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

ELECTRICAL CHARACTERISTICS

Amp Rating

Opening Time

Rated Current

100%

None

1/16 - 30A

135%

60 minutes max.

200%

120 seconds max.

1/16 - 3A

200%

5 seconds min.

3-2/10 - 8A

200%

12 seconds min.

RoHS

2002/95/EC

Dimensions

(

mm

⁄

in

)

Drawing Not to Scale

Agency Information

• UL Listed Card: MDL 1/16 - 8A (Guide JDYX, File E19180)

• UL Recognized Card: MDL 9 - 30A (Guide JDYX2,

File E19180)

• CSA Certification Card: MDL 1/16 - 8A

(Class No. 1422-01)

• CSA Component Acceptance: MDL 9-30A

(Class No. 1422-30)

Environmental Data

• Shock: 1/100A and 8/10A – MIL-STD-202,

Method 213, Test Condition I; 1A thru 30A –

MIL-STD-202, Method 207, (HI Shock)

• Vibration: 1/100A and 8/10A – MIL-STD-202,

Method 201; 1/4A thru 30A – MIL-STD-202,

Method 204, Test Condition C (Except 5g, 500HZ)

Ordering

• Specify packaging, product, and option code

Voltage

Rating

AC

250V

32V

AC Interrupting

Rating*

125V

10000A

-

SPECIFICATIONS

32V

-

1000A

Product Code

MDL-1/16

MDL-1/10

MDL-1/8

MDL-3/16

MDL-2/10

MDL-1/4

MDL-3/10

MDL-3/8

MDL-1/2

MDL-3/4

MDL-1

MDL-1-1/4

MDL-1-1/2

MDL-2

MDL-2-1/4

MDL-2-1/2

MDL-3

MDL-4

MDL-5

MDL-6

MDL-6-1/4

MDL-7

MDL-8

MDL-9

MDL-10

MDL-15

MDL-20

MDL-25

MDL-30

*

**

†

‡

250V

35A

100A

200A

-

Typical DC Cold

Resistance**

(ohms)

38.000

15.900

9.850

4.680

4.115

3.200

2.300

2.800

1.725

0.822

0.525

0.320

0.250

0.173

0.068

0.096

0.067

0.035

0.023

0.018

0.011

0.009

0.008

0.006

0.002

0.001

Typical

Melting I

2

t†

AC

0.0046

0.0420

0.0422

0.116

0.314

0.447

0.412

0.982

1.656

4.343

11.498

86.2

22.7

62.3

49.6

63.1

67.5

19.3

32.0

37.4

38.7

42.7

47.8

51.5

64.4

354.0

2914.0

15221.0

15581.0

Typical

Voltage

Drop‡

2.79

1.95

1.52

1.05

0.972

0.965

0.808

1.46

1.27

1.01

0.995

0.722

0.721

0.644

0.535

0.410

0.345

0.187

0.160

0.155

0.152

0.140

0.119

0.124

0.114

0.130

0.530

0.30

0.40

Interrupting Ratings (Interrupting ratings were measured at 70% - 80% power factor on AC)

DC Cold Resistance (Measured at

≤10%

of rated current)

Typical Melting I

2

t (A

2

Sec) (I

2

t was measured at listed interrupting rating and rated voltage.)

Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)

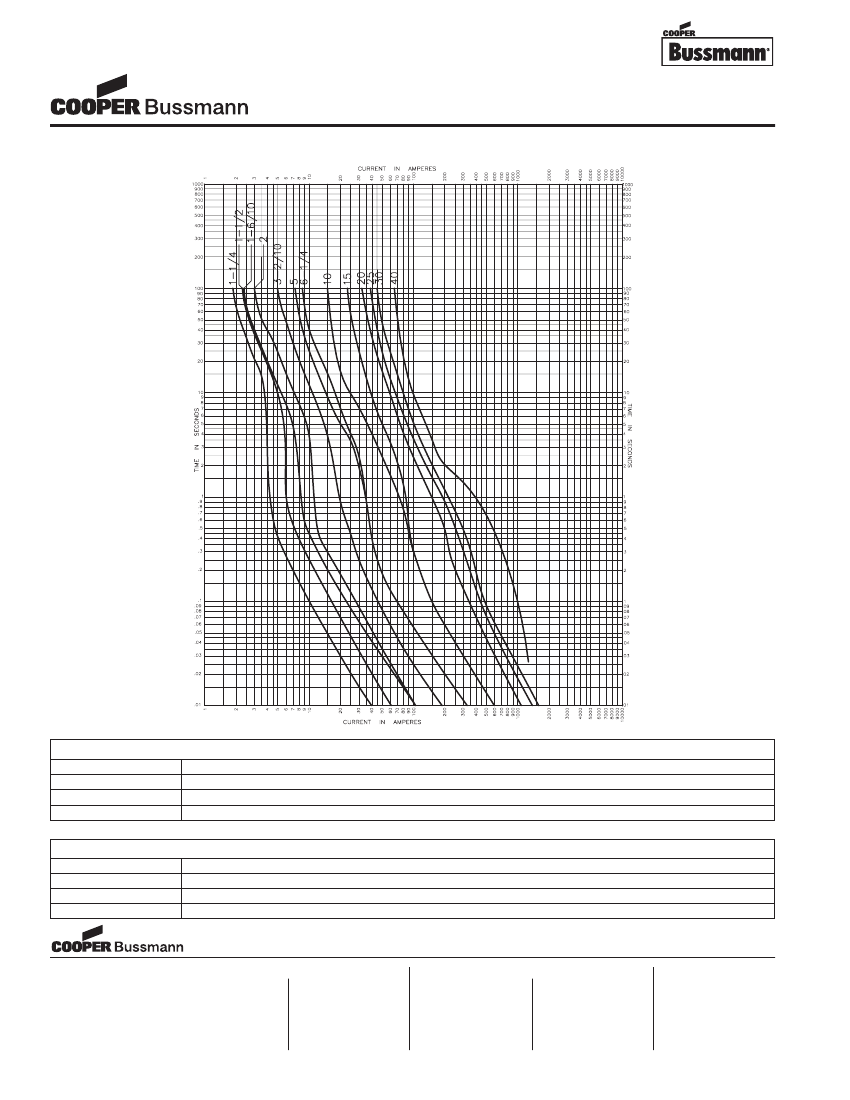

Recommended Resources

1kHz square wave generator circuit

Flashlight control model motor circuit

Automatic ventilation and cooling circuit using temperature switch integrated circuit MAX6501

Current of OTL amplifier power supply (used for tube amplifiers)

Computer motherboard circuit diagram 810 3_25
