9100-2-239-03: DescriptionBoard Connector, 78 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9100-2-239-03 Overview

Board Connector, 78 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

9100-2-239-03 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH SPECIAL STANDOFFS
body width	0.195 inch
subject depth	0.095 inch
body length	3.89 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	9100
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.046 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	78
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1

Preview

Download Datasheet

View All

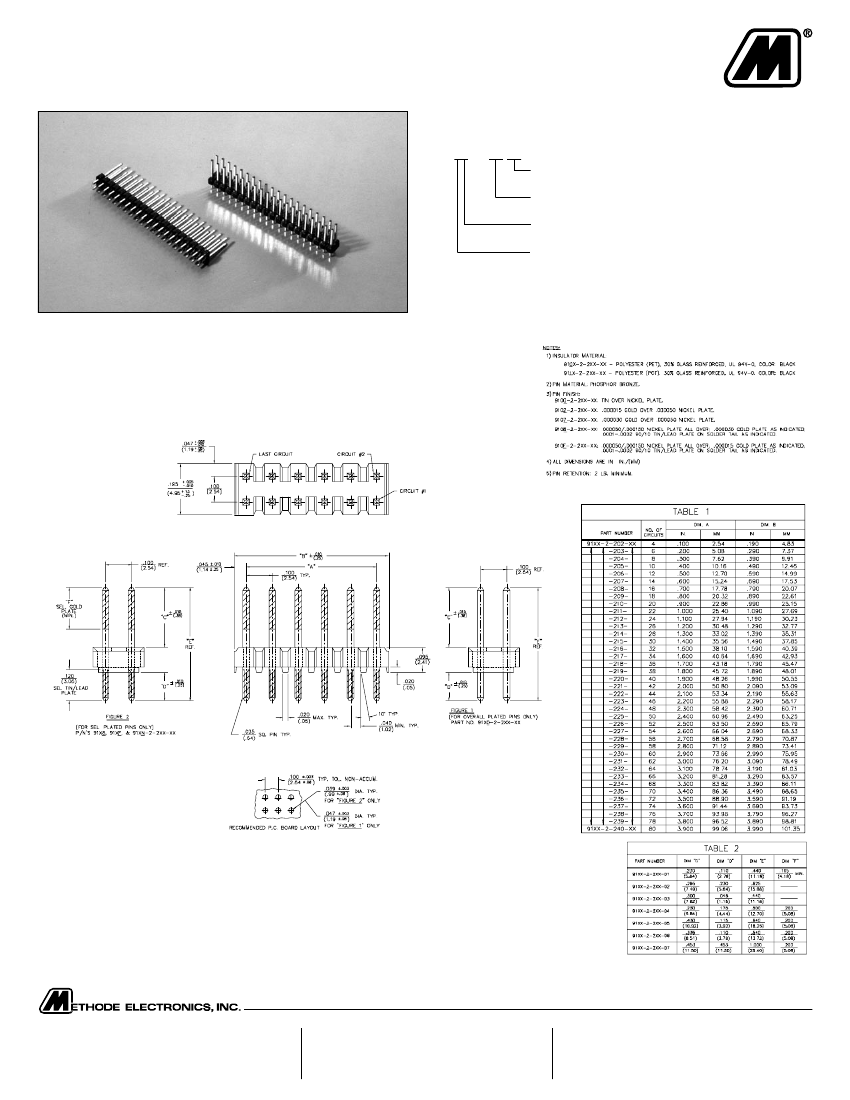

.100" (2.54mm) Dual Row, Through Hole,

Vertical Header with Special Standoffs

9100 SERIES

(“POST/BOXE”)

PART NUMBER LEGEND

91XX-2-2XX-XX

PIN NUMBER

(SEE TABLE 2)

NUMBER OF POSITIONS PER ROW

(SEE TABLE 1)

PIN PLATING

(SEE NOTE 3)

INSULATOR MATERIAL

(SEE NOTE 1)

MATING CONNECTORS: 9000 SERIES

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
