9B-25.000MBBE-B datasheet, PDF

Datasheet> All Categories > Passive components> 9B-25.000MBBE-B

9B-25.000MBBE-B: Descriptioncrystals 25.00mhz 50ppm 12pf -20 to 70c; CategoryPassive components; File Size363KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

9B-25.000MBBE-B Overview

crystals 25.00mhz 50ppm 12pf -20 to 70c

9B-25.000MBBE-B Parametric

Parameter Name	Attribute value
Manufacture	TXC Corporati
Product Category	Crystals
RoHS	Yes
Frequency	25 MHz
Tolerance	30 PPM
Frequency Stability	+/- 30 PPM
Load Capacitance	18 pF
Termination Style	Radial
Operating Temperature Range	- 20 C to + 70 C
Dimensions	5 mm W x 11.5 mm L x 3.68 mm H
Packaging	Reel
Mounting Style	Through Hole
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

Quartz Crystals

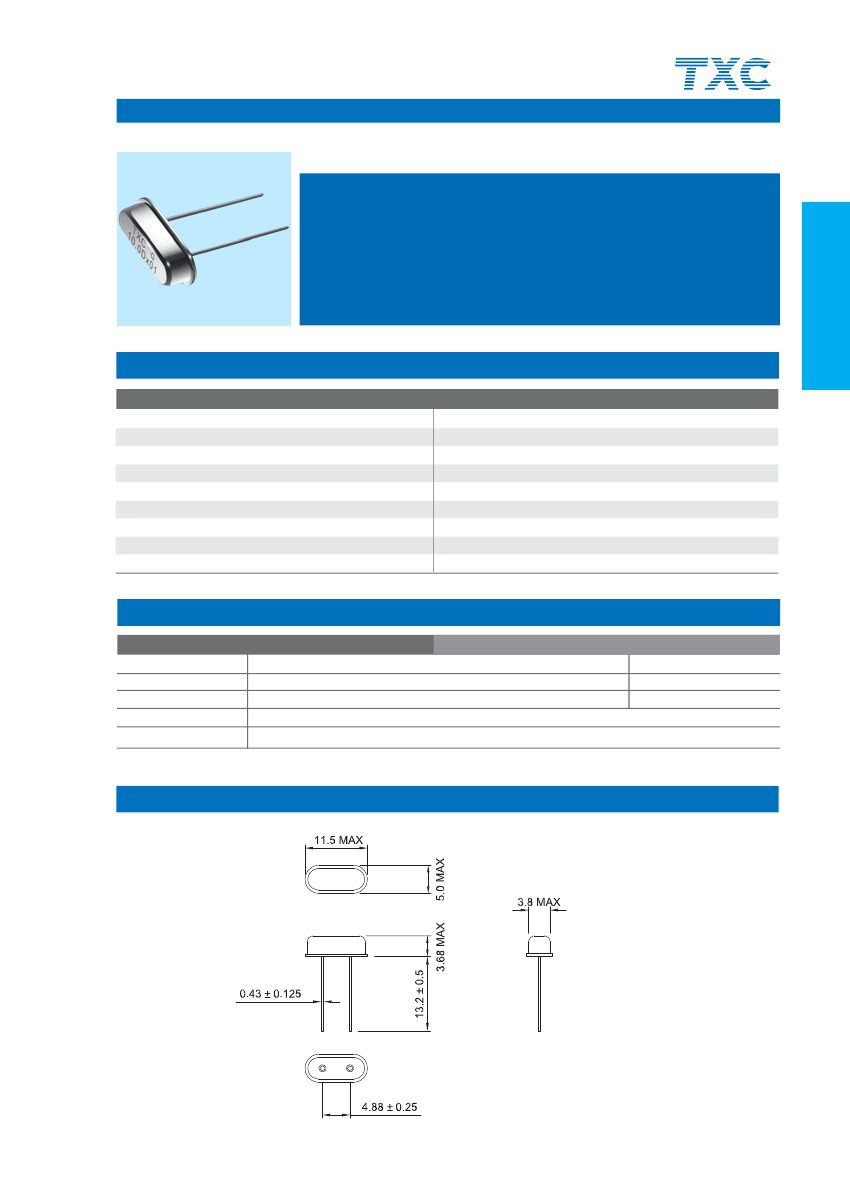

DIP HC-49S

9B SERIES

Features

Resistance welded type crystal units.

A great number of standard frequencies.

Higher frequency pullibility and lower equivalent series resistance.

Lower cost and highly mass production capability.

The best choice of TV, STB, LCDM and Cable Modem.

RoHS Compliant / Pb Free

Quartz Crystals

Electrical Specifications

Item / Type

Frequency Range

Frequency Tolerance (at 25 ºC)

Frequency Stability Over Operating Temperature Range

Operating Temperature Range

Shunt Capacitance (C0)

Drive Level

Load Capacitance

Aging (at 25 ºC)

Storage Temperature Range

3.2 ~ 90 MHz

± 30 ppm, or specify

± 30 ppm (- 20 ~ +70 ºC), or specify

- 20 ~ +70 ºC

7 pF Max.

1 ~ 500 μW (100 μW typical)

18 pF, or specify

± 3 ppm / year Max.

- 40 ~ + 85 ºC

Equivalent Series Resistance(ESR)

Fundamental

3.2 ~ 3.686 MHz

3.686 ~ 5 MHz

5 ~ 10 MHz

10 ~ 14 MHz

14 ~ 30 MHz

200 Ω Max.

150 Ω Max.

80 Ω Max.

40 Ω Max.

30 Ω Max.

3rd Overtone

27 ~ 30 MHz

30 ~ 50 MHz

50 ~ 90 MHz

100 Ω Max.

80 Ω Max.

60 Ω Max.

Dimensions

Units:mm

Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com

9B-25.000MBBE-B Related Products

	9B-25.000MBBE-B	9B-40.000MAAJ-B	9B-19.6608MAAJ-B	9B-9.8304MAAJ-B	9B-25.000MAAE-B	9B-32.000MAAJ-B	9B-25.000MBBI-B
Description	crystals 25.00mhz 50ppm 12pf -20 to 70c	crystals 40mhz 30ppm 18pf -20c +70c	crystals 19.6608mhz 30ppm 18pf -20c +70c	crystals 9.8304mhz 30ppm 18pf -20c +70c	crystals 25mhz 30ppm -20 to 70c 12pf	crystals 32mhz 30ppm 18pf -20c +70c	crystals 25mhz 50ppm -20 to 70c 12pf
Manufacture	TXC Corporati	TXC Corporati	TXC Corporati	TXC Corporati	TXC Corporati	TXC Corporati	TXC Corporati
Product Category	Crystals	Crystals	Crystals	Crystals	Crystals	Crystals	Crystals
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Frequency	25 MHz	40 MHz	19.6608 MHz	9.8304 MHz	25 MHz	32 MHz	25 MHz
Tolerance	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM
Frequency Stability	+/- 30 PPM	30 PPM	30 PPM	30 PPM	+/- 30 PPM	30 PPM	+/- 30 PPM
Load Capacitance	18 pF	18 pF	18 pF	18 pF	18 pF	18 pF	18 pF
Termination Style	Radial	Radial	Radial	Radial	Radial	Radial	Radial
Operating Temperature Range	- 20 C to + 70 C	- 20 C to + 70 C	- 20 C to + 70 C	- 20 C to + 70 C	- 20 C to + 70 C	- 20 C to + 70 C	- 20 C to + 70 C
Dimensions	5 mm W x 11.5 mm L x 3.68 mm H	5 mm W x 11.5 mm L x 3.68 mm H	5 mm W x 11.5 mm L x 3.68 mm H	5 mm W x 11.5 mm L x 3.68 mm H	5 mm W x 11.5 mm L x 3.68 mm H	5 mm W x 11.5 mm L x 3.68 mm H	5 mm W x 11.5 mm L x 3.68 mm H
Packaging	Reel	Reel	Reel	Reel	Bulk	Reel	Bulk
Mounting Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Factory Pack Quantity	1000	1000	1000	1000	1000	1000	1000
Package / Case	-	HC-49/S DIP	HC-49/S DIP	HC-49/S DIP	-	HC-49/S DIP	-
