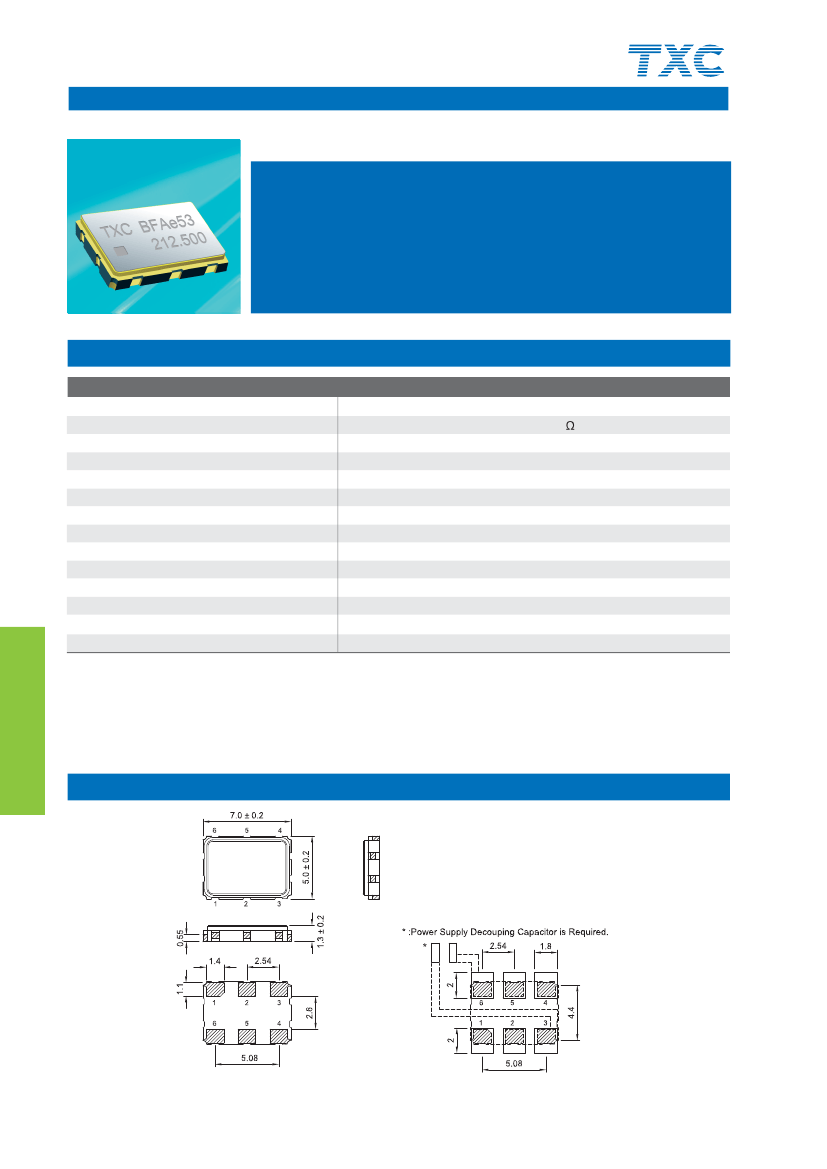

Oscillators
7 x 5 mm SMD LVDS CXO
BF SERIES
Features
e53
TXC BFA .500
212
>
3rd overtone solution.
>
3.3V and 2.5V operation available.
>
LVDS output, output frequencies 50 MHz to 160 MHz.
>
Excellent low phase noise and jitter.
>
Tri-State function available.
>
Applications : Fibre Channel, Gigabit Ethernet, Serial ATA,
Serial Attached SCSI, PCI-Express, SDH / SONET.
>
RoHS Compliant / Pb Free.
Electrical Specifications
Item / Type
Output Type
Output Load
Oscillation Mode
Supply Voltage
Frequency Range
Overall Frequency Stability *
Operating Temperature Range
Storage Temperature Range
Voltage Vol ( Min.) / Voh ( Max. )
Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % )
Supply Current
Symmetry
Start-up Time
BF
LVDS
100
3rd Overtone
2.5 V , 3.3 V
50 ~ 160 MHz
± 50 ppm ( - 40 ~ + 85
o
C )
- 40 ~ + 85
o
C
- 55 ~ + 125
o
C
0.9 V / 1.6 V
1 ns Max.
80 mA Max.
45 ~ 55 %
10 ms Max.
1 ps Max.
Oscillators
44
Phase Jitter ( 12 KHz ~ 20 MHz )
* Inclusive of initial tolerance, operating temperature, supply voltage variation and aging.
Dimensions
PAD FUNCTION:
1:ENABLE CONTROL
2:NC
3:GND
4:OUT
5:~OUT
6:VDD
Suggested Layout
Units:mm
Remark : Specification subject to change without prior notice. Please confirm with our sales.
