247-16725PJEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 247-16725PJEC

247-16725PJEC: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size321KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

247-16725PJEC Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal,

247-16725PJEC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	_compli
Other features	STANDARD: MIL-DTL-24308
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	247-167
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

D-Subminiatrure

Connectors

Filter Connector

Product Code

D Pin

(Inside)

B Socket (Outside)

B Pin (Inside)

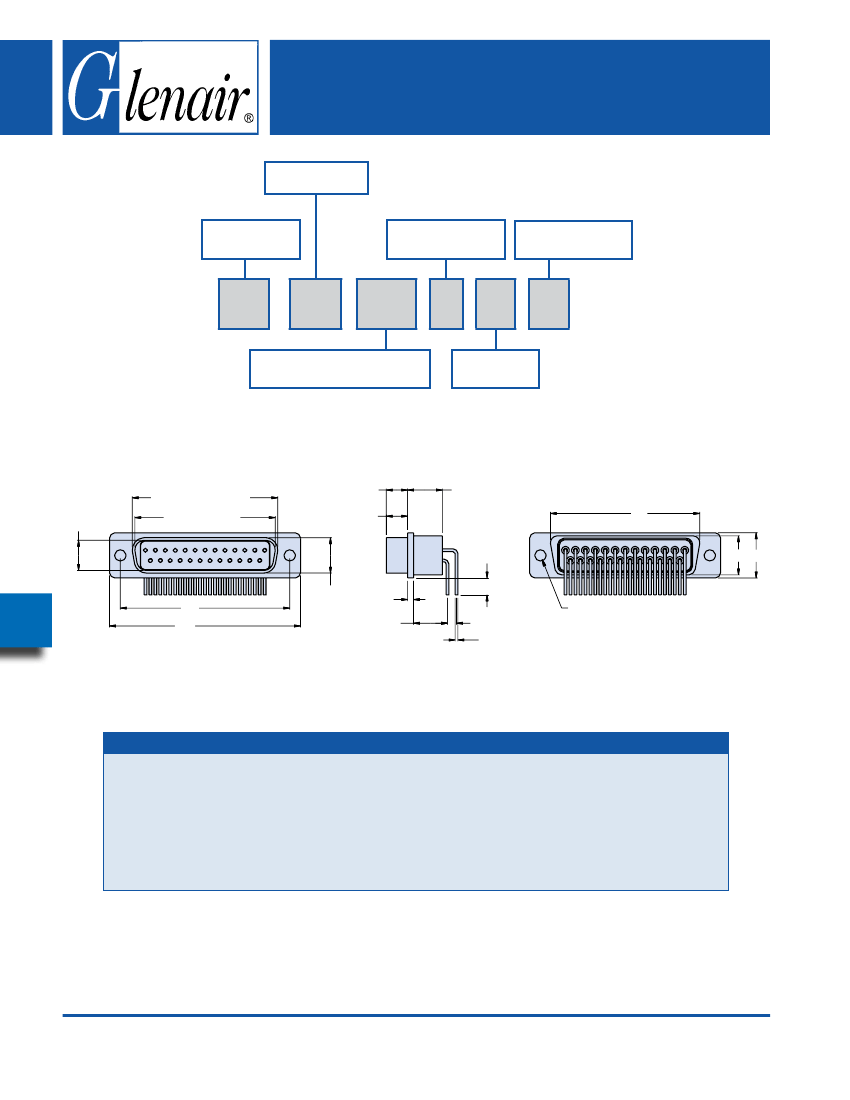

EMI Filtered (MIL-DTL-24308 Type) European Footprint

247-167

D-Subminiature Connector, Right Angle

MIL-C-2483 Type

Shell Material/Finish

(See Table II)

Hardware Options

(See Table IV)

247 - 167

15S

Filter Value

(See Table III)

Shell Size and Contact Type

(See Table I)

.248 (6.3)

.238 (6.0)

Sockets

Pins

.236 (6.0)

.229 (5.6)

.380 (9.7)

Max

G E

.186 ±.010

(4.73 ±.254)

D Socket

(Outside)

.065

(1.65)

.370

(9.39)

2 X Ø .125/.120 (3.2/3.0)

.100 (2.54)

Ø .024

(.609)

APPLICATION NOTES

1. Materials/Finishes:

Shells - See Table II

Insulators - High grade rigid dielectric/N.A.

Contacts - Copper Alloy/Gold Plated

2. Assembly to be indentified with date code, cage code, Glenair P/N,

and serial number

3. Dimensions B and D taken from inside of shell for

Pin/Plug and outside for Socket/Receptacle

4. Electrical Performance:

Dielectric withstanding voltage class A and B: 100

VDC, all others: 500 VDC

Insulation resistance: 5,000 megohms @ 100 VDC

Current Rating Standard Density: 7.5 Amps max.

Current Rating High Density: 5 Amps maximum

5. Metric dimensions (mm) are indicated in parentheses

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
