ASG-D-X-A-1.500GHz-T datasheet, PDF

Datasheet> All Categories > Passive components> ASG-D-X-A-1.500GHz-T

ASG-D-X-A-1.500GHz-T: Descriptionprogrammable oscillators 3.3volt 1.500ghz lvds; CategoryPassive components; File Size111KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASG-D-X-A-1.500GHz-T Overview

programmable oscillators 3.3volt 1.500ghz lvds

ASG-D-X-A-1.500GHz-T Parametric

Parameter Name	Attribute value
Manufacture	ABRACON
Product Category	Programmable Oscillators
RoHS	Yes
Package / Case	7 mm x 5 mm x 1.9 mm
Frequency	1.5 GHz
Frequency Stability	50 PPM
Supply Voltage	3.3 V
Termination Style	SMD/SMT
Output Form	LVDS
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Dimensions	5 mm W x 7 mm L x 1.9 mm H
Packaging	Reel
Mounting Style	SMD/SMT
Factory Pack Quantity	2000
Supply Voltage - Max	3.46 V
Supply Voltage - Mi	3.13 V

Preview

Download Datasheet

View All

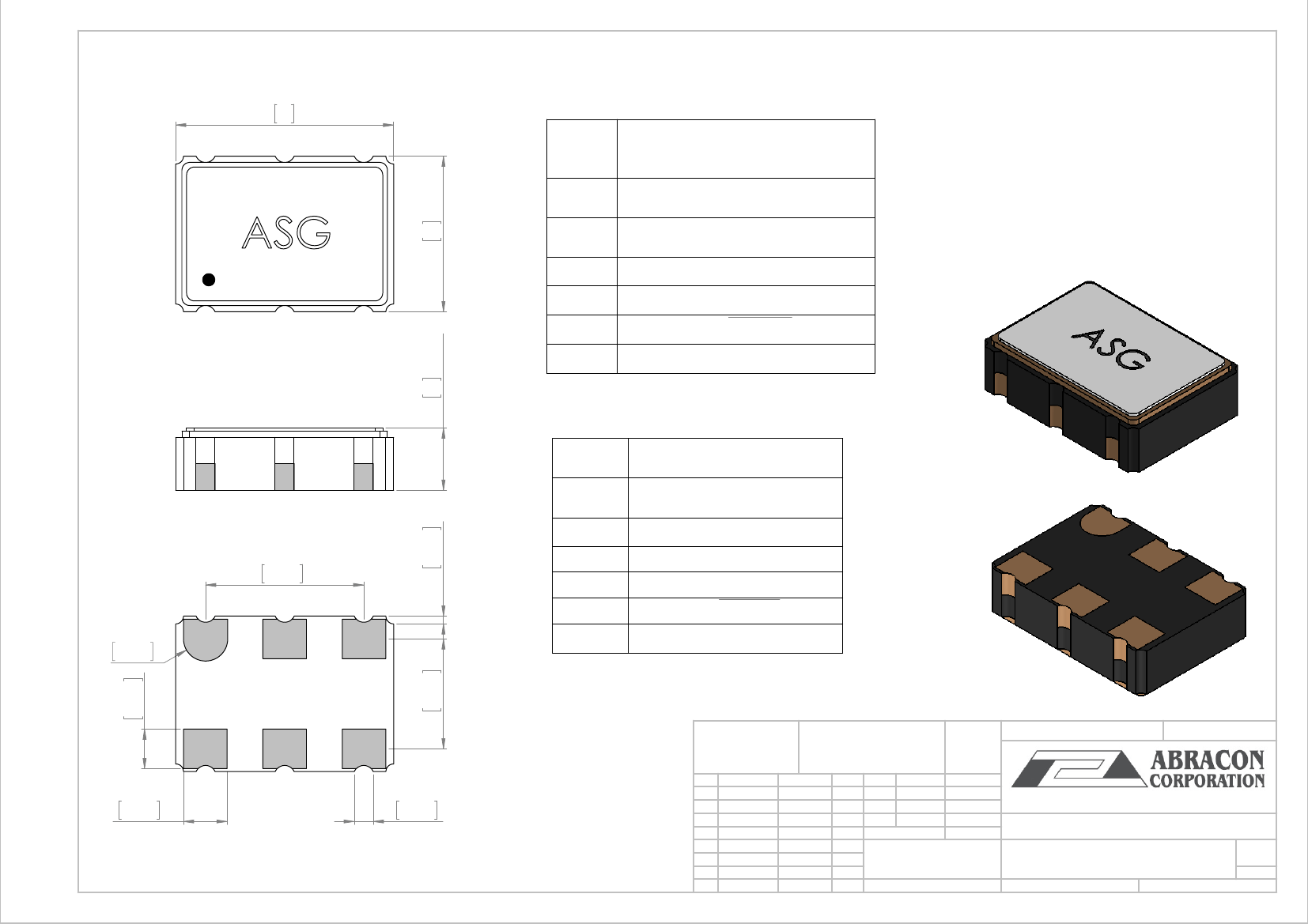

0.28

Pin #

0.20

Pin Description

For VCXO configuration

VoltageControl for VCXO

Output Enable (OE)

GND

RF Output

Vdd

GYWW

TOP VIEW

0.08 MAX

Pin #

SIDE VIEW

0.20

5.08

R0.03

0.71

0.05

1.27

0.14

3.53

0.010

0.25

Pin Description

For XO configuration

Output Enable (OE)

N/C for XO

GND

RF Output

Vdd

0.06

1.40

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

0.02

0.61

NAME

DRAWN

CHK'D

APPV'D

MFG

SAAZVAT

XXXXXX

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

MEMS

BOTTOM VIEW

Q.A

MATERIAL:

DWG NO.

ASG-D

SHEET 1 OF 1

WEIGHT:

SCALE:10:1
