ASGTX-C-19.440MHz-2-T2: Descriptiontcvcxo oscillators 19.440mhz lvcmos +/- 2 ppm; CategoryPassive components oscillator; File Size117KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASGTX-C-19.440MHz-2-T2 Overview

tcvcxo oscillators 19.440mhz lvcmos +/- 2 ppm

ASGTX-C-19.440MHz-2-T2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compli
Factory Lead Time	6 weeks
Other features	TR
Ageing	1 PPM/FIRST YEAR
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	10 ppm
frequency stability	2%
Installation features	SURFACE MOUNT
Nominal operating frequency	19.44 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	9.0mm x 7.0mm x 2.24mm
longest rise time	1 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

6

0.354

9.00

5

PIN #

SYMBOL

OE

Vc

GND

OUT

VDD

DESCRIPTION

Output Enable

Control Voltage

Ground

Primary Output

Complimentary

Output

COMMENT

Active High, leave floating if not used

0 ~ Vdd can be applied to pull frequency

Connect to Analog Ground

LVDS/LVPECL Primary output

LVDS/LVPECL Complimentary output

4

1

2

3

4

0.276

7.00

5

6

Bias Voltage

Apply +3.30V ±0.3V

Factory

PROG, FSEL0 & FSEL1 Configuration Pins DONOT Connect, this area needs to be masked on customer PCB

1

0.088

2.24

2

3

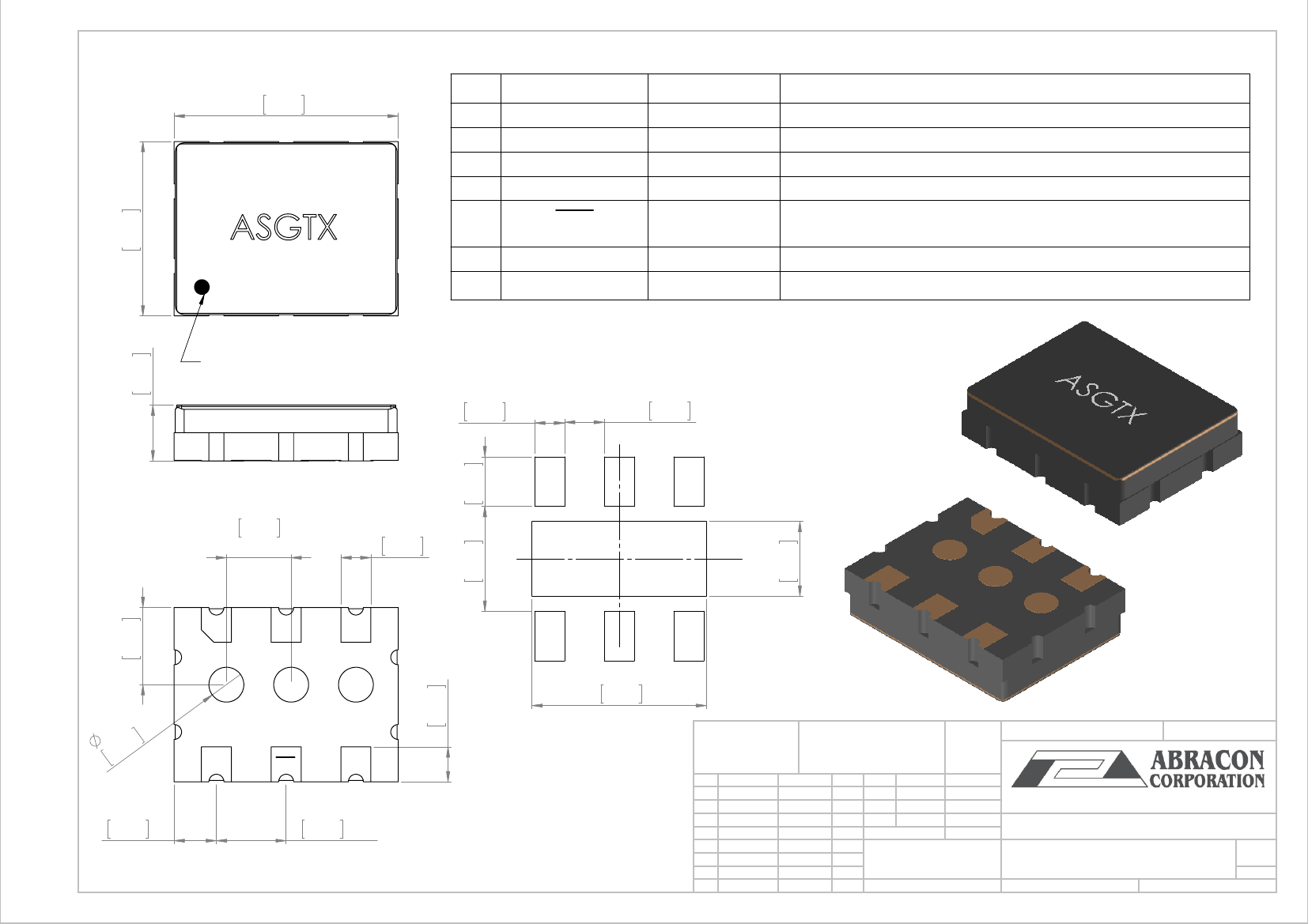

Recommended land Pattern

0.047

1.20

0.063

1.60

Pin # 1 Identifier

0.165

4.20

1

0.122

3.10

OE

2

VC

3

GND

5

05

0. 0

1.4

0.067

1.70

0.055

1.40

FSEL1

FSEL0

PROG

0.276

7.00

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MM

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

MATERIAL:

DWG NO.

SAAZVAT

XXXXXX

0.118

3.00

0.102

2.60

TYP.

0.047

1.20

0.079

2.00

"This 3x7mm area should be "masked"

on the end-customer PCB and

preferably not connected to Ground.

Also, please do not route

electrical signals under

the oscillator package area".

FINISH:

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

-

VDD

OUT

6

5

4

0.110 TYP.

2.80

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

-

ASGTX

SHEET 1 OF 1

A3

WEIGHT:

SCALE:8:1
