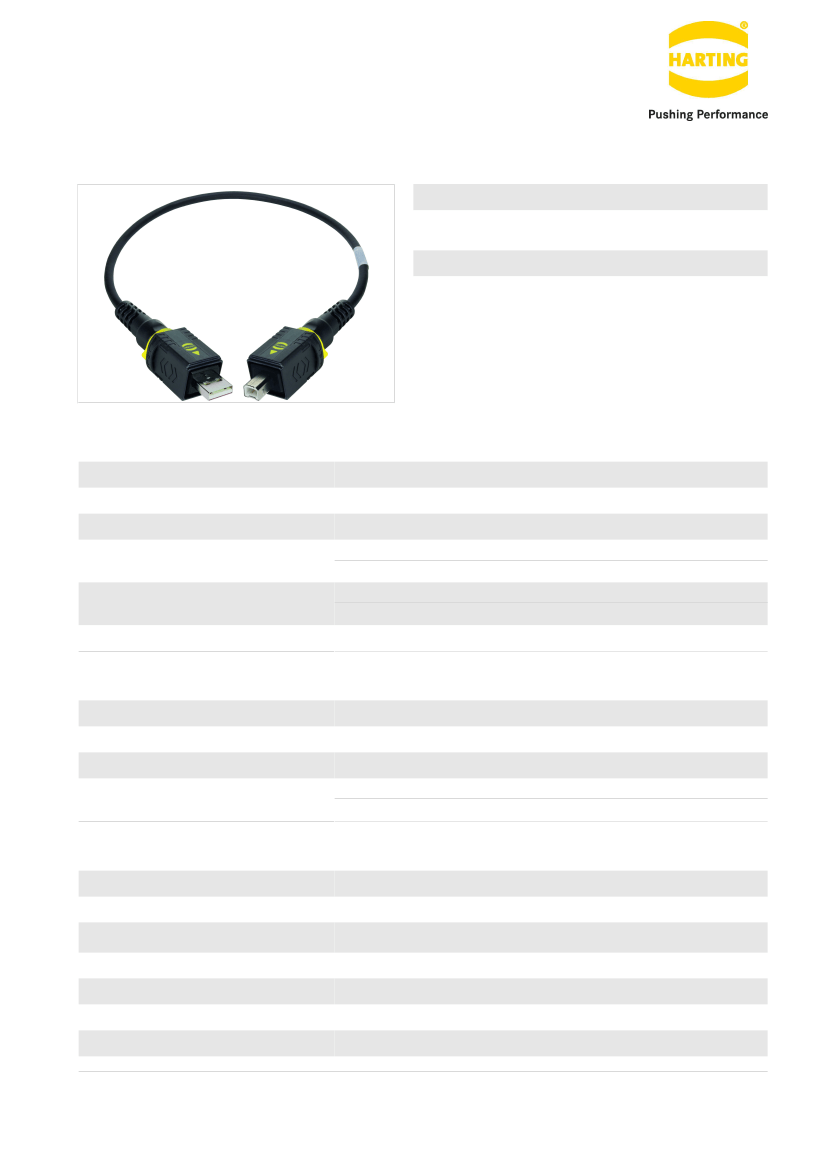

Product data sheet
09 45 445 4904
PP-V4-CA-USB2A/USB2B-PP/PP-P-P-STR-3.0
PP-V4-CA-USB2A/USB2B-PP/PP-P-P-STR-3.0
Part number
Specification
HARTING eCatalogue
09 45 445 4904
PP-V4-CA-USB2A/USB2B-PP/PP-P-P-
STR-3.0
https://b2b.harting.com/09454454904
Image is for illustration purposes only. Please refer to product description.
Identification
Category
Series
Specification
Connector 1
Connector 2
Type of cable
Cable assemblies
USB
Pre-assembled on both sides
HARTING PushPull (V4) USB 2.0
Type A
HARTING PushPull (V4) USB 2.0
Type B
Copper cable (round)
Version
Cable length
Shielding
Number of cores
Core structure
3 m
Shielded
4
2x AWG 26/7
2x AWG 24/11
Technical characteristics
Rated current
Rated voltage
Insulation resistance
Contact resistance
Limiting temperature
Insertion force
Withdrawal force
1.5 A
30 V DC
> 1.6 x 10
6
Ω
≤30 mΩ
-40 ... +85 °C
≤35 N
≥15 N
Page 1 / 2 | Creation date 2020-01-30 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany
Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com
Product data sheet
09 45 445 4904
PP-V4-CA-USB2A/USB2B-PP/PP-P-P-STR-3.0
Technical characteristics
Mating cycles
Degree of protection acc. to IEC 60529
Cable diameter
Test voltage U
r.m.s.
Data rate
Impedance
≥750
IP65
IP67
4.9 mm
0.5 kV (contact-contact)
0.5 kV (contact-ground)
480 Mbit/s
90 Ω ±15 %
Material properties
Material (insert)
Material (contacts)
Surface (contacts)
Material (cable)
Colour (cable)
Material flammability class acc. to UL 94
RoHS
ELV status
China RoHS
REACH Annex XVII substances
REACH ANNEX XIV substances
REACH SVHC substances
Liquid crystal polymer (LCP)
Copper alloy
Sn over Ni Termination side
Au over Ni Mating side
PVC
Black
V-0
compliant
compliant
e
No
No
No
Specifications and approvals
Specifications
IEC 61076-3-106 Variant 4 (V4)
Commercial data
Packaging size
Country of origin
European customs tariff number
eCl@ss
1
Malaysia
85444290
27060390 Ready-made data cable (unspecified)
