85 Series
Product Definition
316L SS Pressure Sensor
Small Profile
0 – 100mV Output
Gage, Absolute, Vacuum Gage
85 Series

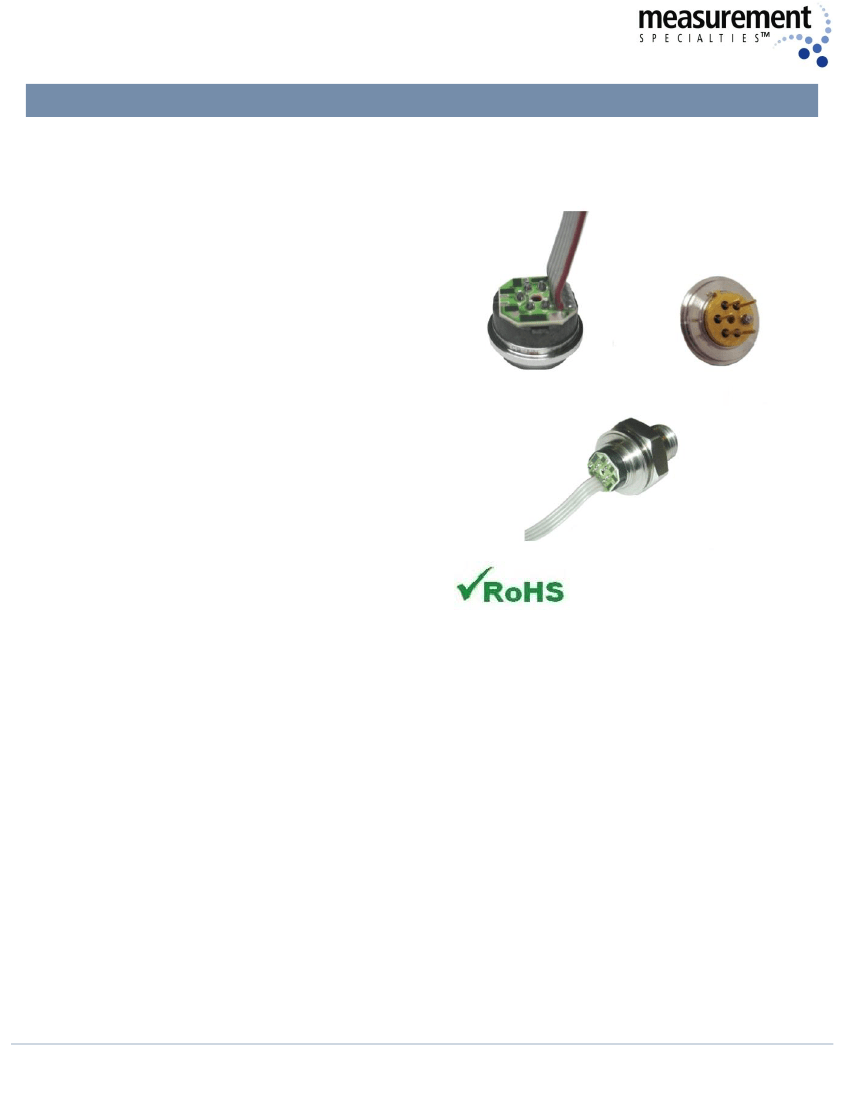

The 85 series is a small profile, media
compatible, piezoresistive silicon pressure
sensor packaged in a 316L stainless steel
housing. The 85 is offered in a weldable
package or with a variety of threaded fittings
such as 1/4 and 1/8NPT, 1/4BSP as well as
custom process fittings.
The sensing package utilizes silicone oil to
transfer pressure from the 316L stainless
steel diaphragm to the sensing element.
FEATURES
Weldable and Threaded Process Fittings
-40ºC to +125ºC Operating Temperature
Up to ±0.1% Pressure Non Linearity
Solid State Reliability
APPLICATIONS
Medical Instruments
Process Control
Fresh & Waste Water Measurements
Partial Vacuum Gas Measurement
Pressure Transmitters
Tank Level Systems (RV & Industrial)
85 Series
www.meas-spec.com
June 2014
85 Series
Product Definition
Type (G = Gage
A = Absolute
D = Differential,
V = Vacuum
Gage)
A, G
A, G
A, G
V
V
V
Model
85U
85C
85CV
85VU
85VC
85VCV
Pressure Ranges
0 – 5, 15, 30, 50,
100, 300, 500psi
0 – 5, 15, 30, 50,
100, 300, 500psi
0 – 5, 15, 30, 50,
100, 300, 500psi
0 – 15, 30, 50, 100,
300, 500psi
0 – 15, 30, 50, 100,
300, 500psi
0 – 15, 30, 50, 100,
300, 500psi
Span (typ)
See
Sensitivity
100mV
100mV
See
Sensitivity
100mV
100mV
Supply
Voltage Current
1.5mA
1.5mA
10Vdc
1.5mA
1.5mA
10Vdc
Operating
Temperature
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
Unique Feature
Small profile
No substrate
Small profile
6-Pad substrate
Small profile
4-Pad substrate
Small profile
No substrate
Small profile
6-Pad Substrate
Small profile
4-Pad substrate
NORTH AMERICA
Measurement Specialties
45738 Northport Loop West
Fremont, CA 94538
Tel: 1-800-767-1888
Fax: 1-510-498-1578
Sales:
pfg.cs.amer@meas-spec.com
EUROPE
Measurement Specialties
(Europe), Ltd.
26 Rue des Dames
78340 Les Clayes-sous-Bois, France
Tel: +33 (0) 130 79 33 00
Fax: +33 (0) 134 81 03 59
Sales:
pfg.cs.emea@meas-spec.com
ASIA
Measurement Specialties
(China), Ltd.
No. 26 Langshan Road
Shenzhen High-Tech Park (North)
Nanshan District, Shenzhen 518057
China
Tel: +86 755 3330 5088
Fax: +86 755 3330 5099
Sales:
pfg.cs.asia@meas-spec.com
The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies.
Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the man ufacturer. Measurement
Specialties, Inc. reserves the right to make changes without further notice to any product herein. Measurement Specialties, Inc. makes no warranty,
representation or guarantee regarding the suitability of its product for any particular purpose, nor does Measurement Specialties, Inc. assume any liability
arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation consequential or
incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application
by customer’s technical experts. Measurement Specialties, Inc. does not convey any license under its patent rights nor the rights of others.
85 Series
www.meas-spec.com
June 2014
