82 Series
Product Definition
316L SS Pressure Sensor
19mm Diameter Package
0 – 100mV Output
Gage, Absolute
82 Series

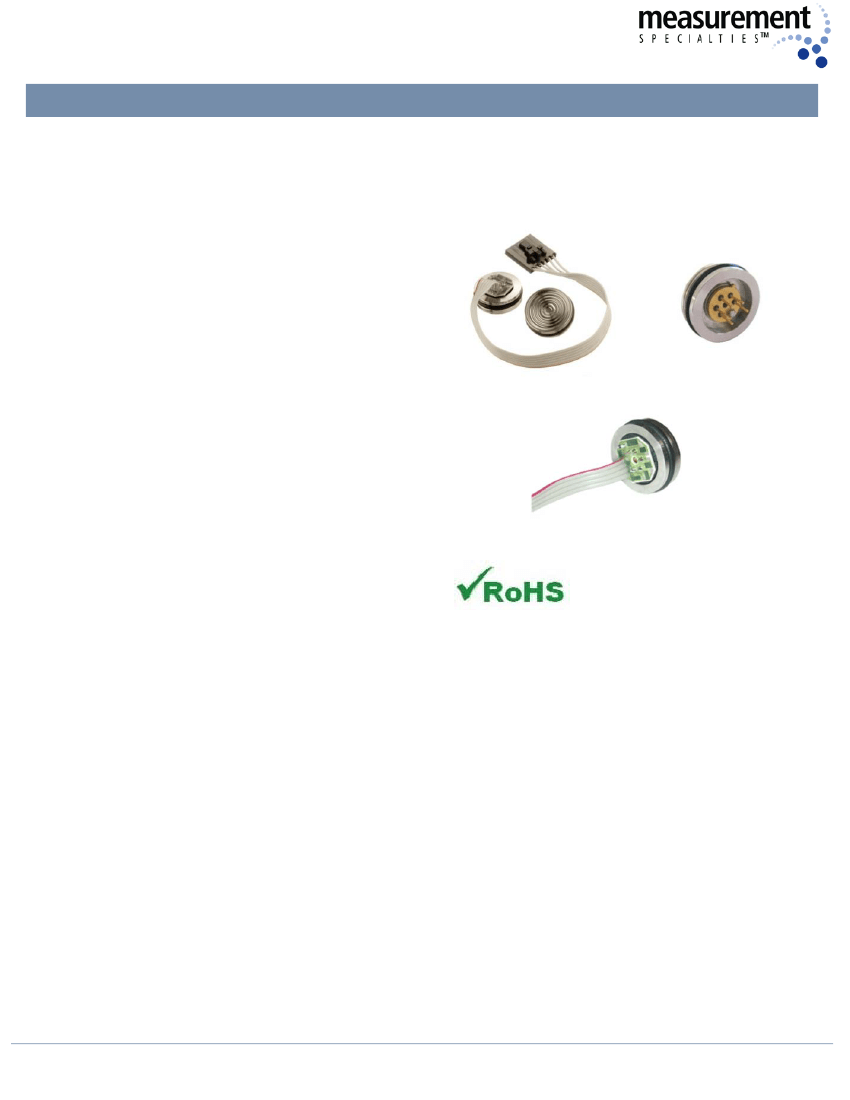

The 82 series is a 19mm small profile,
media compatible, piezoresistive silicon
pressure sensor packaged in a 316L
stainless steel housing. They are designed
for o-ring mounting and OEM applications
where compatibility with corrosive media is
required.
The sensing package utilizes silicone oil to
transfer pressure from the 316L stainless
steel diaphragm to the sensing element.
FEATURES
•
•
•
•
O-Ring Mount
±0.2% Pressure Non Linearity
1.0% Interchangeable Span
(provided by gain set resistor)
-40°C to +125°C Operating
Temperature Range
APPLICATIONS
•
•
•
•
•
•
Medical Instruments
Process Control
Fresh & Waste Water Measurements
Partial Vacuum Gas Measurement
Pressure Transmitters
Tank Level Systems (RV & Industrial)
82 Series
www.meas-spec.com
September 2012
82 Series
Product Definition
Type (G = Gage
A = Absolute
D = Differential,
V = Vacuum
Gage)
A, G
Model
82U
Pressure Ranges
0 – 1, 5, 15, 30, 50,
100, 300, 500psi
0 – 1, 5, 15, 30, 50,
100, 300, 500psi
0 – 1, 5, 15, 30, 50,
100, 300, 500psi
0 – 15, 30, 50, 100,
300, 500psi
Span (typ)
See
Sensitivity
100mV
Supply
Voltage Current
1.5mA
Operating
Temperature
-40°C to +125°C
82C
A, G
1.5mA
-40°C to +125°C
82CV
A, G
100mV
10Vdc
-40°C to +125°C
82VC
V
100mV
1.5mA
-40°C to +125°C
Unique Feature
Low profile
19mm
No substrate
Low profile
19mm
6-Pad substrate
Low profile
19mm
4-Pad substrate
Low profile
19mm
6-Pad substrate
