FX1901
Compression Load Cell
High Reliability Design for OEM,
Appliance and Medical Applications
10 – 100 lbf Ranges
Compact Coin Cell Package
Anti-Rotation Mounting Features
CE Compliance

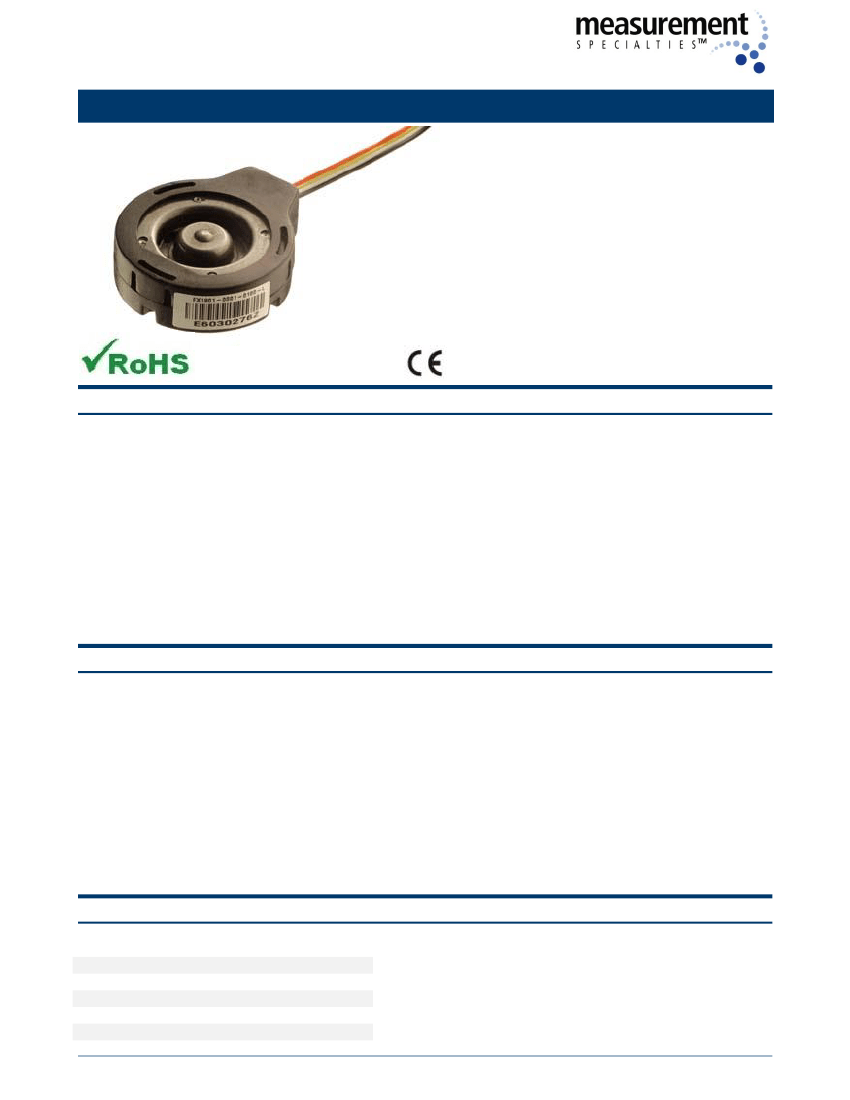

DESCRIPTION
The FX1901 units are intended for OEM use in laboratory, hospital or consumer product applications,
establishing a breakthrough price/performance value for compression load cells. The FX1901 is a 1% load cell
device with full scale ranges of 10, 25, 50 or 100 and 200lbf compression. This new, low-cost technology
enables force sensing in a whole new class of "smart" consumer and medical products.
MEAS’ proprietary Microfused™ technology, derived from demanding aerospace applications, employs
micro-machined piezoresistive strain gages fused with high temperature glass to a high performance stainless
steel force measuring flexure. Microfused™ technology eliminates age-sensitive organic epoxies used in
traditional load cell designs, providing excellent long term span and zero stability. Operating at very low strains,
Microfused™ technology provides an essentially unlimited cycle life expectancy, superior resolution, high over-
range capabilities and a ratiometric span of 20mV/V. The combination of stamped flexures and micro
miniaturized MEMs strain gages permits low costs to be achieved in high volume OEM applications ranging
from disposable medical devices to durable appliances and exercise equipment.
FEATURES
Small
Low Noise
Robust: High Over-Range
High Reliability
mV Output: 20mV/V Nominal
Low Deflection
Fast
Essentially Unlimited Cycle Life
APPLICATIONS
Assembly Forces
Physical Therapy Devices
Patient Weight
Hand Tool Forces
Chiropractic and Exercise Equipment
Consumables Monitoring: Copy Equipment and
Vending systems
Appliance Payload Monitoring: Washers, Dryers,
Water Weight, Extraction Efficiency
Appliance Unbalance Monitoring
STANDARD RANGES
Range
0 to 10
0 to 25
0 to 50
0 to 100
0 to 200
FX1901
lbf
www.meas-spec.com
1/4
May 2014
FX1901
Compression Load Cell
PERFORMANCE SPECIFICATIONS
Supply Voltage: 5.0V, Ambient Temperature: 25°C (unless otherwise specified)
PARAMETERS
MIN
TYP
Recommended Excitation
Full Scale Output Span
Full Scale Output Span (200lbf)
Zero Offset
Non-Linearity
Hysteresis
Thermal Zero Shift
Thermal Sensitivity Shift
Insulation Resistance
Maximum Overload
Maximum Overload (200lbf)
Operating Temperature
Storage Temperature
Creeping
Zero Drift
Zero Return
Span Repeat
Humidity
Deflection
Span Compensation Resistor (10, 25, 50 100lbf)
Input Resistance
Output Resistance
For custom configurations, consult factory.
2.4
1.76
-0.8
-0.8
0
5
0.05
464
3
2.2
3.6
2.64
0
-40
16
34.2
-15
-1
-0.80
-0.05
-0.05
50
250
150
50
+85
0.5
0.5
0.8
0.8
90
5
20
36
24
37.8
15
1
0.80
0.05
0.05
mV/V
%FSO
%Span
%FSO / °C
%FSO / °C
MΩ
%FSO
%FSO
°C
°C
%FSO
%FSO
%FSO
%FSO
%R.H.
mm
Ω
KΩ
KΩ
At Rated Load
F.S. Span in 3min
Load F.S. 3min
@500Vdc
MAX
UNITS
V
mV/V
NOTES
CE Compliance
IEC61000-4-2 [4 kV/ 4 kV (Air/Contact)]
IEC61000-4-3 (3 V/m)
IEC55022 Class A
FX1901
www.meas-spec.com
2/4
May 2014
FX1901
Compression Load Cell

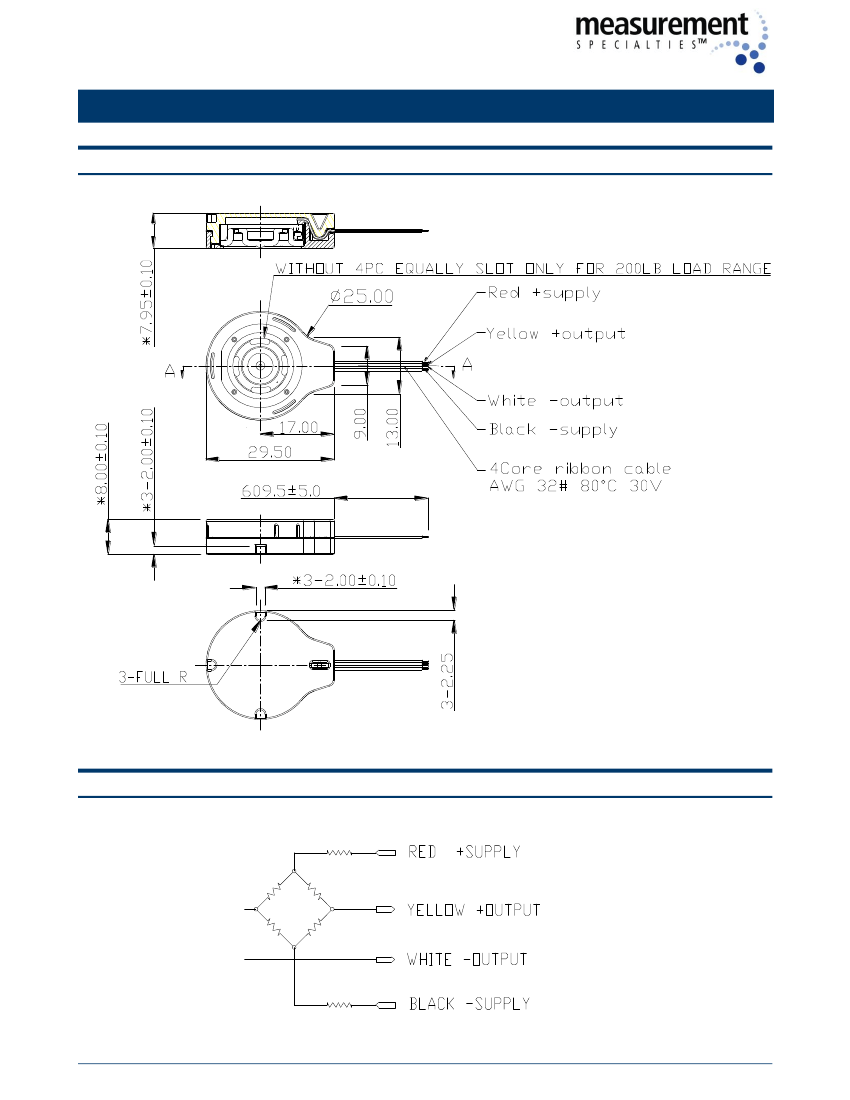

DIMENSIONS
WIRING INFORMATION
FX1901
www.meas-spec.com
3/4
May 2014
FX1901
Compression Load Cell
ORDERING INFORMATION
FX19 0 1 - 0001 - 100 L
Units (L = lbf)
Force Range
Specials (0001 = Standard, nnnn = Custom Design)
Connection (1 = 2ft Cable)
Output (0 = 20mV)
Model
NORTH AMERICA
Measurement Specialties
45738 Northport Loop West
Fremont, CA 94538
Tel: 1-800-767-1888
Fax: 1-510-498-1578
Sales:
pfg.cs.amer@meas-spec.com
EUROPE
Measurement Specialties
(Europe), Ltd.
26 Rue des Dames
78340 Les Clayes-sous-Bois, France
Tel: +33 (0) 130 79 33 00
Fax: +33 (0) 134 81 03 59
Sales:
pfg.cs.emea@meas-spec.com
ASIA
Measurement Specialties
(China), Ltd.
No. 26 Langshan Road
Shenzhen High-Tech Park (North)
Nanshan District, Shenzhen 518057
China
Tel: +86 755 3330 5088
Fax: +86 755 3330 5099
Sales:
pfg.cs.asia@meas-spec.com
The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for
inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rig hts to the
manufacturer. Measurement Specialties, Inc. reserves the right to make changes without further notice to any product herein. Measurement
Specialties, Inc. makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does
Measurement Specialties, Inc. assume any liability arising out of the application or use of any product or circuit and specifically disclaims
any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different
applications. All operating parameters must be validated for each customer application by customer’s technical experts. Measurement
Specialties, Inc. does not convey any license under its patent rights nor the rights of others.
FX1901
www.meas-spec.com
4/4
May 2014
