FC22
Compression Load Cell
10 – 100 lbf Ranges
High Level or mV Outputs
Interchangeable
Compact Easy to Fixture Design
CE Compliance
DESCRIPTION
The FC22 is a
medium compression force sensor that creates new markets previously unrealizable due
to cost and performance constraints. The FC22 offers normalized zero and span for interchangeability and is
thermally compensated for changes in zero and span with respect to temperature.
The FC22 incorporates MEAS’ proprietary Microfused™ technology which employs micromachined
silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel
substrate. Microfused™ technology eliminates age-sensitive organic epoxies used in traditional load cell
designs providing excellent long term span and zero stability. The FC22 measures direct force and is therefore
not subject to lead-die fatigue failure common with competitive designs which use a pressure capsule
embedded within a silicone gel-filled cavity. Operating at very low strains, Microfused™ technology provides an
essentially unlimited cycle life expectancy, superior resolution, and high over-range capabilities.
Cost-optimization of the FC22 brings your OEM product to life whether you need thousands or millions
of load cells annually. Although the standard model is ideal for a wide range of applications, our dedicated
design team at our Load Cell Engineering Center is ready to provide you with custom designs for your OEM
applications.
Please refer to the FS20 for lower force applications or the FC23 for higher force applications.
FEATURES
Small Size
Low Noise
Robust: High Over-Range Capability
High Reliability
Low Deflection
Essentially Unlimited Cycle Life Expectancy
Low Off Center Errors
Fast Response Time
10 to 100 lbf Ranges
Reverse Polarity Protected
APPLICATIONS
Medical Infusion Pumps
Robotics End-Effectors
Variable Force Control
Load and Compression Sensing
Exercise Machines
Pumps
Contact Sensing
Weighing
Household Appliances
FC22
www.meas-spec.com
1/4
April 2013
FC22
Compression Load Cell
STANDARD RANGES
Range
0 to 10
0 to 25
0 to 50
0 to 100
lbf
PERFORMANCE SPECIFICATIONS
Supply Voltage: 5.0V, Ambient Temperature: 25°C (unless otherwise specified)
PARAMETERS
MIN
TYP
Span (Unamplified)
Span (Amplified)
Zero Force Output (Unamplified)
Zero Force Output (Amplified)
Accuracy (non linearity, hysteresis, and repeatability)
Output Resistance (Unamplified)
Input Resistance (Unamplified)
Temperature Error – Zero
Temperature Error – Span
Long Term Stability (1 year)
Maximum Overload
Compensated Temperature
Operating Temperature
Storage Temperature
Excitation Voltage (Unamplified)
Excitation Voltage (Amplified)
Isolation Resistance (250Vdc)
Deflection at Rated Load
Humidity
Weight
For custom configurations, consult factory.
Notes
1.
Ratiometric to supply.
2.
Best fit straight line.
3.
Maximum temperature error over compensated range with respect to 25°C.
0
18.41
3.3
50
0.05
90
0
-40
-40
-1.25
-1.25
±1
2.5X
50
+85
+85
5
5
19
3.88
-1
0.3
20
4.00
0
0.5
±1
2.2
3
1.25
1.25
MAX
21
4.12
1
0.7
UNITS
mV/V
V
mV
V
%Span
kΩ
kΩ
%Span
%Span
%Span
Rated
°C
°C
°C
Vdc
Vdc
MΩ
mm
%RH
grams
3
3
NOTES
1
1
1
1
2
CE Compliance
IEC61000-4-2 [4 kV/ 4kV (Air/Contact)]
IEC61000-4-3 (3 V/m)
IEC55022 Class A
FC22
www.meas-spec.com
2/4
April 2013
FC22
Compression Load Cell

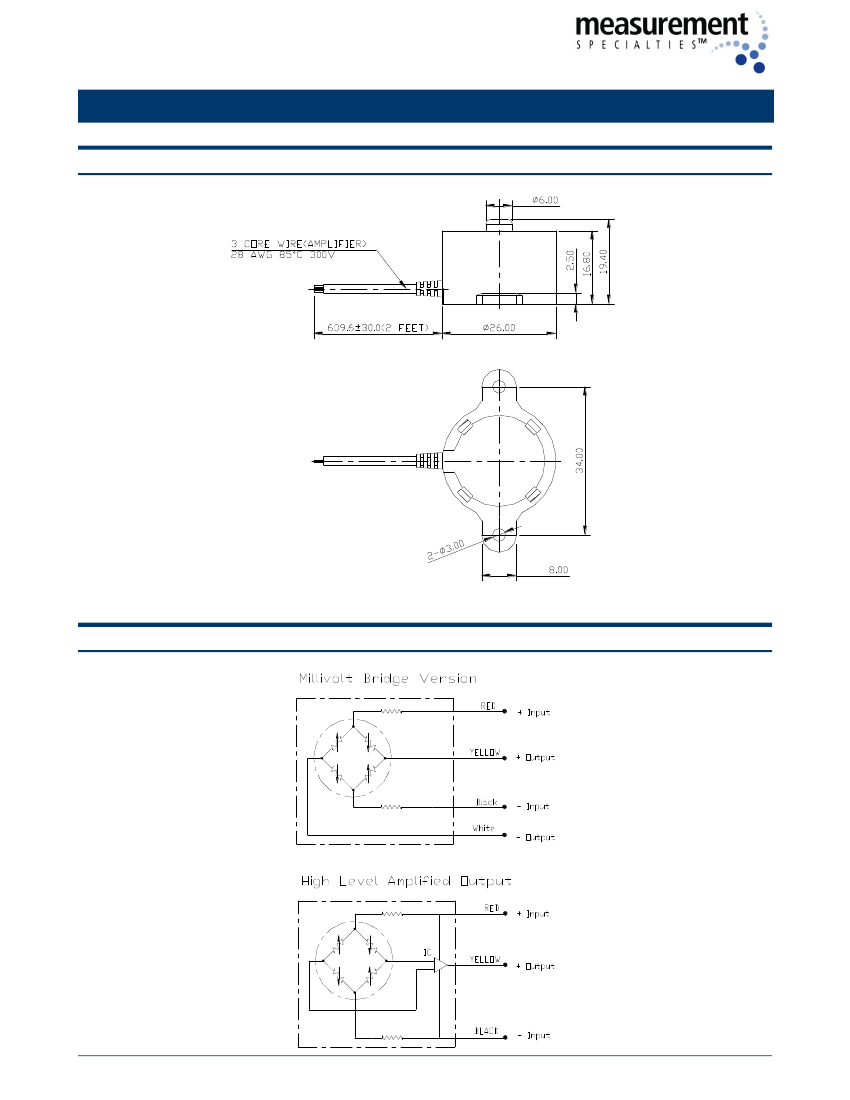

DIMENSIONS
CONNECTIONS
FC22
www.meas-spec.com
3/4
April 2013
FC22
Compression Load Cell
ORDERING INFORMATION
FC22 3 1 - 0000 - 0010 - L
Units (L = lbf, N = Newtons)
Multiplier (- = None)
Force Range
Specials (Reserved for Custom Designs)
Connection (1 = 2ft Cable)
Output (0 = Uncompensated, 1 = 20 mV, 3 = 0.5 - 4.5V)
Model
NORTH AMERICA
Measurement Specialties
45738 Northport Loop West
Fremont, CA 94538
Tel: 1-800-767-1888
Fax: 1-510-498-1578
Sales:
pfg.cs.amer@meas-spec.com
EUROPE
Measurement Specialties
(Europe), Ltd.
26 Rue des Dames
78340 Les Clayes-sous-Bois, France
Tel: +33 (0) 130 79 33 00
Fax: +33 (0) 134 81 03 59
Sales:
pfg.cs.emea@meas-spec.com
ASIA
Measurement Specialties
(China), Ltd.
No. 26 Langshan Road
Shenzhen High-Tech Park (North)
Nanshan District, Shenzhen 518057
China
Tel: +86 755 3330 5088
Fax: +86 755 3330 5099
Sales:
pfg.cs.asia@meas-spec.com
The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for
inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the
manufacturer. Measurement Specialties, Inc. reserves the right to make changes without further notice to any product herein. Measurement
Specialties, Inc. makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does
Measurement Specialties, Inc. assume any liability arising out of the application or use of any product or circuit and specifically disclaims
any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different
applications. All operating parameters must be validated for each customer application by customer’s technical experts. Measurement
Specialties, Inc. does not convey any license under its patent rights nor the rights of others.
FC22
www.meas-spec.com
4/4
April 2013
