AOCJY-12.800MHz-E: Descriptionocxo oscillators 12.800mhz 3.3volts -20c +70c cmos; CategoryPassive components oscillator; File Size926KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AOCJY-12.800MHz-E Overview

ocxo oscillators 12.800mhz 3.3volts -20c +70c cmos

AOCJY-12.800MHz-E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	DILCC5/6,1,350
Reach Compliance Code	compli
Other features	TRAY
Ageing	0.1 PPM/YEAR
Maximum control voltage	3.3 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
frequency stability	0.01%
Frequency Stability - Voltage	0.02 ppm
input power	1.4 W
Installation features	SURFACE MOUNT
Number of terminals	5
Maximum operating frequency	100 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	12.8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
Oven power supply voltage	3.3V
Package body material	METAL
Encapsulate equivalent code	DILCC5/6,1,350
physical size	25.4mm x 22.1mm x 12.7mm
power supply	3.3 V
Certification status	Not Qualified
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Preheating power	3.6 W
Maximum warm-up time	3 Minute
Base Number Matches	1

Preview

Download Datasheet

View All

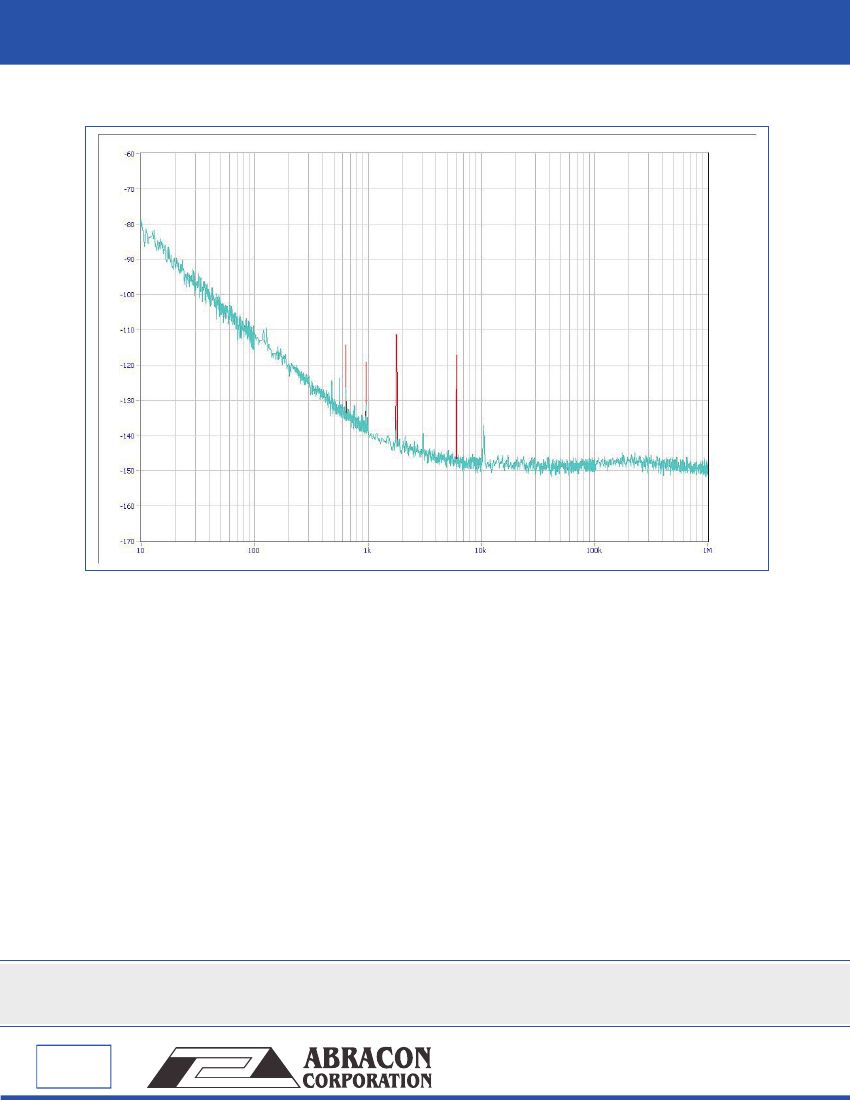

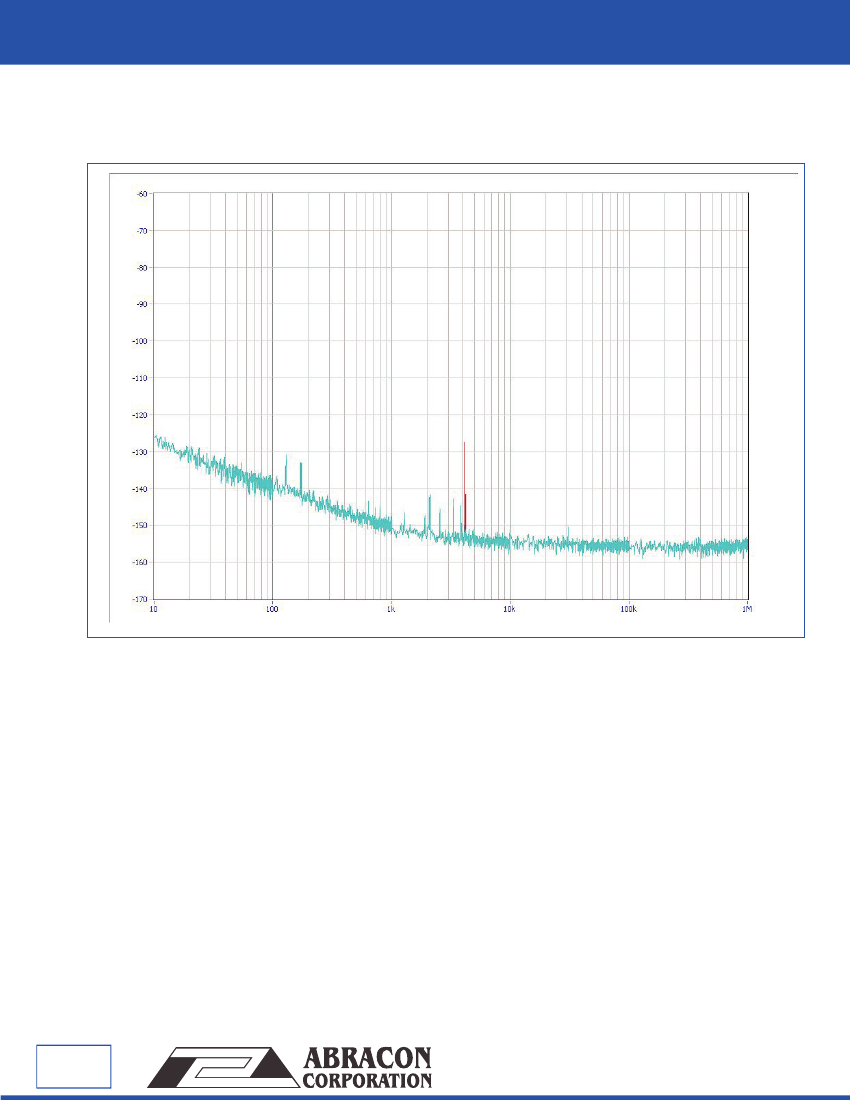

Oven Controlled Crystal Oscillator: AOCJY Carrier Phase Noise

Carrier Frequency

Typical Phase Noise:

@ 10Hz offset from the carrier

@ 100Hz offset from the carrier

@ 1,000Hz offset from the carrier

@ 10,000Hz offset from the carrier

@ 100,000Hz offset from the carrier

@ 1,000,000Hz offset from the carrier

=

10MHz

=

-125 dBc/Hz

-140 dBc/Hz

-150 dBc/Hz

-155dBc/Hz

-155 dBc/Hz

ABRACON IS

ISO9001:2008

CE RTIFIED

Revised: 05.18.12

30332 E speranza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit

www.abracon.com

for Terms & Conditions of Sale
