MS1451
PC Board Mountable Pressure Sensor
0-60 mV Output
Gage and Absolute
Low Cost
DESCRIPTION

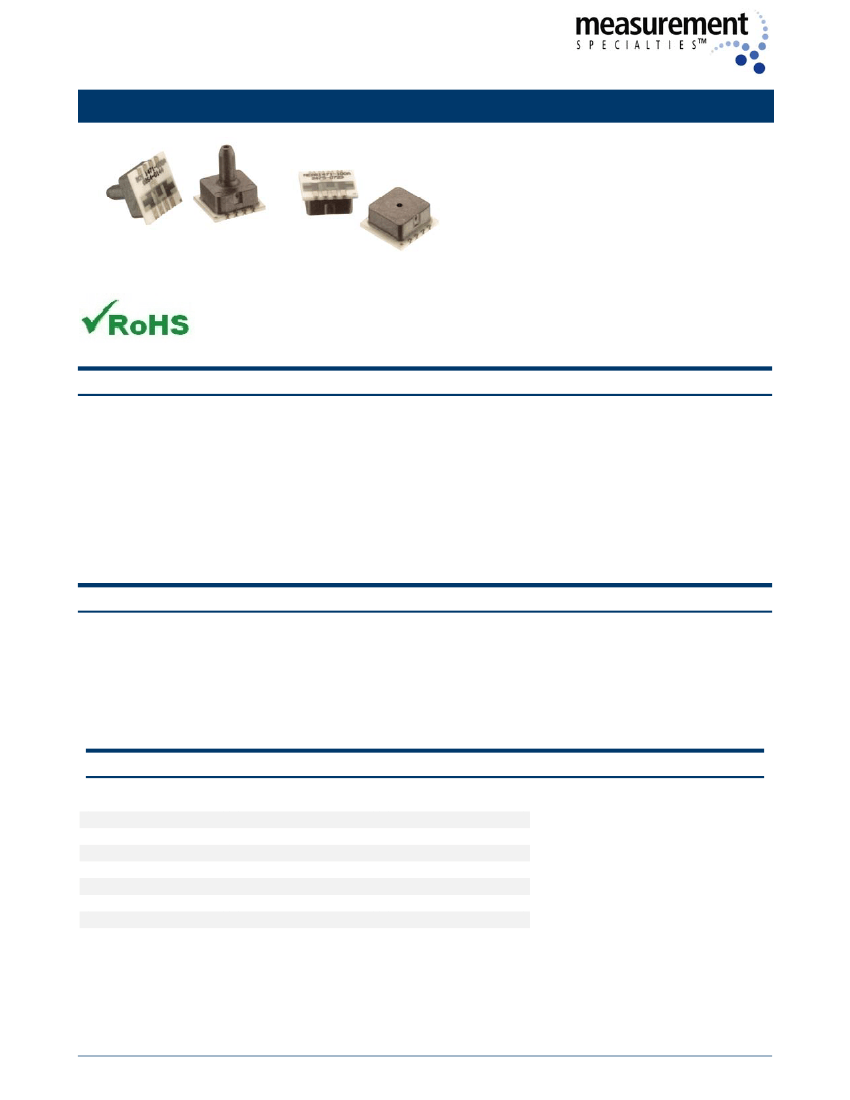

The MS1451 is a piezoresistive silicon pressure sensor packaged in a surface mount configuration. It is
intended for high volume applications where small size, light weight, low cost, and compatibility with automated
assembly equipment are required.
The pressure sensor is available with a gage or absolute pressure sensing chip that is attached to a
surface mountable ceramic substrate. A plastic cap is attached to the ceramic substrate, protecting the chip and
providing the pressure port.
The devices are shipped in plastic anti-static shipping tubes for use with automated production
equipment. The drawing shows a standard tube version. Ports are also available with a narrow hole or a large
hole to interface with the pressure media.
FEATURES
Surface Mount Package
±0.25% Pressure Non Linearity
3 Pressure Port Options
Solid State Reliability
Low Power
APPLICATIONS
Altitude Measurement
Barometric Pressure
Medical Instrumentation
Consumer Appliances
Tire Pressure
STANDARD RANGES
Range
0 to 5
0 to 15
0 to 30
0 to 50
0 to 100
0 to 250
0 to 500
Port Options:
W = Wide Hole (Gel Fill option available), N = Narrow Hole, T = Tube
W, N, T
W, N, T
W, N, T
W, N, T
W, N
W, N
psia
psig
W, N, T
W, N, T
W, N, T
W, N, T
W, N, T
MS1451
www.meas-spec.com
1/4
June 2011
1451
PERFORMANCE SPECIFICATIONS
Supply Voltage: 3 Vdc
Ambient Temperature: 25°C (unless otherwise specified)
PARAMETERS
Span
Zero Pressure Output
Pressure Non Linearity
Pressure Hysteresis
Input & Output Resistance
Temperature Coefficient – Span
Temperature Coefficient – Zero
Temperature Coefficient – Resistance
Thermal Hysteresis – Zero
Supply Voltage
Response Time (10% to 90%)
Output Noise (10Hz to 1kHz)
Long Term Stability (Offset & Span)
Pressure Overload
Operating Temperature
Storage Temperature
Weight
Soldering Temperature
Media
250°C Max 5 Sec.
Non-Corrosive Dry Gases Compatible with Silicon, Pyrex, RTV, Gold,
LCP (Liquid Crystal Polymer), and Aluminum
-40
-50
-0.2
3.0
1.0
1.0
0.5
3X
+125
+150
0.3
MIN
30
-25
-0.25
-0.1
3500
TYP
60
MAX
120
25
0.25
0.1
UNITS
mV
mV
%Span
%Span
Ω
%/°C
%/°C
%/°C
NOTES
1
2
5000
-0.13
0.05
0.15
6000
3
3
3
3
4
5
6
0.2
12.0
%Span
Vdc
mS
µV p-p
%Span
Rated
°C
°C
grams
7
Notes
1.
Ratiometric to supply voltage.
2.
Best fit straight line.
3.
Over the temperature range 0-50°C with respect to 25°C.
4.
For a zero-to-full scale pressure step change.
5.
Long term stability over a one year period with constant voltage and temperature.
6.
For sensors above 100 psi, the entire sensor is required to be inside the pressure chamber.
7.
For mounting instructions, please refer to the application note “Mounting Instructions for SMT Pressure Sensors.”
MS1451
www.meas-spec.com
2/4
June 2011
1451

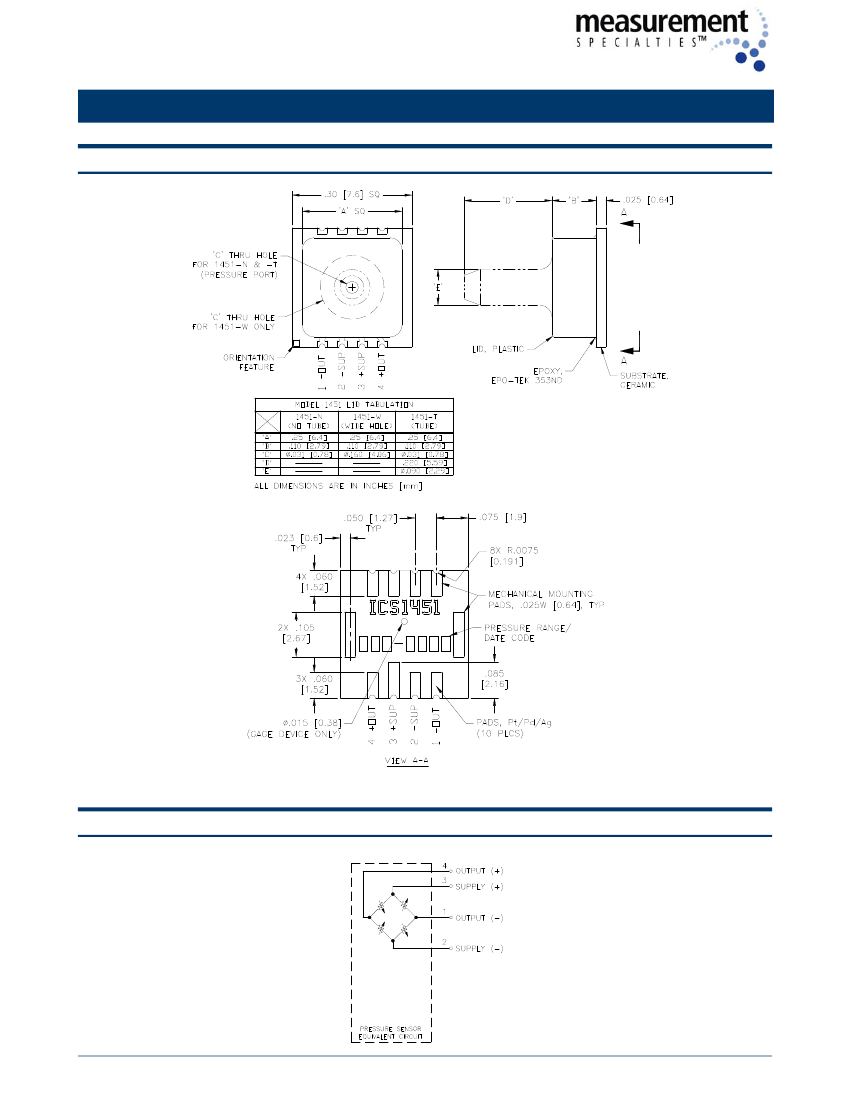

DIMENSIONS
CONNECTIONS
MS1451
www.meas-spec.com
3/4
June 2011
1451
ORDERING INFORMATION
1451 - 015 A - T F
Coating (F = Gel Fill, Blank = No Coating)
Port (T = Tube, N = Narrow Hole, W = Wide Hole)
Type (A = Absolute, G = Gage)
Pressure Range
Model
NORTH AMERICA
Measurement Specialties
45738 Northport Loop West
Fremont, CA 94538
Tel: 1-800-767-1888
Fax: 1-510-498-1578
Sales:
pfg.cs.amer@meas-spec.com
EUROPE
Measurement Specialties
(Europe), Ltd.
26 Rue des Dames
78340 Les Clayes-sous-Bois, France
Tel: +33 (0) 130 79 33 00
Fax: +33 (0) 134 81 03 59
Sales:
pfg.cs.emea@meas-spec.com
ASIA
Measurement Specialties
(China), Ltd.
No. 26 Langshan Road
Shenzhen High-Tech Park (North)
Nanshan District, Shenzhen 518057
China
Tel: +86 755 3330 5088
Fax: +86 755 3330 5099
Sales:
pfg.cs.asia@meas-spec.com
The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for
inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the
manufacturer. Measurement Specialties, Inc. reserves the right to make changes without further notice to any product herein. Measurement
Specialties, Inc. makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does
Measurement Specialties, Inc. assume any liability arising out of the application or use of any product or circuit and specifically disclaims
any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different
applications. All operating parameters must be validated for each customer application by customer’s technical experts. Measurement
Specialties, Inc. does not convey any license under its patent rights nor the rights of others.
MS1451
www.meas-spec.com
4/4
June 2011
