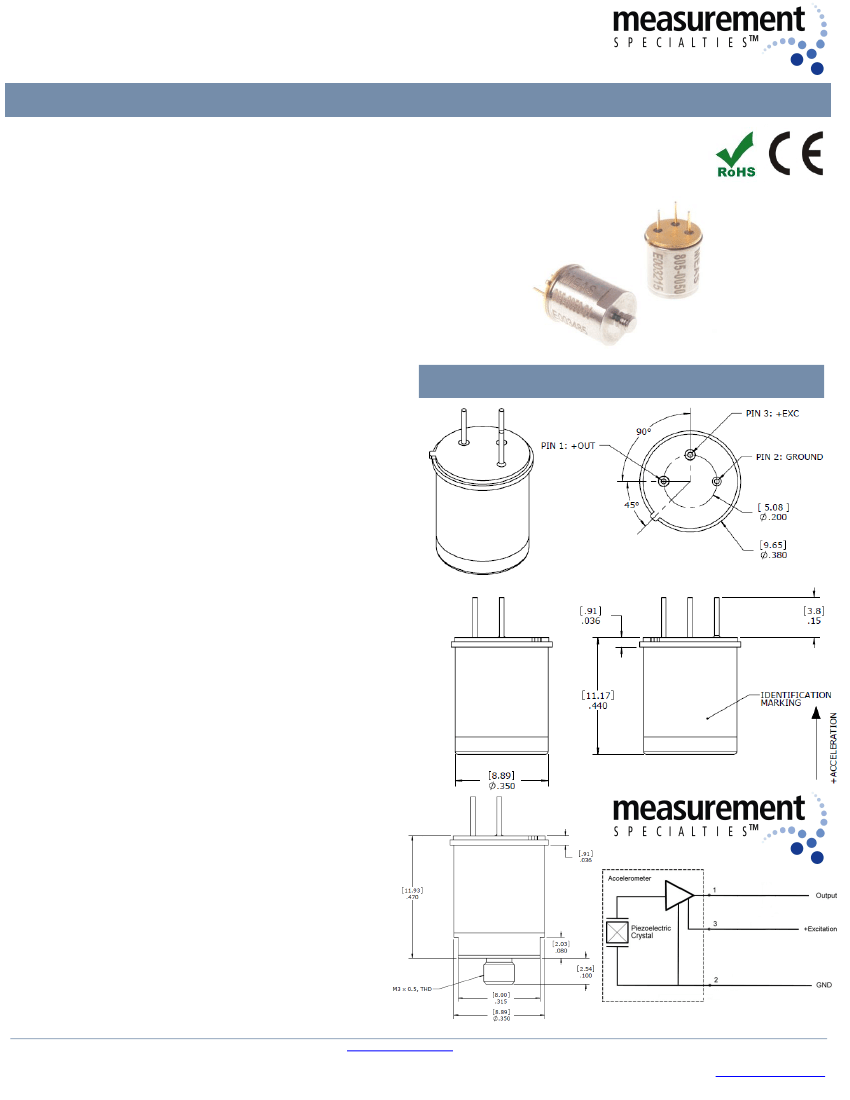

Model 805M1 Accelerometer
TO-5 Series Accelerometer
3-Wire Voltage Output
Low-Cost, Embedded Applications
<0.10mA Power Consumption
The Model 805M1
is a miniature adhesive
mount voltage output accelerometer built on a 3-
pin TO-5 header. It is available in ±20g and
±500g dynamic ranges and offers a flat frequency
response to 12kHz. The accelerometer features a
hermetic construction in a TO-5 header
configuration. The model 805M1 incorporates a
stable piezo-ceramic crystal with low power
electronics in a 100% shielded housing suitable
for many embedded OEM applications.
The accelerometer is offered in two
configurations; one for adhesive mounting and
one for stud mounting.
dimensions
FEATURES
±20g and ±500g Range
Wide bandwidth up to 12kHz
TO-5 Configuration
Hermetically Sealed
-40°C to +100°C Operating Range
Case Grounded Design
3.0-5.5 Excitation Voltage
APPLICATIONS
Machine Monitoring
Low-Cost OEM Installation
Permanent Structural Study
Embedded Sensing Solution
Data Loggers
Model 805M1 Rev C
32 Journey Ste. 150 Aliso Viejo, CA 92656
M3 Stud Mounting for -01
www.meas-spec.com
Option
949-716-5377
02/27/2014
t&m@meas-spec.com
Model 805M1 Accelerometer
performance specifications
All values are typical at +24°C, 100Hz and 5Vdc excitation unless otherwise stated. Measurement Specialties reserves the right to update and
change these specifications without notice. Standard product parameters are described in PSC-1001 for Embedded AC Accelerometers.
Parameters
DYNAMIC
Range (g)
Sensitivity (mV/g)
Frequency Response (Hz)
Frequency Response (Hz)
Natural Frequency (Hz)
Non-Linearity (%FSO)
Transverse Sensitivity (%)
Shock Limit (g)
Residual Noise (g RMS)
ELECTRICAL
Bias Voltage (Vdc)
Total Supply Current (mA)
Excitation Voltage (Vdc)
1
Output Impedance (Ω)
Insulation Resistance (MΩ)
Full Scale Output Voltage (V)
Grounding
ENVIRONMENTAL
Temperature Response (%)
Operating Temperature (°C)
Storage Temperature (°C)
PHYSICAL
Sensing Element
Case Material
Weight (grams)
Mounting
1
Notes
±20
100
1-8000
0.4-10000
34000
±1
5
5000
0.001
±100
20
1-8000
0.4-12000
34000
±1
5
5000
0.003
±200
10
1-8000
0.4-12000
34000
±1
5
5000
0.003
±500
4
1-8000
0.4-12000
34000
±1
5
5000
0.005
±10%
±1dB
±3dB
Broadband 1Hz to 10kHz
Exc Voltage / 2
<0.60
3.0 to 5.5
<100
>100
±2
Case grounded to mounting surface
@50Vdc
±10
-40 to +100
-54 to +125
Piezo-Ceramic
Stainless Steel
5.0
Adhesive or Circuit Board (M3 Stud Mounting for -01 Option)
The model 805M1 can be operated with 2.8V excitation but the full-scale range will be limited.
CS-SENS-0100
NIST Traceable Amplitude Calibration at 100Hz
Calibration supplied:
Wiring color code:
See schematic
The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this
information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. Measurement Specialties, Inc. reserves the right
to make changes without further notice to any product herein. Measurement Specialties, Inc. makes no warranty, representation or guarantee regarding the suitability of
its product for any particular purpose, nor does Measurement Specialties, Inc. assume any liability arising out of the application or use of any product or circuit and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications.
All operating parameters must be validated for each customer application by customer’s technical experts. Measurement Specialties, Inc. does not convey any license
under its patent rights nor the rights of others.
ordering info
PART NUMBERING
Model Number+Range
805M1-GGGG -XX
l
l_____ Optional Stud Dash Number
l_____ Range (0020 is 20g)
Dash Number
-01
Stud Options
M3 x 0.5 6g
Example: 805M1-0020
Model 805M1, 20g
Model 805M1 Rev C
32 Journey Ste. 150 Aliso Viejo, CA 92656
www.meas-spec.com
949-716-5377
02/27/2014
t&m@meas-spec.com
