Miniature Pressure Sensors
Prime Grade
Pressure Sensors
R
www.allsensors.com
R
Features
• 0 to 0.3 PSI to 0 to 100 PSI Pressure Ranges
• Highest accuracy version
• Temperature Compensated
• Calibrated Zero and Span
Applications
www.allsensors.com
Signed Original On File

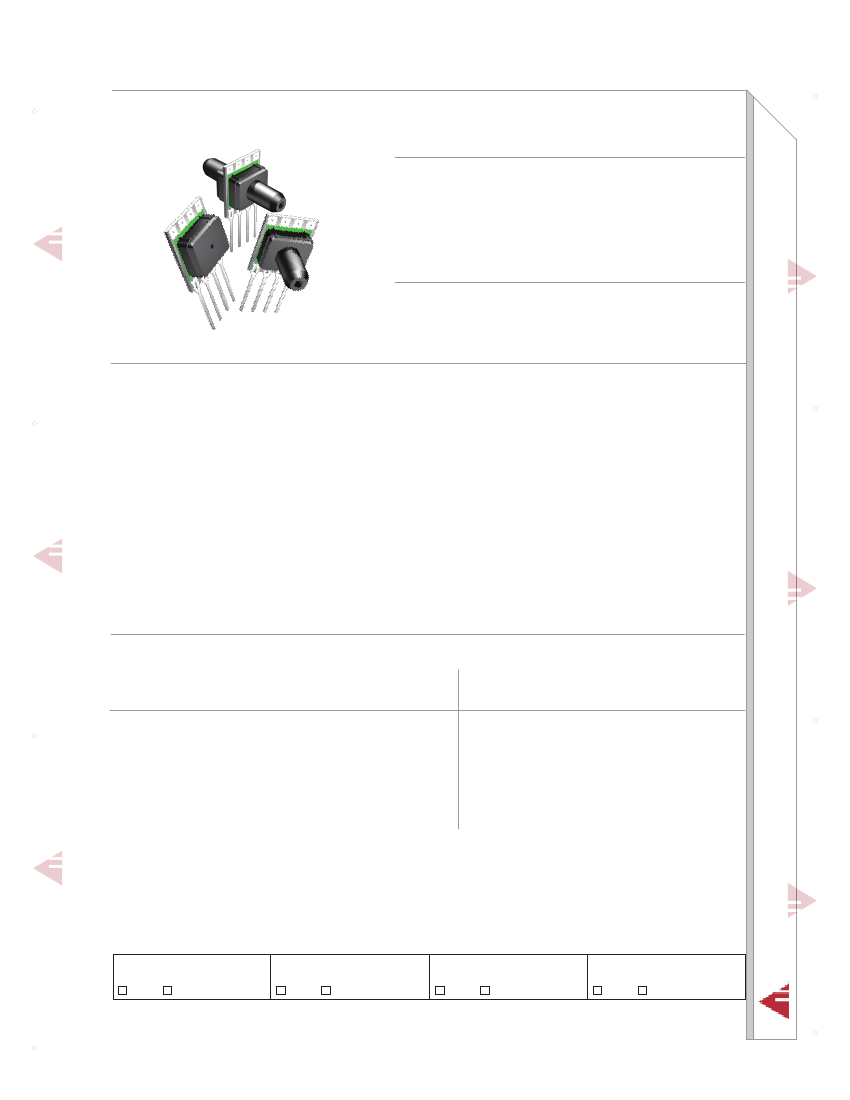

General Description
The Miniature series pressure sensors are based upon a proprietary technology to reduce the size of the sensor and yet maintain a
high level of performance. This model provides a calibrated millivolt output with superior output characteristics. In addition the
sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pres-
sure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This
series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. The PRIME GRADE is the
highest accuracy version of the millivolt output pressure sensors.
The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage.
all sensors
f
408 225 2079
e
www.allsensors.com
p
408 225 4314
a
16035 Vineyard Blvd. Morgan Hill, CA 95037
DATE
• Medical Instrumentation
• Environmental Controls
• HVAC
Signed Original On File
R
www.allsensors.com
R
www.allsensors.com
Signed Original On File
Signed Original On File
Pressure Sensor Characteristics Maximum Ratings
Supply Voltage, Vs
Common-mode pressure
Lead Temperature
(soldering 2-4 sec.)
16 Vdc
50 psig
270°C
Environmental Specifications
Temperature Ranges
Compensated
Operating
Storage
Humidity Limits
0 to 70° C
-25 to 85° C
-40 to 125° C
0 to 95% RH
(non condensing)
R
www.allsensors.com
R
www.allsensors.com
Original On File
Signed Original O
Approvals
MKT
DATE
MFG
DATE
ENG
DATE
QA
As Is
With Change
As Is
With Change
As Is
With Change
As Is
With Change
All Sensors
DS-0110 Rev E
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R
www.allsensors.com
Standard Pressure Ranges
No Prssure Port: CFNS
Part Number
0.3 PSI-G-PRIME-MINI
10 INCH-G-PRIME-MINI
1 PSI-G-PRIME-MINI
5 PSI-G-PRIME-MINI
15 PSI-A-PRIME-MINI
Single Pressure Port: CPNS
Part Number
0.3 PSI-GF-PRIME-MINI
10 INCH-GF-PRIME-MINI
1 PSI-GF-PRIME-MINI
5 PSI-GF-PRIME-MINI
15 PSI-AF-PRIME-MINI
15 PSI-GF-PRIME-MINI
30 PSI-AF-PRIME-MINI
30 PSI-GF-PRIME-MINI
100 PSI-AF-PRIME-MINI
100 PSI-GF-PRIME-MINI
30 PSI-D-PRIME-MINI
15 PSI-D-PRIME-MINI
Dual Pressure Port: CPPS
Part Number
0.3 PSI-D-PRIME-MINI
10 INCH-D-PRIME-MINI
1 PSI-D-PRIME-MINI
5 PSI-D-PRIME-MINI
Operating Pressure
0 to 0.3 PSI
0 to 10 inH2O
0 to 1 PSI
0 to 5 PSI
0 to 15 PSIA
0 to 15 PSI
0 to 30 PSIA
0 to 30 PSI
0 to 100 PSIA
0 to 100 PSI
Proof Pressure
3 PSI
5 PSI
10 PSI
20 PSI
60 PSIA
60 PSI
60 PSIA
60 PSI
150 PSIA
150 PSI
R
Signed Original On File
15 PSI-G-PRIME-MINI
30 PSI-A-PRIME-MINI
30 PSI-G-PRIME-MINI
100 PSI-A-PRIME-MINI
100 PSI-G-PRIME-MINI
www.allsensors.com
R
Signed Original On File
www.allsensors.com
Performance Characteristics for: 0.3 PSI-G-PRIME-MINI , 0.3 PSI-GF-PRIME-MINI , 0.3 PSI-D-PRIME-MINI
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
Minimum
19.0
--
--
--
--
Nominal
20.0
--
--
0.1
--
Maximum
21.0
±0.3
±250
0.25
±1.0
Units
mV
mV
uV
%FSS
%FSS
R
www.allsensors.com
Signed Original On File
Signed Original On File
Performance Characteristics for: 10 INCH-G-PRIME-MINI , 10 INCH-GF-PRIME-MINI , 10 INCH-D-PRIME-MINI
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
Minimum
19.0
--
--
--
--
Nominal
20.0
--
--
0.1
--
Maximum
21.0
±0.3
±250
0.25
±1.0
Units
mV
mV
uV
%FSS
%FSS
R
www.allsensors.com
R
Performance Characteristics for: 1 PSI-G-PRIME-MINI , 1 PSI-GF-PRIME-MINI , 1 PSI-D-PRIME-MINI
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero differential pressure
Minimum
17.82
--
--
--
--
Nominal
18.0
--
--
0.1
--
Maximum
18.18
±0.3
±250
0.25
±1.0
Units
mV
mV
uV
%FSS
%FSS
Original On File
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
www.allsensors.com
Signed Original O
Miniature Prime Grade Pressure Sensors
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R
www.allsensors.com
Performance Characteristics for: 5 PSI-G-PRIME-MINI , 5 PSI-GF-PRIME-MINI , 5 PSI-D-PRIME-MINI
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
Minimum
59.4
--
--
--
--
Nominal
60.0
--
--
0.1
--
Maximum
60.6
±0.3
±250
0.25
±1.0
Units
mV
mV
uV
%FSS
%FSS
R
www.allsensors.com
Signed Original On File
Signed Original On File
Performance Characteristics for: 15 PSI-A-PRIME-MINI , 15 PSI-AF-PRIME-MINI
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero absolute pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
Minimum
89.1
--
--
--
--
Nominal
90.0
--
--
0.1
--
Maximum
90.9
±0.5
±250
0.3
±1.0
Units
mV
mV
all sensors
f
408 225 2079
e
www.allsensors.com
p
408 225 4314
a
16035 Vineyard Blvd. Morgan Hill, CA 95037
R
www.allsensors.com
R
uV
%FSS
%FSS
Performance Characteristics for: 15 PSI-G-PRIME-MINI , 15 PSI-GF-PRIME-MINI , 15 PSI-D-PRIME-MINI
www.allsensors.com
Signed Original On File
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
Minimum
89.1
--
--
--
--
Nominal
90.0
--
--
0.15
--
Maximum
90.9
±0.3
±250
0.30
±1.0
Units
mV
mV
uV
%FSS
%FSS
Signed Original On File
R
www.allsensors.com
R
Performance Characteristics for: 30 PSI-A-PRIME-MINI , 30 PSI-AF-PRIME-MINI
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero absolute pressure
Minimum
89.1
--
--
--
--
Nominal
90.0
--
--
0.15
--
Maximum
90.9
±0.5
±250
0.30
±1.0
Units
mV
mV
uV
%FSS
%FSS
Original On File
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
www.allsensors.com
Signed Original O
All Sensors
DS-0110 Rev E
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
Performance Characteristics for: 30 PSI-G-PRIME-MINI , 30 PSI-GF-PRIME-MINI , 30 PSI-D-PRIME-MINI
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
Minimum
89.1
--
--
--
--
Nominal
90.0
--
--
0.15
--
Maximum
90.9
±0.3
±250
0.30
±1.0
Units
mV
mV
uV
%FSS
%FSS
R
www.allsensors.com
R
Performance Characteristics for: 100 PSI-A-PRIME-MINI, 100 PSI-AF-PRIME-MINI
www.allsensors.com
Signed Original On File
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero absolute pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
Minimum
99.0
--
--
--
--
Nominal
100.0
--
--
0.15
--
Maximum
101.0
±0.5
±250
0.30
±1.0
Units
mV
mV
uV
%FSS
%FSS
Signed Original On File
R
www.allsensors.com
R
Performance Characteristics for: 100 PSI-G-PRIME-MINI , 100 PSI-GF-PRIME-MINI
Parameter, note 1
Output Span, note 4
Offset Voltage @ zero differential pressure
Offset Temperature Shift (0°C-70°C), note 2
Linearity, hysteresis error, note 3
Span Temperature Shift (0°C-70°C), note 2
Minimum
99.0
--
--
--
--
Nominal
100.0
--
--
0.15
--
Maximum
101.0
±0.3
±250
0.30
±1.0
Units
mV
mV
uV
%FSS
%FSS
www.allsensors.com
Signed Original On File
Signed Original On File
Specification Notes
1: A
ll pArAmeters Are meAsured At
12.0
volt excitAtion
,
for the nominAl full scAle pressure And room temperAture unless otherwise specified
. p
ressure meAsurements Are with
p
ort
B.
note
2: s
hift is relAtive to
25°c.
note
3: m
eAsured At one
-
hAlf full scAle rAted pressure using Best strAight line curve fit
.
note
4: t
he spAn is the AlgerBrAic difference Between full scAle output voltAge And the offset voltAge
.
note
positive pressure Applied to
R
www.allsensors.com
R
Pressure Response: for any pressure applied the response time to get to 90% of pressure applied is typically less than 100 useconds.
All Sensors reserves the right to make changes to any products herein. All Sensors does not assume any liability arising out of the application or use of any product or
circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
Equivalent Circuit
+Vsupply
Original On File
-Vout
+Vout
www.allsensors.com
Signed Original O
Input Resistance
-Vsupply
5.0 k ohm
3.0 k ohm
Output Resistance
Miniature Prime Grade Pressure Sensors
R
ors.com
R
Signed Original On File
w.allsensors.com
Signed Original On F
R

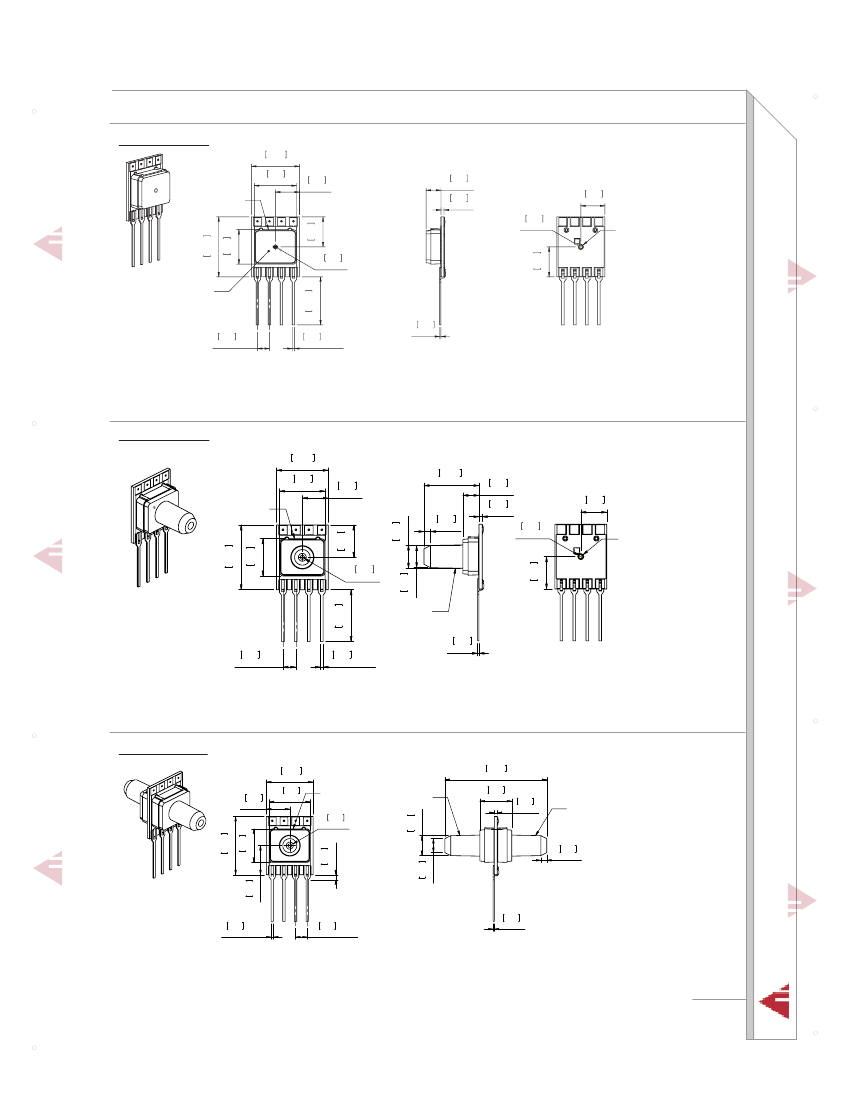

Packages
CFNS Package
10.16
0.400
8.93
0.351
5.08
0.200
3.15
0.124
0.64
0.025
6.35
0.250
0.41
R0.016
www.allsensors.com
R
Part Marking
5.08
0.200
12.70
0.500
7.30
0.287
Absolute devices
are without port hole.
0.79
0.031
Signed Original On File
10.17
0.400
Port B
Pin 1 2 3 4
NOTES
1) Dimensions are in inches [mm].
2) For suggested pad layout, see drawing: PAD-01
all sensors
f
408 225 2079
e
www.allsensors.com
p
408 225 4314
a
16035 Vineyard Blvd. Morgan Hill, CA 95037
1) Gnd
2) +Out
3) Vs
4) -Out
2.54
0.100 (typ)
0.51
0.020 (typ)
0.25
0.010
Marking:
right dot: Red: Prime Grade
left dot:
L10: yellow
0.3: pink
1.0: green
05: blue
15: purple
30: orange
100: brown
6.35
0.250
www.allsensors.com
R
Signed Original On File
R
www.allsensors.com
CPNS Package
10.16
0.400
8.93
0.351
5.08
0.200
10.77
0.424
3.15
0.124
0.64
0.025
0.41
R0.016
Part Marking
4.57
0.180
6.35
0.250
5.08
0.200
1.27
0.050
12.70
0.500
7.30
0.287
Absolute devices
are without port hole.
4.35
0.171
0.79
0.031
Signed Original On File
10.17
0.400
Port B
0.25
0.010
1) Gnd
2) +Out
3) Vs
4) -Out
2.54
0.100 (typ)
0.51
0.020 (typ)
Pin 1 2 3 4
NOTES
1) Dimensions are in inches [mm].
2) For suggested pad layout, see drawing: PAD-01
Marking:
right dot: Red: Prime Grade
left dot:
L10: yellow
0.3: pink
1.0: green
05: blue
15: purple
30: orange
100: brown
6.35
0.250
www.allsensors.com
R
Signed Original On File
R
www.allsensors.com
CPPS Package
10.16
0.400
5.08
0.200
8.93
0.351
22.17
0.873
Part Marking
1.52
0.060
Port B
4.35
0.171
6.93
0.273
0.64
0.025
Port A
1.10
0.043
1.27
0.050
3.05
0.120
Original On File
1) Gnd
2) +Out
3) Vs
4) -Out
0.51
0.020 (typ)
2.54
0.100 (typ)
0.25
0.010
Marking:
right dot: Red: Prime Grade
left dot:
L10: yellow
0.3: pink
1.0: green
05: blue
15: purple
30: orange
100: brown
12.70
0.500
6.35
0.250
7.30
0.287
www.allsensors.com
Signed Original O
Pin 1 2 3 4
NOTES
1) Dimensions are in inches [mm].
2) For suggested pad layout, see drawing: PAD-01
All Sensors
DS-0110 Rev E
R
ors.com
R
京公网安备 11010802033920号
EEWORLD
