Model 375375-6Z50-2
Surface Mount Termination
30 Watts, 50
General Specifications
Resistive Element
Substrate
Terminals
Thick film
Beryllium oxide ceramic
Matte Tin over Nickel
Electrical Specifications
Resistance Range:
Frequency Range;
Power:
VSWR
50 ohms, ± 2%
DC – 3.0 GHz
30 Watts
1.20:1 DC – 3.0 GHz
Features:
•
DC – 3.0 GHz
•
30 Watts
•
BeO Ceramic
•
Non-Nichrome Resistive
Element
•
Low VSWR
•
100% Tested
Note:
Tolerance is
±0.010”,
unless otherwise specified. Designed to meet of
exceed applicable portions of MIL-E-5400. Operating temperature is -55ºC to
125ºC (see chart for derating temperatures).
All dimensions in inches.
Specifications subject to change with out notice.

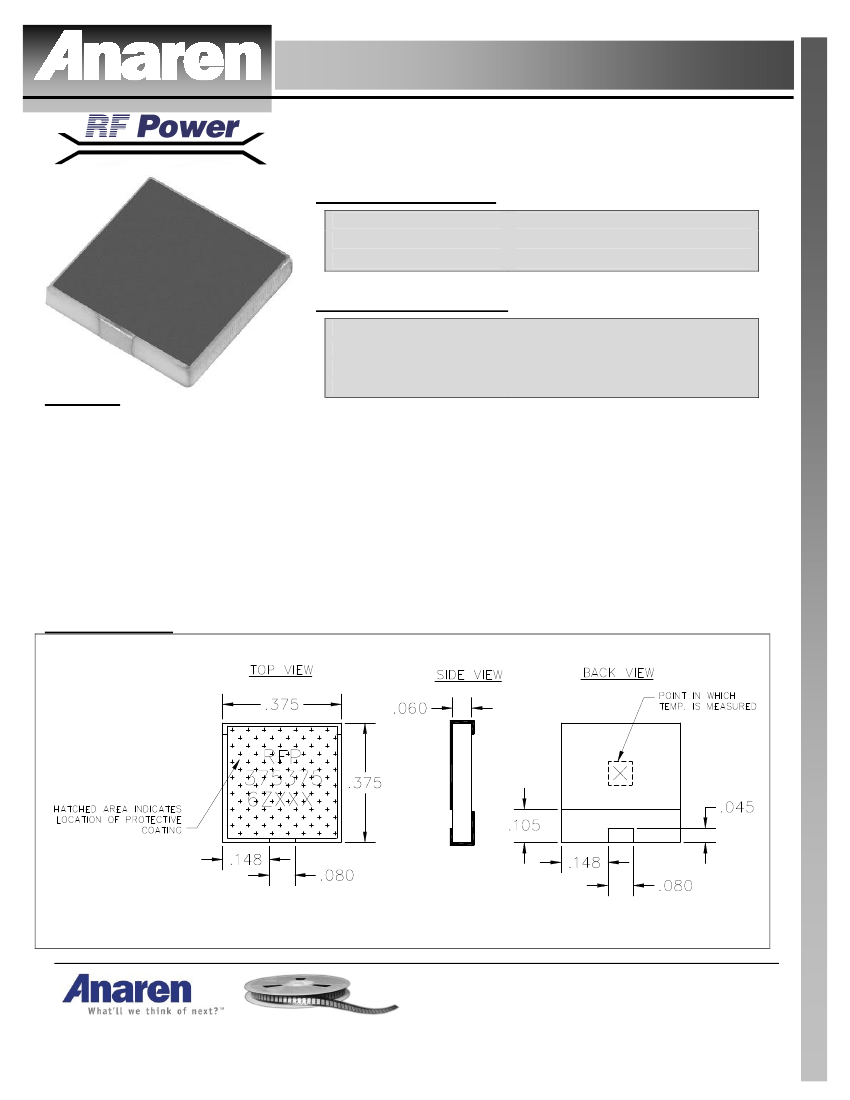

Outline Drawing
375375-6Z50-2 (097) Rev A
Available on Tape
and Reel For Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 544-2414
+44 2392-232392
Model 375375-6Z50-2

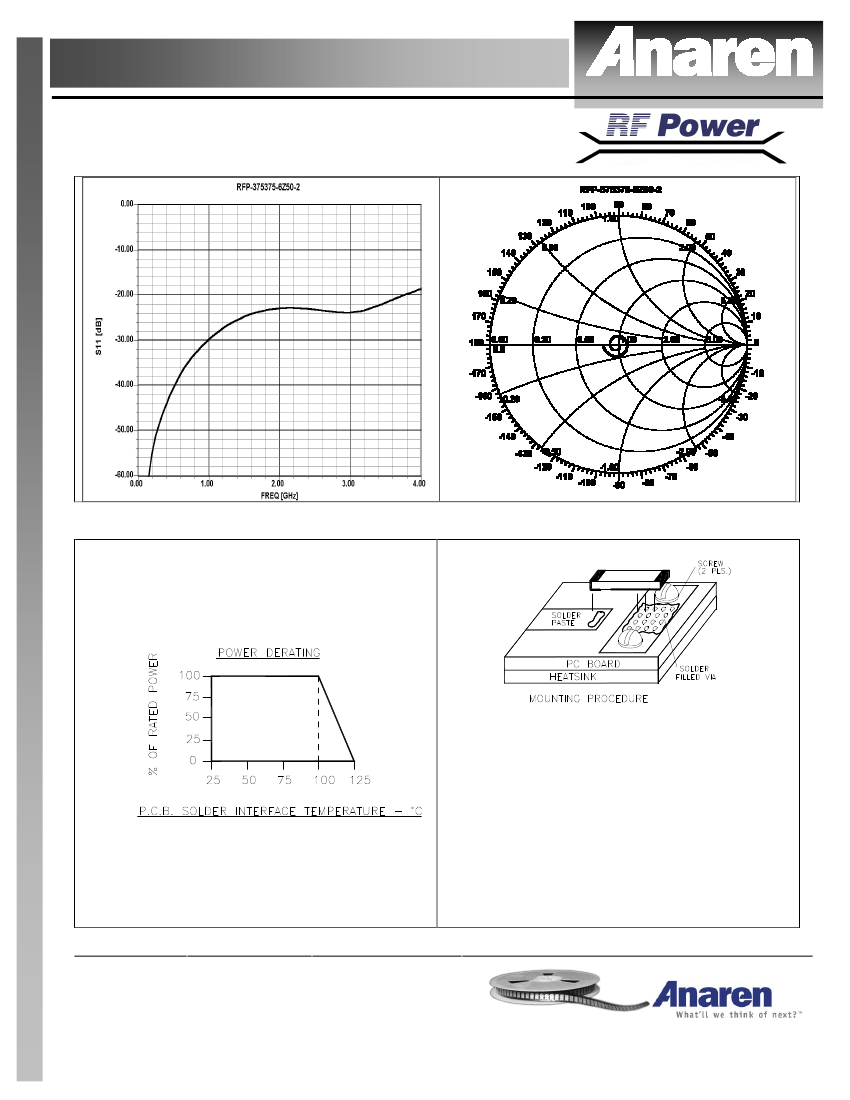

Typical Performance:
Power De-rating:
Mounting Footprint and Procedure:
1. Solder part in place using 60/40 type solder with
Temperature controlled iron (700°
F).
2. Drill thermal vias through PCB and fill with solder,
such as 60/40 type.
3. To ensure good thermal connectivity to heat sink,
drill and tap heatsink and mount PCB board to
heat sink using screws.
375375-6Z50-2 (097) Rev A
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 544-2414
+44 2392-232392
Available on Tape and
Reel For Pick and Place
Manufacturing.
