5962-8700218UA datasheet, PDF - EEWORLD Datasheet

5962-8700218UA: DescriptionMulti-Port SRAM, 2KX8, 35ns, CMOS, CQCC48, LCC-48; Categorystorage storage; File Size392KB，12 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

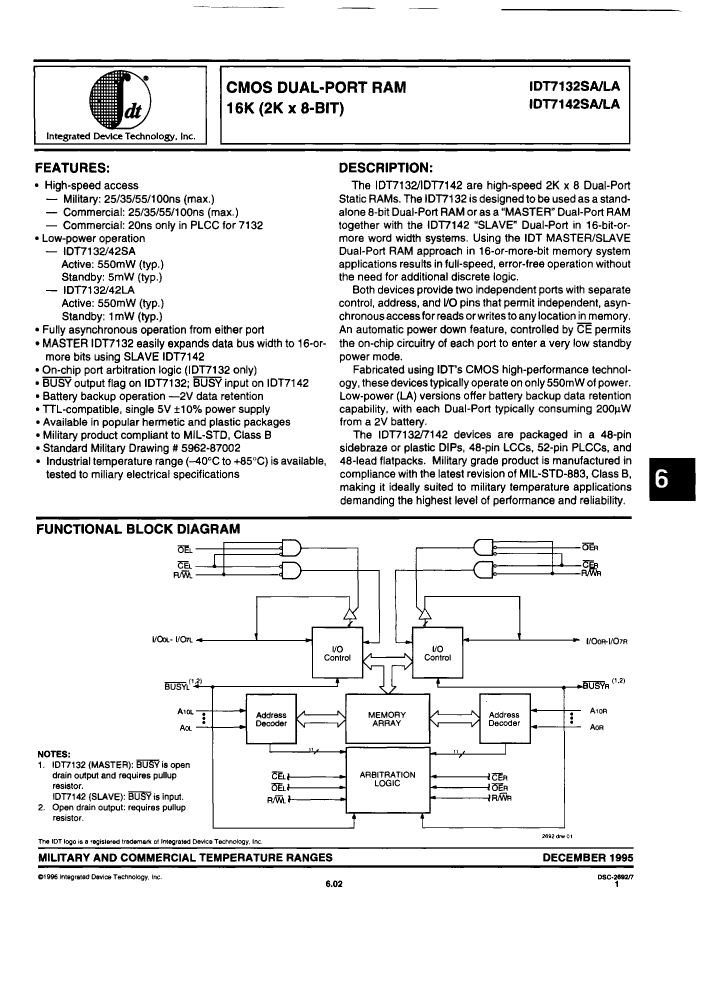

5962-8700218UA Overview

Multi-Port SRAM, 2KX8, 35ns, CMOS, CQCC48, LCC-48

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	LCC
package instruction	QCCN, LCC48,.56SQ,40

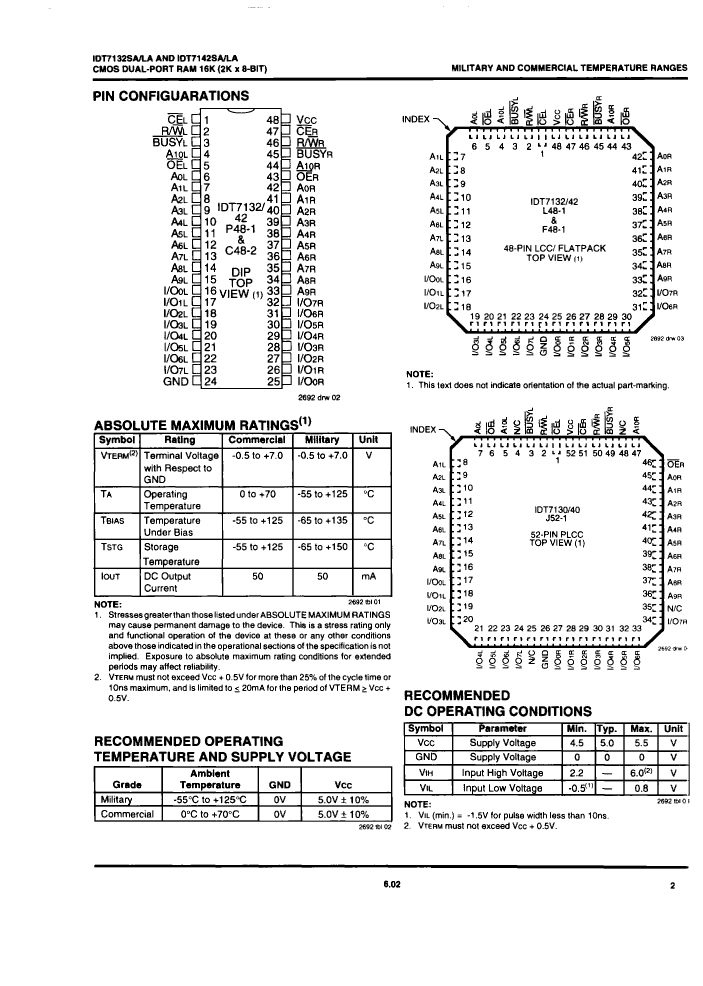

Contacts	48
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C

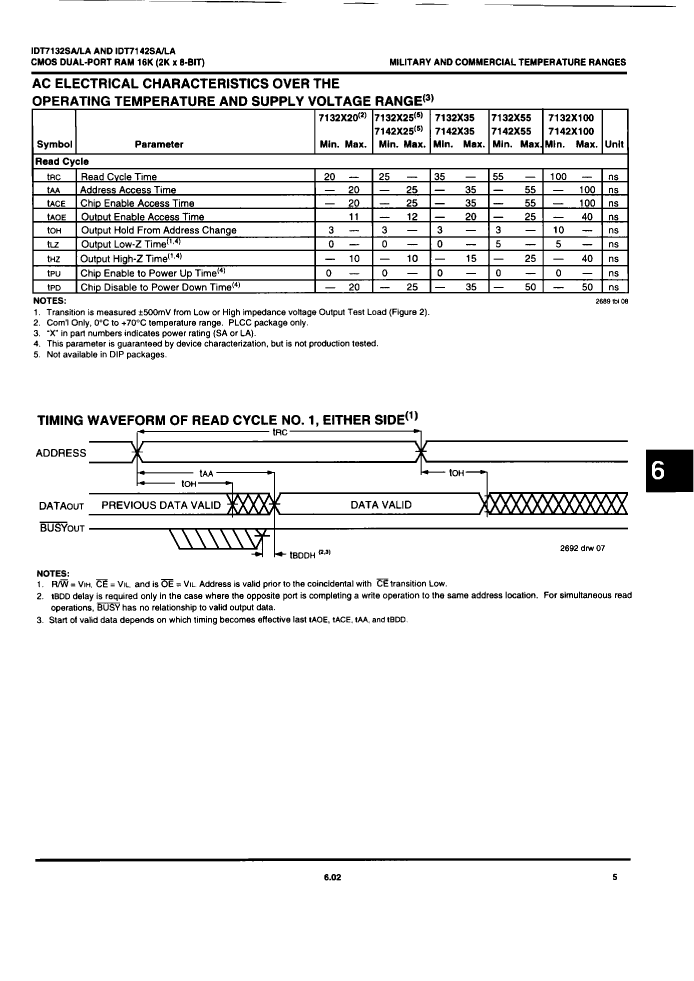

Maximum access time	35 ns
Other features	AUTOMATIC POWER-DOWN
I/O type	COMMON
JESD-30 code	S-CQCC-N48
JESD-609 code	e0
length	14.3002 mm
memory density	16384 bit
Memory IC Type	MULTI-PORT SRAM
memory width	8
Number of functions	1
Number of ports	2
Number of terminals	48
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC48,.56SQ,40
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	3.048 mm

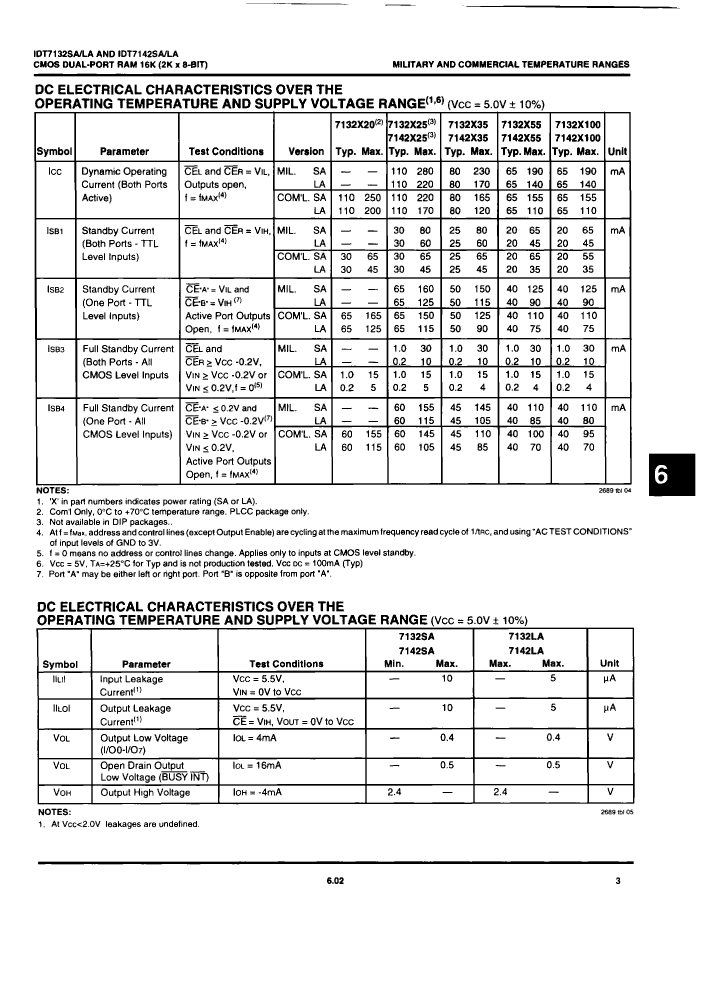

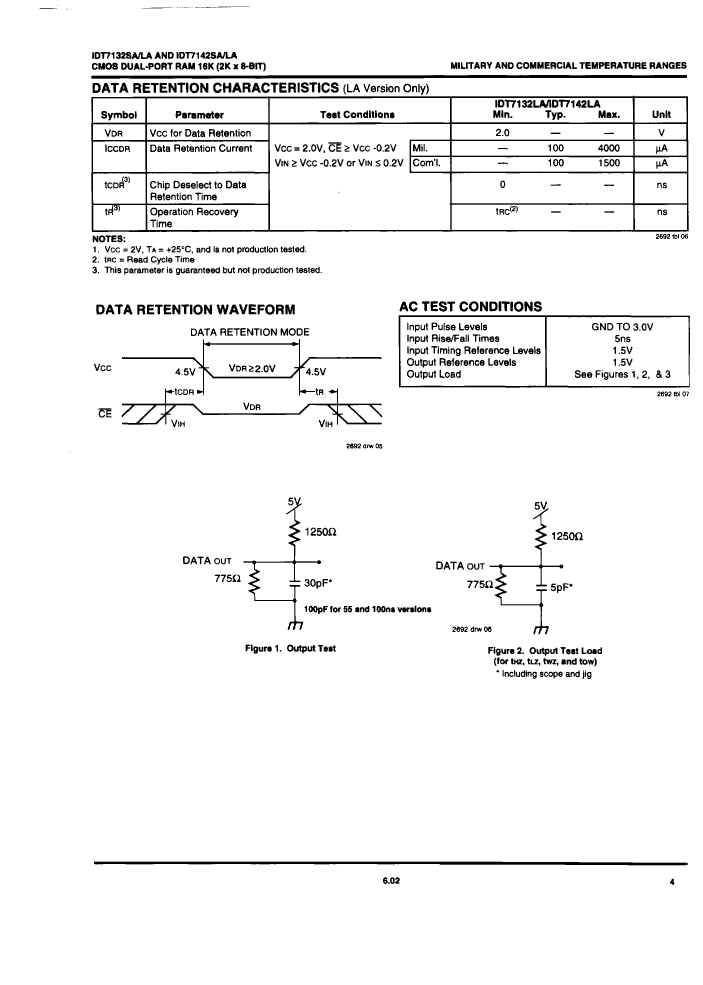

Maximum standby current	0.004 A
Minimum standby current	2 V
Maximum slew rate	0.23 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.016 mm
Terminal location	QUAD
width	14.3002 mm
Base Number Matches	1
