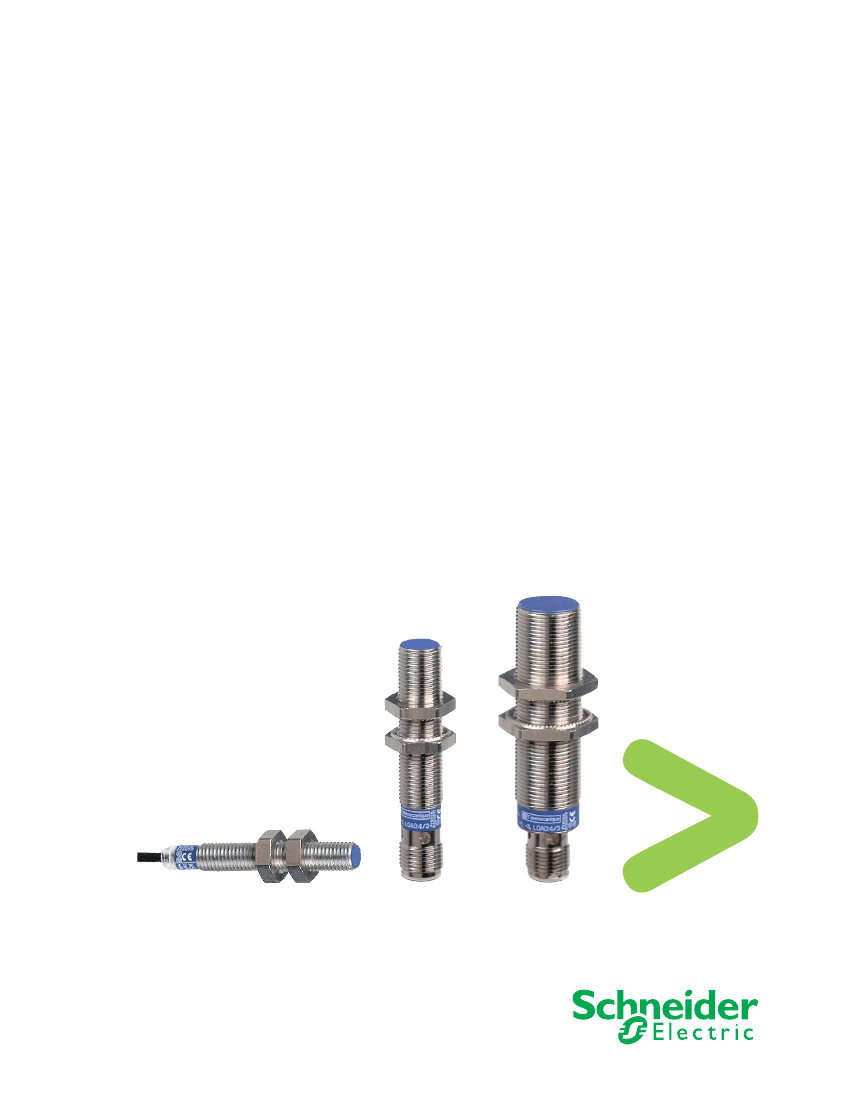

OsiSense XS
Inductive sensors
General purpose
with increased range
®
Helping you to find the
most efficient solution
The inductive detection function
that performs and lasts
A new offer to meet the demands of machine manufacturers for increased range in inductive sensing.
>
Easy to install
Contributes to machine compactness
Wider adjustment range
>
Robust
>
Readily available
Solutions that last
Contributes to machine performance
Contents
Cylindrical inductive proximity sensors
Introduction
Selection guide
Three-wire DC, flush mountable, standard range
Two-wire DC, flush mountable, standard range
Two-wire AC or DC, flush mountable, standard range
Three-wire DC, flush mountable, increased range
Two-wire DC, flush mountable, increased range
Two-wire AC or DC, flush mountable, increased range
Three-wire DC, non-flush mountable, increased range
Two-wire AC or DC, non-flush mountable, increased range
p 1 and 2
p 3 to 6
p 7 to 10
p 11 to 14
p 15 and 16
p 17 to 20
p 21 and 22
p 23 and 24
p 25 and 26
p 27 and 28
Make the most of your energy
SM
NOTE: Sensors described in this catalog are designed to be
used for standard industrial presence sensing applications.
These sensors do not include the self-checking redundant
circuitry necessary to allow for their use in safety applications.
i
>
Contributes to machine compactness
Easy to install:
Compact product (short), easier integration in the machine
•
Increased range (x2), sensing distance easier to adjust
•
All standard diameters (complete range, from Ø 6.5 to Ø 30 mm)
•
Long and short product lengths to meet the most demanding dimension
standards on the market
•
DC and AC/DC versions available for maximum flexibility
+100%
of the sensing distance
for flush mountable
models
>
Increase the reliability
of your solution
Quality by design:
•
Subjected to climatic cycle tests: -25 to +70 °C (-13 to 158 °F) cycle, 95% RH for 3,000 hours under
power to verify their ability to maintain specifications over time.
•
Resistance to electromagnetic interference–immune to high levels of EMC
•
Resistance to environment–IP 65, IP 67 and IP 68 for pre-cabled versions, IP 69K for 12 and 30 mm
diameter sensors
Standards and certifications
Environmental testing
˚C
75
70
50
25
0
- 25
0
2
4
6
8
10
12
14
16
%
100
80
60
20
0
18
- 25 + 70 °C cycle, 95% RH
Temperature °C
Humidity as %
1
Relative humidity
Temperature
>
Contributes to machine performance
Readily available:
•
Robust products to meet your needs
•
Particularly well-suited for your machines used in sectors such as machine tooling, assembly, packaging,
conveying and the automotive industry.
Packaging
Automotive
Materials handling
Machine Tooling
•
Proven tried-and-tested performance with worldwide product availability
•
You export your machines throughout the world. Schneider Electric has
locations in 190 countries.
availability
throughout
the world
General purpose flush or non-flush mountable,
standard or increased range:
A global offer of high-performance inductive sensors to meet your individual needs
XS6..B range
Metal AC or DC
Increased range
2.5 to 22 mm
(0.10 to 0.87 in.)
Flush or non-flush
mountable
XS5..BL range
3-wire DC
Metal
Standard range
1.5 to 10 mm
(0.06 to 0.39 in.)
Flush mountable
XS5..B1M range
2-wire AC or DC
Metal
Standard range
2.0 to 10 mm
(0.04 to 0.39 in.)
Flush mountable
XS1... range
3-wire DC
Metal
Increased range
2.5 to 15 mm
(0.10 to 0.59 in.)
Flush mountable
2
