230425-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Test and measurement> 230425-2

230425-2: Descriptiontest leads 4' pistol grip leads /high-voltage probe; CategoryTopical application Test and measurement; File Size456KB，4 Pages; ManufacturerMegger; Websitehttp://www.megger.com; Environmental Compliance

Download Datasheet Parametric Compare View All

230425-2 Overview

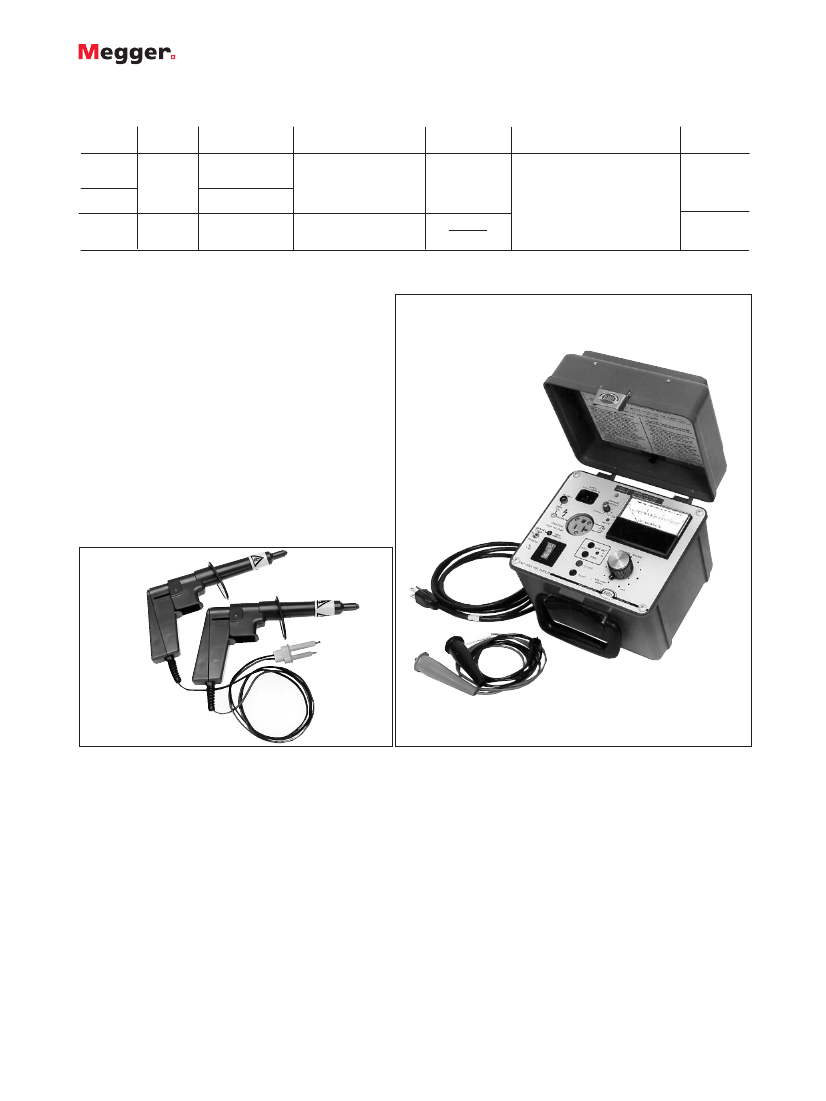

test leads 4' pistol grip leads /high-voltage probe

230425-2 Parametric

Parameter Name	Attribute value
Manufacture	Megge
Product Category	Test Leads
RoHS	Yes
Equipment Type	Test Leads
Current Rating	12.6 mA
Description/Functi	High-Pot testers

Preview

Download Datasheet

View All

AC and AC/DC

High-Pot Testers

AC and AC/DC

High-pot Testers

Rapid production line testing to latest

UL standards

Extra safety features

Rugged design for ease of portability

DESCRIPTION

AC and AC/DC High-Pot Testers available from Megger are

designed for safety and ease of operation, and readily adapt

to development, maintenance or production testing. Three

models are available: two ac and one ac/dc. The AC High-Pot

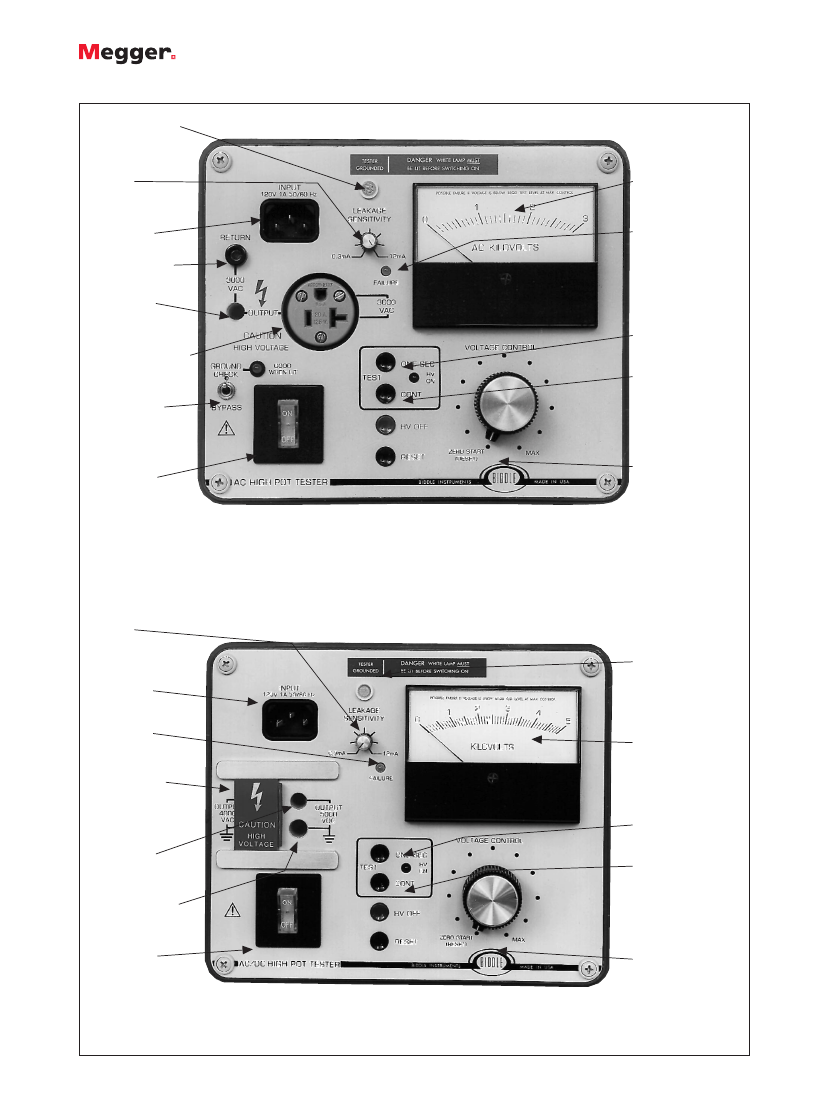

Testers feature a front-panel, NEMA 5-15R three-prong

output receptacle. Booted, alligator-clip output and return

probes are also supplied with all models.

Test voltage is continuously adjustable from zero to full

output, with a zero-start interlock. Leakage current trip

level may be adjusted from 0.3 to 12 mA by a front-panel

knob. Pushbuttons are provided to select one-second or

continuous testing, to turn off the high voltage and to reset

the instrument. All high-voltage connections are recessed

to prevent accidental contact with high voltage.

During testing, high voltage will automatically shut down

within 50 ms of arcing or exceeding the preset trip level.

Visual and audible alarms alert the operator upon failure.

The instruments also feature an interlock that prevents the

high voltage from being applied if the supply ground wire

is open or if the hot and neutral wires are interchanged. A

Tester Grounded lamp lights to confirm the instrument is

connected to a properly grounded power source.

The AC High-Pot Testers will automatically shut down if

ground circuit resistance of the test object exceeds 15

ohms at any time during testing. This feature may be

bypassed when testing double-insulated devices or when

using test probes. The AC/DC High-Pot Tester provides a

slide switch to select either ac or dc test voltage. The slide

switch safely covers the output jacks not in use.

APPLICATIONS

These portable instruments are used to test the dielectric

strength of electrical insulation and the ground circuit

continuity of three-wire appliances and other devices.

Biddle High-Pot Testers comply with most existing UL

requirements for dielectric withstand testing, including:

UL 544 – Electric Medical and Dental Equipment

UL 982 – Motor-Operated Household Food Preparing

Machines

UL 1026 – Electric Household Cooking and Serving

Appliances

UL 1270 – Radio Receivers, Audio Systems, and

Accessories

FEATURES AND BENEFITS

Ground continuity check of three-wire devices with

high-voltage interlock (ac models only)

Front-panel adjustable leakage current trip from 0.3 to

12 mA

One-second or continuous testing

Automatic failure shutdown, with visual and audible

alarms

Recessed high-voltage connections

Front-panel NEMA 5-15R three-prong receptacle on ac

models

Zero start/reset in event of failure

Meets UL 120-kΩ requirement

230425-2 Related Products

	230425-2	230315-3
Description	test leads 4' pistol grip leads /high-voltage probe	test probes 4' pistol grip leads /return probe
Manufacture	Megge	Megge
Product Category	Test Leads	Test Probes
RoHS	Yes	Yes
Equipment Type	Test Leads	Testers
Current Rating	12.6 mA	12.6 mA
Description/Functi	High-Pot testers	Return probe
