Test leads and Probes
TEsT lEaDs aND ProbEs sElECTor GuIDE
Item shipped may
vary from model
pictured here.
Test leads and probes

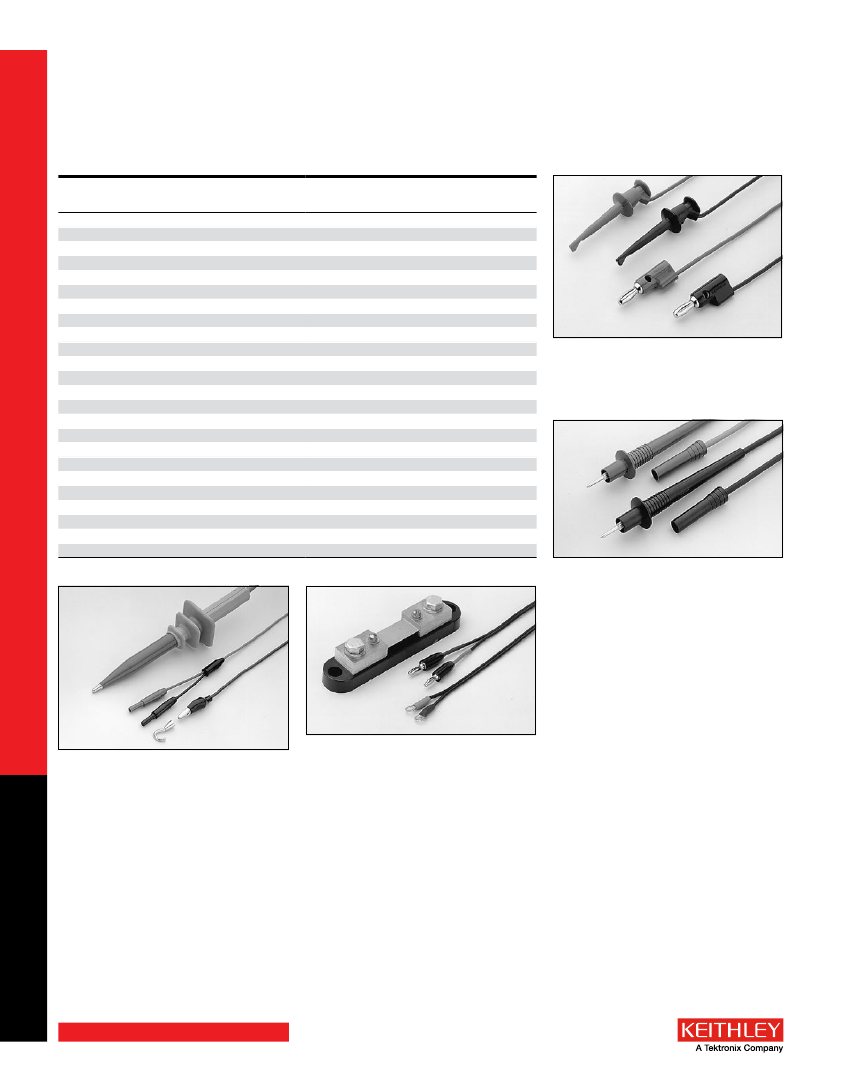

Model 1681 Clip-On Test Lead Set:
Two 1 .2m
(48 in) leads terminated with banana plugs and
spring action clip-on probes .
for use with: DMMs
Item shipped may
vary from model
pictured here.
Item shipped may
vary from model
pictured here.
Model 1751 Safety Test Leads:
91 .4cm (36 in)
test lead set supplied with each Model 175A and
197A . Finger guards and shrouded banana plugs
help minimize the chance of making contact
with live circuitry .
for use with: all DMMs, series 2400
sourceMeter
®
sMu Instruments
Model 1600A High Voltage Probe
MAXIMUM INPUT:
40kV DC or peak AC to 300Hz .
INPUT RESISTANCE:
1000MW .
DIVISION RATIO:
1000:1 (into 10MW) .
Model 1651 50 Ampere Shunt:
External
0 .001W ± 1%, 4-terminal shunt; extends current
measuring capability of Keithley DMMs to 50A .
CABLE LENGTH:
1 .4m (56 in) .
for use with: DMMs
for use with: DMMs
ACCESSORIES
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
Technical information: Source Measurement Unit (SMU) Instruments
Model
1600A
1651
1681
1751
1752
1754
2187-4
2600-BAN
3706-BAN
3706-TLK
5804
5805
5805-12
5806
5807-7
5808
5809
6517-RH
6517-TP
7401
8605
8606
8681
CA-109A
Name
High Voltage Probe
50-Ampere Shunt
Clip-On Test Lead Set
Safety Test Leads
Premium Safety Test Lead Kit
Safety Universal Test Lead Kit
Low Thermal Test Lead Kit
Banana Test Leads/Adapter Cable
Banana Test Leads/Adapter Cable
Test Lead Kit
General-Purpose, 4-Terminal Test Lead Set
Kelvin Probes, 0 .9m (3 ft)
Kelvin Probes, 3 .6m (12 ft)
Kelvin Clip Lead Set, 0 .9m (3 ft)
Helical Spring Point Test Leads, 2 .1m (7 ft)
Single-pin Kelvin Probe
Kelvin Clip Lead Set
Humidity Probe with Extension Cable
Thermocouple Bead Probe
Thermocouple Wire Kit, 30m (100 ft), Type K
High Performance Modular Test Leads
High Performance Modular Probe Kit
Low Cost RTD
Test Lead Set for Output Connections
use With:
DMMs
DMMs
DMMs
All DMMs, Series 2400
All DMMs, Series 2400
All DMMs, Series 2400
2182A, 622x Current Sources
2601B, 2602B, 2611B, 2612B
Series 3700A Mainframes
Series 3700A Mainframes
Series 2400, 2750, DMMs
Series 2400, 2750, DMMs
Series 2400, 2750, DMMs
Series 2400, 2750, DMMs
Series 2400, 2750, DMMs
2700, 2701, 2750, Series 2400, DMMs
2700, 2701, 2750, Series 2400, DMMs
6517A, 6517B
6517A, 6517B
2001-TCSCAN, 2110, 3720, 3721, 3724, 7057A, 7700, 7706, 7708
All DMMs, Series 2400
All DMMs, Series 2400, Series 2600B, Series 3700A
2001, 2002, 2010 DMMs (with 8680)
2000-SCAN, 2001-SCAN, 2001-TCSCAN
Test leads and Probes
Technical information: Source Measurement Unit (SMU) Instruments

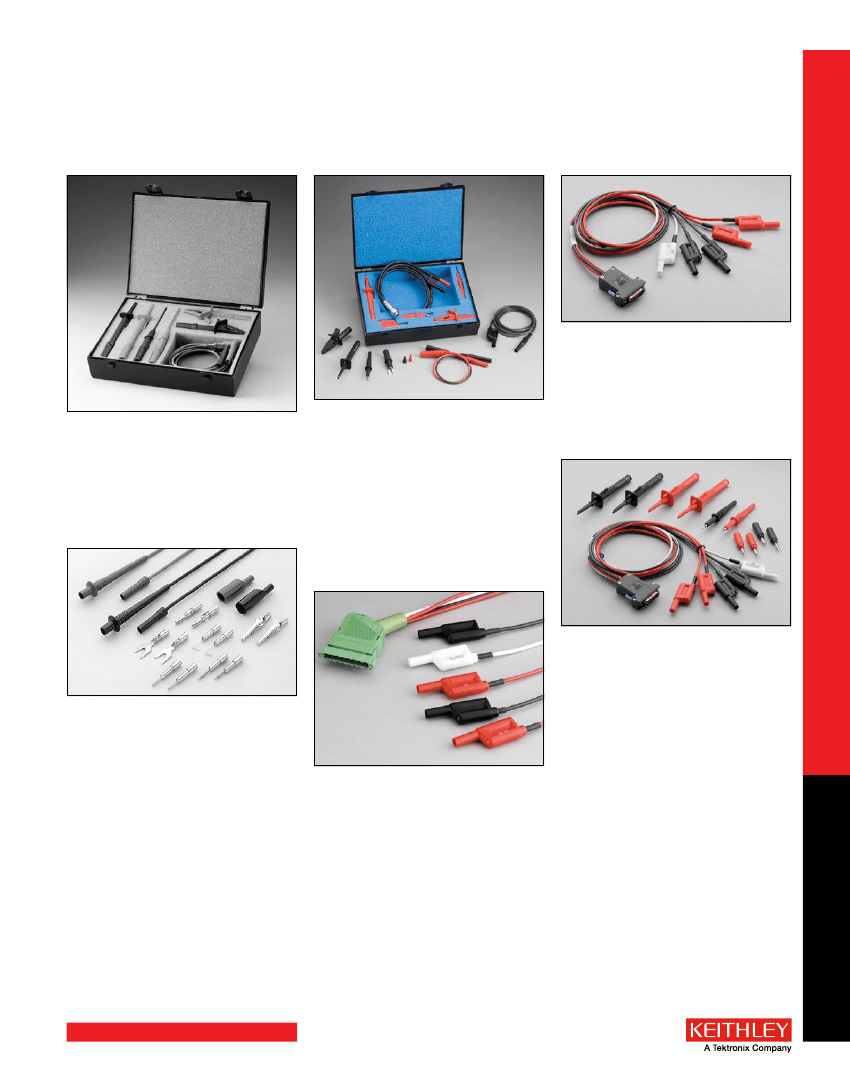

Model 1752 Premium Safety Test Lead Kit:
Includes two banana leads with safety shrouds
on both ends, two fully insulated alligator clips,
two fully insulated needle probes, and two
spring-action clip-on probes with safety blocks,
in a carrying case .
for use with: all DMMs, series 2400
sourceMeter sMu Instruments
Model 2187-4 Low Thermal Test Lead Kit:
Includes an input cable with banana termina-
tions, banana extensions, sprung-hook clips,
alligator clips, needle probes, and spade lugs
to connect the Model 2182A to virtually any
DUT . The kit is also used to connect the Model
2182A directly to the Model 622X guard to
improve response time for pulsed measure-
ments or to reduce errors when measuring high
impedance devices .
for use with: 2182a, 6220, 6221, 6220/2182a,
6221/2182a
for use with: series 3700a mainframes
Item shipped may
vary from model
pictured here.
Model 3706-TLK Test Lead Kit:
Includes 3706-
BAN banana test leads/adapter cable and plug-
in test lead accessories . Test lead accessories
include: 4 spring hook probes, 2 needle test
probes, 4 safety plug adapters, and carrying case .
for use with: series 3700a mainframes
Model 1754 Universal Test Lead Kit:
10-piece
test lead kit with interchangeable plug-in acces-
sories . Kit includes: 1 set of test leads, 91 .4cm
(36 in), 1 red and black; 2 spade lugs, 2 standard
banana plugs, 2 hooks, and 2 miniature alligator
clips with boots .
for use with: all DMMs, series 2400
sourceMeter sMu Instruments
Model 2600-BAN:
1m (3 .3 ft) banana test
leads/adapter cable for a single Series 2600B
SourceMeter channel (two needed for use with
Model 2602B and 2612B) . Provides safety banana
connections to Hi, Sense Hi, Lo, Sense Lo,
and guard .
for use with: 2601b, 2602b, 2611b, 2612b
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
ACCESSORIES
Test leads and probes
Model 3706-BAN:
1 .4m (4 .6 ft) banana test
leads/adapter cable for Model 3706A mainframe
with high performance multimeter option .
Provides direct connection to high performance
multimeter utilizing rear panel backplane con-
nector . Safety banana connections to HI, LO,
Sense HI, Sense LO, and AMP .
Test leads and Probes
Test leads and probes

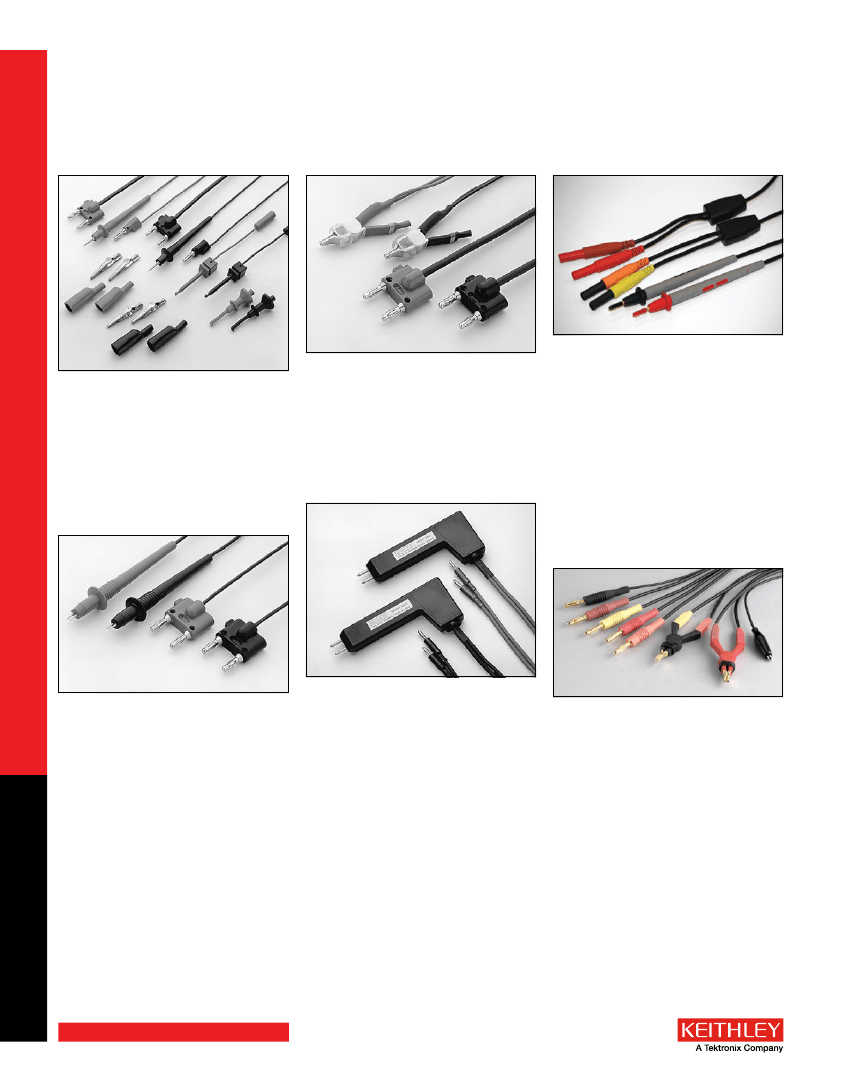

Model 5804 Test Lead Set:
Designed to be used
with Keithley instruments that measure
4-terminal resistance . Contains: 2 test leads,
0 .9m (36 in), red and black; 2 test clips, red and
black; 2 plunger clip adapters, red and black; 2
alligator clips with boots (accept standard test
probe tip); 2 alligator clips with boots (barrels
accept standard banana plugs) .
for use with: series 2400 sourceMeter
®
sMu
Instruments, 2750, DMMs
Model 5806 Kelvin Clip Lead Set:
2 clip test
leads, red and black, 0 .9m (36 in) with banana
plug termination . Designed to be used with
Keithley instruments that measure 4-terminal
resistance . Maximum jaw opening ½ in . A
package of 8 replacement elastic bands (P/N
5806-306B) is available .
for use with: series 2400 sourceMeter sMu
Instruments, 2750, DMMs
for use with: 2700, 2701, 2750, series 2400,
DMMs
Model 5805 Kelvin Probes:
2 spring-loaded test
probes, red and black, 0 .9m (36 in) with banana
plug termination . Designed to be used with
Keithley instruments that measure 4-terminal
resistance and in-circuit current .
1
⁄
8
-in spacing
between pin tips . A package of 8 replacement
contacts (P/N CS-551) is available .
Model 5805-12:
Similar to 5805 but 3 .6m
(12 ft) in length .
Model 5807-7 Helical Spring Point Test Leads:
Two excellent Kelvin test probes for Keithley
instruments that measure 4-terminal resistance .
The probes have pointed tips that rotate when
pressure is exerted on the handle . Good contact
is assured, and the handle can be held at any
angle to the measurement surface . The lead
wires terminate in banana plugs .
Lead wire
length:
2m (7 ft) .
for use with: series 2400 sourceMeter sMu
Instruments, 2750, DMMs
ACCESSORIES
for use with: series 2400 sourceMeter sMu
Instruments, 2750, DMMs
Model 5809 Low Cost, Kelvin Clip Lead Set:
Two 0 .94m (37 in) long probes with alligator
style clips, each with opposing blade source and
sense connections to color coded standard safety
banana plugs . Designed for applications requir-
ing Kelvin connection to wires, axial leaded
components, and other terminals able to be
clipped onto . The miniature blade design accom-
modates narrow available width applications as
well as general lighter duty applications . The
maximum jaw opening is 9 .14mm (0 .36 in) and
the blade width is 2 .92mmm (0 .115 in) .
for use with: 2700, 2701, 2750, series 2400,
DMMs
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
Test leads and probes
Item shipped may vary
from model pictured here.
Model 5808 Low Cost, Single Pin, Kelvin
Probes:
Two 1 .17m (46 in) long, single fixed
pin probes with source and sense leads per
probe and color coded standard safety banana
plugs . Designed for applications requiring Kelvin
resistance measurements with the convenience
of a single point of circuit contact . The Kelvin
connection at the base of each probe pin results
in very low resistance errors, eliminating all wire
and probe body resistance . For the highest preci-
sion sensing applications, use the Model 5805,
5806, or 5809 for complete control over sensing
point placement .
Test leads and Probes
Test leads and probes
OPERATING TEMPERATURE RANGE:
–10°C to +60°C
OPERATING HUMIDITy RANGE:
0 to 100% RH
MEASURING RANGE:
10 to 90% RH
TEMPERATURE DEPENDENCE:
<±2% from –10°C to +60°C
Model 8605 High Performance Modular Test
Leads:
Highest quality lead with silicone insula-
tion, and removable test probes . Rated to 1500V .
UL listed .
LENGTH:
1m (3 .3 ft) .
for use with: 6517a and 6517b Electrometers
for use with: all DMMs, series 2400
sourceMeter
®
sMu Instruments
Item shipped may
vary from model
pictured here.
Model 8681 Low Cost RTD:
This inexpensive
RTD has small size (0 .09 in
×
0 .09 in) and fast
thermal response time . 100W, 0 .385%/°C ele-
ment . Meets or exceeds DIN 43760-1980-A, IEC
751:1983-A, BS1904: 1984-A, and JIS C1604-1981-
0 .2 . Can be used with Model 8680 RTD Input
Probe Adapter . Measures from –200° to +600°C .
LENGTH:
0 .9m (3 ft) .
ACCURACy:
±(0 .15°C + 0 .002
×
|t|)/°C, where |t| is absolute
value of temperature in °C .
for use with: 2001, 2002, 2010 DMMs (with
8680), 7700, 7702, 7706, 7708
Item shipped may
vary from model
pictured here.
Model 6517-TP Thermocouple Bead Probe:
Designed to be used with the 6517B Electrom-
eter, the 6517-TP measures the temperature of
the testing environment . 6517-TP is 36 in . long
and has a temperature calibration (range) of 0°C
to 1250°C . Type K thermocouple .
for use with: 6517a and 6517b Electrometers
and 2110 DMM
Model 8606 High Performance Modular
Probe Kit:
For use with Model 8605 High Per-
formance Modular Test Leads . Contains 2 each
spade lugs, alligator clips, and retractable hooks .
for use with: all DMMs; series 2400 and
series 2600b sourceMeter sMu Instruments;
series 3700a
Model CA-109A Test Lead Set:
For output con-
nections (two red, two black) .
for use with: 2000-sCaN, 2001-sCaN,
2001-TCsCaN
for use with: 2001-TCsCaN, 2110, 3720, 3721,
3724, 7057a, 7700, 7706, 7708
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
ACCESSORIES

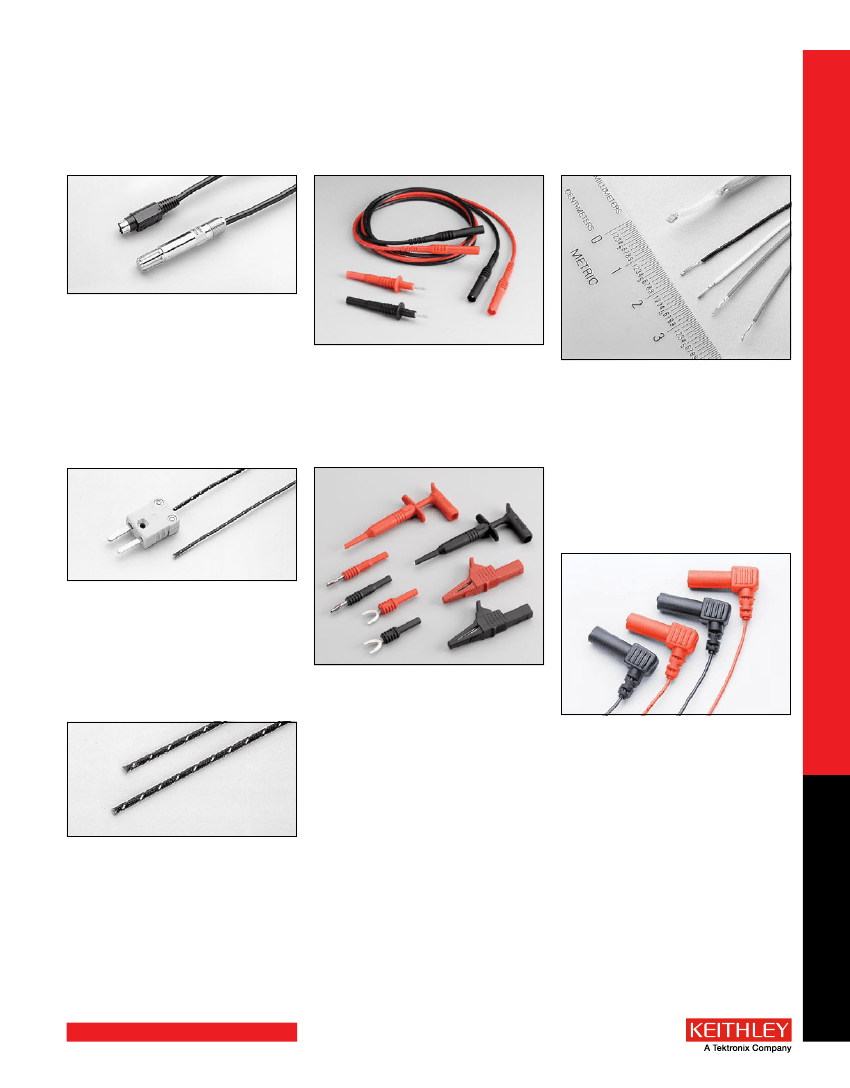

Model 7401:
Type K thermocouple wire kit
includes 30 .5m (100 ft) of type K (chromel-
alumel) thermocouple wire .
Test leads and probes
Model 6517-RH Humidity Probe:
The 6517-RH
comes with a 3m (10 ft) extension cable and is
designed to be used with the 6517B Electrom-
eter . The 6517-RH measures the relative humidity
of the testing environment .
