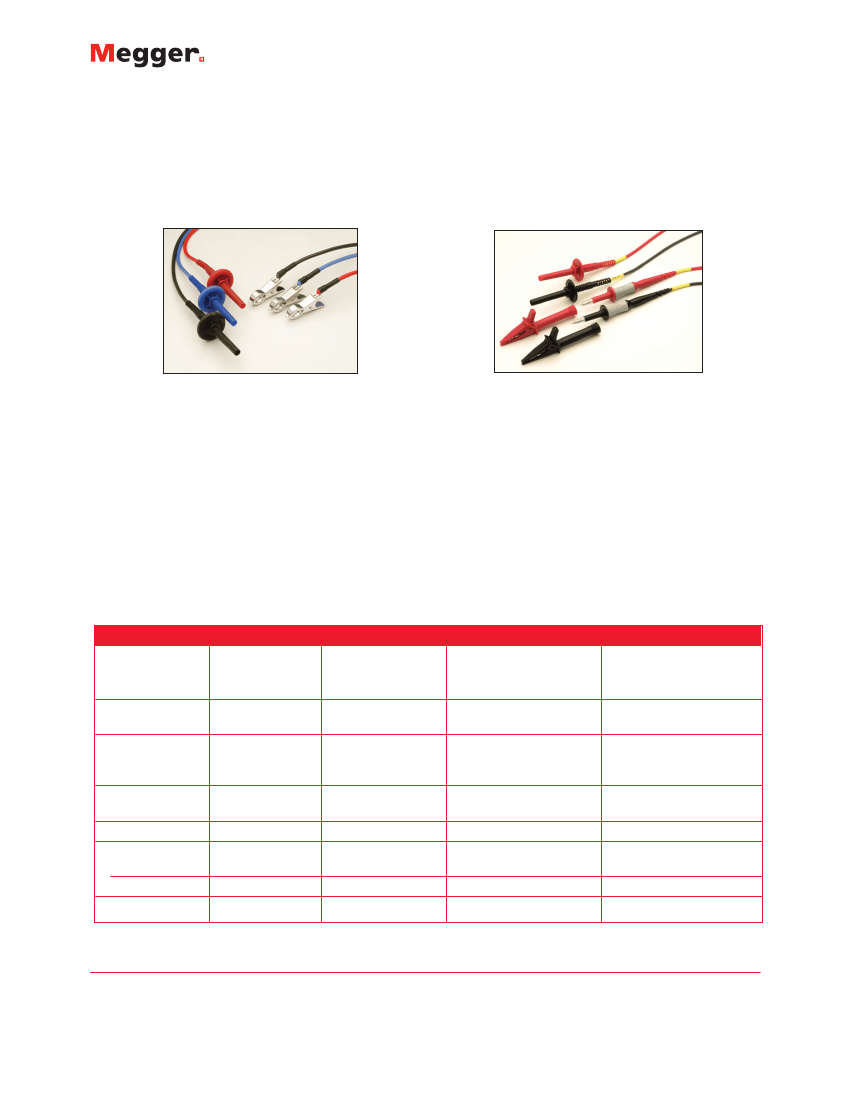

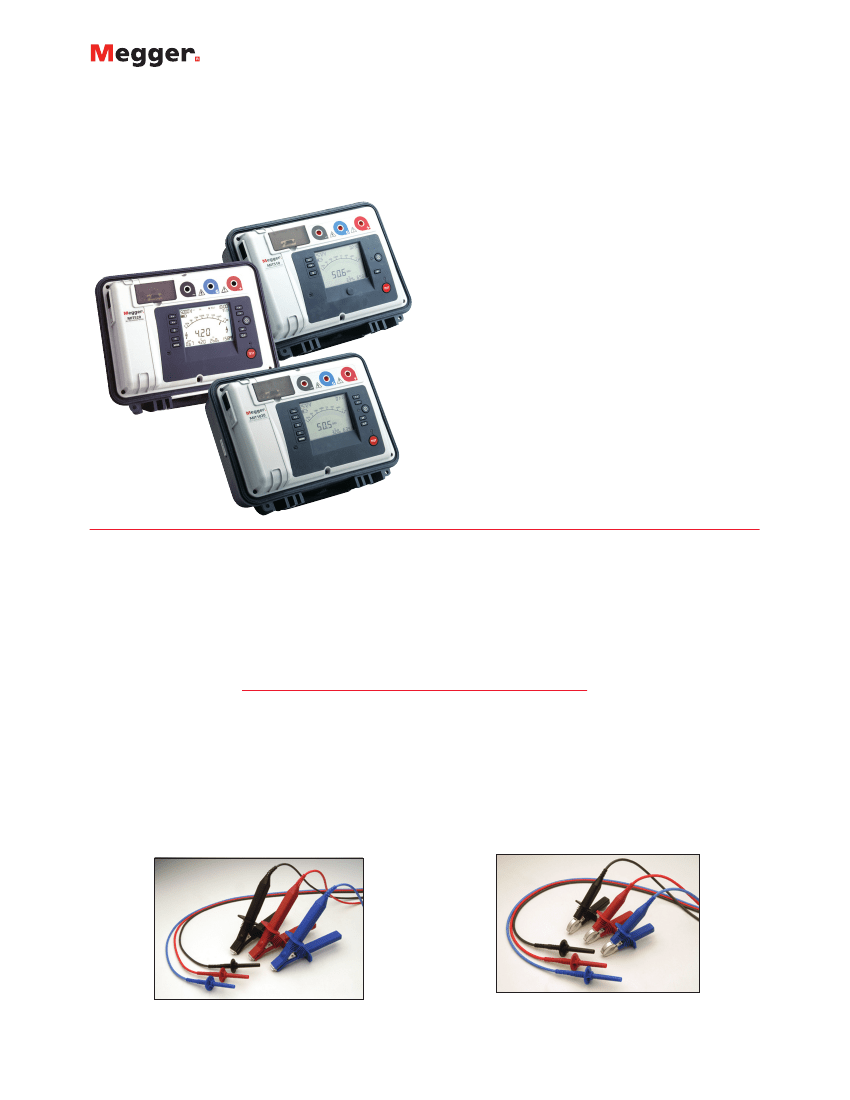

Test Leads
5-kV and 10-kV Insulation Resistance Testers
Test Leads
5-kV & 10-kV Insulation Resistance Testers
MIT510/2
5-kV Model
MIT520/2
5-kV Model
n
Wide range of lead sets and clips from the
leader in insulation resistance testing
Facilitates connection to a variety of
de-energized systems
Used with Megger 5-kV and 10-kV
insulation resistance testers
n
n
MIT1020/2
10-kV Model
DESCRIPTION
Megger offers a range of lead sets and clips of various
sizes and electrical characteristics for use with MIT510/2,
MIT520/2 and MIT1020/2 insulation resistance testers,
enabling the user to choose the most applicable lead set
for the work in hand. In all cases it is the responsibility of
the user to use safe working practices and verify that the
system is safe before connection. Even isolated systems
may exhibit significant capacitance which will become
highly charged during the application of the insulation test.
This charge can be lethal and connections, including the
leads and clips, should never be touched during the test.
Note:
the Compact Test Clips (8101-181, 8101-182,
8101-183) can be used with MJ15 and BM15 as well as
the MIT510/2, MIT520/2 and MIT1020/2.
Large Test Clips
These clips are designed for clamping on larger diameter
test pieces. The insulation is designed only to protect the
user from the output of Megger 5-kV and 10-kV insulation
resistance testers and systems below 1 kV to the category
rating of 1000 V ac. The clips
cannot
in any circumstance
be relied on to protect the user from live systems above
1 kV ac.
Medium Test Clips
These clips are designed for clamping on larger diameter
test pieces but where space is at a premium. The insulation
is designed only to protect the user from the output
of Megger 5-kV and 10-kV (set below 6 kV) insulation
resistance testers. The clips
cannot
in any circumstance be
relied on to protect the user from live ac systems.
Test Leads
5-kV and 10-kV Insulation Resistance Testers
Compact Test Clips
These clips are designed for clamping on test pieces where
access is limited. There is no insulation on these clips.
Extreme care must be taken to avoid electric shock when
connecting/disconnecting due to the bare metallic clips.
Control Circuit Test Clips
These clips are designed for testing low voltage circuits
with test voltages up to 1 kV. The insulation is designed
only to protect the user from the output of Megger 5-kV
and 10-kV insulation resistance testers set to a maximum
output voltage of 1 kV.
Do not
use this lead set at voltages
above 1 kV.
ORDERING INFORMATION
Type
Cat. No.
Dimensions,
Closed
Lead Length
Large Test Clip
6220-811
8.7 x 5.2 in.
(220 x 134 mm)
10 ft (3 m)
Medium Test Clip
6220-820
5.4 x 2.9 in.
(139 x 73 mm)
10 ft (3 m)
Compact Test Clip
8101-181/8101-182/
8101-183
2.2 x 1 in.
(58 x 25 mm)
210968: 10 ft (3 m)
EV6121-451: 25 ft (8 m)
EV6121-452: 50 ft (15 m)
.7 in. (18 mm)
3
None
None
N/A
Control Circuit Test Clips
6220-822
2.2 x 1 in.
(58 x 25 mm)
10 ft (3 m)
Jaw Opening,
Dia. max.
Number in Set
Insulation Rating
Basic
Double
CAT Rating
1.3 in. (34 mm)
3
10 kV dc
5 kV dc
1000 V ac CAT IV
1.3 in. (34 mm)
3
6 kV dc
3 kV dc
1000 V ac CAT IV
.8 in. (20 mm)
2
1 kV dc (Prod or Clip)
N/A
N/A
UK
Archcliffe Road, Dover
CT17 9EN England
T +44 (0) 1 304 502101
F +44 (0) 1 304 207342
UKsales@megger.com
UNITED STATES
4271 Bronze Way
Dallas, TX 75237-1019 USA
T 1 800 723 2861 (USA only)
T +1 214 333 3201
F +1 214 331 7399
USsales@megger.com
OTHER TECHNICAL SALES OFFICES
Valley Forge USA, College Station
USA, Sydney AUSTRALIA, Täby
SWEDEN, Ontario CANADA, Trappes
FRANCE, Oberursel GERMANY, Aargau
SWITZERLAND, Kingdom of BAHRAIN,
Mumbai INDIA, Johannesburg SOUTH
AFRICA, and Chonburi THAILAND
ISO STATEMENT
Registered to ISO 9001:2000 Cert. no. Q09290
Registered to ISO 14001-1996 Cert. no. EMS61597
MIT5-10kV_TL_DS_enUS_V02
www.megger.com
Megger is a registered trademark
