NuDAM
1
Software &
Utilities
2

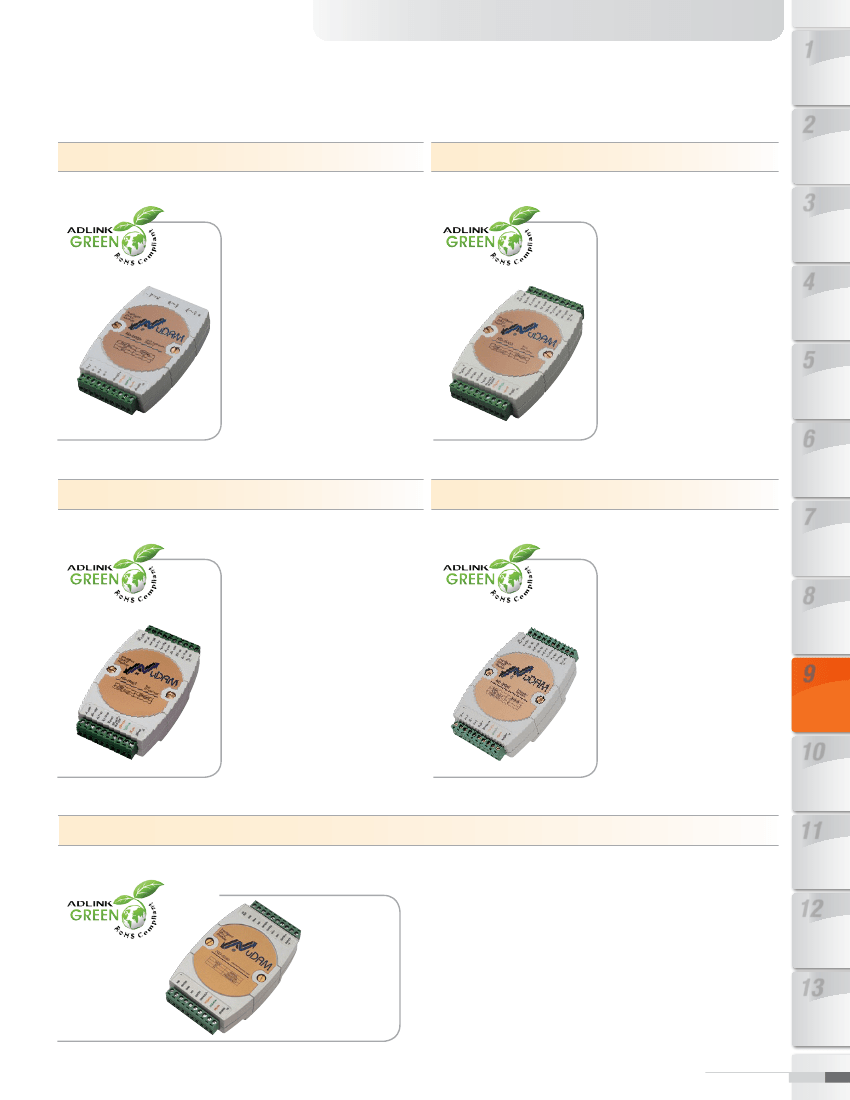

ND-6058
28-CH PPI Module
Programmable I/O
■ 8255
programmable peripheral interface
mode 0 emulation
■ Channel:
24
■ Input
Signal
• TTL
level
■ Internal Pull-Up Resistor: 10 kΩ
■ Maximum
Current: 0.5 mA
■ Output
Signal
• TTL
level
Digital Input
■ Channels:
4
■ TTL
level
Power
■ Requirement:
unregulated +10 V to +30 V
DC
■ Power
Consumption:1.488 W typical
Connector
■ 50-pin
female SCSI II
ND-6063
8-CH Relay Output Module
Relay Output
■ Channels:
8 independent relay outputs
■ Output
Type: 8 form A
■ Contact
Rating
• DC
1 A / 30 V
• ON/OFF
interval time: 3 ms (at 20°C)
■ Internal
Insulation
■ Resistance: 1000 MΩ @ 500 V
DC
■ Expected
Life: 2 x 105
(1 A 30 V
DC
resistive at 20 cpm)
Power
■
Requirement: unregulated +10 V to +30 V
DC
■
Power Consumption: 1.416 W typical
DAQ
3
PXI
4
Modular
Instruments
5
GPIB & Bus
Expansion
6
ND-6067
8-CH AC Relay Output Module
Relay Output
■ Channels:
5 independent relay outputs
and 3 common source replay outputs
■ Output
type: 8 form A
■ Contact
rating:
• AC
3 A / 250 V
• DC
3 A / 30 V
■ ON/OFF
time interval: 6 ms/3 ms
• Operate
time: approx. 6 ms
• Release
time: approx. 3 ms
■ Insulation resistance: 1000 MΩ minimum
(at 500 V
DC
)
■ Expected
Life: 2 x 105
(3 A 250 V
AC
, 3 A 30 V
DC
at 20 cpm)
Power
■ Power
Requirement: +10 V to +30 V
DC
Unregulated with against power reversal
■ Power
Consumption: 1.392 W typical
ND-6060
Relay Output & Digital Input Module
Relay Output
■
Channels: 4 relay outputs
■
Output Type: 2 form C and 2 form A
■
Contact Rating:
• DC
2A / 30 V
■
ON/OFF Interval Time: 3 ms
■
Internal Insulation Resistance:
1000 MΩ @ 500 V
DC
■
Expected Life: 2 x10
5
(1 A 30 V
DC
resistive at 20 cpm)
■
Programmable output polarity
■
Programmable output power on/safety state
Digital Input
■
Channels: 4
■
Common External Voltage: +24 V
■
Current Limit Resistor: 2.2 kΩ
■
Isolation Voltage: 5000 V
RMS
■
Input Type: dry contact
■
Programmable input polarity
Power
■
Requirement: unregulated +10 V to +30 V
DC
■
Power Consumption: 0.84 W typical
Motion
Control
7
Real-time
Distributed
I/O
8
PAC
9
Remote I/O
10
Communi-
cations
ND-6080
2-CH Counter/Frequency Input Module
Counter Inputs
■ Channels:
Two independent 32-bit counter
■ Input
Frequency: 20 KHz max.
■ Input
Mode: isolated or non-isolated
■ Isolation
Voltage: 5000 V
RMS
■ Isolation
Input Level
• Logical
level 0: +1 V max
• Logical
level 1: 3.5 V to 30 V
■ Current Limit Resistor: 1.2 kΩ
■ Non-isolated
Input Level programmable
threshold
• Logical
l level 0: 0 V to +5 V
(default = 0.8 V)
• Logical level 1: 0 V to +5 V
(default = 2.4 V)
■ Input
Pulse Width: > 5 μs
■ Max
Count: 4,294,967,295 (32-bit)
■ Programmable
Digital Noise Filter: 4 μs
to 1.02 ms
■ Alarm:
alarm comparator on each counter
Frequency Measurement
■ Range:
1 Hz to 20 KHz
■ Programmable
built-in gate time: 1.0 / 0.1 s
Digital Output
■ Channels:
2
■ Open
collector to 30 V 30 mA max. load
,
Power
■ Requirement:
unregulated +10 V to +30 V
DC
■ Power
Consumption: 2.016 W
11
Vision
12
Fanless
Embedded
Computers
13
cPCI &
Industrial
Computers
www.adlinktech.com 9-6
