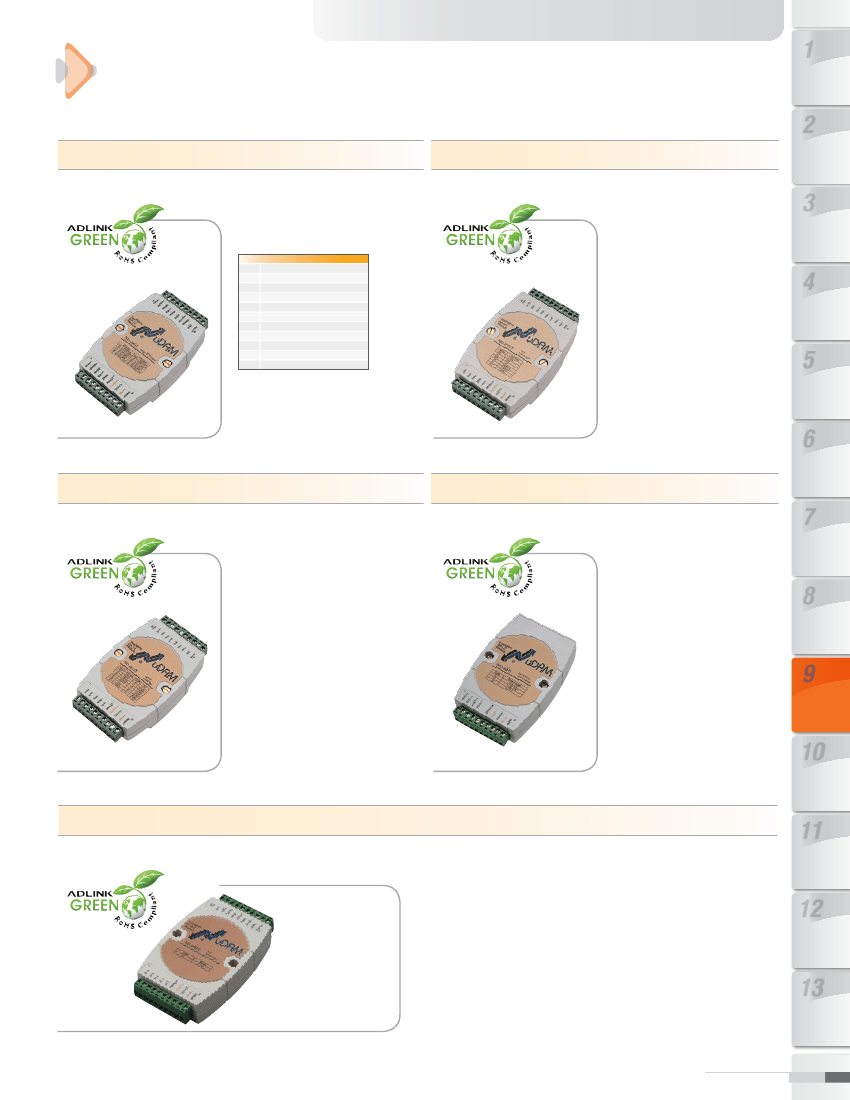

NuDAM
Analog Modules
ND-6013
3-CH RTD Input Module
Analog Input
■ Channels:
3
■ Input
T
ype: Pt-100, Ni-100, Ni 120 RTD or Ohm
RTD
Pt
Pt
Pt
Pt
Pt
Pt
Pt
Pt
Ni
Ni
Ω
Type Temperature Range
-100˚C to +100˚C = 0.00385
0˚C to +100˚C = 0.00385
0˚C to +200˚C = 0.00385
0˚C to +600˚C = 0.00385
-100˚C to +100˚C = 0.003916
0˚C to +100˚C = 0.003916
0˚C to +200˚C = 0.003916
0˚C to +600˚C = 0.003916
-100 0˚C to +100˚C
-120 0˚C to +100˚C
0 Ω to +60 Ω
1
Software &
Utilities
ND-6017
8-CH Analog Input Module
Analog Input
■ Channels:
6 differential & 2 singled-ended
■ Input
Type: mV, V, and mA
■ Input
Range: ±150 mV, ±500 mV, ±1 V,
±5 V, ±10 V
■ Current
Range: 0 to 20 mA
(with external 125 Ω resistor)
■ Isolated
Voltage: 2500 V
RMS
■ Sampling
Rate: 20 samples/sec
Power
■ Requirement:
unregulated +10 V to
+30 V
DC
■ Power
Consumption:1.2 W typical
2
DAQ
3
PXI
4
Modular
Instruments
■ Isolation
Voltage: 2500 V
RMS
■ Sampling
Rate: 3 samples/sec
■ Input
Wiring: 2, 3, or 4 wires
Power
■ Requirement:
unregulated +10 V to
+30 V
DC
■ Power
Consumption: 0.696 W typical
5
GPIB & Bus
Expansion
6
ND-6018
8-CH Thermocouple Input Module
Analog Input
■ Channels:
6 differential & 2 singled-ended
■ Input
Type: Thermocouple, mV, V, or mA
■
Thermocouple T
ype: J, K, T, E, R, S, B, N, C
■ Thermocouple
Input Range
•
J: 0°C to 760°C
• K:
0°C to 1,370°C
• T:
-100°C to +400°C
• E:
0°C to 1,000°C
• R:
500°C to 1,750°C
• S:
500°C to 1,750°C
• B:
500°C to 1,800°C
• N:
- 270°C to 1,300°C
• C:
0°C to 2,320°C
• Internal
CJC can be enable/disable
■ Voltage
Range: ±15 mV, ±50 mV,
±100 mV, ±500 mV, ±1 V, ±2.5 V
■ Current
Range: 0 to 20 mA (with external
125 Ω resistor)
■ Isolated
Voltage: 2500 V
RMS
■ Sampling
Rate: 10 samples/sec
Power
■
Requirement: unregulated +10 V to +30 V
DC
■ Power
Consumption: 0.96 W typical
ND-6021
Analog Output Module
Single Channel Analog Output
■ Voltage
Output: 0 to +10 V
■ Current
Output: 0 to +20 mA, +4 to +20 mA
■ Output
Isolation: 5000 V
RMS
■ Resolution:
12-bit output resolution
accuracy
■ Programmable
Output Slope:
• 0.125
to 128 mA/sec
• 0.0625 to 64 V/sec
■ Current Load Resister: 0 to 500 Ω
Power
■ Requirement:
unregulated +10 V to +30 V
DC
■ Power
Consumption: 1.32 W typical
Motion
Control
7
Real-time
Distributed
I/O
8
PAC
9
Remote I/O
10
Communi-
cations
ND-6024
4-CH Analog Output Module
Analog Output
■ Channels:
4
■ Voltage
Output -10 V to +10 V
■ Resolution:
12-bit
■ Accuracy:
±0.02% of FSR
■ Maximum
current output: ±10 μA
■ Gain Drift: 10 ppm FSR/˚C
Digital Input
■ Channels:
7
■ Switching
Levels: TTL
Power
■ Requirement:
unregulated +10 V to +30 V
DC
■ Power
Consumption: 1.848 W typical
11
Vision
12
Fanless
Embedded
Computers
13
cPCI &
Industrial
Computers
www.adlinktech.com 9-4
