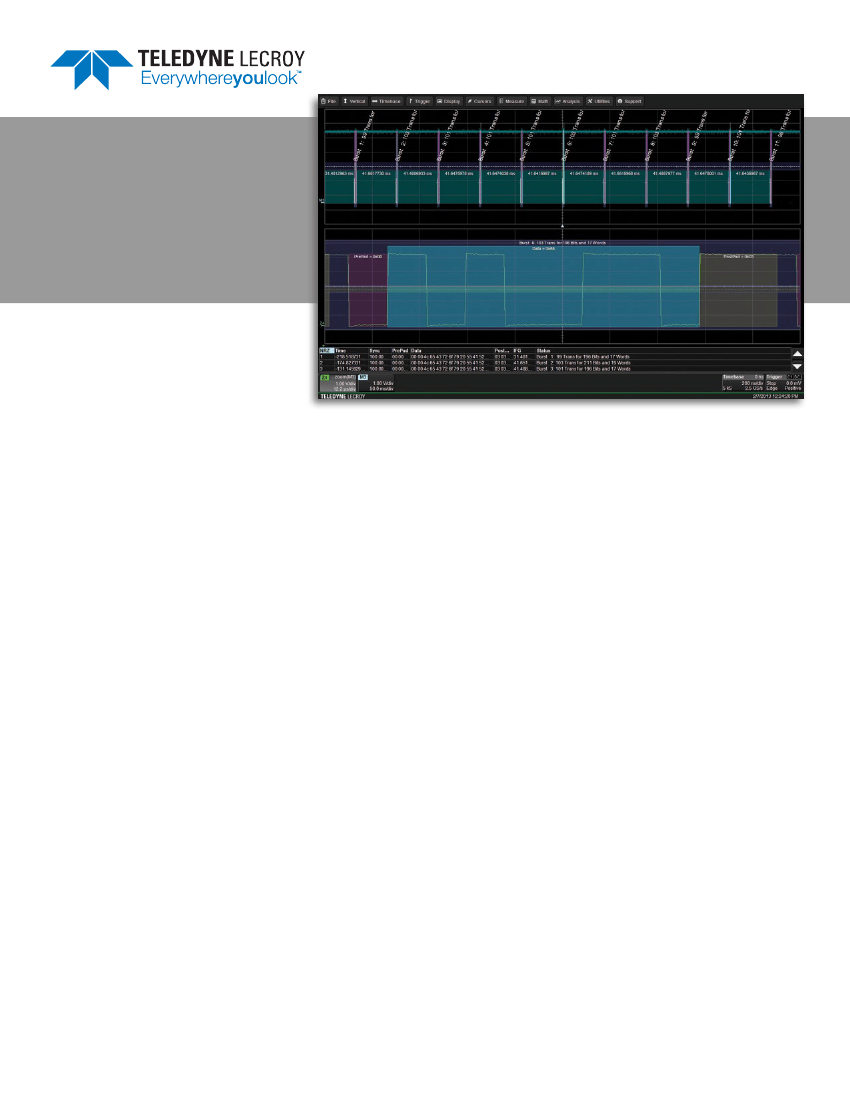

Manchester and
NRZ Configurable
Protocol Decode
Key Features
•
•
•
•
•
•
User definable protocol decoding
of Manchester and NRZ encoded
buses
Flexible decoding of buses with
bit rates up to 60 Gb/s
Configurable word and packet
grouping for custom protocol
definition
Intuitive color-coded decode is
overlaid directly on physical layer
waveform
Convenient table display with
quick “zoom to message”
capability
Search feature quickly identifies
specific packets and data
Quickly decode serial buses that use Manchester and NRZ encoding schemes with configurable,
user-definable protocol formats.
Today’s oscilloscopes provide an array of protocol specific serial data
decoding tools to help verify bus performance and debug system
problems. These tools provide valuable insight into buses using those
protocols but not all systems are built on industry standards and
rely on proprietary encoding or buses not supported by oscilloscope
decode tools.
Flexible, User-Definable
Protocol Decoding
The Configurable Manchester and
NRZ Decode options enable flexible,
user-definable protocol decoding of
serial buses built with these encoding
schemes from 10 b/s to 60 Gb/s.
The physical layer specs like bit rate,
idle state and polarity can be easily
defined enabling quick decoding of
every bit transmitted on the bus.
Higher level decode can be done by
configuring bits to words and then
words to packets.
Configure and Decode
Complex Protocols
Define the number of sync bits,
header or pre-amble bits, data bits
and footer or CRC bits to build a
custom protocol decoder for a
proprietary bus or decode Manchester
or NRZ based industry standard
buses like PSI5, DALI, LONworks, and
proprietary NRZ protocols.
Support on Multiple
Oscilloscope Platforms
The configurable Manchester and
NRZ decode option is available on a
wide range of oscilloscope models
from 200 MHz to 65 GHz.
DEFINE, CONFIGURE, DECODE
Manchester and NRZ encoding schemes both use a variety of methods for making bits into words, words into packets and
packets into protocols. The configurable Manchester and NRZ decode capabilities are designed to provide the flexibility
needed to display decoded protocol information built on these encoding schemes. This flexibility enables quick decoding of
protocols built on industry standards or custom, proprietary protocols.
1
2
3
4
5
6
7

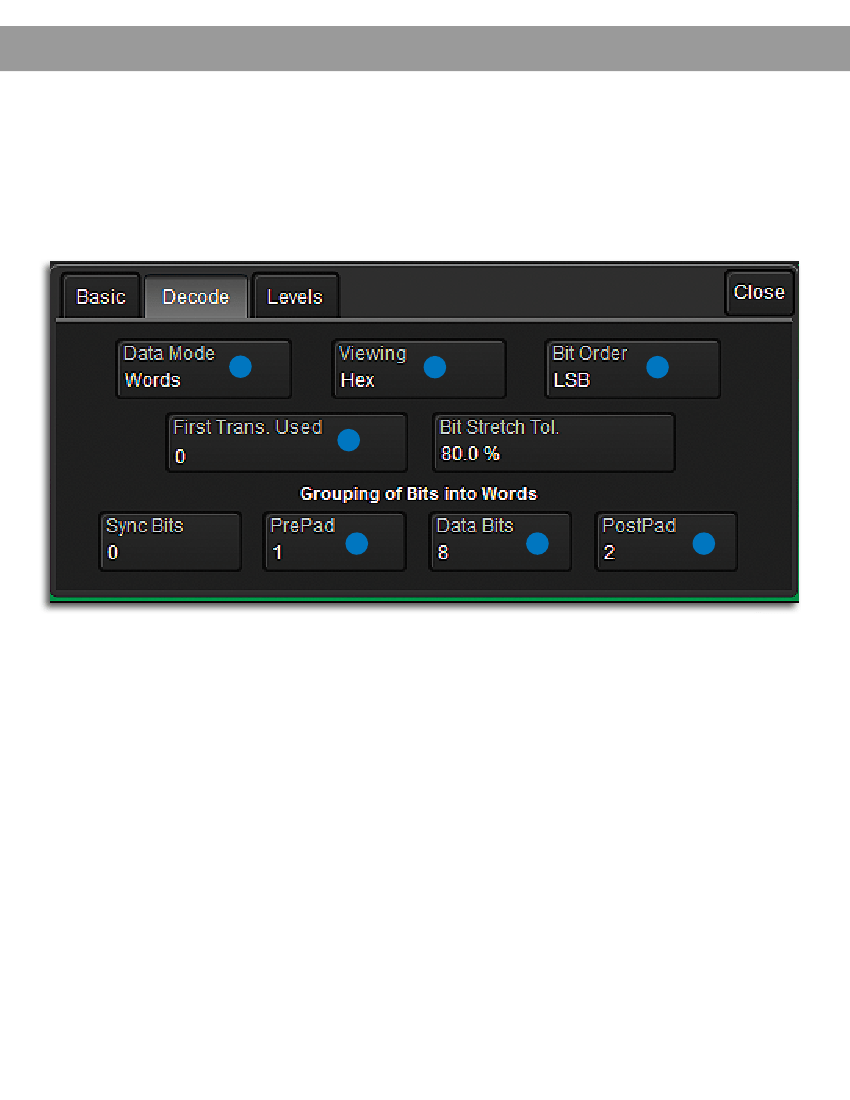

User-definable protocol controls enable flexible serial bus decoding.
Protocol Decode Setup
1.
Decode data packet by grouping bits into words
2.
View decoded data in Hex, ASCII or Decimal
Word, Packet, Frame Setup
5.
Group up to 32 bits for address, pre-amble or
sub-address information
6.
Choose custom number of bits from 0 – 32
3.
Set decode bit order as LSB or MSB
4.
Select a start point for decoding so that only
transitions of interest are decoded.
for word size
7.
Define CRC or footer information by setting a
specific amount of post-pad bits
2
Intuitive Decode

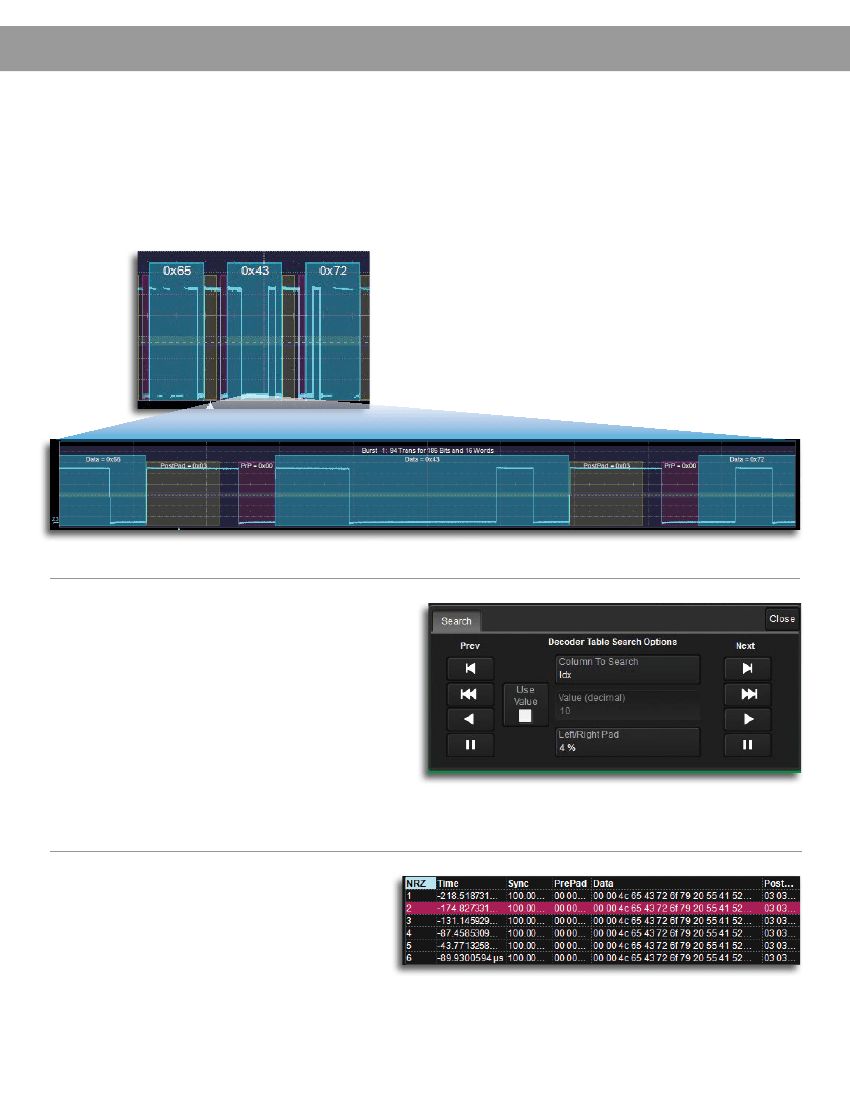

Color-coded overlays display the protocol decode directly on top of the physical layer waveform for an easy-to-understand
visual display. The decode information condenses or expands depending on the timebase or zoom setting, simplifying both
routine verification and complex troubleshooting.
Powerful Search
Quickly search through long captures of decoded
Manchester or NRZ encoded buses for specific details
such as Data, Sync, Interframe Gap or Status.
Search functionality and user interface provides an easy way to step
through search results to isolate specific areas of interest.
Convenient Table
Turn the oscilloscope into a protocol analyzer with
the table display of protocol information. Configure
the table to display information, such as, sync, pre &
post data, and export table data to an Excel file.
Display decoded values in an easy-to-understand table.
3
SPECIFICATIONS & ORDERING INFORMATION
Manchester / NRZ
Protocol Setup
Format
Basic Setup
Decode Setup
# of Decode
Waveforms
Location
Visual Aid
Definition
Select Bit rate (10 bit/s - 60 Gbit/s), Idle State (IdleLow, IdleHigh, Don’t Care), Polarity (Low = 0, Low = 1)
Bits, Words
Bit rate, Idle State, Polarity
First Transition Used (0 - 400), Bit Stretch Tolerance (0 - 100 %), Sync Bits (0-1000), PrePad Bits (0 - 32), Data Bits (1 - 32), PostPad
Bits (0 - 32)
Up to 4 buses may be decoded at one time. In addition, zooms can be displayed (with decoded information).
Overlaid over waveform, on Grid
Color Coding for Idle, timeout, Prepad, Data, PostPad. Decode information is intelligently annotated based on timebase setting.
Decode Capability
Search Capability
Pattern Search
Search for the following:
Time, Sync, Prepad, Data, Postpad, Interframe Gap and Status. Selection available for use of defining decimal or hexadecimal
search value with Data mode = Words
NRZ-L
Manchester Bi-Phase-L (also called Manchester II), IEEE 802.3, Differential bi-phase mark, Differential bi-phase space. (Single Wire)
Fully compatible with WaveSurfer 10/MXs-B/MSO MXs-B Series, HDO4000 Series, WaveRunner Xi/Xi-A Series,
WaveRunner 6 Zi Series, HDO6000 Series, HDO8000 Series, WavePro 7 Zi Series, WaveMaster 8 Zi Series, LabMaster 9 Zi-A
Series, and LabMaster 10 Zi Series. Bandwidth of oscilloscope must be equal to bit rate with a minimum oscilloscope sample rate
of 4x the bit rate.
Supported
Encoding
Variants
Compatible
With...
Other
Ordering information
Product Description
Manchester Decode Option
Product Code
Product Description
NRZ Decode Option
Product Code
Manchester Decode Option for
WaveSurfer MXs/MSO MXs-B
Manchester Decode Option for
WaveSurfer 10
Manchester Decode Option for
HDO4000/HDO4000-MS
Manchester Decode Option for
WaveRunner 6 Zi
Manchester Decode Option for
HDO6000/HDO6000-MS
Manchester Decode Option for
HDO8000/ HDO8000-MS/MDA800
Manchester Decode Option for
WavePro 7 Zi/Zi-A
Manchester Decode Option for
WaveMaster 8 Zi-A
Manchester Decode Option for
LabMaster 9 Zi-A
Manchester Decode Option for
LabMaster 10 Zi
WSXs-Manchesterbus D
WS10-Manchesterbus D
HDO4K-Manchesterbus D
WR6Zi-Manchesterbus D
HDO6K-Manchesterbus D
HDO8K-Manchesterbus D
WPZi-Manchesterbus D
WM8Zi-Manchesterbus D
LM9Zi-Manchesterbus D
LM10Zi-Manchesterbus D
NRZ Decode Option for WaveSurfer MXs/MSO MXs-B
NRZ Decode Option for WaveSurfer 10
NRZ Decode Option for HDO4000/HDO4000-MS
NRZ Decode Option for WaveRunner 6 Zi
NRZ Decode Option for HDO6000/HDO6000-MS
NRZ Decode Option for
HDO8000/HDO8000-MS/MDA800
WSXs-NRZbus D
WS10-NRZbus D
HDO4K-NRZbus D
WR6Zi-NRZbus D
HDO6K-NRZbus D
HDO8K-NRZbus D
Customer Service
Teledyne LeCroy oscilloscopes and probes are designed, built, and tested
to ensure high reliability. In the unlikely event you experience difficulties, our
digital oscilloscopes are fully warranted for three years, and our probes are
warranted for one year.
This warranty includes:
No charge for return shipping
Long-term 7-year support
Upgrade to latest software at no charge
•
•
•
1-800-5-LeCroy
teledynelecroy.com
Local sales offices are located throughout the world.
Visit our website to find the most convenient location.
manchester-nrz_ds_28aug15
© 2015 by Teledyne LeCroy, Inc. All rights reserved. Specifications, prices, availability, and delivery subject to change without notice.
Product or brand names are trademarks or requested trademarks of their respective holders.
