5962-88726073A datasheet, PDF - EEWORLD Datasheet

5962-88726073A: DescriptionUV PLD, 25ns, 10-Cell, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size407KB，12 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

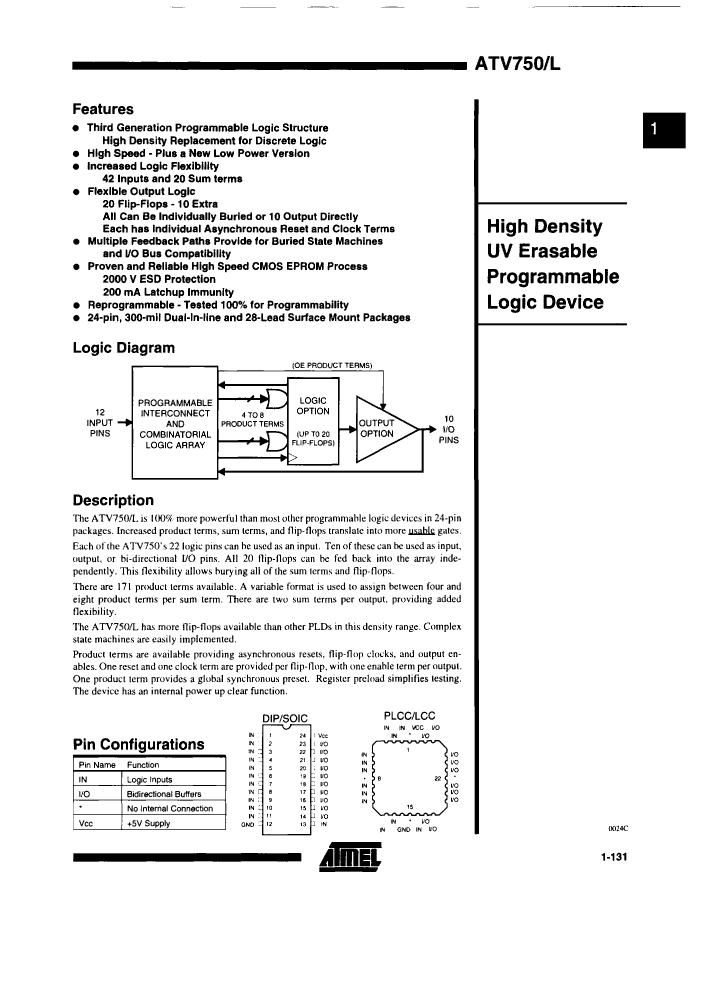

5962-88726073A Overview

UV PLD, 25ns, 10-Cell, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	QLCC
package instruction	WINDOWED, CERAMIC, LCC-28
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	10 MACROCELLS; VARIABLE PRODUCT TERMS

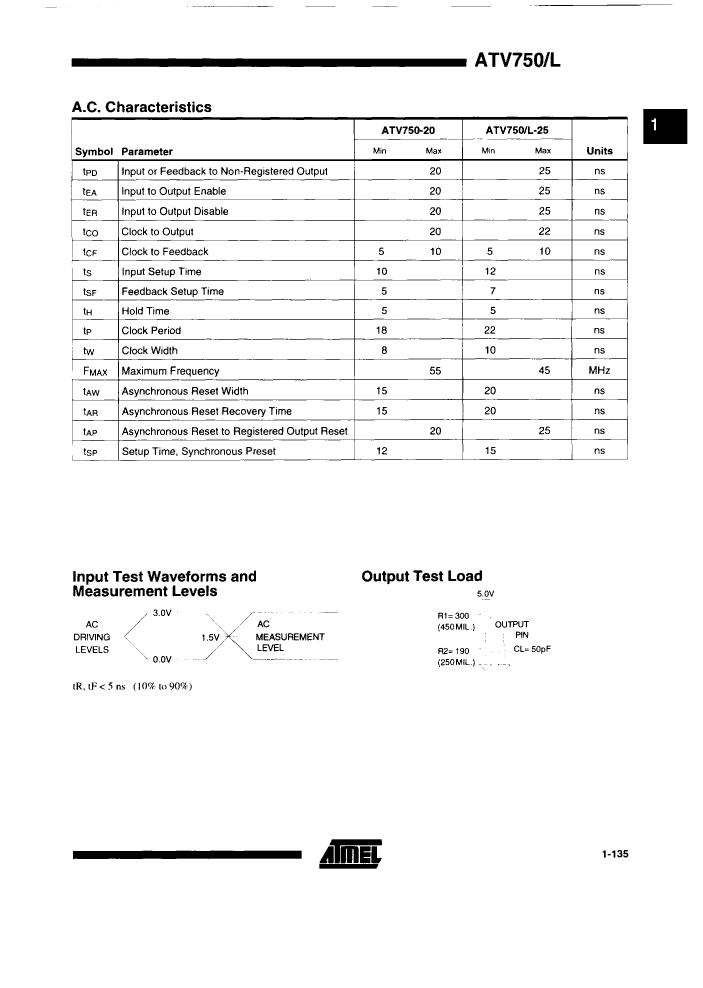

maximum clock frequency	45 MHz
In-system programmable	NO
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
JTAG BST	NO
length	11.45 mm
Dedicated input times	12
Number of I/O lines	10
Number of macro cells	10
Number of terminals	28

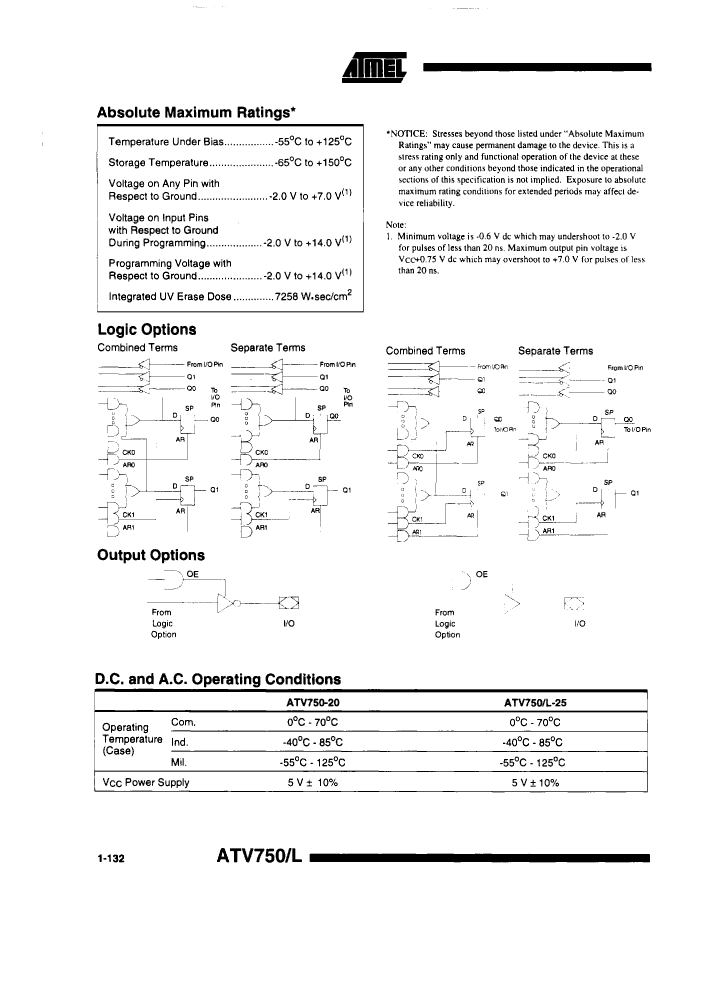

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	12 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

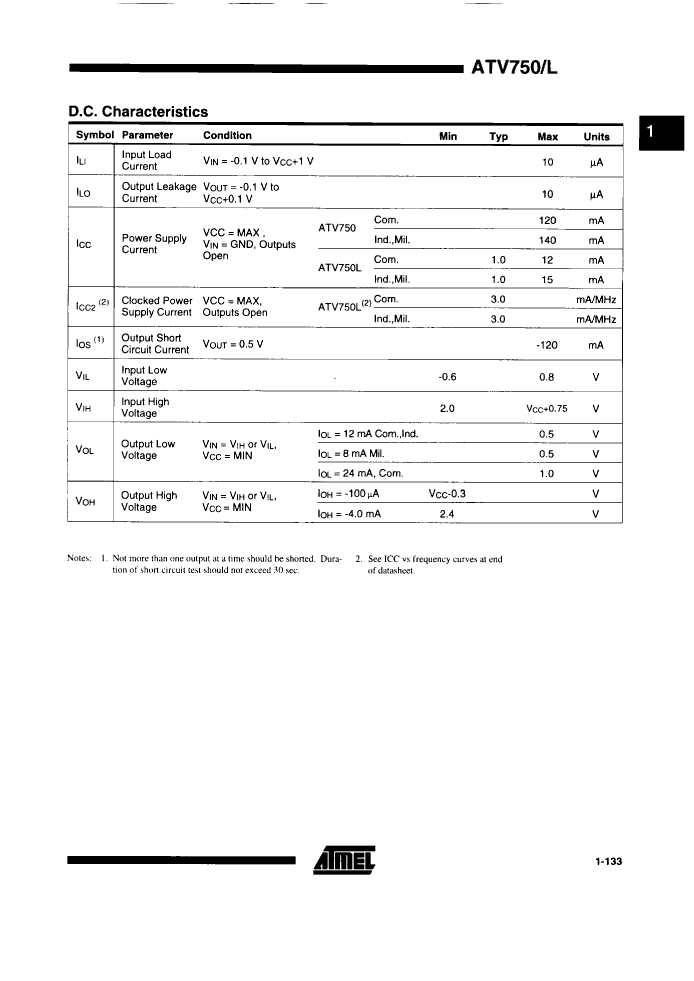

power supply	5 V
Programmable logic type	UV PLD
propagation delay	25 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.79 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.45 mm
Base Number Matches	1
