THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR OR
COMMUNICATED TO A THIRD PARTY WITHOUT THE
EXPRESS WRITTEN PERMISSION OF AN OFFICER OF
QUALTEK ELECTRONICS.
REVISION
REV.
DESCRIPTION
DATE
APPROVED
3MAX
NOTES:
1.
2.
3.
4.
5.
6.
MATERIAL: C1008 BRIGHT BASIC WIRE
FINISH: BRIGHT NICKEL CHROME PLATING
0.35 ± 0.05 DEPTH OF SERRATIONS ON WIRE
RING:
∅2.0
± 0.1mm
RIB:
∅2.0
± 0.1mm
GENERAL TOLERANCE UNLESS NOTED IS ± 0.76mm
RoHS COMPLIANT
∅103.95
∅5.6
± 0.2
∅209.55
246.08
8.35 ± 0.5
1.5
Dim
range
(mm)
0-5
5-16
16-64
64-250
250-1000
1000-1500
Tolerance
+/-
(mm)
0.1
0.15
0.2
0.4
0.5
1.0
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
FAN-S DIVISION
08154

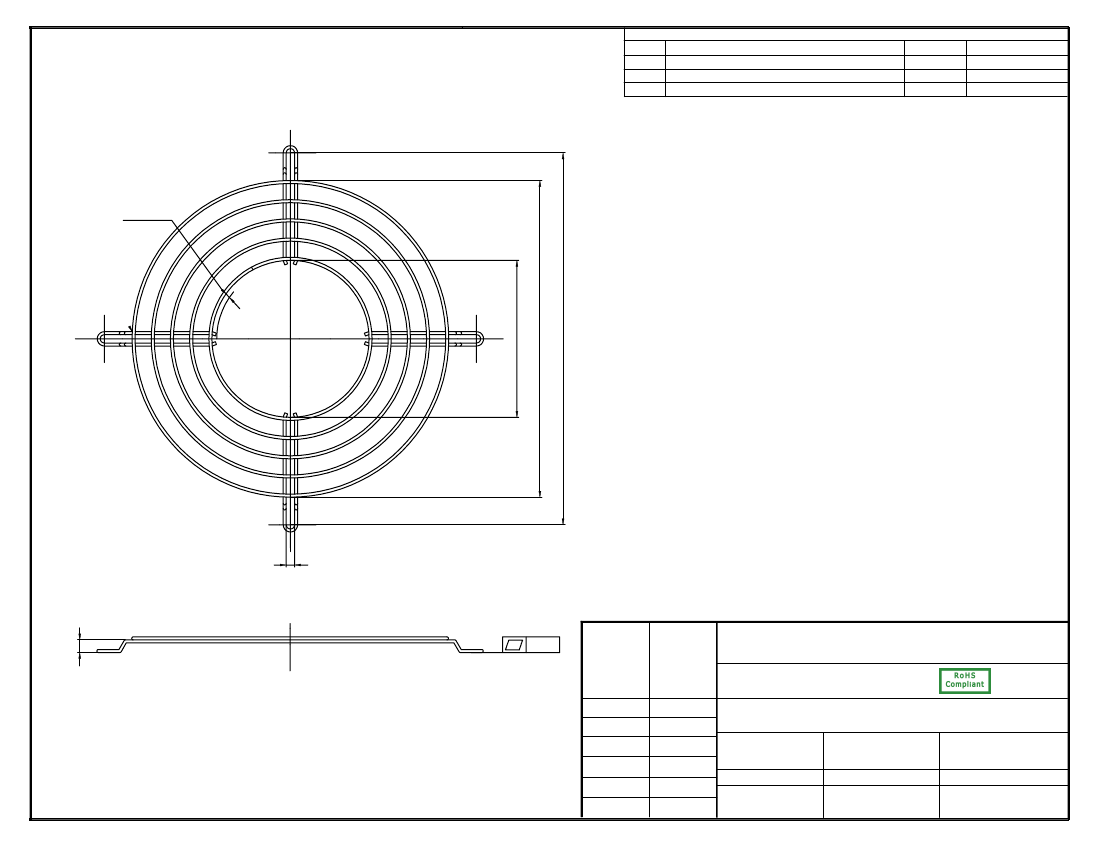

WIRE FORM FAN GUARD (254mm)
UNIT: mm
Drawn / Date
R.Nuti
01-29-09
Checked / Date
01-29-09
Approved / Date
LY / 01-29-09
