HS103DR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> HS103DR

HS103DR: Descriptionheat sinks 1.0 C/W din RM heat sink - 1 2 3 ssr's; CategoryThermal management products; File Size587KB，4 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

HS103DR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HS103DR	-	-	View	Buy Now

HS103DR Overview

heat sinks 1.0 C/W din RM heat sink - 1 2 3 ssr's

HS103DR Parametric

Parameter Name	Attribute value
Manufacture	Crydom
Product Category	Heat Sinks
RoHS	Yes
Produc	Heat Sinks
Mounting Style	DIN Rail
Heatsink Material	Aluminum
Fin Style	Unidirectional Fi
Thermal Resistance	1 C/W
Length	132.1 mm
Width	76.2 mm
Heigh	60.2 mm
Designed f	SSR
Col	Black
Factory Pack Quantity	5

Preview

Download Datasheet

View All

HS103 Series

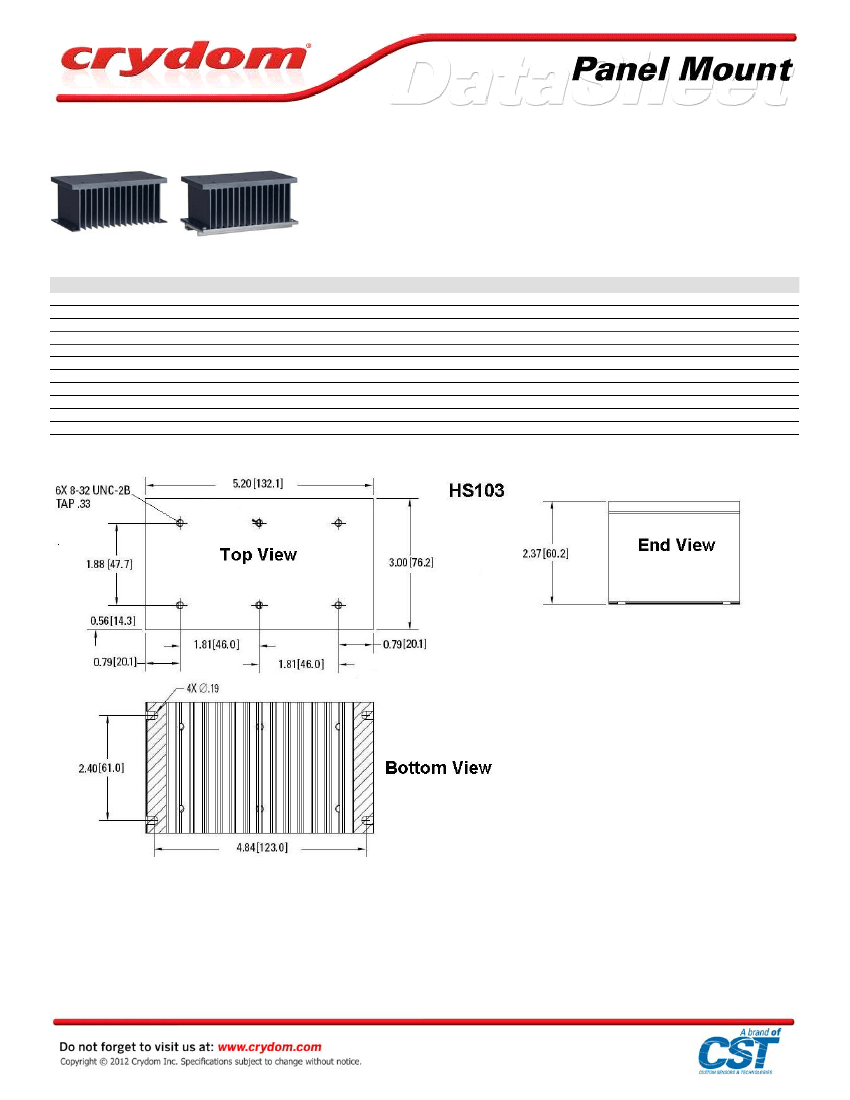

• 1.0°C/W Thermal resistance

• Suitable for 1, 2 or 3 single or dual SSR’s

or one 3 Phase SSR

• DIN rail or panel mounting

GENERAL SPECIFICATIONS

Description

Model Number

Thermal resistance [°C/W]

Surface area [in²/cm²]

Heat sink mounting

Weight [lbs/grs]

Material

Finish

SSR Mounting Holes/ threads

Mounting screw torque [in lbs/nm]

Number and type of relay accepted

Accepts Fan/size [mm]

Panel Mount

HS103

1.0

227/1470

Panel Mount

0.97/440

Aluminum

Black Anodized

6, 8x32

15-20/1.7-2.2

1,2 or 3 single or dual or 1, 3-Phase

Yes/ 2-40

Din-Rail Mount

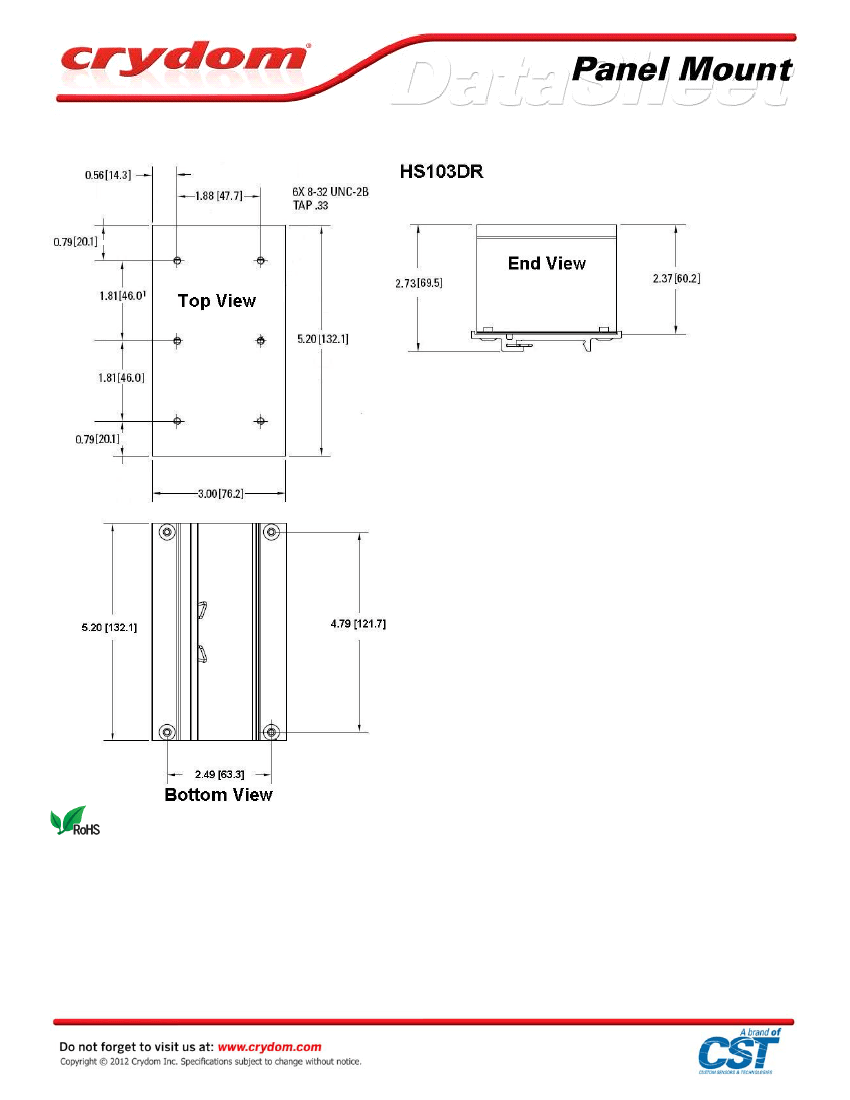

HS103DR

1.0

227/1470

Din-Rail Mount

1.20/544

Aluminum

Black Anodized

6, 8x32

15-20/1.7-2.2

1,2 or 3 single or dual or 1, 3-Phase

Yes/ 2-40

MECHANICAL SPECIFICATIONS

HS103DR Related Products

	HS103DR	HS103-D53TP25D
Description	heat sinks 1.0 C/W din RM heat sink - 1 2 3 ssr's	heat sinks 55a/530v DC input ZC ssr mounted heatsink
Manufacture	Crydom	Crydom
Product Category	Heat Sinks	Heat Sinks
RoHS	Yes	Yes
Produc	Heat Sinks	Heat Sinks
Mounting Style	DIN Rail	DIN Rail
Heatsink Material	Aluminum	Aluminum
Fin Style	Unidirectional Fi	Vertical
Thermal Resistance	1 C/W	1 C/W
Length	132.1 mm	132.1 mm
Width	76.2 mm	76.2 mm
Heigh	60.2 mm	60.2 mm
Designed f	SSR	SSR
Col	Black	Black
Factory Pack Quantity	5	5
