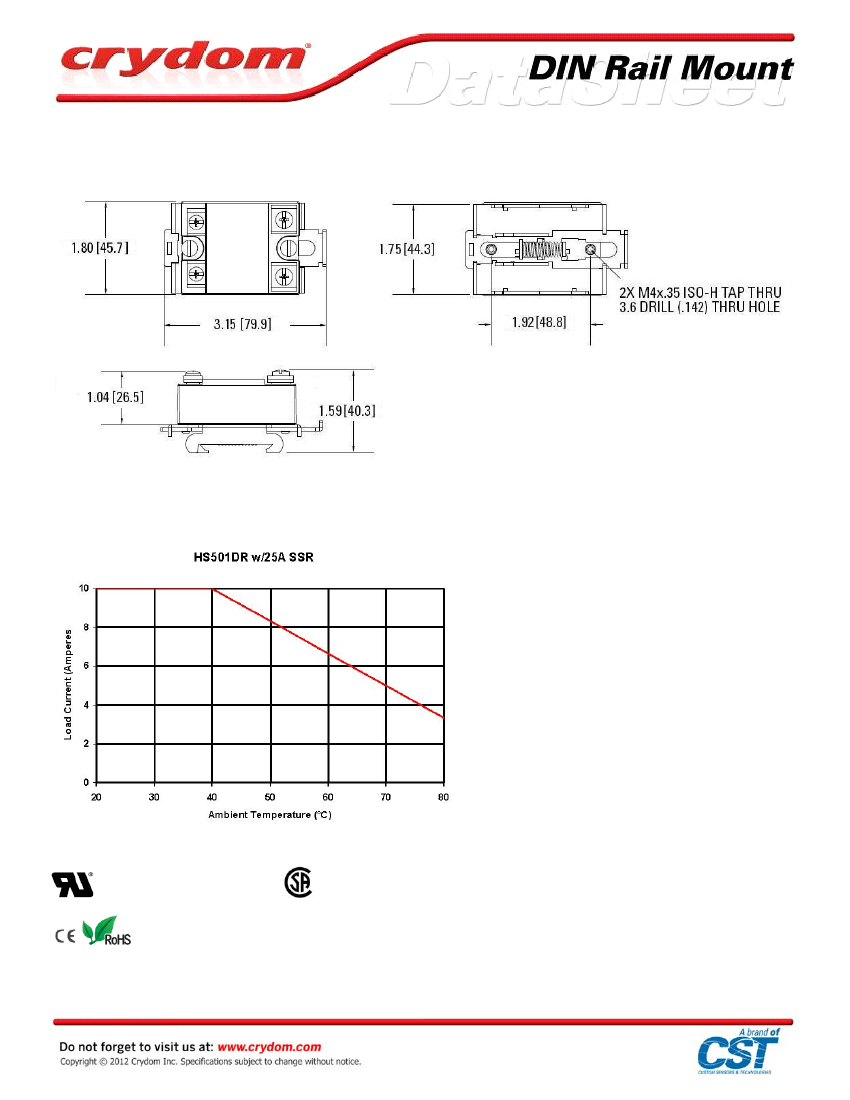

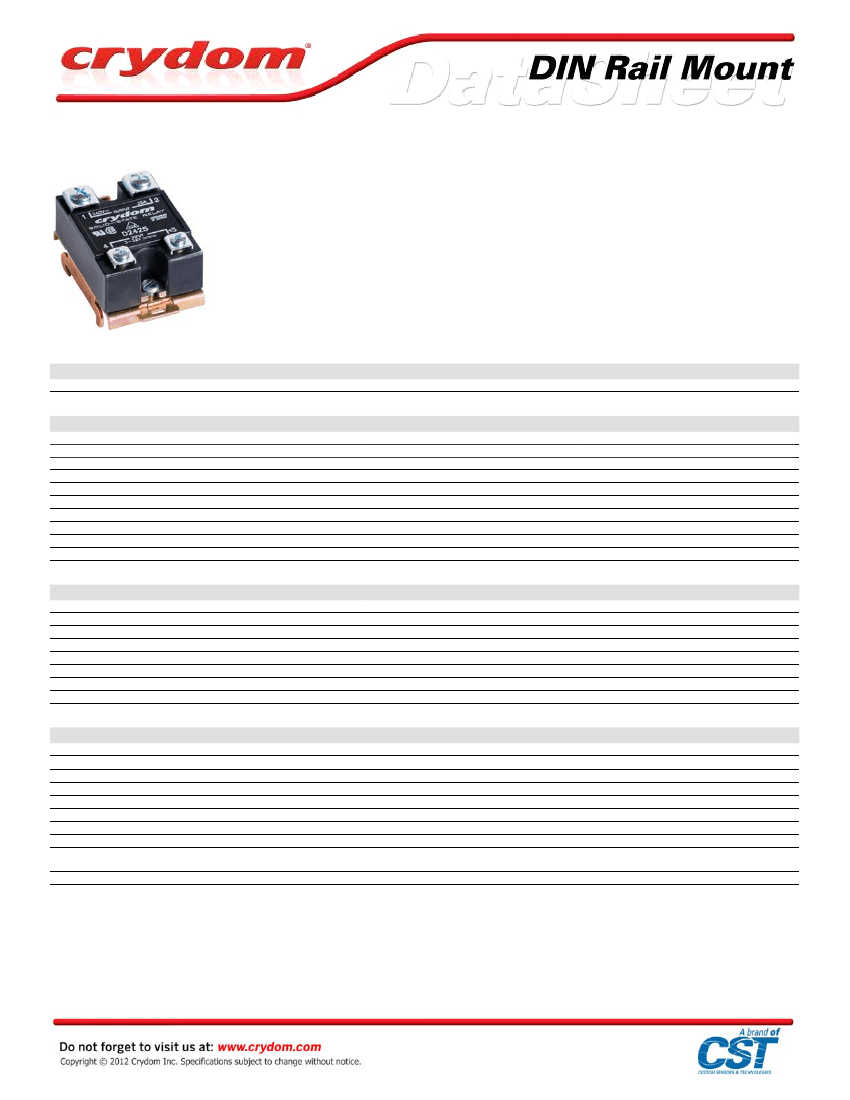

HS501DR Series Assemblies
•
10 amp AC output @ 40°C
•
Single Channel output
•
3 to 32 VDC input control voltage
•
DIN Rail mounted
•
uL, CSA, VDE, CE approved SSRs
PRODUCT SELECTION
Description
3-32 VDC Control
10 A
HS501DR-D2425
10 A
HS501DR-HD6025
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)
Maximum Load Current [Arms]
Minimum Load Current [Arms]
Maximum Surge Current (16.6ms) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum I²t for Fusing (8.3 msec) [A² sec]
Minimum Power Factor (with Maximum Load)
HS501DR-D2425
24-280
600
10
500
10
0.04
250
1.6
260
0.5
HS501DR-HD6025
48-660
1200
10
500
10
0.04
250
1.7
260
0.5
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Maximum Reverse Voltage
Typical Input Current
Nominal Input Impeadance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
HS501DR-D2425
3-32 VDC
3.0 VDC
1.0 VDC
32 VDC
3.4 mA @ 5 VDC
1500 Ohms
1/2 Cycle
1/2 Cycle
HS501DR-HD6025
3-32 VDC
3.0 VDC
1.0 VDC
32 VDC
2.0 mA (3)
(3)
1/2 Cycle
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Status Indicator Display
Weight (typical)
Encapsulation
Recommended Terminal Screw Torque Range:
Thermal pad installed
Parameters
4000 Vrms
10
9
Ohms
8 pF
-40 to 80˚C
-40 to 125˚C
None
0.31 lb. (141g)
Themally Conductive Epoxy
6-32 Screws - 10 in/lbs. 8-32 Screws - 20 in/lbs.
(Screws dry without grease)
Yes
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
3) Input circuitry for DC control version incorporates active current limiter (HD model only)
