Measures low currents and high resistances quickly, accurately, and economically
Dual-Channel Picoammeter
The Model 2502 Dual-Channel Picoammeter
provides two independent picoammeter-voltage
source channels for a wide range of low level
measurement applications including laser diode
testing . The Model 2502 is also designed to
increase the throughput of Keithley’s LIV (light-
current-voltage) test system for production test-
ing of laser diode modules (LDMs) . Developed
in close cooperation with leading manufacturers
of LDMs for fiberoptic telecommunication
networks, this dual-channel instrument has
features that make it easy to synchronize with
other system elements for tight control over
optical power measurements . The Model 2502
features a high speed analog output that allows
using the LIV test system at the fiber alignment
stage of the LDM manufacturing process .
Through the use of buffer memory and a Trigger
Link interface that’s unique to Keithley instruments, the Model 2502 can offer the fastest throughput
available today for LIV testing of laser diode modules . These instruments are ruggedly engineered to
meet the reliability and repeatability demands of continuous operation in round-the-clock production
environments .
low-level, High speed Measurements
The Model 2502 combines Keithley’s expertise in low-level current measurements with high speed
current measurement capabilities . Each channel of this instrument consists of a voltage source paired
with a high speed picoammeter . Each of the two channels has an independent picoammeter and volt-
age source with measurements made simultaneously across both channels .
Part of a High speed lIV Test system
In a laser diode module DC/CW test stand, the Model 2502 provides the voltage bias to both the back
facet monitor diode and a Model 2500INT Integrating Sphere or to a fiber-coupled photodetector . At
the same time it applies the voltage biases, it measures the current outputs of the two photodetectors
and converts these outputs to measurements of optical power . The conversion is performed with the
user-programmed calibration coefficient for the wavelength of the laser diode module . Fast, accurate
measurements of optical power are critical for analyzing the coupling efficiency and optical power
characteristics of the laser diode being tested . When testing modules with multiple detectors, the
Model 2502 packs more testing capabilities into less test rack space .
fiber alignment
The Model 2502’s built-in high speed analog output makes it suitable for precision fiber alignment
tasks . This instrument combines the ability to align the optical fiber quickly and accurately with a
laser diode’s optimum light emitting region and the capability to make precision LIV measurements,
all in the same test fixture . The Model 2502’s wide dynamic range allows early beam skirt detection,
reducing the time required for fiber alignment . An LIV sweep can be performed during the alignment
process to optimize fiber location for an entire operating range . High speed feedback minimizes
delays in the alignment process, so it’s unneces-
sary to sacrifice alignment speed to ensure
accurate device characterization .
Wide Dynamic Measurement range
The Model 2502 offers low current measurement
ranges from 2nA to 20mA in decade steps .
This provides for all photodetector current
measurement ranges for testing laser diodes and
LEDs in applications such as LIV testing, LED
total radiance measurements, measurements of
cross-talk and insertion loss on optical switches,
•
Dual-channel instrument for optical
power measurements, beam
measurements, and nanoscale
materials and device research
•
±100V source for bias requirements
•
Measure photodetector current from
1fa to 20ma
•
1fa current measurement resolution
•
Measure optical power directly when
used with Model 2500INT Integrating
sphere
•
0–10V analog output for high
resolution optical power feedback
•
Provides a high accuracy, high speed
fiber alignment solution
•
supports assembly process,
final testing, parts binning, and
specification
•
allows faster alignment of the fiber
with the laser diode’s optimum light
emitting region
•
Combines fiber alignment and device
characterization processes
•
user-programmable photodetector
calibration coefficients
•
3000-point buffer memory on each
channel allows data transfer after
test completion
•
Digital I/o and Trigger link for
binning and sweep test operations
•
IEEE-488 and rs-232 interfaces

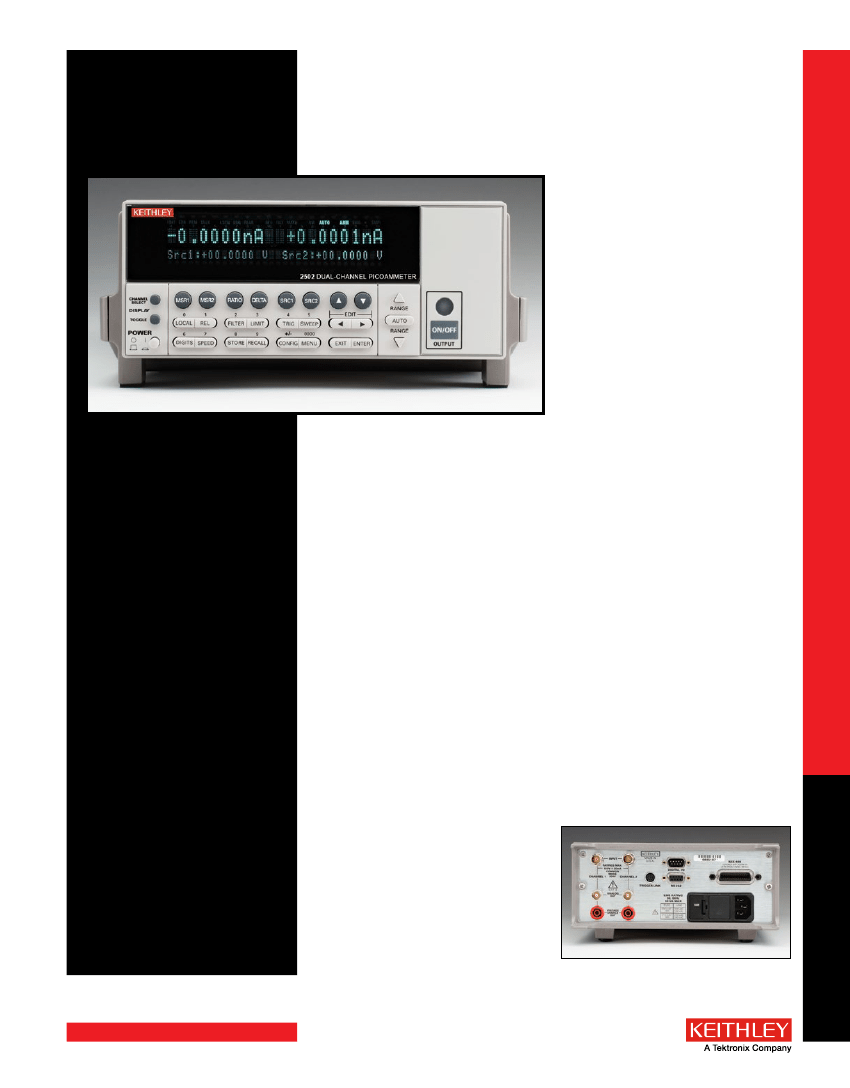

Model 2502 rear panel
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
LOW LEVEL MEASURE & SOURCE
Measures low currents and high resistances quickly, accurately, and economically
2502
Measures low currents and high resistances quickly, accurately, and economically
Dual-Channel Picoammeter
and many others . The Model 2502 meets industry testing
requirements for the transmitter as well as pump laser
modules . The extensive current measurement range pro-
vides excellent sensitivity and resolution for beam current
and radiation monitoring measurements .
High accuracy Dark Current Measurements
The Model 2502’s 2nA current measurement range is ideal
for measuring dark currents and other low currents with
1fA resolution . Once the level of dark current has been
determined, the instrument’s REL function automatically
subtracts the dark current as an offset so the measured
values are more accurate for optical power measurements .
aPPlICaTIoNs
• scanning electron
microscope (sEM) beam
measurements
• Production testing of:
• laser diode modules
• Chip on submount laser
diodes
• lEDs
• Passive optical
components
• laser diode bars
• fiber alignment
ordering Information
2502
Dual-Channel
Picoammeter
accessories supplied
user’s Manual
aCCEssorIEs aVaIlablE
7007-1
7007-2
7009-5
7078-TRX-3
8501-1
KPCI-488LPA
KUSB-488B
Shielded IEEE-488 Cable, 1m (3 .3 ft)
Shielded IEEE-488 Cable, 2m (6 .6 ft)
Shielded RS-232 Cable
Low Noise Triax Cable, 0 .9m (3 ft)
Trigger Link Cable, 1m (3 .3 ft)
IEEE-488 Interface/Controller for the PCI Bus
IEEE-488 USB-to-GPIB Interface Adapter
sErVICEs aVaIlablE
2502-3Y-EW
1-year factory warranty extended to 3 years
from date of shipment
C/2502-3Y-DATA 3 (Z540-1 compliant) calibrations within 3
years of purchase*
*Not available in all countries
Voltage bias Capability
The Model 2502 provides a choice of voltage bias ranges:
±10V or ±100V . This choice gives the system integrator the ability to match the bias range more closely
to the type of photodetector being tested, typically ±10V for large area photodetectors and ±100V for
avalanche-type photodetectors . This ability to match the bias to the photodetector ensures improved
measurement linearity and accuracy . Also, the 100V range provides a source voltage for an SEM target
bias supply .
High Testing Throughput
The Model 2502 is capable of taking 900 readings/second per channel at 4½-digit resolution . This
speed is comparable with the measurement speed of the Model 2400 SourceMeter SMU instrument,
which is often used in conjunction with the Model 2502 to perform optoelectronic device test and
characterization . Both instruments support Trigger Link (a proprietary “hardware handshaking”
triggering system that’s unique to Keithley products) and buffer memory . When programmed to
execute a sweep, Trigger Link ensures measurement integrity by keeping the source and measure-
ment functions working in lock step while the buffer memories record the measurements . Together,
source memory, buffer memory, and Trigger Link eliminate GPIB traffic during a test sweep, improv-
ing test throughput dramatically .
Trigger Link
2510
ratio and Delta Measurements
The Model 2502 can provide ratio or delta measurements between the two
completely isolated channels, such as the ratio of the back facet monitor
detector to the fiber-coupled photodetector at varying levels of input current .
These functions can be accessed via the front panel or the GPIB interface . For
test setups with multiple detectors, this capability allows for targeted control
capabilities for the laser diode module .
Programmable limits and filters
As with most Keithley instruments, the Model 2502’s current and voltage limits
can be programmed to ensure device protection during critical points such as
start of test, etc . These instruments also provide Average and Median filters,
which can be applied to the data stored in the buffer memory .
adaptable to Evolving DuT requirements
Unlike optical power meters with integrated detectors, the Model 2502 allows
the user to choose from a wide range of measurement capabilities simply
by selecting an appropriate photodetector and programming the calibration
coefficient of this detector at the wavelength of choice .
Interface options
To speed and simplify system integration and control, the Model 2502
includes the Trigger Link feature and digital I/O lines, as well as standard
IEEE-488 and RS-232 interfaces . The Trigger Link feature combines six
Thermistor
Peltier
LOW LEVEL MEASURE & SOURCE
2400/
2420
Fiber
GPIB
2502
Computer
2500INT Integrating Sphere
The Model 2502 is designed for tight integration with other Keithley
instruments that are often used in lIV test systems for laser
diode modules. These other instruments include the Model 2400
sourceMeter
®
and Model 2510 TEC sourceMeter sMu instruments.
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
Measures low currents and high resistances quickly, accurately, and economically
2502
Dual-Channel Picoammeter
GENEral
Typical Noise floor Measurement specification
6
range
2 .000000 nA
20 .00000 nA
200 .0000 nA
2 .000000 µA
20 .00000 µA
200 .0000 µA
2 .000000 mA
20 .00000 mA
Typical Noise floor
rMs (1 sTDEV), 100 samples
0.01 NPlC 0.1 NPlC
1.0 NPlC
10 NPlC
2 pA
1 pA
40 fA
15 fA
2 pA
1 pA
40 fA
15 fA
200 pA
100 pA
2 pA
500 fA
200 pA
100 pA
2 pA
500 fA
20 nA
10 nA
200 pA
50 pA
20 nA
10 nA
200 pA
50 pA
2 µA
1 µA
25 nA
5 nA
2 µA
1 µA
25 nA
5 nA
independent software selectable trigger lines on a single connector for simple, direct
control over all instruments in a system . This feature is especially useful for reducing
total test time if the test involves a sweep . The Model 2502 can sweep through a series
of measurements based on triggers received from other instruments . The digital I/O
lines simplify external handler control and binning operations .
The Model 2502 Dual-Channel Picoammeter can measure and display either photo-
diode current or optical power for two photodiodes with appropriate user-supplied
optical power gain/wavelength calibration factors .
The Model 2502 includes an analog output jack on the rear panel for each channel .
Model 2502 specifications
range
2 .000000 nA
20 .00000 nA
200 .0000 nA
2 .000000 µA
20 .00000 µA
200 .0000 µA
2 .000000 mA
20 .00000 mA
Maximum
resolution
1 fA
10 fA
100 fA
1 pA
10 pA
100 pA
1 nA
10 nA
Temperature
Coefficient
Dc Input
accuracy
1, 2
23°C ±5°C
0°–18°C & 28°–50°C Impedance
3
±(% rdg. + offset) ±(%rdg. + offset)/°C (Maximum)
1 .00% + 2 pA
0 .01 + 200 fA
20 kW
0 .40% + 2 pA
0 .01 + 200 fA
20 kW
0 .30% + 200 pA
0 .02 + 20 pA
200
W
0 .20% + 200 pA
0 .02 + 20 pA
200
W
0 .10% + 20 nA
0 .01 + 2 nA
2 .0
W
0 .10% + 20 nA
0 .01 + 2 nA
2 .0
W
0 .10% + 2 µA
0 .02 + 200 nA
0 .2
W
0 .10% + 2 µA
0 .02 + 200 nA
0 .2
W
MAXIMUM INPUT:
±20 .0mA .
TYPICal sPEED aND NoIsE rEJECTIoN
4
Digits
4½
5½
6½
readings/s
GPIb (sCPI) GPIb (488.1)
700
900
460
475
58
58
NPlC
0 .01
0 .1
1
NMrr
—
—
60 dB
PHoToDIoDE VolTaGE bIas sPECIfICaTIoNs
2
range
0 to ±10 V
0 to ±100 V
resolution
<400 µV
<4 mV
accuracy
23°C ±5°C
±(0 .15% of setting
+ 5 mV)
±(0 .3% of setting
+ 50 mV)
Maximum
Current
20 mA
20 mA
load
regulation
5
< 0 .30%,
0 to 20 mA
< 0 .30%,
0 to 20 mA
Temperature
Coefficient
150 ppm/°C
300 ppm/°C
aNaloG ouTPuT sPECIfICaTIoNs
OUTPUT VOLTAGE RANGE
9
: Output is inverting:
–10V out for positive full scale input .
+10V out for negative full scale input .
OUPUT IMPEDANCE:
1kW typical .
accuracy
23°C ±5°C
±(%output + offset)
6 .0% + 90 mV
3 .0% + 9 mV
6 .0% + 90 mV
3 .0% + 9 mV
6 .0% + 90 mV
2 .5% + 9 mV
6 .0% + 90 mV
2 .5% + 9 mV
Temperature Coefficient
0°–18°C & 28°–50°C
±(%output + offset)/°C
0 .30% + 7 mV
0 .11% + 700 µV
0 .30% + 4 mV
0 .11% + 400 µV
0 .30% + 4 mV
0 .11% + 400 µV
0 .30% + 4 mV
0 .11% + 400 µV
rise Time
Typical
(10% to 90%)
6 .1 ms
6 .1 ms
395 µs
395 µs
135 µs
135 µs
21 µs
21 µs
SOURCE CAPACITANCE:
Stable to 10 .0nF typical .
INPUT BIAS CURRENT
7
:
50fA max . @ 23°C .
INPUT VOLTAGE BURDEN
8
:
4 .0mV max .
VOLTAGE SOURCE SLEW RATE:
3 .0ms/V typical .
COMMON MODE VOLTAGE:
200VDC .
COMMON MODE ISOLATION:
Typically 10
9
W
in parallel with 150nF .
OVERRANGE:
105% of measurement range .
MEMORy BUFFER:
6000 readings (two 3000 point buffers) . Includes selected
measured value(s) and time stamp .
PROGRAMMABILITy:
IEEE-488 (SCPI-1995 .0), RS-232, five user- definable
power-up states plus factory default and *RST .
DIGITAL INTERFACE:
Enable:
Active low input .
Handler Interface:
Start of test, end of test, 3 category bits . +5V @ 300mA
supply .
Digital I/O:
1 trigger input, 4 TTL/Relay Drive outputs (33V @ 500mA,
diode clamped) .
POWER SUPPLy:
100V/120V/220V/240V ±10% .
LINE FREQUENCy:
50, 60Hz .
POWER DISSIPATION:
60VA .
EMC:
Complies with European Union Directive 89/336/EEC .
VIBRATION:
MIL-T-28800F Random Class 3 .
SAFETy:
Complies with European Directive 73/23/EEC .
WARM-UP:
1 hour to rated accuracy .
DIMENSIONS:
89mm high
×
213mm wide
×
370mm deep (3½ in
×
8
3
⁄
8
in
×
14
9
⁄
16
in) .
Bench configuration (with handle and feet):
104mm high
×
238mm wide
×
370mm deep (4
1
⁄
8
in
×
9
3
⁄
8
in
×
14
9
⁄
16
in) .
WEIGHT:
23 .1kg (10 .5 lbs) .
ENVIRONMENT:
Operating:
0°–50°C, 70% R .H . up to 35°C non-condensing . Derate 3%
R .H ./°C, 35°–50°C .
Storage:
–25° to 65°C, non-condensing .
1 .
2 .
3 .
4 .
5 .
6 .
7 .
8 .
9 .
range
2 .000000 nA
20 .00000 nA
200 .0000 nA
2 .000000 µA
20 .00000 µA
200 .0000 µA
2 .000000 mA
20 .00000 mA
Speed = Normal (1 .0 NPLC), Filter On .
1 year .
Measured as
∆Vin/∆Iin
at full scale (and zero) input currents .
Dual channel, internal trigger, measure only, display off, Autorange off, Auto Zero off, source
delay = 0, filters off, limits off, CALC5 and CALC6 off, 60Hz .
Measured as
∆Vin/∆Iin
at full scale (20mA) and zero load currents .
Noise floor measured as rms (1 standard deviation), 100 samples, Filter off, open (capped)
input .
Specification by design .
Measured (at input triax) as
∆Vin
at full scale (20mA) vs . zero input currents .
The analog output voltage for each channel is referenced to that channel’s floating ground .
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
LOW LEVEL MEASURE & SOURCE
NoTEs
Model 2502 specifications
Measurement specifications
京公网安备 11010802033920号
EEWORLD
