THSF-HR-BL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> THSF-HR-BL

THSF-HR-BL: Descriptionheat sinks H/P heat sink w/ fan for express-HR; CategoryThermal management products; File Size347KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

THSF-HR-BL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	THSF-HR-BL	-	-	View	Buy Now

THSF-HR-BL Overview

heat sinks H/P heat sink w/ fan for express-HR

THSF-HR-BL Parametric

Parameter Name	Attribute value
Manufacture	ADLINK Technology
Product Category	Heat Sinks
RoHS	Yes
Produc	Heat Sinks
Designed f	Express-HR

Preview

Download Datasheet

View All

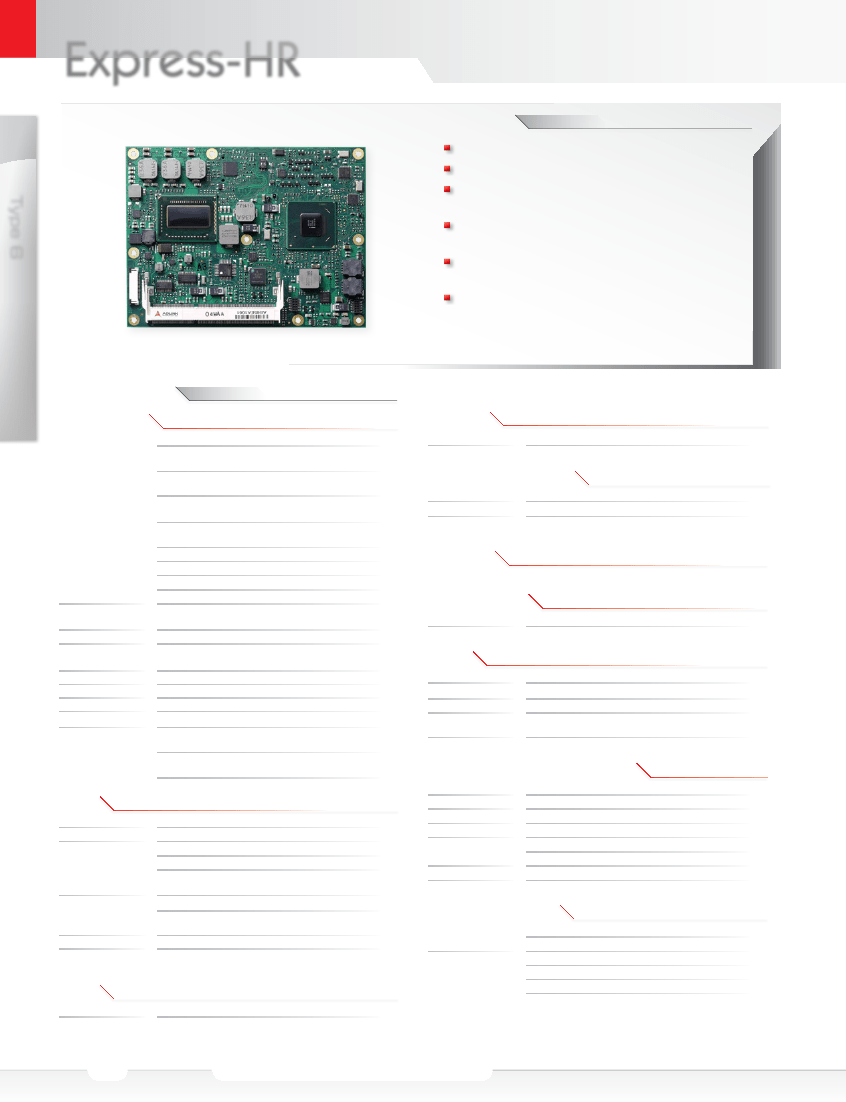

Express-HR

Type 6

COM Express

Type 6 Module with 2nd Generation

Intel

Core™ i7/i5/i3 Processor and QM67 Chipset

Features

Intel

Quad or Dual Core™ i7/i5/i3 Processor

Intel

QM67 Chipset

Up to 16GB Dual Channel DDR3 SDRAM at

1333MHz

Three Digital Display Interfaces (DDI) for

DisplayPort /HDMI/DVI/SDVO

Seven PCIe x1, one PCIe x16 (Gen2) for

graphics (or general purpose x8/4/1)

Two SATA 3 Gb/s, two SATA 6 Gb/s,

Gigabit Etherent, eight USB 2.0

Specifications

Core System

CPU

2nd Generation Intel Core™ i7/i5/i3, 32 nm process, BGA type

Intel

Core™ i7-2715QE 2.1 GHz (3.0 GHz Turbo),

6MB L3 cache, 45W (4C)

Intel

Core i7-2655LE 2.2 GHz (2.9 GHz Turbo),

4MB L3 cache, 25W (2C)

Intel

Core™ i7-2610UE 1.5 GHz (2.4 GHz Turbo),

4MB L3 cache, 17W (2C)

Intel

Core™ i5-2515E 2.5 GHz (3.2 GHz Turbo),

3MB L3 cache, 35W (2C)

Intel

Core™ i3-2310E 2.1 GHz, 3MB L3 Cache, 35W (2C)

Intel

Core™ i3-2340UE 1.3 GHz, 3MB L3 Cache, 17W (2C)

Intel

Celeron

B810E 1.6 GHz, 2MB L3 Cache, 35W (2C)

Intel

Celeron

847E 1.1 GHz, 2MB L3 Cache, 17W (2C)

Dual channel non-ECC 1066/1333 MHz DDR3 memory up to

16 GB in dual SODIMM socket

Intel

Mobile QM67 Express Chipset

6MB (i7-2715QE), 4MB(i7-2655LE and i7-2610UE),

3MB (i5-2515E)

AMI EFI with CMOS backup in 16 Mbit SPI flash with iAMT

Supply voltages and CPU temperature

XDP SFF-26 extension for ICE debug

Programmable timer range to generate RESET

PCI Express x16 (Gen2) bus for discrete graphics solution or

general purpose PCI Express (2 x8 or 1 x8 with 2 x4)

8 PCI Express x1: Lanes 0/1/2/3/4/5/6 are free, lane 7 is

occupied by GbE

LPC bus, SMBus (system) , I

C (user)

Ethernet

Chipset

Interface

Intel

Gigabit Ethernet PHY WG82579LM

10/100/1000 Mbps Ethernet

Multi I/O and Storage

Chipset

USB

SATA

Integrated on QM67

Supports up to eight ports USB 2.0

Supports two SATA ports at 6 Gb/s and two ports at 3 Gb/s

with support for RAID 0,1,5,10

Super I/O

Connected to LPC bus on carrier if needed

Memory

Chipset

L3 Cache

BIOS

Hardware Monitor

Debug Interface

Watchdog Timer

Expansion Busses

TPM (optional)

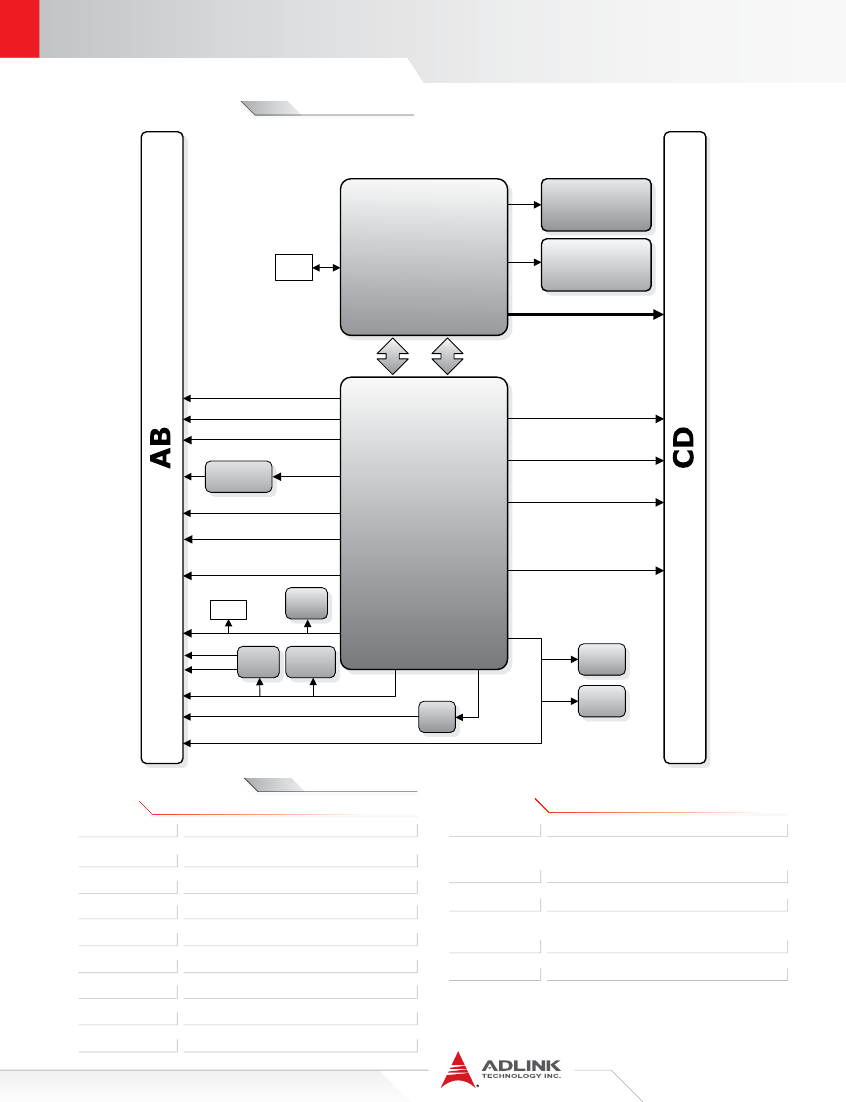

Chipset

Type

Infineon SLB9635TT1.2

TPM 1.2

Power

Standard Voltage Input

Wide Voltage Input

Power States

Power Consumption

Smart Battery Support

ATX = 12V±5% / 5Vsb or AT = 12V±5%

ATX = 8.5~18V / 5Vsb or AT = 8.5 ~18V

Supports S0, S1, S3, S4, S5

22 W with Core™ i7-2610UE at 1.5 GHz and 2 GB memory

typical

Yes

Mechanical and Environmental

Operating Temperature

Storage Temperature

Humidity

Shock

Vibration

Compatibility

Certification

Standard: 0°C to 60°C

-20°C to 80°C

90% at 60°C

15G peak-to-peak, 11ms duration, non-operating

Non-operating: 1.88Grms, 5-500Hz, each axis

Operating: 0.5Grms, 5-500Hz, each axis

COM Express Type 6, Basic form factor 125mm x 95mm

CE, FCC, HALT

Video

Integrated in Processor

Integrated Video

Feature Support

HD Graphics 3000 at 650–1300 MHz

DirectX 10.1 and OpenGL 3.0

Intel Clear Video HD Technology

Advanced Scheduler 2.0, 1.0, XPDM support

DirectX Video Acceleration (DXVA) support for full AVC/VC1/

MPEG2 hardware decode

VGA Interface

Analog VGA support with 300 MHz DAC

Analog monitor support up to QXGA (2048 x 1536) and VGA

hot plug

LVDS Interface

Dual channel 18/24-bit LVDS

Digital Display Interface Three DDI ports supporting HDMI / DVT / DisplayPort or

SDVO

Operating Systems

Windows XP(e) / Windows 7

Linux

Extended Support (BSP) Embedded XP support package

Linux 2.6.x BSP

VxWorks 6.x

AIDI Library for Windows and Linux

Standard Support

Audio

Chipset

Audio Codec

Integrated on Intel

PCH QM67

On Express-BASE6 carrier (ALC886)

http://www.adlinktech.com/Computer-on-Module

THSF-HR-BL Related Products

	THSF-HR-BL	Express-HR-847E	Express-HR-i3-2340UE	Express-HR-i7-2655LE	Express-HR-i7-2715QE
Description	heat sinks H/P heat sink w/ fan for express-HR	computer-On-modules - com com-express celeron b847eulv 1.1ghz qm67	computer-On-modules - com com-express intel i3 2340uulv 1.3ghz qm67	computer-On-modules - com com-express intel i7 2655lelv 2.2ghz qm67	computer-On-modules - com com-express intel i7 2715qesv 2.1ghz qm67
Manufacture	ADLINK Technology	ADLINK Technology	ADLINK Technology	ADLINK Technology	ADLINK Technology
Product Category	Heat Sinks	Computer-On-Modules - COM	Computer-On-Modules - COM	Computer-On-Modules - COM	Computer-On-Modules - COM
RoHS	Yes	Yes	Yes	Yes	Yes
Form Fac	-	COM Express Basic Type 6	COM Express Basic Type 6	COM Express Basic Type 6	COM Express Basic Type 6
Processor Brand	-	Intel	Intel	Intel	Intel
Processor Type	-	Intel Celeron 847	Intel Core i3-2340UE	Intel Core i7-2655LE	Intel Core i7-2715QE
Chipsets	-	QM67	QM67	QM67	QM67
Frequency	-	1.1 GHz	1.3 GHz	2.2 GHz	2.1 GHz
Memory Size	-	16 GB Max	16 GB Max	16 GB Max	16 GB Max
Memory Type	-	DDR3, L3 Cache	DDR3, L3 Cache	DDR3, L3 Cache	DDR3, L3 Cache
Interface Type	-	DDI, LAN, PCI, SATA, SSD, USB	DDI, LAN, PCI, SATA, SSD, USB	DDI, LAN, PCI, SATA, SSD, USB	DDI, LAN, PCI, SATA, SSD, USB
Operating Supply Voltage	-	5 V, 12 V	5 V, 12 V	5 V, 12 V	5 V, 12 V
Maximum Operating Temperature	-	+ 60 C	+ 60 C	+ 60 C	+ 60 C
Dimensions	-	125 mm x 95 mm	125 mm x 95 mm	125 mm x 95 mm	125 mm x 95 mm
Backup Battery	-	Yes	Yes	Yes	Yes
Cache Memory	-	2 MB	3 MB	4 MB	6 MB
Description/Functi	-	COM Express type 6 module with 2 core Intel Celeron 847E ULV processor at 1.1 GHz with QM67 Chipse	COM Expresst type 6 module with 2 core Intel Core i3-2340UE ULV processor at 1.3 GHz with QM67 Chipse	COM Express type 6 module with 2 core Intel Core i7-2655LE LV processor at 2.2GHz with QM67 chipse	COM Express type 6 module with 4 core Intel Core i7-2715QE SV processor at 2.1GHz with QM67 chipse
Minimum Operating Temperature	-	0 C	0 C	0 C	0 C
Power Consumpti	-	17 W	17 W	25 W	45 W
Processor Series	-	Intel Celeron 800	Intel Core i3-2340	Intel Core i7-2655	Intel Core i7-2715
