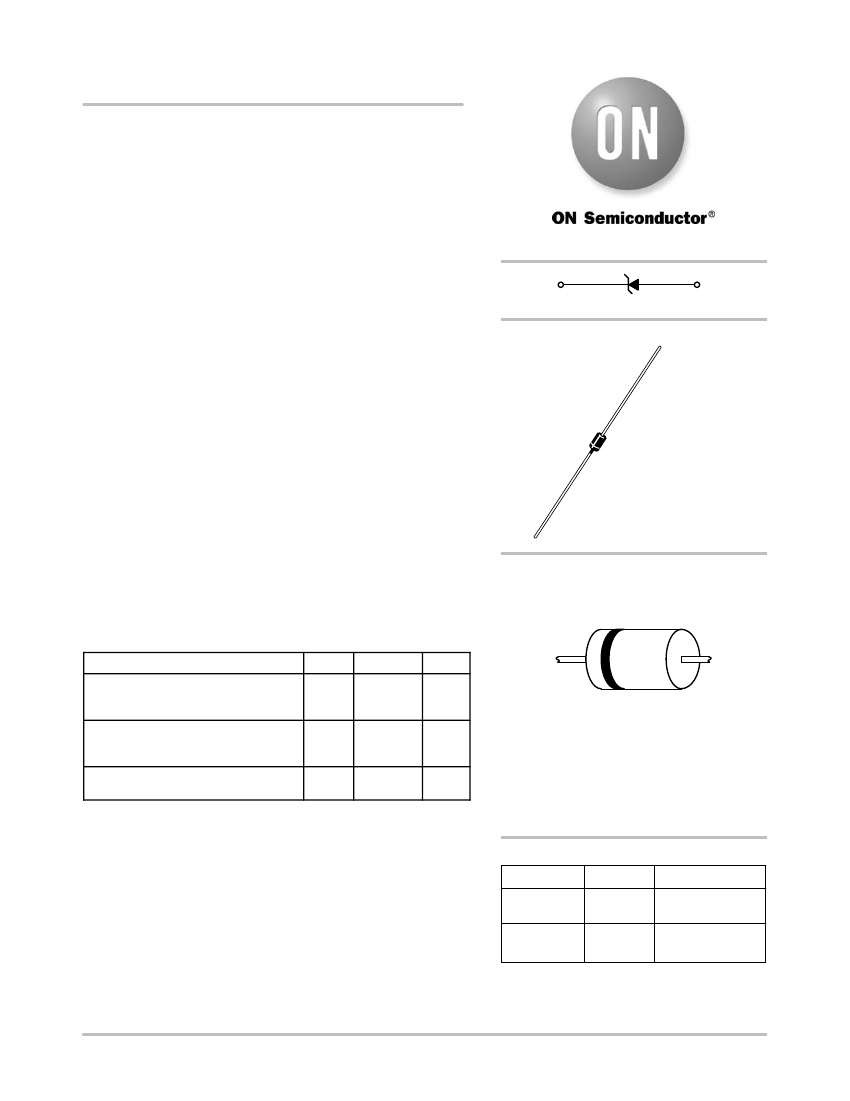

3EZ6.2D5 Series
3 Watt DO-41 SurmeticE
30 Zener Voltage Regulators
This is a complete series of 3 Watt Zener diodes with limits and
excellent operating characteristics that reflect the superior capabilities
of silicon-oxide passivated junctions. All this in an axial-lead,
transfer-molded plastic package that offers protection in all common
environmental conditions.
Specification Features:
http://onsemi.com
Cathode
Anode
•
•
•
•
•
•
Zener Voltage Range - 6.2 V to 18 V
ESD Rating of Class 3 (>16 KV) per Human Body Model
Surge Rating of 98 W @ 1 ms
Maximum Limits Guaranteed on up to Six Electrical Parameters
Package No Larger than the Conventional 1 Watt Package
These are Pb-Free Devices*
AXIAL LEAD
CASE 59
PLASTIC
Mechanical Characteristics:
CASE:
Void free, transfer-molded, thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are
readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES:
260°C, 1/16″ from the case for 10 seconds
POLARITY:
Cathode indicated by polarity band
MOUNTING POSITION:
Any
MARKING DIAGRAM
MAXIMUM RATINGS
Rating
Max. Steady State Power Dissipation
@ T
L
= 75°C, Lead Length = 3/8″
Derate above 75°C
Steady State Power Dissipation
@ T
A
= 50°C
Derate above 50°C
Operating and Storage Temperature
Range
Symbol
P
D
Value
3
24
P
D
1
6.67
T
J
, T
stg
-65 to +200
Unit
W
mW/°C
W
mW/°C
°C
A
3EZ
xxD
YYWWG
G
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
A
= Assembly Location
3EZxxD = Device Number
YY
= Year
WW
= Work Week
G
= Pb-Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
3EZxxD5G
3EZxxD5RLG
Package
Axial Lead
(Pb-Free)
Axial Lead
(Pb-Free)
Shipping
†
2000 Units / Box
6000 / Tape & Reel
*For additional information on our Pb-Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2007
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Publication Order Number:
3EZ6.2D5/D
1
August, 2007 - Rev. 0
3EZ6.2D5 Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless
otherwise noted, V
F
= 1.5 V Max @ I
F
= 200 mA for all types)
Symbol
V
Z
I
ZT
Z
ZT
I
ZK
Z
ZK
I
R
V
R
I
F
V
F
I
ZM
I
R
Parameter
Reverse Zener Voltage @ I
ZT
Reverse Current
Maximum Zener Impedance @ I
ZT
Reverse Current
Maximum Zener Impedance @ I
ZK
Reverse Leakage Current @ V
R
Breakdown Voltage
Forward Current
Forward Voltage @ I
F
Maximum DC Zener Current
Surge Current @ T
A
= 25°C
V
Z
V
R
I
R
V
F
I
ZT
V
I
F
I
Zener Voltage Regulator
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted, V
F
= 1.5 V Max @ I
F
= 200 mA for all types)
Zener Voltage
(Note 2)
Device†
(Note 1)
Device
Marking
V
Z
(Volts)
Min
Nom
Max
@ I
ZT
mA
Zener Impedance
(Note 3)
Z
ZT
@ I
ZT
W
Z
ZK
@ I
ZK
W
mA
Leakage Current
I
R
@ V
R
mA
Max
Volts
I
ZM
mA
I
R
(Note 4)
mA
3EZ6.2D5RLG
3EZ6.2D
5.89
6.2
6.51
121
1.5
700
1
5
3
435
3.1
3EZ13D5G
3EZ13D
12.35
13
13.65
58
4.5
700
0.25
0.5
9.9
208
1.54
3EZ16D5RLG
3EZ16D
15.2
16
16.8
47
5.5
700
0.25
0.5
12.2
169
1.25
3EZ18D5RLG
3EZ18D
17.1
18
18.9
42
6.0
750
0.25
0.5
13.7
150
1.11
1.
TOLERANCE AND TYPE NUMBER DESIGNATION
Tolerance designation - device tolerance of
±5%
are indicated by a “5” suffix.
2.
ZENER VOLTAGE (V
Z
) MEASUREMENT
ON Semiconductor guarantees the zener voltage when measured at 40 ms
±10
ms, 3/8″ from the diode body. And an ambient temperature
of 25°C (+8°C, -2°C)
3.
ZENER IMPEDANCE (Z
Z
) DERIVATION
The zener impedance is derived from 60 seconds AC voltage, which results when an AC current having an rms value equal to 10% of the
DC zener current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK
.
4.
SURGE CURRENT (I
R
) NON-REPETITIVE
The rating listed in the electrical characteristics table is maximum peak, non-repetitive, reverse surge current of 1/2 square wave or
equivalent sine wave pulse of 1/120 second duration superimposed on the test current, I
ZT
, per JEDEC standards. However, actual device
capability is as described in Figure 3 of the General Data sheet for Surmetic 30s.
†The “G'' suffix indicates these are Pb-Free packages.
5
P
D
, STEADY STATE POWER
DISSIPATION (WATTS)
L = 1/8″
4
L = 3/8″
3
L = LEAD LENGTH
TO HEAT SINK
2
L = 1″
1
0
0
20
40
60
80 100 120 140 160
T
L
, LEAD TEMPERATURE (°C)
180
200
Figure 1. Power Temperature Derating Curve
http://onsemi.com
2
3EZ6.2D5 Series
θ
JL(t, D) TRANSIENT THERMAL RESISTANCE
JUNCTION‐TO‐LEAD (
°
C/W)
30
20
10
7
5
3
2
D =0.5
0.2
0.1
0.05
0.02
0.01
D=0
0.0005
0.001
0.002
0.005
NOTE: BELOW 0.1 SECOND, THERMAL
RESPONSE CURVE IS APPLICABLE
TO ANY LEAD LENGTH (L).
0.01
0.02
0.05
t, TIME (SECONDS)
0.1
0.2
P
PK
t
2
DUTY CYCLE, D =t
1
/t
2
t
1
1
0.7
0.5
SINGLE PULSE
DT
JL
=
q
JL
(t)P
PK
REPETITIVE PULSES
DT
JL
=
q
JL
(t,D)P
PK
0.5
1
2
5
10
0.3
0.0001 0.0002
Figure 2. Typical Thermal Response L, Lead Length = 3/8 Inch
1K
PPK , PEAK SURGE POWER (WATTS)
500
300
200
100
50
30
20
10
0.1
0.2 0.3 0.5
1
2 3
5
10
PW, PULSE WIDTH (ms)
20 30 50
100
RECTANGULAR
NONREPETITIVE
WAVEFORM
T
J
= 25°C PRIOR
TO INITIAL PULSE
3
2
1
0.5
0.2
0.1
0.05
0.02
0.01
0.005
0.002
0.001
0.0005
0.0003
T
A
= 125°C
IR , REVERSE LEAKAGE (μ Adc) @ VR
AS SPECIFIED IN ELEC. CHAR. TABLE
T
A
= 125°C
1
2
5
10
20
50 100
NOMINAL V
Z
(VOLTS)
200
400
1000
Figure 3. Maximum Surge Power
Figure 4. Typical Reverse Leakage
APPLICATION NOTE
Since the actual voltage available from a given zener
diode is temperature dependent, it is necessary to determine
junction temperature under any set of operating conditions
in order to calculate its value. The following procedure is
recommended:
Lead Temperature, T
L
, should be determined from:
T
L
=
q
LA
P
D
+ T
A
DT
JL
is the increase in junction temperature above the lead
temperature and may be found from Figure 2 for a train of
power pulses (L = 3/8 inch) or from Figure 10 for dc power.
DT
JL
=
q
JL
P
D
q
LA
is the lead‐to‐ambient thermal resistance (°C/W) and
P
D
is the power dissipation. The value for
q
LA
will vary and
depends on the device mounting method.
q
LA
is generally
30-40°C/W for the various clips and tie points in common
use and for printed circuit board wiring.
The temperature of the lead can also be measured using a
thermocouple placed on the lead as close as possible to the
tie point. The thermal mass connected to the tie point is
normally large enough so that it will not significantly
respond to heat surges generated in the diode as a result of
pulsed operation once steady‐state conditions are achieved.
Using the measured value of T
L
, the junction temperature
may be determined by:
T
J
= T
L
+
DT
JL
For worst‐case design, using expected limits of I
Z
, limits
of P
D
and the extremes of T
J
(DT
J
) may be estimated.
Changes in voltage, V
Z
, can then be found from:
DV
=
q
VZ
DT
J
q
VZ
, the zener voltage temperature coefficient, is found
from Figures 5 and 6.
Under high power‐pulse operation, the zener voltage will
vary with time and may also be affected significantly by the
zener resistance. For best regulation, keep current
excursions as low as possible.
Data of Figure 2 should not be used to compute surge
capability. Surge limitations are given in Figure 3. They are
lower than would be expected by considering only junction
temperature, as current crowding effects cause temperatures
to be extremely high in small spots resulting in device
degradation should the limits of Figure 3 be exceeded.
http://onsemi.com
3
3EZ6.2D5 Series
TEMPERATURE COEFFICIENT RANGES
(90% of the Units are in the Ranges Indicated)
θ
VZ, TEMPERATURE COEFFICIENT (mV/
°
C) @ I ZT
10
8
6
4
2
0
-2
-4
3
4
5
6
7
8
9
10
V
Z
, ZENER VOLTAGE @ I
ZT
(VOLTS)
11
12
RANGE
θ
VZ, TEMPERATURE COEFFICIENT (mV/
°
C) @ I ZT
1000
500
200
100
50
20
10
10
20
50
100
200
400
V
Z
, ZENER VOLTAGE @ I
ZT
(VOLTS)
1000
Figure 5. Units to 12 Volts
Figure 6. Units 10 to 400 Volts
ZENER VOLTAGE versus ZENER CURRENT
(Figures 7, 8 and 9)
100
50
30
20
10
5
3
2
1
0.5
0.3
0.2
0.1
0
1
2
3
4
5
6
7
V
Z
, ZENER VOLTAGE (VOLTS)
8
9
10
100
50
30
20
10
5
3
2
1
0.5
0.3
0.2
0.1
0
10
20
30
40
50
60
70
V
Z
, ZENER VOLTAGE (VOLTS)
80
90
100
IZ, ZENER CURRENT (mA)
Figure 7. V
Z
= 3.3 thru 10 Volts
θ
JL, JUNCTION‐TO‐LEAD THERMAL RESISTANCE (
°
C/W)
80
70
60
50
40
30
20
10
0
0
1/8
T
L
L
IZ , ZENER CURRENT (mA)
Figure 8. V
Z
= 12 thru 82 Volts
L
PRIMARY PATH OF
CONDUCTION IS THROUGH
THE CATHODE LEAD
1/4
3/8
1/2
5/8
3/4
L, LEAD LENGTH TO HEAT SINK (INCH)
7/8
1
Figure 9. Typical Thermal Resistance
http://onsemi.com
4
京公网安备 11010802033920号
EEWORLD
