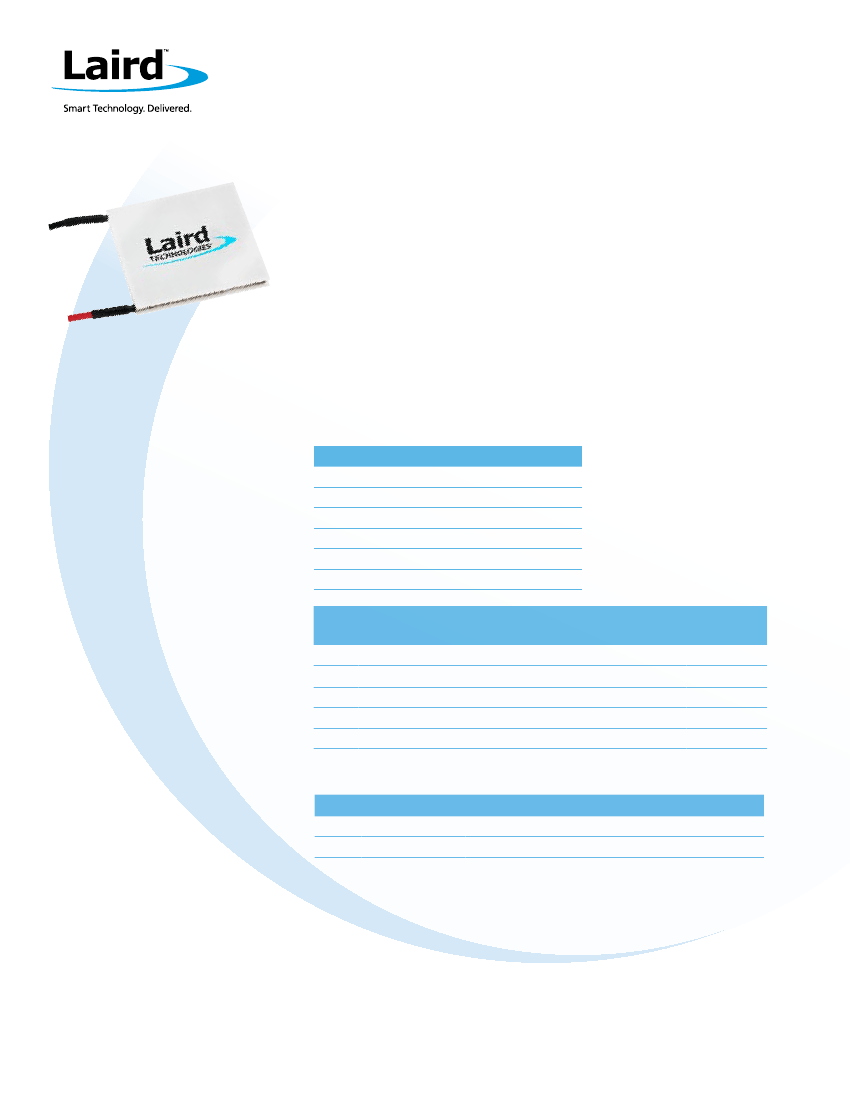

Ceramic Plate Series CP08,31,06
Thermoelectric Modules
The Ceramic Plate (CP) Series of Thermoelectric Modules (TEMs) is considered
‘the standard’ in the thermoelectric industry.
This broad product line of high-performance and highly reliable TEMs is available
in numerous heat pumping capacities, geometric shapes, and input power ranges.
Assembled with Bismuth Telluride semiconductor material and thermally conductive
Aluminum Oxide ceramics, the CP Series is designed for higher current and large
heat-pumping applications.
Features
• Precise Temperature Control
• Compact Geometric Sizes
• Reliable Solid State Operation
• No Sound or Vibration
• Environmentally Friendly
• DC Operation
• RoHS Compliant
Performance Specifications
Hot Side Temperature (°C)
Qmax (Watts)
Delta Tmax (°C)
Imax (Amps)
Vmax (Volts)
Module Resistance (Ohms)
Suffix
L1
L2
ML
LM
MM
Thickness
(prior to Tinning)
0.134”± 0.001”
0.134”± 0.0005”
0.138”± 0.010”
0.138”± 0.010”
0.144”± 0.010”
25°C
4.5
67
2.1
3.5
1.54
Flatness &
Parallelism
0.001” / 0.001”
0.0005” / 0.0005”
0.002” / 0.002”
0.002” / 0.002”
0.002” / 0.002”
Applications
• Medical Lasers
• Lab Science Instrumentation
• Clinical Diagnostic Systems
• Photonics Laser Systems
• Electronic Enclosure Cooling
• Food & Beverage Cooling
• Chillers (Liquid Cooling)
50°C
4.9
75
2.1
4.0
1.74
Hot Face
Lapped
Lapped
Metallized
Lapped
Metallized
Cold Face
Lapped
Lapped
Lapped
Metallized
Metallized
Lead Length
4.5”
4.5”
4.5”
4.5”
4.5”
Sealing Option
Suffix
RT
EP
Sealant
RTV
Epoxy
Color
White
Black
Temp Range
-60 to 204 °C
-55 to 150 °C
Description
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
Americas: +1 888.246.9050
Europe: +46.31.420530
Asia: +86.755.2714.1166
clv.customerpos@lairdtech.com
www.lairdtech.com
Ceramic Plate Series CP08,31,06
Thermoelectric Modules

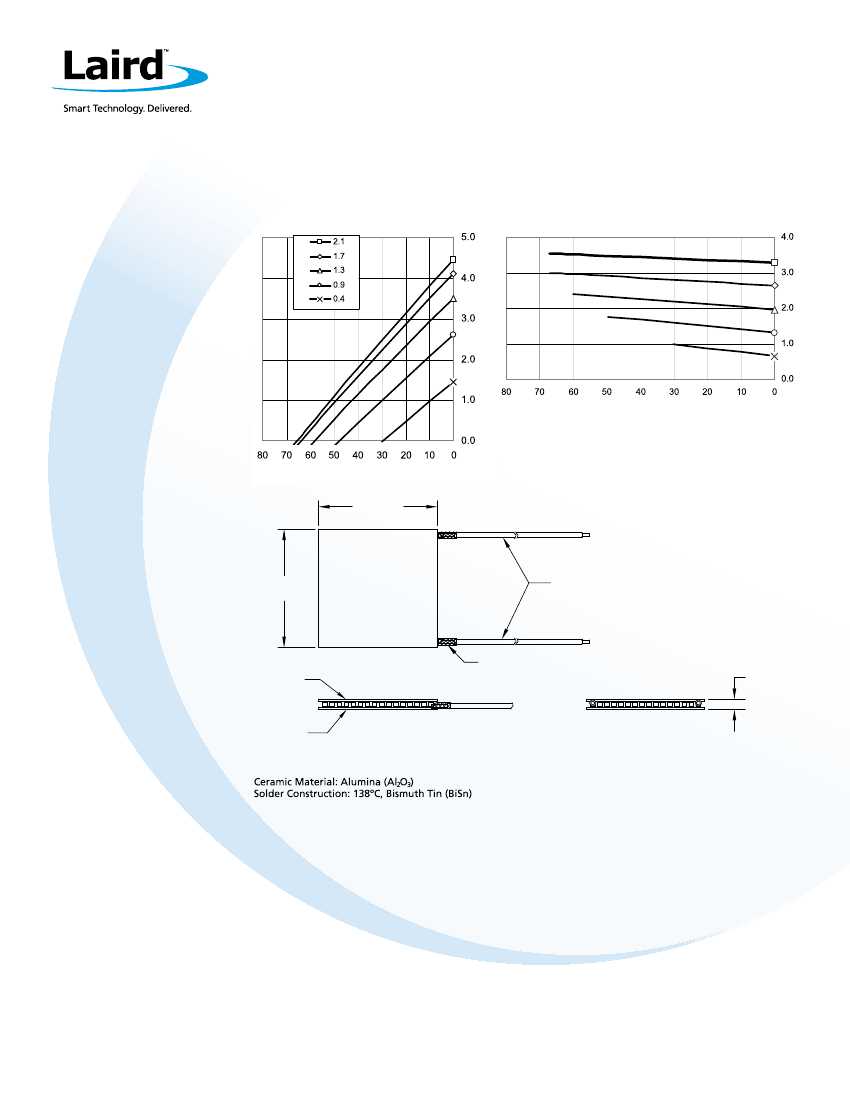

Performance Curves at Th = 25°C
Thermo
A
A
A
A
A
Electric
Qc (W)
Delta T (°C)
Delta T (°C)
0.484
(12.29mm)
(+) RED
0.484
(12.29mm)
(-) BLACK
AWG 26 PVC STRANDED
(SEE TABLE)
COLD FACE
(SEE OPTIONS)
HEAT SHRINK TUBING
(2 PLACES)
THICKNESS
(SEE OPTIONS)
HOT FACE
(SEE OPTIONS)
Operating Tips
• Max Operating Temperature: 80°C
• Do not exceed Imax or Vmax when
operating module
• Reference assembly guidelines for
recommended installation
• Solder tinning also available on
metallized ceramics
CP08,31,06 0613
