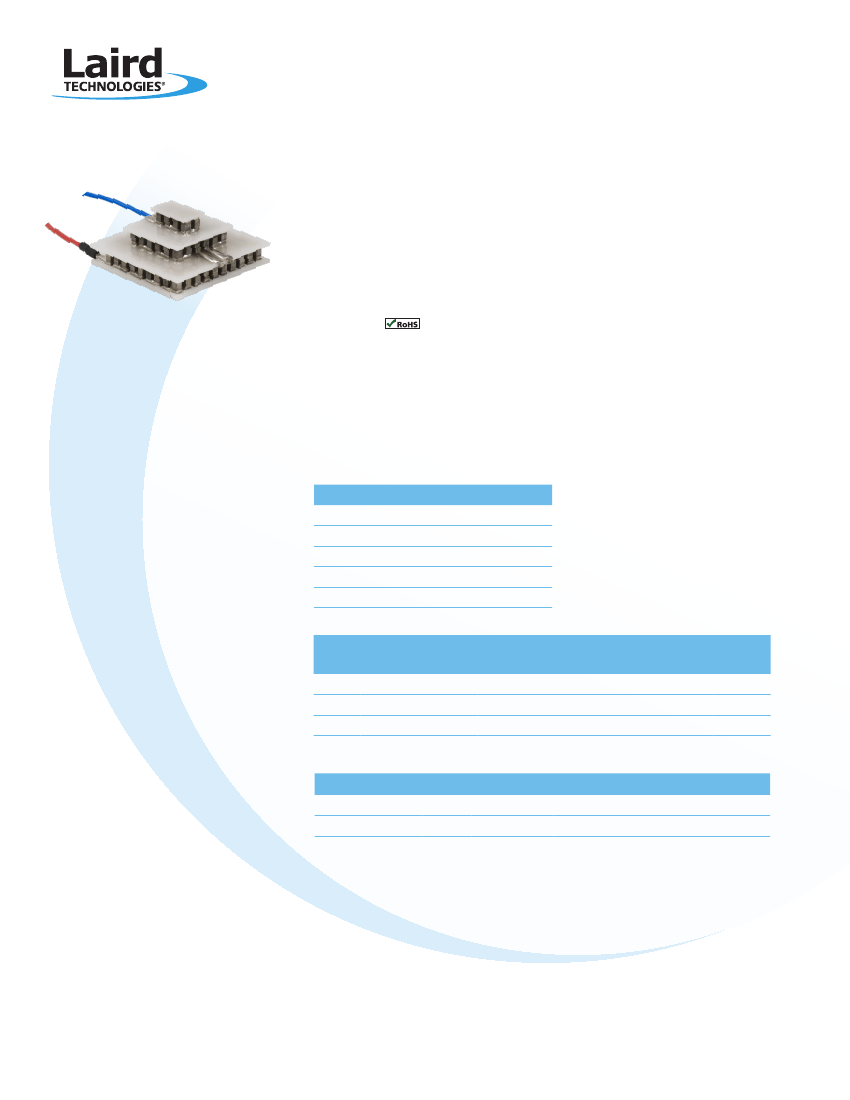

Thermoelectric Modules
The MS Series of thermoelectric modules (TEMs) are designed to reach cool down
temperatures that are not achievable with single stage TEMs.
This product line is available in numerous heat pumping capacities, geometric shapes
and temperature differentials. Assembled with Bismuth Telluride semiconductor material
and thermally conductive Aluminum Oxide ceramics, the MS Series is designed for higher
current and lower heat-pumping applications.
FeatureS
•
•
•
•
•
•
High temperature differential
Precise temperature control
Reliable solid state operation
Environmentally friendly
DC operation
RoHS compliant
applicationS
•
•
•
•
•
•
•
CCD cameras
Electron microscope
Calibration equipment
Photonics laser systems
Gas analyzers
infrared (IR) Sensors
Guidance Systems
perforMance SpecificaTionS
hot Side Temperature (°c)
Qmax (Watts)
delta Tmax (°c)
imax (amps)
Vmax (Volts)
25
16.4
87
2.9
15.6
Suffix ThickneSS
(prior To Tinning)
00
11
22
0.264”± 0.008”
0.256”± 0.008”
0.264”± 0.008”
flaTneSS &
paralleliSM
0.001” / 0.004”
0.001” / 0.002”
0.001” / 0.004”
hoT
face
Metallized
Lapped
Pre-tinned
cold
face
Metallized
Lapped
Pre-tinned
lead
lengTh
7.87”
7.87”
7.87”
Sealing option
Suffix
rT
ep
SealanT color
RTV
Epoxy
White
Black
TeMp range
-60 to 204 °C
-55 to 150 °C
deScripTion
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
global
solutions:
local
support
Americas: +1 888.246.9050
Europe: +46.31.420530
Asia: +86.755.2714.1166
clv.customerpos@lairdtech.com
www.lairdtech.com
TM
Multistage Series MS2,190,10,10,12,12
Innovative
Technology
for a
Connected
World
Thermoelectric Modules

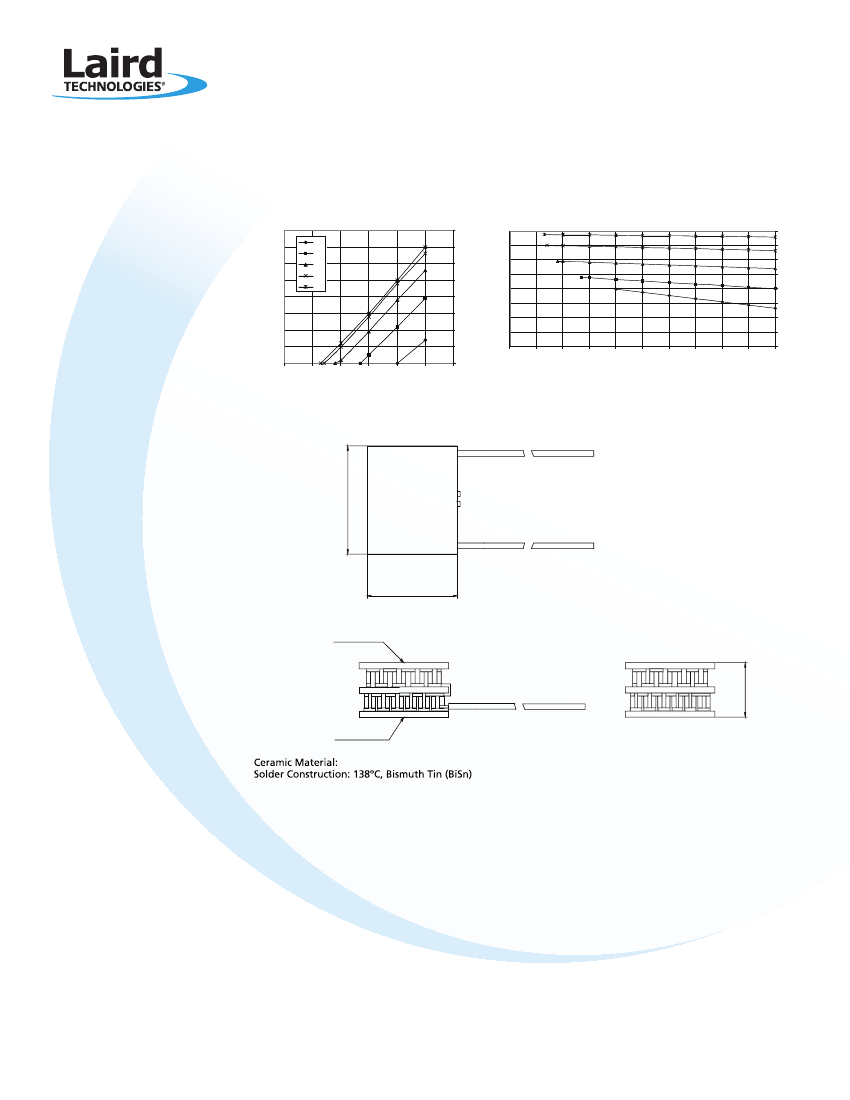

Performance Curves at Th = 25°C
therMo
8.00
1.0
1.5
2.0
2.5
2.9
7.00
6.00
5.00
4.00
3.00
2.00
1.00
0.00
100
90
80
70
60
50
40
electric
16.0
14.0
10.0
Qc (W)
8.0
6.0
4.0
2.0
0.0
100
90
80
70
60
50
40
30
20
10
0
Delta T (°C)
Delta T (°C)
+INPUT
(RED)
1.181±0.008
[30.0±.02MM]
24 AWG UL 1569
-INPUT
(BLACK)
1.181±0.008
[30.0±.02MM]
COLD FACE
SEE TABLE
HOT FACE
SEE TABLE
96% Alumina Ceramics
operating tipS
• Max Operating Temperature: 80°C
• Do not exceed Imax or Vmax when
operating module
• Reference assembly guidelines for
recommended installation
• Solder tinning also available on
metallized ceramics
THR-DS-MS2,190,10,10,12,12 0609
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies
materials rests with the end user, since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness,
merchantability or suitability of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or
consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies’ Terms and Conditions of sale in effect from time to time, a
copy of which will be furnished upon request. © Copyright 2009 Laird Technologies, Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Technologies Logo, and other
marks are trade marks or registered trade marks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the property of third parties.
Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights.
THICKNESS
SEE TABLE
Voltage (V)
12.0
