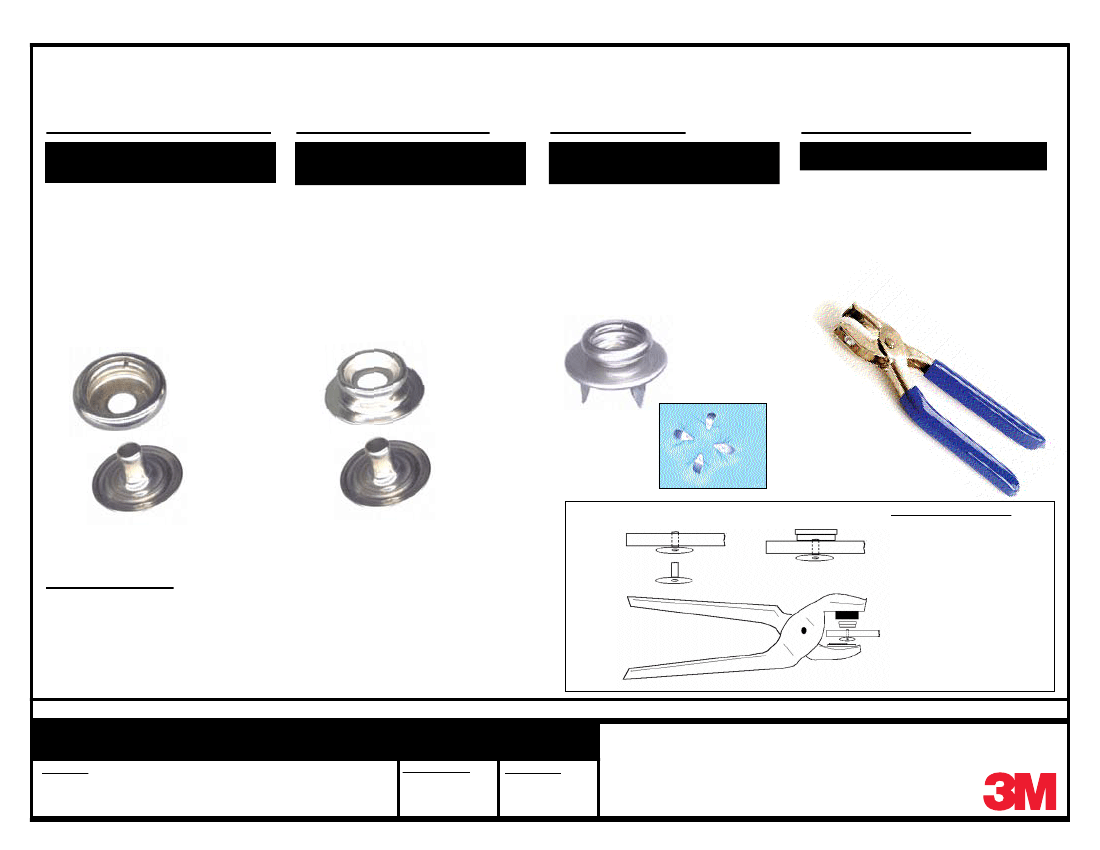

3M™
Snaps are used to connect a ground cord to a static mat. 3M provides two types of snaps. Rivet Style Snaps are attached with a
3M™ Snap
Tool.
Clinch Style Snaps are attached without using a specialized tool. these nickel plated brass snaps provide good electrical connection and a
long
service life.
3M SNAPSOCKET3/8
3/8” (10mm) Female Snap
Rivet Style
Socket snaps are held in place by
crimping the tip of an eyelet though
the center of the socket with a snap
tool. this traps the mat between the
socket on the top of the mat and the
eyelet on the back of the mat. 10
sockets and eyelets are included in
each pack. Use with Snaptool.
3M SNAPSTUD3/8
3/8” (10mm) Male Snap
Rivet Style
Stud snaps are held in place by
crimping the tip of an eyelet though
the center of the stud with a snap
tool. this traps the mat between the
stud on the top of the mat and the
eyelet on the back of the mat. 10
studs and eyelets are included in
each pack. Use with Snaptool.
3M FPSNAP
3/8” (10mm) Female Snap
prong Clinch Style
prong Clinch snaps are held in place
by pushing the prongs through the
mat and crimping them on the bot-
tom of the mat. no special tools are
needed.
3M SNAPTOOL
For attaching Rivet Style Snaps
this simple-to-use tool attaches snaps
to static mats. three easy steps give
you a secure snap with good electrical
connection. Rugged and rust resis-
tant, the Snap tool allows you to put a
grounding snap right where you need
it.
prong
Socket
Socket
Stud
prongs
on back
of mat
1.
mat
eyelet
Eyelet
Eyelet
2.
Snap Tool Instructions
socket or stud
1. press the eyelet through the
mat from the back. (a utility knife
or phillips screw driver can be
used to make a hole.)
2. place the socket or stud on
top of the eyelet
3. position the snap tool over the
socket or stud and eyelet and
squeeze firmly.
Item Numbers:
SnapSoCKEt3/8
SnapStUd3/8
FpSnap
Snap tool
3/8” Female snap and eyelet
3/8” Male snap and eyelet
3/8” Female prong snap
Snap attaching tool
10 each per pack
10 each per pack
10 each per pack
3.
p
r
o
d
u
c
t
d
a
t
a
s
h
e
e
t
Snaps and Snap Tool
-
for static mats
product
item number
datasheet
SnapS and Snap tool
see above
1140-
a
3M is a trademark of 3M Company.
3M Electronic Solutions Division
6801 River Place Blvd.
all other trademarks herein are the property
Austin, TX 78726-9000
of their respective owners.
US and Canada:
866-722-3736
Fax: 866-722-3735
Intl: 919-718-0000; Fax: 919-774-8174
email: 3Mstaticinfo@mmm.com; www.3M.com/static
© 2008
