New Product Bulletin
NP 313
Compression
Connectors and Tools
Belden
®
offers a new
line of F, BNC and RCA
Compression Connectors
and Tools for audio/video,
safety and security applications.
Signal integrity is maximized
by pairing Belden Connectors to
Belden Cables.
Belden Audio/ Video, Safety
and Security Compression
Connectors and Tools Save
Time and Money
Belden is pleased to offer a line of Compression
Connectors and Tools for the audio/video, safety
and security markets.
Built to Belden’s exacting standards, Belden
Connectors and Tools, combined with Belden
Coaxial Cables, provide maximum signal reliability
and performance, which means enhanced
customer satisfaction and profitability for you.
Highlights include:
•
Connector Warranty
-
Limited lifetime when used with Belden Cable
-
Limited 10 years when used with other
brands of cable
Belden Compression Connectors assure the highest
quality, performance and reliability – coupled with
the convenience of buying through a single, familiar
distribution network – saving you time and money.
Connector Applications
•
Belden 360-degree Compression:
-
Triple compression rings
-
Excellent signal integrity with
elimination of crimp reflections
-
Better aesthetics and strength
•
Viewed Entry Point with Pop-up Pin:
-
Visual confirmation of positive termination
-
Reduces call-backs and installation costs
•
Audio and video
•
CCTV
•
Security
•
CATV
•
Fire and Alarm
•
Component cables
•
Control cables
Available from Belden –
A Company You Trust
For years you have been buying Belden bulk
cable. Now allow us to also provide connector
and tool solutions that will save you time, money
and frustration – and that will allow you to
purchase top-quality end-to-end solutions from
a single, most-trusted American source: Belden.
•
Custom Compression Tools:
-
Reduces installation time
-
Requires less force; easier to use
-
Guarantees a positive compression
•
Easy Dispensing Tubes:
-
Hang from belt with opening on bottom
-
Speeds up installation time
Belden Compression Connectors
Belden BNC, RCA and F Compression Connectors
exceed SCTE Standards for signal ingress, egress
and water migration, while providing exceptional
aesthetic and strength characteristics. They ensure
optimal connector performance by offering:
•
Three
360-degree compression rings
•
Visual confirmation of cable entry
•
Better performance with improved
signal impedance
Three 360-degree Compression Rings
This unique technology assures the effectiveness of
the cable-to-connector termination and therefore
the quality of the signal transmission.
1.
Connector pin compresses 360-degrees around
cable center conductor, for greater surface
contact and preservation of center pin shape
2.
Compression circles entire cable ensuring
integrity of dielectric jacket and cable
3.
Machined brass sealing rings create a
permanent water barrier seal and
excellent holding strength

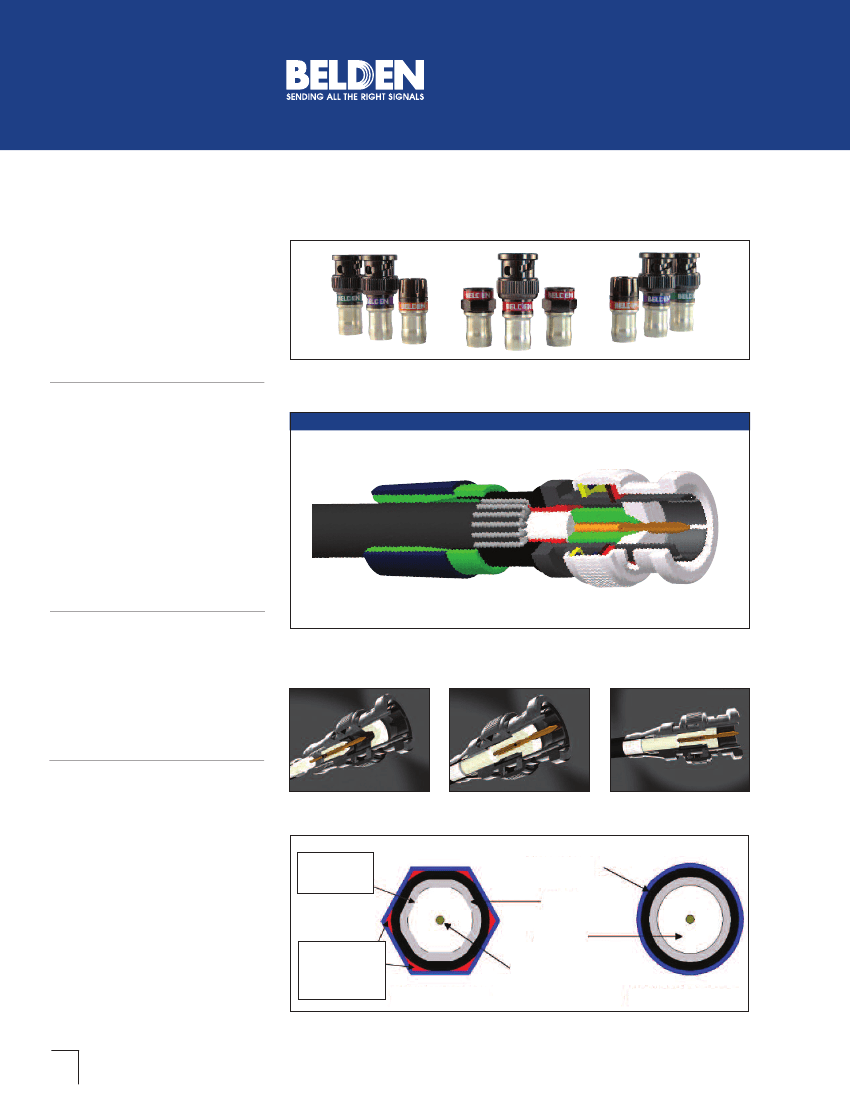

Internal Depiction of a Compressed BNC Connector
Viewed Cable Entry/Termination
Belden offers the ability to see the cable enter
the connector, and for BNC and RCA connectors,
a unique pop-up pin confirms a proper termination
and contact point. Being able to visually confirm
the cable termination means better and faster
installation.
Better Performance
Belden utilizes a compression technique that
preserves the integrity of the signal. Other
connector systems use a crimping technique
which damages the jacket, dielectric and wire,
resulting in multiple signal leakage points and
moisture entry. Belden's compression process
provides a smooth and consistent seal that
reduces signal ingress or egress, prevents moisture
penetration and improves the overall quality
of the installation.
1.
Cable Enters Connector
2.
Pin is Pushed Through
3.
Pin Becomes Clearly Visible
Possible Source
of Forward
Reflections
Coax Jacket
Braid
Dielectric
Open Hex Points
are a Possible Area
for Signal
Ingress/Egress and
Moisture Migration
Center Conductor
Hex Connector
Radial Connector
2
Belden Compression Connectors
(continued)
F Series Connectors
BNC Series Connectors
•
Universal F Type Connectors for standard,
tri-shield and quad-shield RG6U and RG/59U
coaxial cable
•
Universal BNC Type Connectors for standard,
tri-shield and quad-shield RG/6U, RG/6U Plenum
Type 2, RG/59U, and RG/59U Plenum sizes 2/4
coaxial cable
F Series
•
Designed to work with Compression Tool
BBCOMT and Stripping Tool BBRGST
RCA Series Connectors
•
RG59/U BNC Type Connectors for CCTV cable
•
Mini RGB BNC Type Connectors for
22-24 AWG cable
BNC Series
•
Universal RCA Type Connectors for standard,
tri-shield and quad-shield RG/6U coaxial cable
•
BNC Type Connectors for 24-26 AWG cable
•
Designed to work with Compression Tool
BBCOMT and Stripping Tools BBRGST
and BBRGBST
RCA Series
•
Designed to work with Compression Tool
BBCOMT and Stripping Tool BBRGST
Belden Compression Tools
Belden’s Compression Tools are ergonomically
sound and feature high quality aircraft-grade
materials for increased durability. Unique
installer benefits include:
Compression Tool (BBCOMT)
•
Creates two 360-degree compression connections
(one interior and one exterior) for a permanent
connection with superior protection against
moisture
BBCOMT
•
Easier to use, with less force needed
•
Reduced installation time
•
Guarantees a positive compression –
done right the first time
•
Works with BNC, RCA and F Series Connectors
BBRGST
•
Requires no calibration when changing
connector or cable types
Strip Tools for RG/59U or RG/6U Cable
(BBRGST) and Mini RGB Cable (BBRGBST)
•
No additional dies to purchase,
unlike crimp connectors
•
Heavy spring for stripping quad cable (BBRGST)
•
Lighter spring for delicate mini coax (BBRGBST)
•
Built-on Flaring tool for RG6 (BBRGST)
•
Patented positive stop for a perfect
¼” – ¼” prep every time
BBRGBST
•
Steel rollers for ease of use
•
Replaceable blade cartridge
Belden Cables
Belden Cables have been the pre-
ferred choice of the Audio/Video,
A/V, Safety and
Safety and Security industries for
Security Cables
decades and are deployed in every
location imaginable from security
cameras at a casino to multina-
tional corporate video conferencing suites. Belden is also the choice of
installers for audio/video applications in houses of worship, universities,
hospitals, concert halls, and many other installations across the globe.
Belden Assemblies
Reduce your installation time even
further through the use of Pre-termi-
nated Cable Assemblies from Belden.
Belden Assemblies are built to exacting
specifications in a highly controlled
factory environment and offer a life-
time warranty.
Pre-term
Assemblies
3
Sizing
Description
Part No. Quantity
OHM
DC-1 GHz
DC-2 GHz
DC-3 GHz
Pull Force
Center
Lbs.
kg
inch
mm
Dielectric
inch
mm
Outer Jacket
inch
mm
F SERIES Connectors
Gun Metal Finish
RG59 F
•
BB Series
•
Brass Body
•
Nickel Plating
BBRG59F
Tube/50
75
>30dB
Return Loss
<1.07 VSWR
>33dB
Return Loss
<1.07 VSWR
>30dB
Return Loss
<1.10 VSWR
>25dB
Return Loss
<1.10 VSWR
>30dB
Return Loss
<1.16 VSWR
>24dB
Return Loss
<1.16 VSWR
55
24.9
.0317~
.0339
.0399~
.0418
.81~
.86
1.01~
1.06
.144~
.157
.180~
.193
3.66~
3.99
4.57~
4.90
.232~
.273
.265~
.305
5.89~
6.93
6.73~
7.75
RG6 F
BBRG6F
Tube/50
75
65
29.5
BNC SERIES Connectors
Gun Metal Finish
RG59 BNC
•
BB Series
•
Brass Body
•
Nickel Plating
BBRG59B
Tube/25
75
>36dB
Return Loss
<1.03 VSWR
>27dB
Return Loss
<1.09 VSWR
>27dB
Return Loss
<1.07 VSWR
>30dB
Return Loss
<1.07 VSWR
>31dB
Return Loss
<1.05 VSWR
>30dB
Return Loss
<1.07 VSWR
>30dB
Return Loss
<1.07 VSWR
>32dB
Return Loss
<1.05 VSWR
>26dB
Return Loss
<1.09 VSWR
>27dB
Return Loss
<1.09VSWR
>25dB
Return Loss
<1.10 VSWR
>26dB
Return Loss
<1.09 VSWR
>30dB
Return Loss
<1.10 VSWR
>30dB
Return Loss
<1.10 VSWR
>26dB
Return Loss
<1.10 VSWR
>27dB
Return Loss
<1.10 VSWR
>29dB
Return Loss
<1.09 VSWR
>24dB
Return Loss
<1.16 VSWR
>21dB
Return Loss
<1.18 VSWR
>30dB
Return Loss
<1.16 VSWR
>30dB
Return Loss
<1.16 VSWR
65
29.5
.0317~
.0339
.0317~
.0339
.0317~
.0339
.0399~
.0418
.0399~
.0418
.81~
.86
.81~
.86
.81~
.86
1.01~
1.06
1.01 ~
1.06
.144~
.157
.130~
.141
.137~
.148
.180~
.193
.165~
.172
3.66~
3.99
3.30~
3.58
3.48~
3.76
4.57~
4.90
4.19~
4.37
.232~
.273
.190~
.220
.232~
.248
.265~
.305
.220~
.250
5.89~
6.93
4.83~
5.59
5.89~
6.30
6.73~
7.75
6.59~
6.35
RG59 BNC
BBRG59P
Tube/25
Plenum
(PL2/4 Size)
RG59 CCTV
BBRG59C
Tube/25
Cable BNC
RG6 BNC
BBRG6B
Tube/25
75
65
29.5
75
65
29.5
75
65
29.5
RG6 BNC
Plenum
Type 2
(PL2 Size)
Mini RGB
AWG BNC
22-24
24-26 AWG
BNC
BBRG6P2
Tube/25
75
65
29.5
BBMINIB
Tube/25
75
Generally
Exceeds
Jacket Strength
Generally
Exceeds
Jacket Strength
.015~
.025
.015~
.025
.38~
.64
.38~
.64
.095~
.105
.065~
.078
2.41~
2.67
1.65~
1.98
.145~
.160
.095~
.110
3.68~
4.06
2.41~
2.79
BB2426B
Tube/25
75
RCA SERIES Connectors
Gun Metal Finish
RG59 RCA
•
BB Series
•
Brass Body
•
Nickel Plating
BBRG59R
Tube/25
75
> 45dB
Return Loss
<1.03 VSWR
>36dB
Return Loss
<1.03 VSWR
>30dB
Return Loss
<1.07 VSWR
>30dB
Return Loss
<1.07 VSWR
> 40dB
Return Loss
<1.04 VSWR
>35dB
Return Loss
<1.04 VSWR
>30dB
Return Loss
<1.10 VSWR
>30dB
Return Loss
<1.10 VSWR
> 45dB
Return Loss
<1.06 VSWR
>33dB
Return Loss
<1.06 VSWR
>30dB
Return Loss
<1.16 VSWR
>30dB
Return Loss
<1.16 VSWR
65
29.5
.0317~
.0339
.0399~
.0418
.015~
.025
.015~
.025
.81~
.86
1.01~
1.06
.38~
.64
.38~
.64
.144~
.157
.180~
.193
.095~
.105
.065~
.078
3.66~
3.99
4.57~
4.90
2.41~
2.67
1.65~
1.98
.232~
.273
.265~
.305
.145~
.160
.095~
.110
5.89~
6.93
6.73~
7.75
3.68~
4.06
2.41~
2.79
RG6 RCA
BBRG6R
Tube/25
75
65
29.5
Mini RGB
22-24 AWG
RCA
24-26 AWG
RCA
BBMINIR
Tube/25
75
Generally
Exceeds
Jacket Strength
Generally
Exceeds
Jacket Strength
BB2426R
Tube/25
75
Strip Tools
Description
59/6 for RG59
or RG6 Cable
RGB for Mini
RGB Cable
22-26 AWG
Part No.
BBRGST
Quantity
1
Compression Tool
Description
For BB Series F,
RCA and BNC
Connectors
Part No.
BBCOMT
Quantity
1
Kits
Description
Tool Express Kit includes
Compression Tool (1-BBCOMT),
RG59/RG6 Strip Tool (1-BBRGST)
Starter Kit includes Connectors
(25-BBRG59F, 10-BBRG59B,
10-BBRG6B, 10-BBRG59C,
10-BB2426B, 10-BBMINIR),
Compression Tool (1-BBCOMT),
RG59/RG6 Strip Tool (1-BBRGST),
RGB Strip Tool (1-BBRGBST)
Part No.
BBTEKIT
Quantity
1
BBRGBST
1
BBSTKIT
1
Belden Technical Support
1.800.BELDEN.1
(800.235.3361)
©
Copyright 2010, Belden Inc.
www.belden.com
NP313
京公网安备 11010802033920号
EEWORLD
