TPSMC18AHE3_A/H datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> TPSMC18AHE3_A/H

TPSMC18AHE3_A/H: Descriptiontvs diodes - transient voltage suppressors 1.5kw 18v 5% unidir; CategoryDiscrete semiconductor diode; File Size86KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

TPSMC18AHE3_A/H Overview

tvs diodes - transient voltage suppressors 1.5kw 18v 5% unidir

TPSMC18AHE3_A/H Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AB
package instruction	ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
Contacts	2
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	HIGH RELIABILITY, EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage	18.9 V
Minimum breakdown voltage	17.1 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	185 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	15.3 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

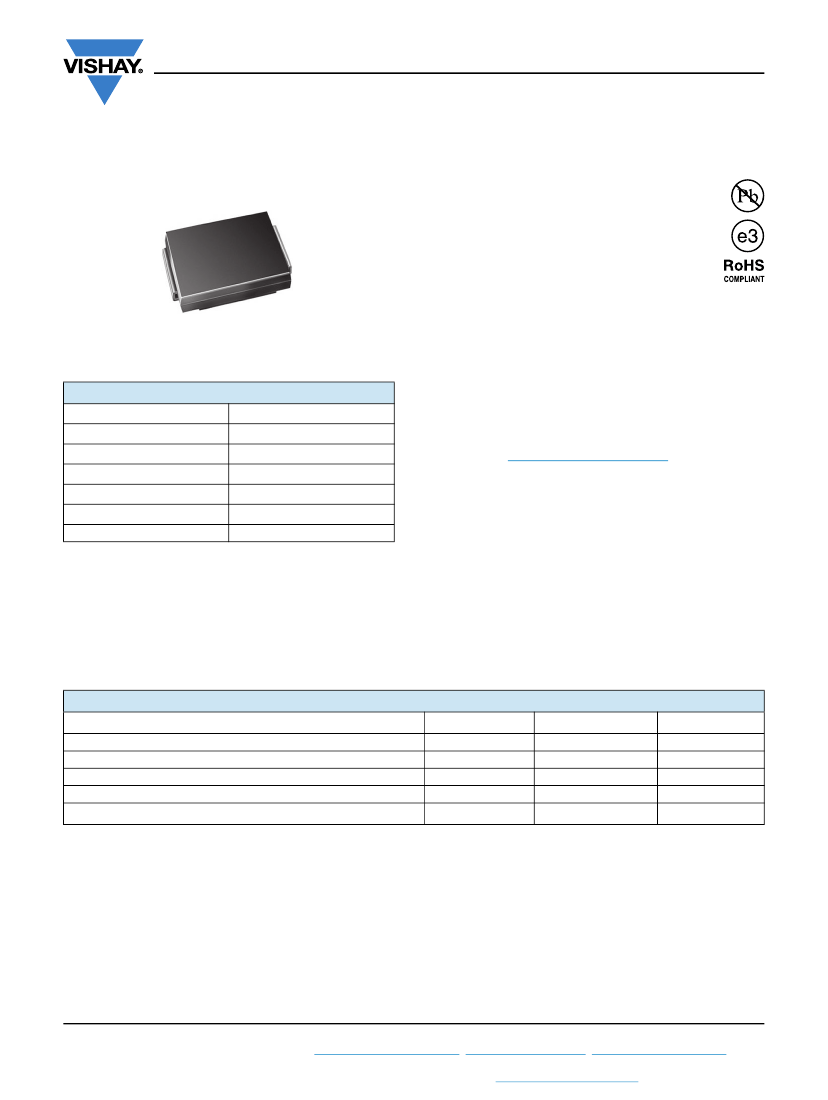

TPSMC6.8 thru TPSMC47A

www.vishay.com

Vishay General Semiconductor

Surface Mount PAR

Transient Voltage Suppressors

High Temperature Stability and High Reliability Conditions

FEATURES

• Junction

passivation

optimized

design

passivated anisotropic rectifier technology

• T

= 185 °C capability suitable for high reliability

and automotive requirement

• Available in uni-directional polarity only

• 1500 W peak pulse power capability with a

10/1000 μs waveform

DO-214AB (SMCJ)

• Excellent clamping capability

• Very fast response time

• Low incremental surge resistance

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• AEC-Q101 qualified

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

PRIMARY CHARACTERISTICS

PPM

FSM

max.

Polarity

Package

6.8 V to 47 V

5.50 V to 40.2 V

1500 W

200 A

185 °C

Uni-directional

DO-214AB (SMCJ)

MECHANICAL DATA

Case:

DO-214AB (SMCJ)

Molding compound meets UL 94 V-0 flammability rating

Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

(“_X” denotes revision code e.g. A, B, .....)

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

HE3 suffix meets JESD 201 class 2 whisker test

Polarity:

Color band denotes cathode end

per

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and lighting

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, automotive and telecommunication.

MAXIMUM RATINGS

= 25 °C, unless otherwise noted)

PARAMETER

Peak pulse power dissipation with a 10/1000 μs waveform (fig. 3)

(1)(2)

Peak power pulse current with a 10/1000 μs waveform (fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

(2)(3)

Maximum instantaneous forward voltage at 100 A

Operating junction and storage temperature range

(2)(3)

(1)

SYMBOL

PPM

FSM

, T

STG

VALUE

1500

See table next page

200

3.5

- 65 to + 185

UNIT

°C

Notes

(1)

Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2

(2)

Mounted on 0.31" x 0.31" (8.0 mm x 8.0 mm) copper pads at each terminal

(3)

Measured on 8.3 ms single half sine-wave, or equivalent square wave, duty cycle = 4 pulses per minute maximum

Revision: 13-Dec-13

Document Number: 88407

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice
