35507-1203: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Polarized Lck, Yellow Insulator, Plug; CategoryThe connector The connector; File Size233KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

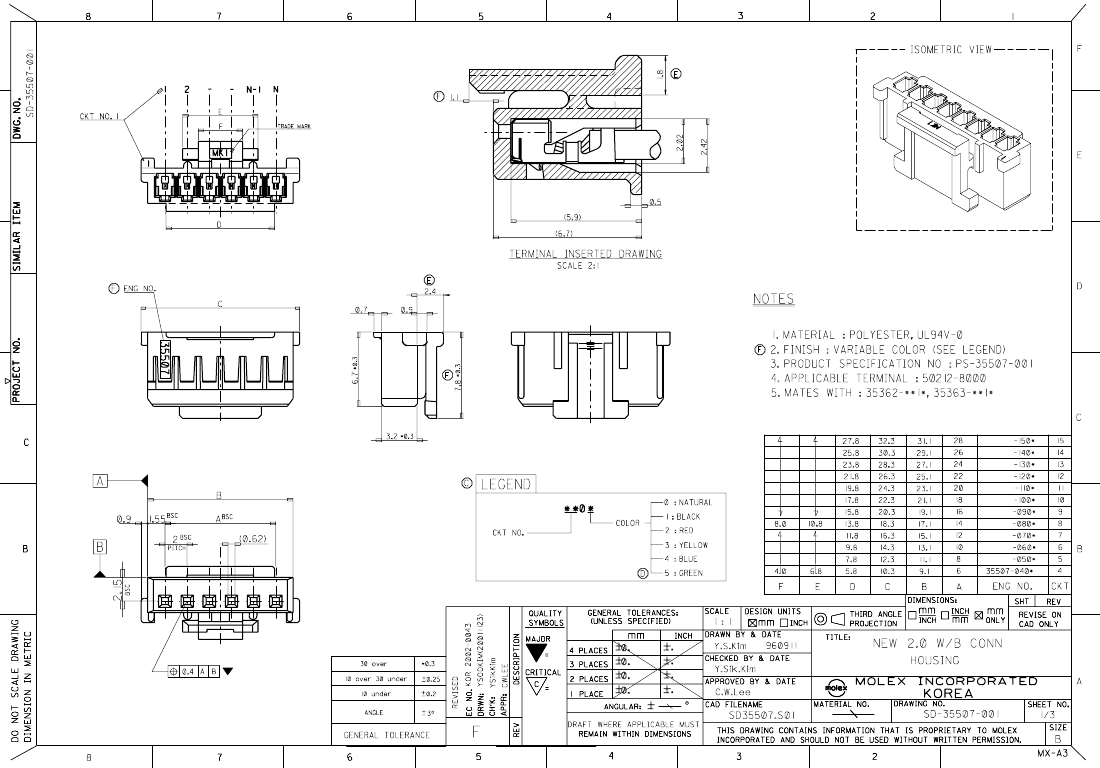

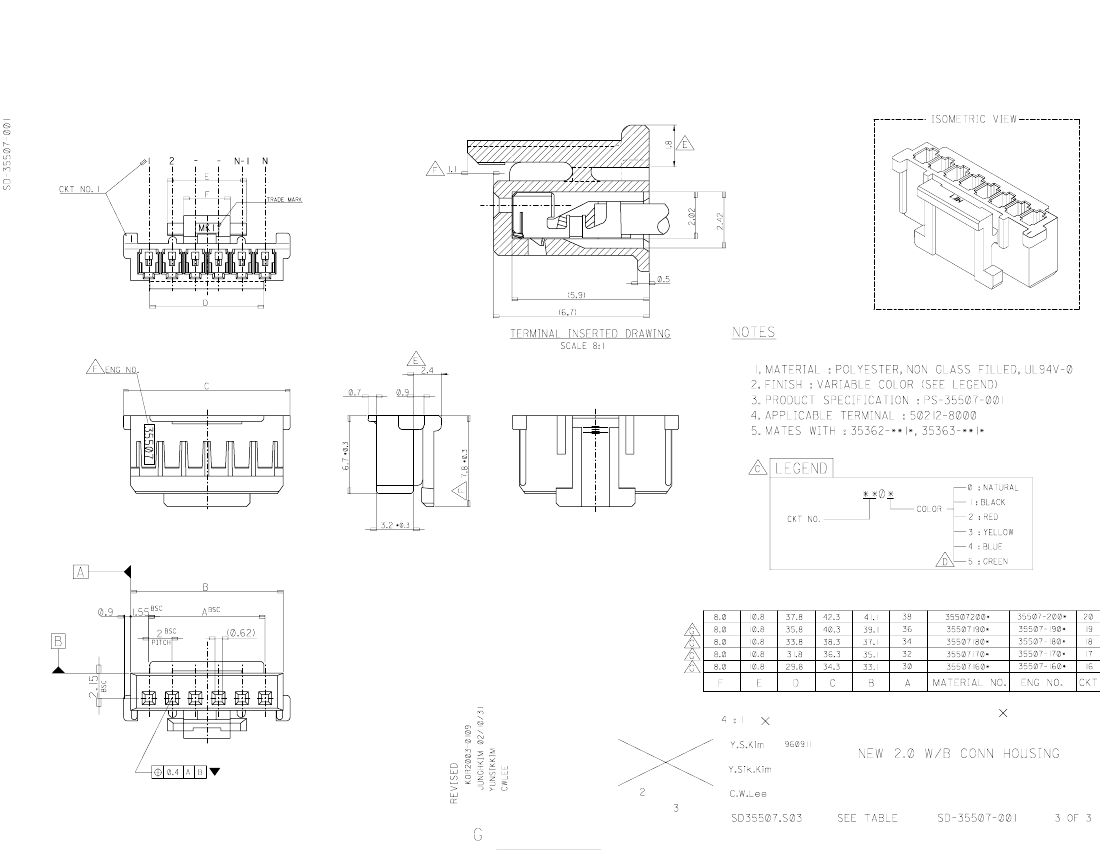

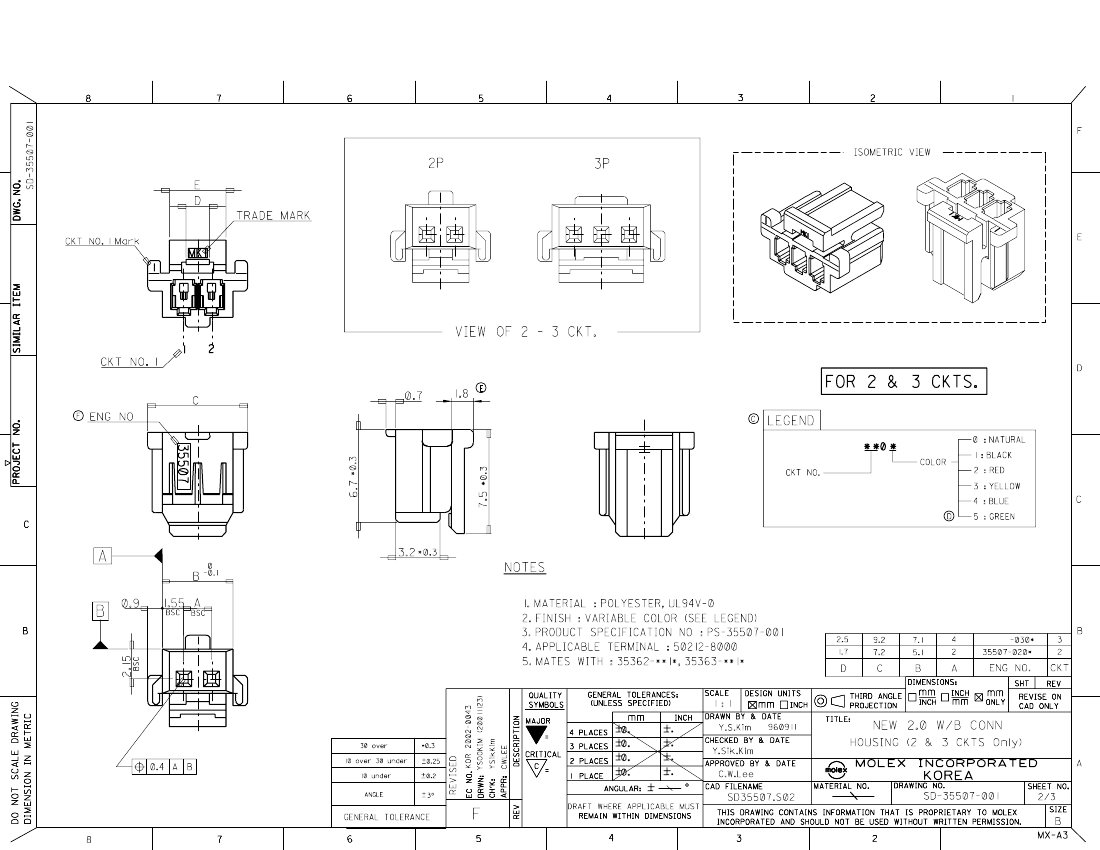

35507-1203 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Polarized Lck, Yellow Insulator, Plug

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	WITH BAG PACKAGING
body width	0.248 inch
subject depth	0.307 inch
body length	1.035 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
maximum insertion force	8.0064 N
Insulation resistance	1000000000 Ω
Insulator color	YELLOW
insulator material	POLYESTER
Manufacturer's serial number	35507
Plug contact pitch	0.079 inch
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Termination type	CRIMP
Total number of contacts	12
Maximum wire diameter	24 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	.695 N
Base Number Matches	1
