VB30120C-E3/8W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> VB30120C-E3/8W

VB30120C-E3/8W: Descriptionschottky diodes & rectifiers 30 amp 120 volt dual trenchmos; CategoryDiscrete semiconductor diode; File Size153KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

VB30120C-E3/8W Overview

schottky diodes & rectifiers 30 amp 120 volt dual trenchmos

VB30120C-E3/8W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	D2PAK
package instruction	R-PSSO-G2
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.76 V
JEDEC-95 code	TO-263AB
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	120 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

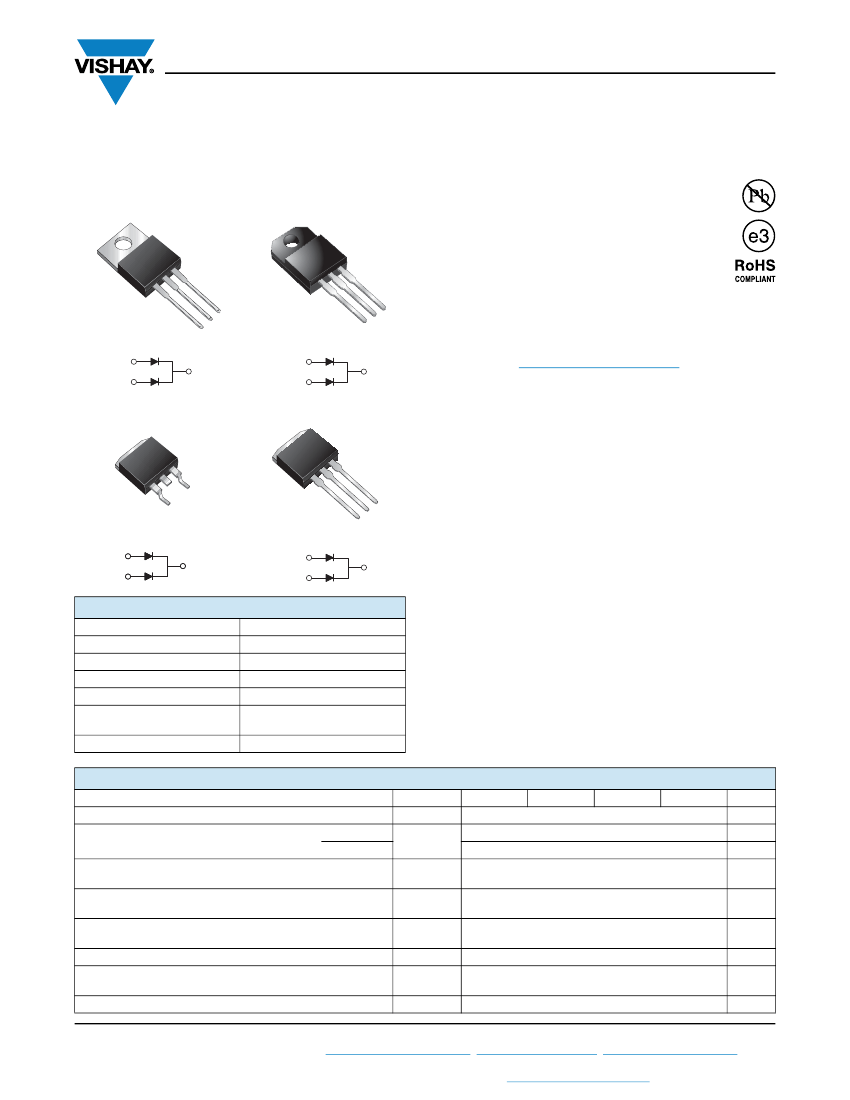

V30120C, VF30120C, VB30120C, VI30120C

www.vishay.com

Vishay General Semiconductor

Ultra Low V

= 0.50 V at I

= 5 A

Dual High Voltage Trench MOS Barrier Schottky Rectifier

TMBS

TO-220AB

ITO-220AB

FEATURES

• Trench MOS Schottky technology

• Low forward voltage drop, low power losses

• High efficiency operation

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

V30120C

PIN 1

PIN 3

PIN 2

CASE

VF30120C

PIN 1

PIN 3

PIN 2

• Solder bath temperature 275 °C maximum, 10 s,

per JESD 22-B106 (for TO-220AB, ITO-220AB

and TO-262AA package)

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

TYPICAL APPLICATIONS

TO-263AB

TO-262AA

For use in high frequency converters, switching power

supplies, freewheeling diodes, OR-ing diode, DC/DC

converters and reverse battery protection.

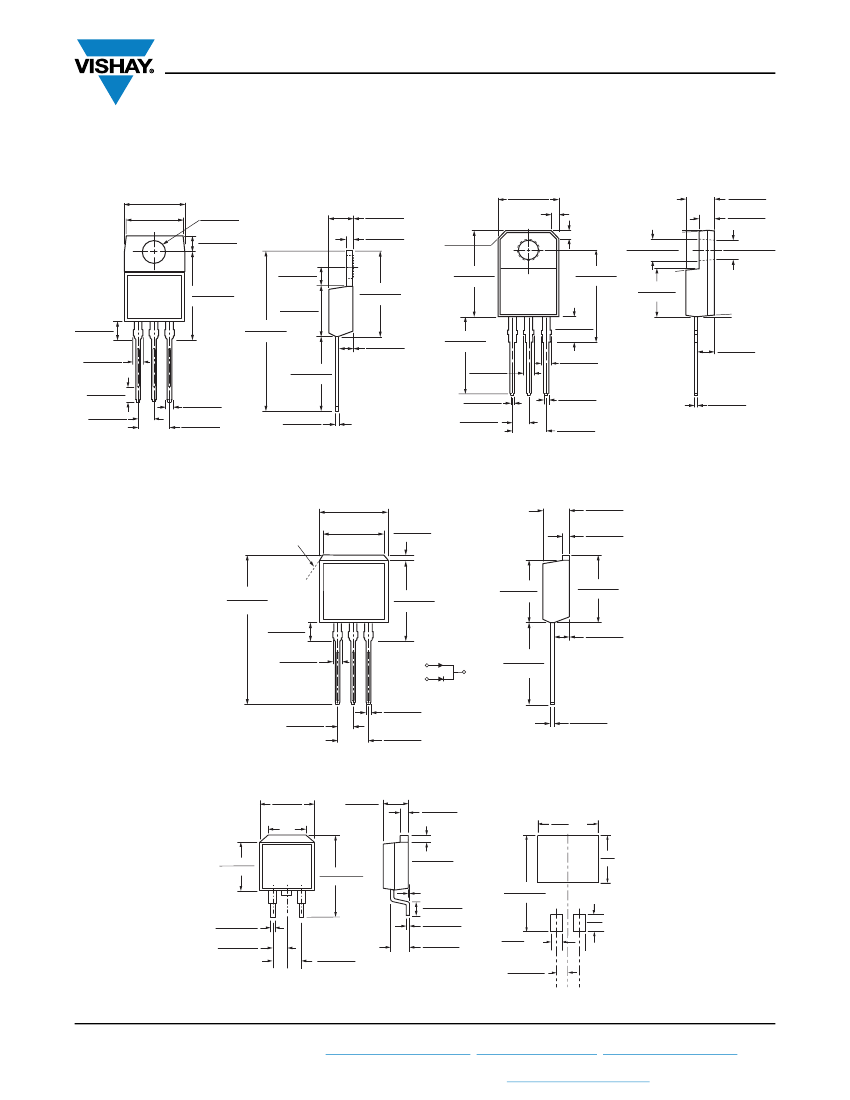

MECHANICAL DATA

VB30120C

PIN 1

PIN 2

HEATSINK

Case:

TO-220AB,

TO-262AA

ITO-220AB,

TO-263AB

and

VI30120C

PIN 1

PIN 3

PIN 2

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS compliant, commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs max.

per

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 15 A

max.

Package

Diode variations

2 x 15 A

120 V

150 A

0.68 V

150 °C

TO-220AB, ITO-220AB,

TO-263AB, TO-262AA

Common cathode

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Max. repetitive peak reverse voltage

Max. average forward rectified current

(fig. 1)

per device

per diode

SYMBOL

RRM

F(AV)

FSM

RRM

dV/dt

, T

STG

V30120C

VF30120C

150

130

0.5

10 000

1500

- 40 to + 150

V/μs

°C

VB30120C

VI30120C

UNIT

120

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load per diode

Non-repetitive avalanche energy



at T

= 25 °C, L = 60 mH per diode

Peak repetitive reverse current at t

= 2 μs, 1 kHz,



= 38 °C ± 2 °C per diode

Voltage rate of change (rated V

)

Isolation voltage (ITO-220AB only)

from terminal to heatsink t = 1 min

Operating junction and storage temperature range

Revision: 16-Aug-13

Document Number: 89041

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000

VB30120C-E3/8W Related Products

	VB30120C-E3/8W	VF30120C-E3/4W
Description	schottky diodes & rectifiers 30 amp 120 volt dual trenchmos	schottky diodes & rectifiers 30 amp 120 volt dual trenchmos
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Vishay	Vishay
Parts packaging code	D2PAK	TO-220AB
package instruction	R-PSSO-G2	R-PSFM-T3
Contacts	3	3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.76 V	0.76 V
JEDEC-95 code	TO-263AB	TO-220AB
JESD-30 code	R-PSSO-G2	R-PSFM-T3
JESD-609 code	e3	e3
Maximum non-repetitive peak forward current	150 A	150 A
Number of components	2	2
Phase	1	1
Number of terminals	2	3
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	245	NOT APPLICABLE
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	120 V	120 V
surface mount	YES	NO
technology	SCHOTTKY	SCHOTTKY
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	40	NOT APPLICABLE
