MA4T631039RT3: DescriptionS BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor The transistor; File Size216KB，8 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

MA4T631039RT3 Overview

S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-4

MA4T631039RT3 Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW NOISE
Shell connection	COLLECTOR
Maximum collector current (IC)	0.01 A
Collector-based maximum capacity	0.55 pF
Collector-emitter maximum voltage	6 V
Configuration	SINGLE
highest frequency band	S BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	12000 MHz
Base Number Matches	1

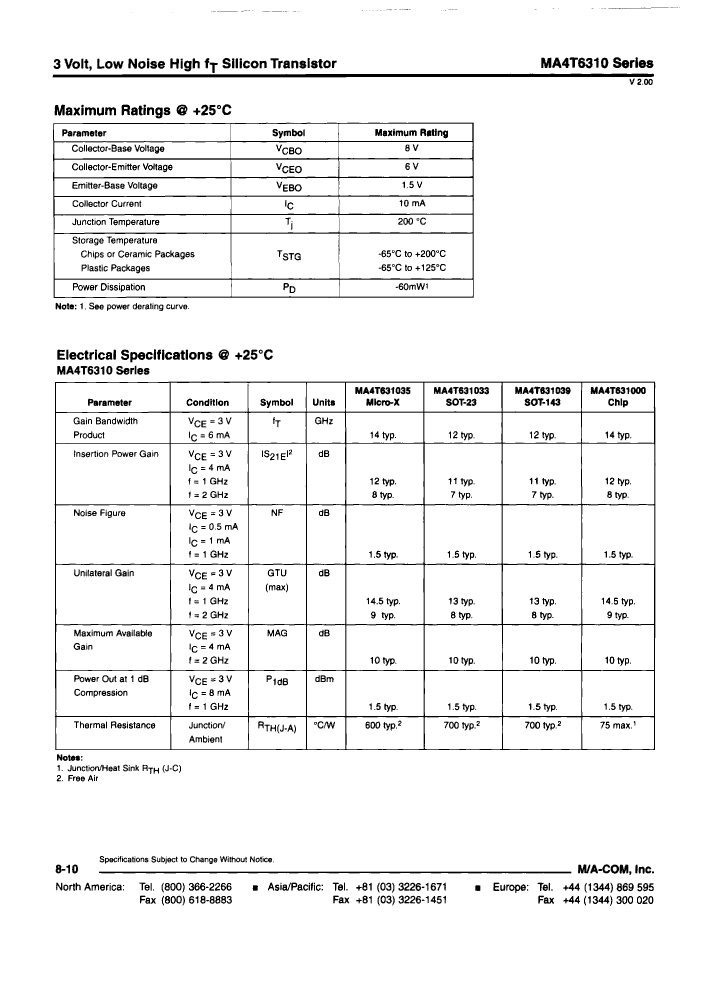

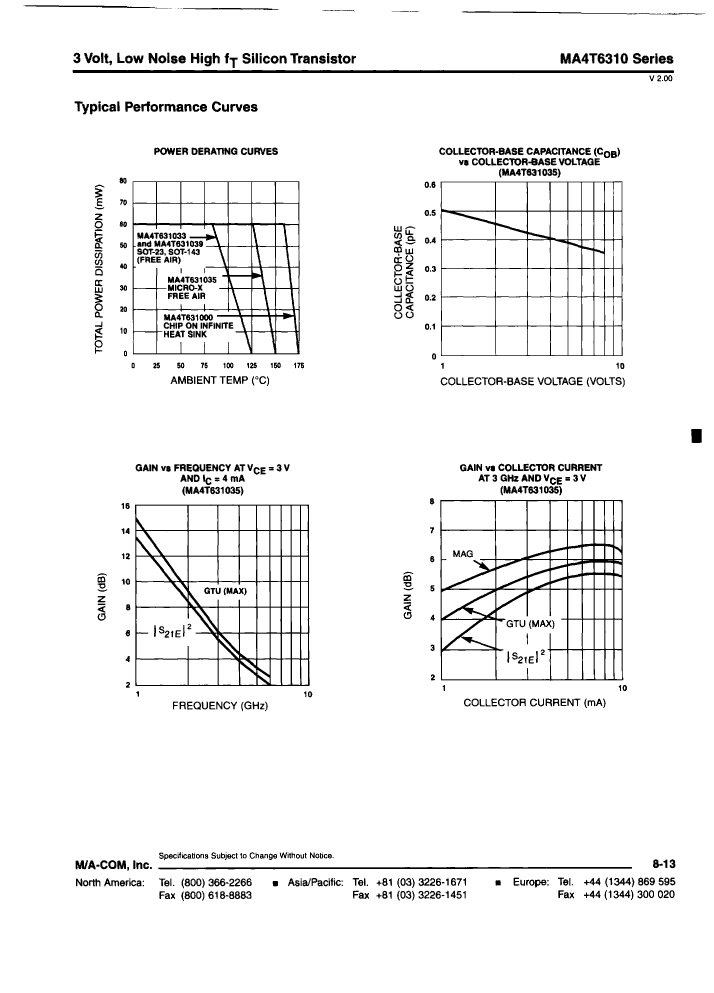

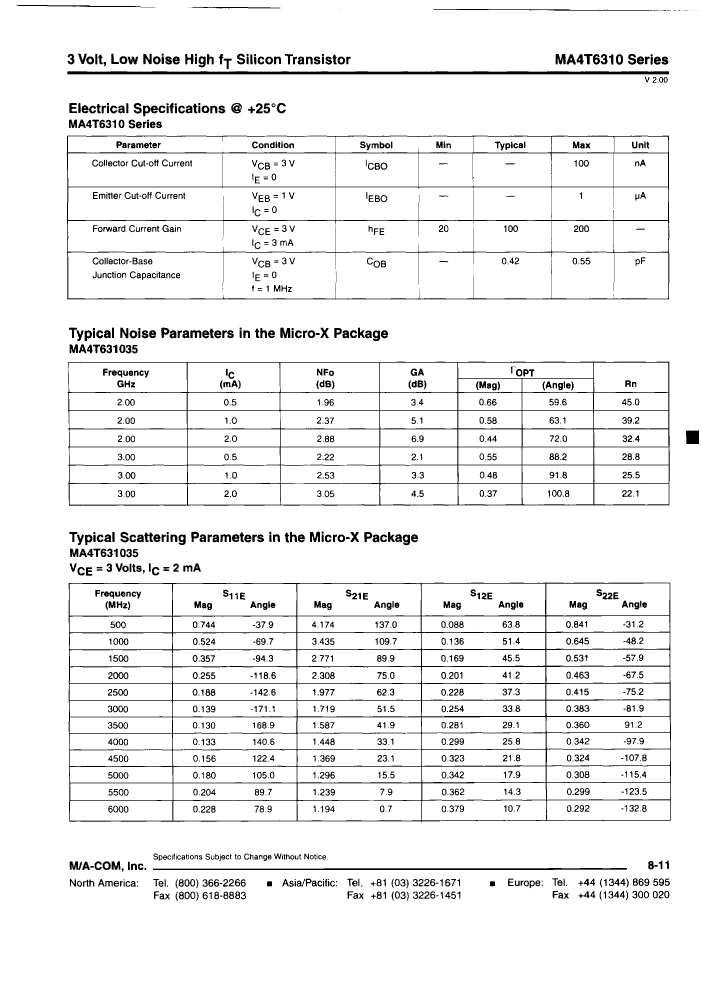

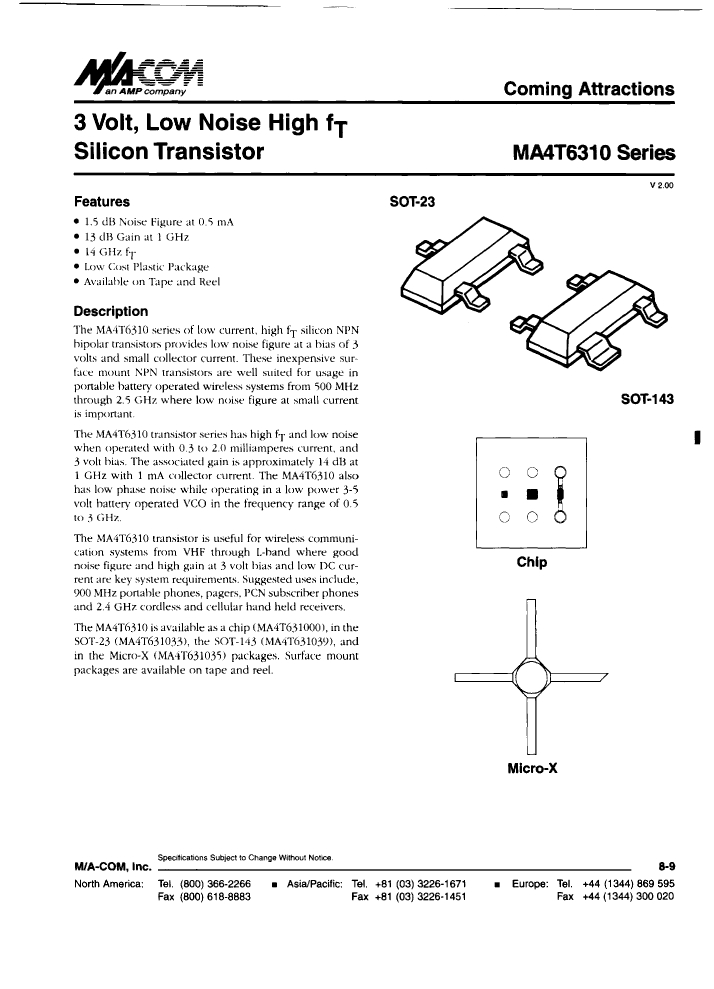

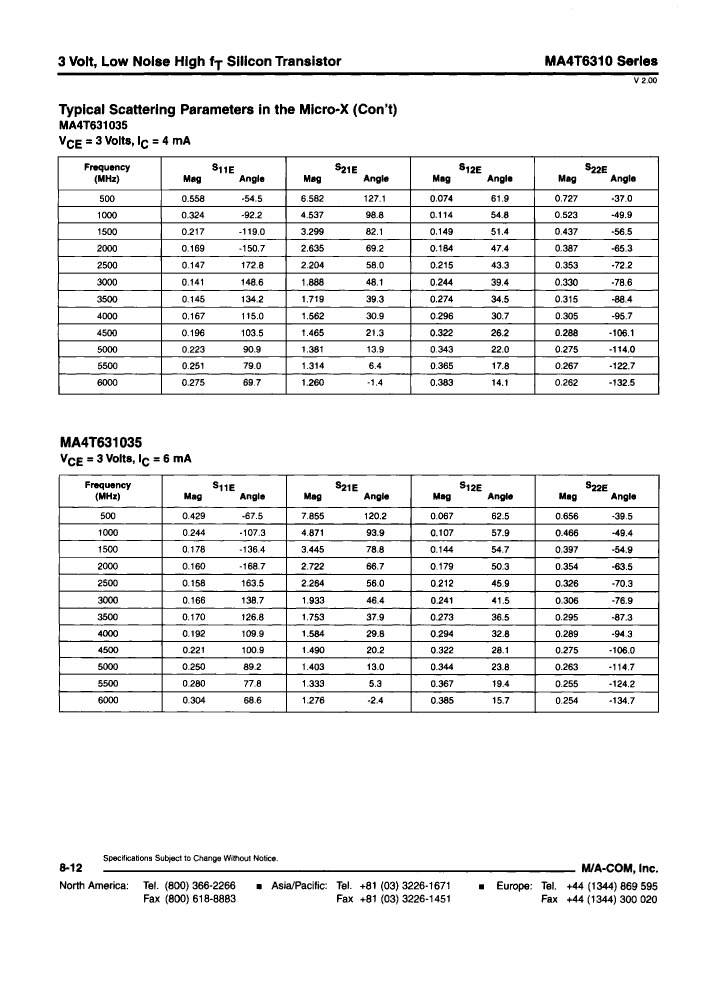

Preview

Download Datasheet

View All

MA4T631039RT3 Related Products

	MA4T631039RT3	MA4T631039RT7	MA4T631033RT7	MA4T631039TR3	MA4T631033RT3	MA4T631033TR3	MA4T631039TR7	MA4T631033TR7
Description	S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-4	S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-4	S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-3	S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-4	S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-3	S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-3	S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-4	S BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, PLASTIC PACKAGE-3
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G3
Contacts	4	4	3	4	3	3	4	3
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE
Maximum collector current (IC)	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A
Collector-based maximum capacity	0.55 pF	0.55 pF	0.55 pF	0.55 pF	0.55 pF	0.55 pF	0.55 pF	0.55 pF
Collector-emitter maximum voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
highest frequency band	S BAND	S BAND	S BAND	S BAND	S BAND	S BAND	S BAND	S BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G3	R-PDSO-G4	R-PDSO-G3	R-PDSO-G3	R-PDSO-G4	R-PDSO-G3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	4	4	3	4	3	3	4	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	12000 MHz	12000 MHz	12000 MHz	12000 MHz	12000 MHz	12000 MHz	12000 MHz	12000 MHz
Maker	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
