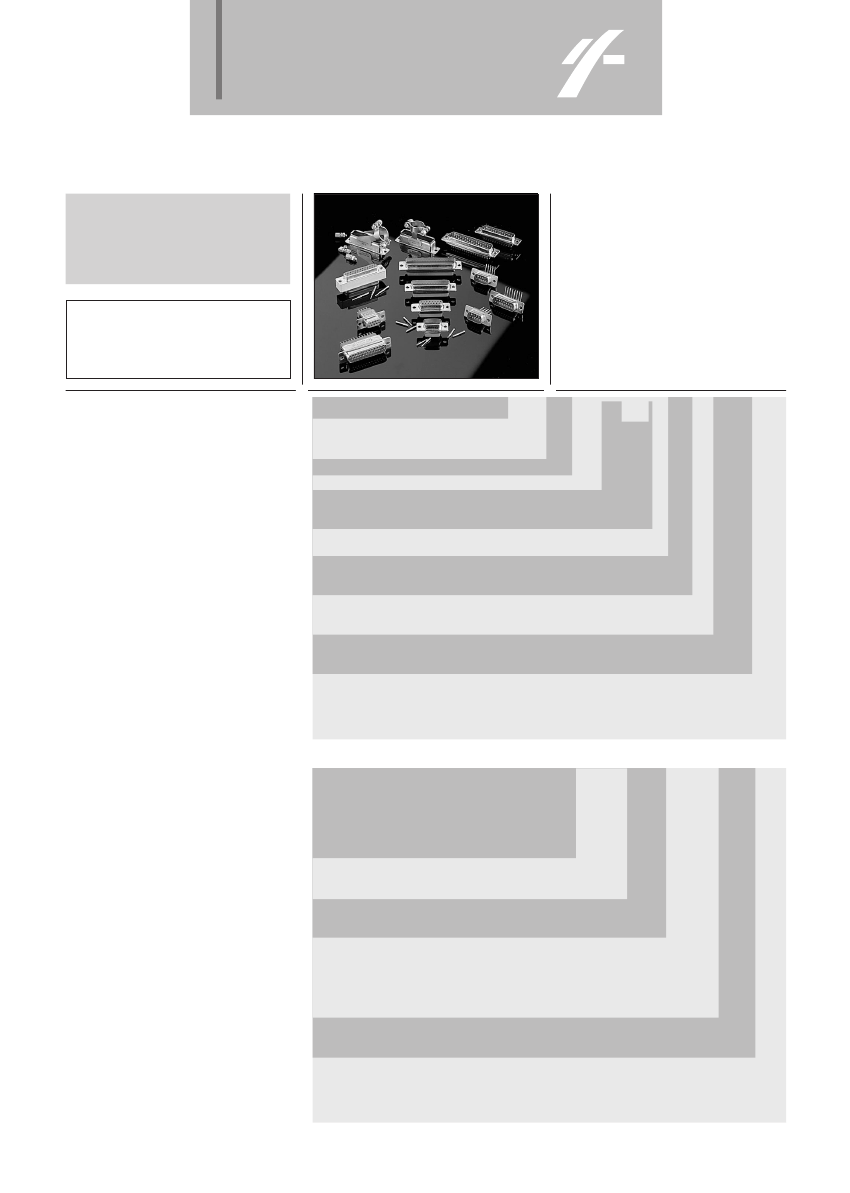

SOURIAU
D-Sub
ESA/SCC 3401 002
Applications
Satellite
Launcher
Space station
Shuttle hardware
Standards
ESA/SCC 3401 - 002
D-Sub with crimp contcts
ESA/SCC 3401 002
non magnetic connec-
tors are used with ESA/SCC 3401 005 remo-
vable crimp contacts.
Standard density (# 20 contacts) and high
density (# 22 contacts) layouts are suitable
for Flying Models
SCC specification number
Variants
01
: standard layout
02
: high density
3401 002 02
B D B MA Y 44 P NMB FO
B testing level: not to be modified
D * MA Series
Shell size
01 :
E
= 9 cts;
A
= 15 cts;
B
= 25 cts;
C
= 37 cts;
D
= 50 cts
02 :
E
= 15 cts;
A
= 26 cts;
B
= 44 cts;
C
= 62 cts;
D
= 78 cts
Without indication : fixed mounting
Y
: float mounting
Contact layouts (see Common table with SCC 3401020 page 366)
01 :
09 - 15 - 25 - 37 - 50
02 :
15 - 26 - 44 - 62 - 78
Contact type
P
= pin
S
= socket
Residual magnetism level
NMB
:
≤
200 gammas
NMC
:
≤
20 gammas
Without indication : connector delivered :
with # 20-24 contacts : variant 01
with # 22-28 contacts : variant 02
FO
: connectors ordered separately from the contacts
(FO is not marked on the connector)
8630 - NMB
non -magnetic connectors use
the same components as the ESA/SCC 3401
002 connectors they are based on.
They are used for applications demanding
high quality level, without the lot acceptance
test or traceability.
They are used with removable crimp
contacts.
This version is suitable for Engineering
Models.
8630 Series
# 20 contacts layouts
8635 Series
# 22 contacts layouts
Note : Float mounting :
Replace 8630 by 8631
Insert «F» after 8635
Contact layout
8630 :
09 - 15 - 25 - 37 - 50
8635 :
15 - 26 - 44 - 62 - 78
8630
25
P
011
NMB L
Contact type
P
= pin
S
= socket
Contact plating
-
011
: 1.27 micron min. gold (MIL-C-24308)
-
038
: 2.54 micron min. gold (ACC to ESA/SCC 3401 005)
Note : To be indicated if connectors are ordered with contacts
(no «L» at the end of the part number)
Indication not marked on the connectors
Residual magnetism level
NMB
:
≤
200 gammas
NMC
:
≤
20 gammas
Without indication : connectors are delivred :
8630 series : with contacts for wires AWG 20 - 24
8635 series : with contacts for wires AWG 22 - 26
-
L
: connectors ordered separately from the contacts
(«L» is not market on the connector)
361
